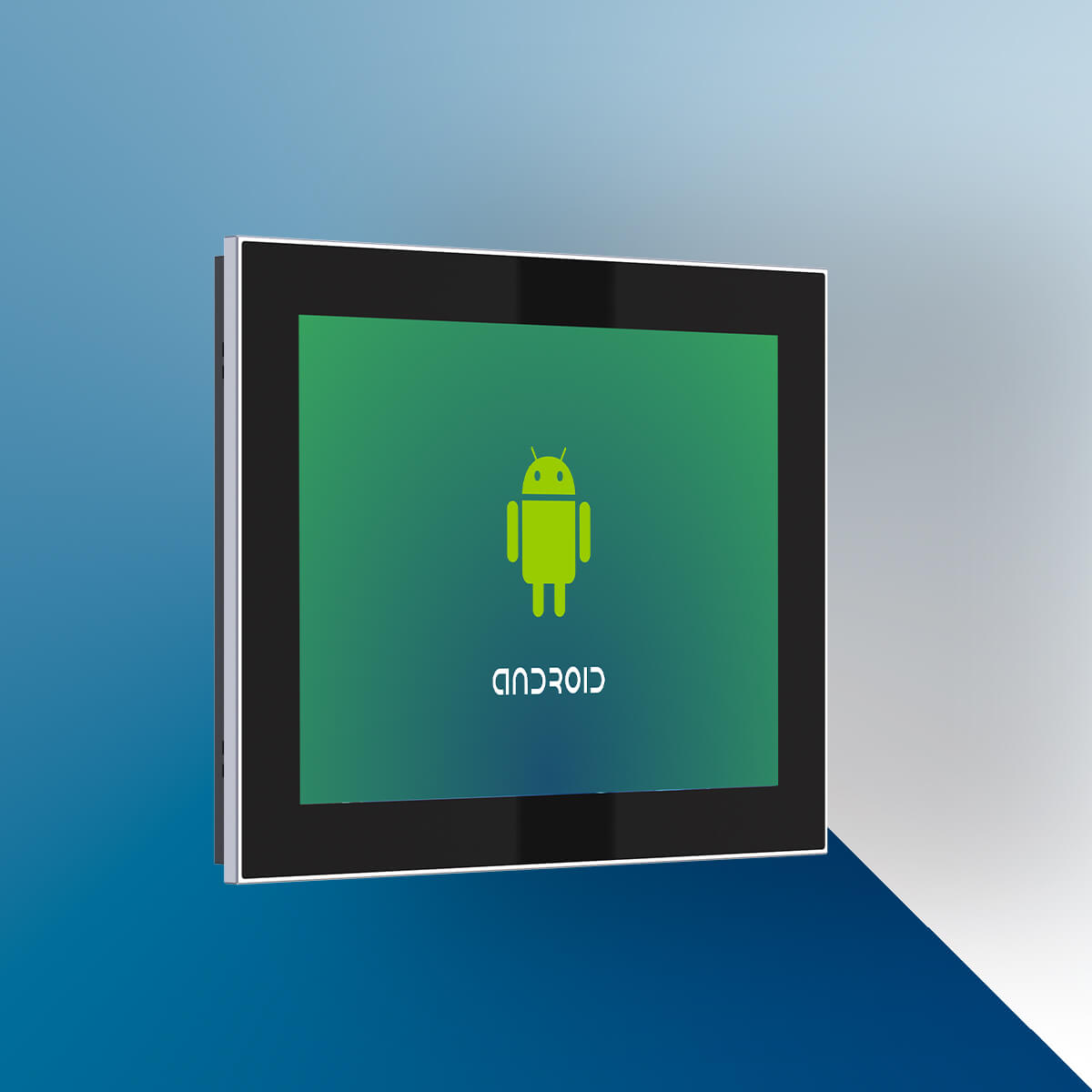

TPC-DCS R2 Series | ARM-Based Panel PC with Rockchip RK3568

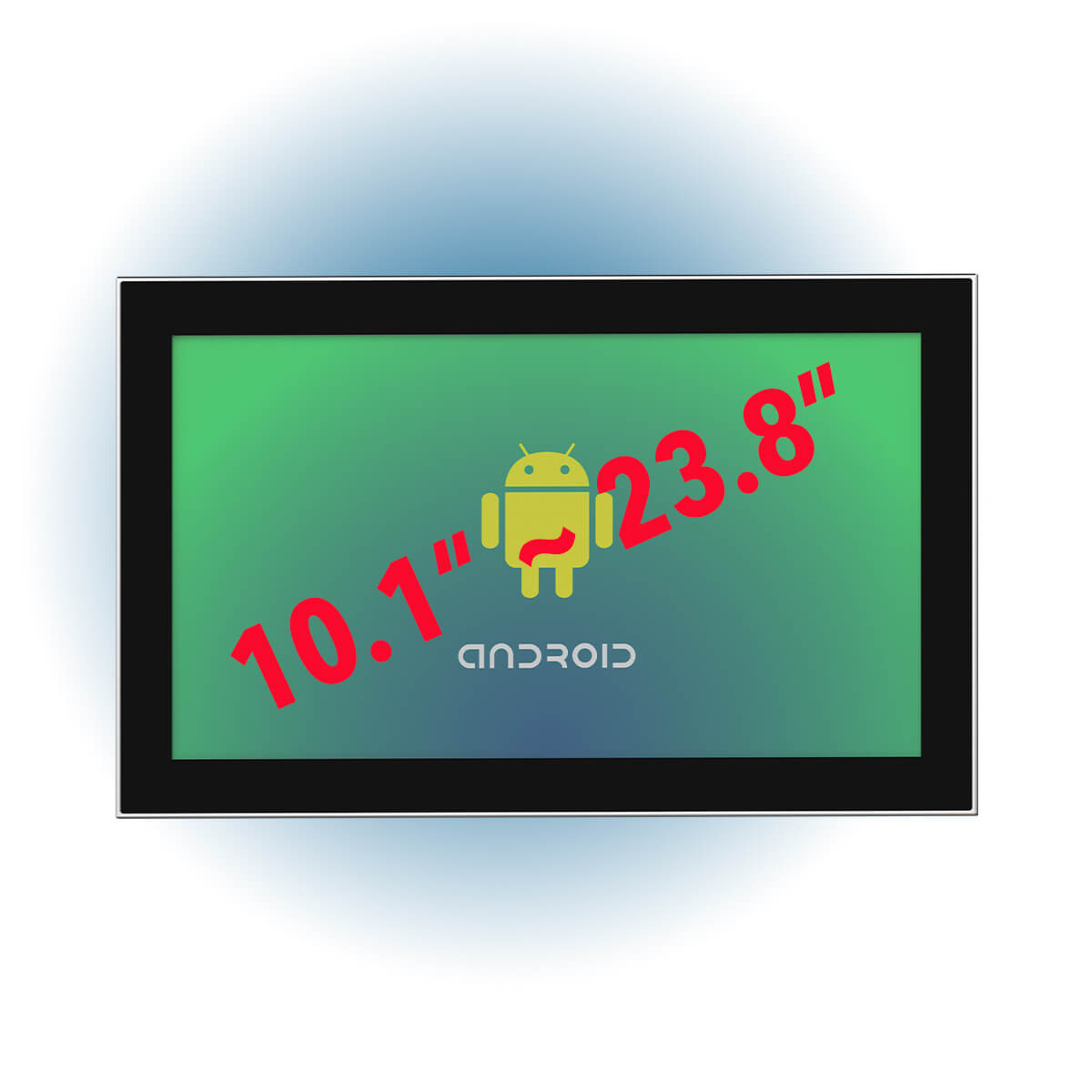

● Full dimensions available, from 10.1″ to 23.8″;
● ARM Rockchip RK3568, Quad-Core Cortex-A55, up to 2.0Ghz;
● 1* SDRAM LPDDR4X-3200MHz on board, 4GB memory;
● On-board 32GB eMMC options, 1* TF Card slot;
● Multi-points (Max. up 10 points) Projective capacitive touch, EETI controller;
● Aluminum-magnesium alloy, anodized treatment, Modular designed;
● DC Terminal 12V power input, optional wide voltage DC 9~36V range;

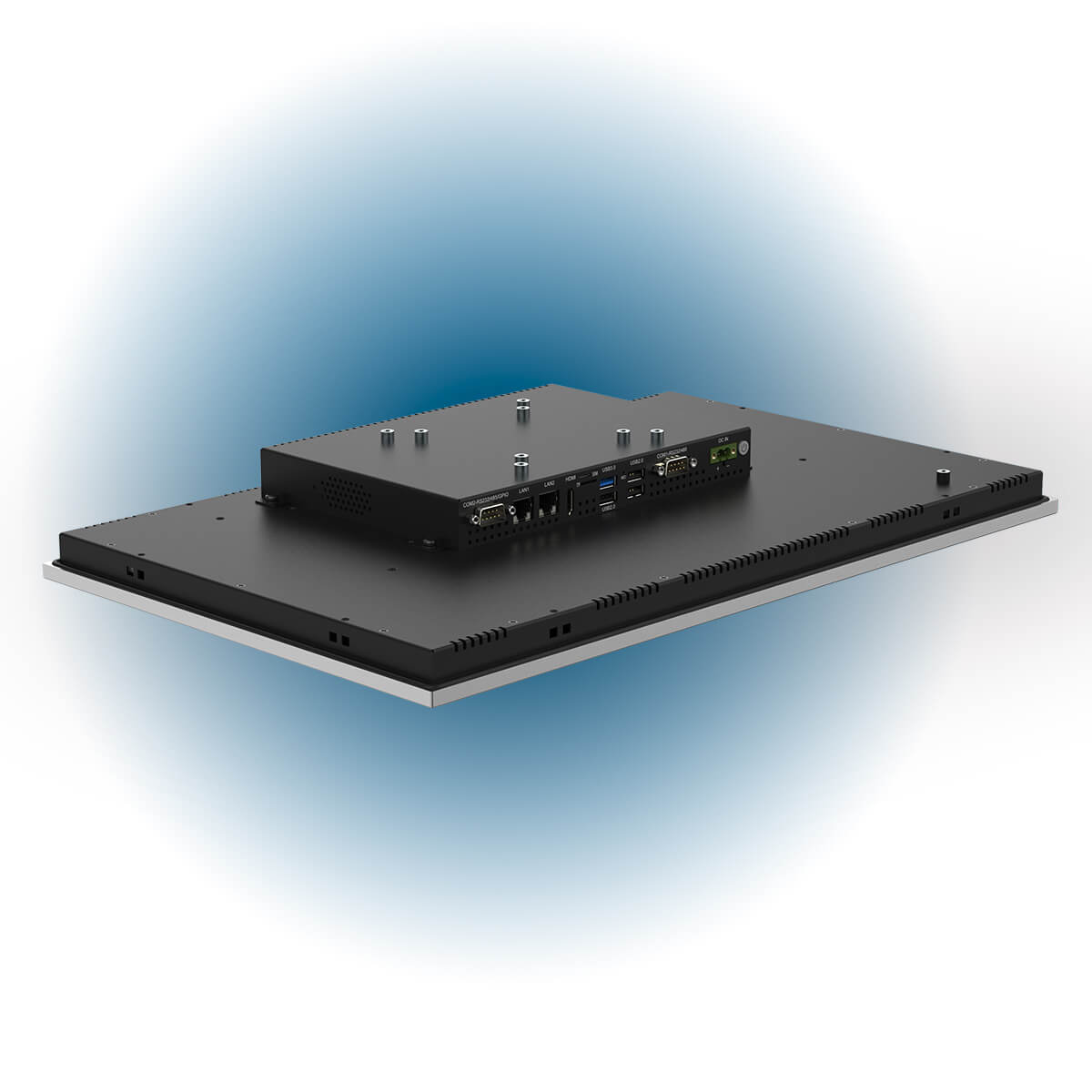

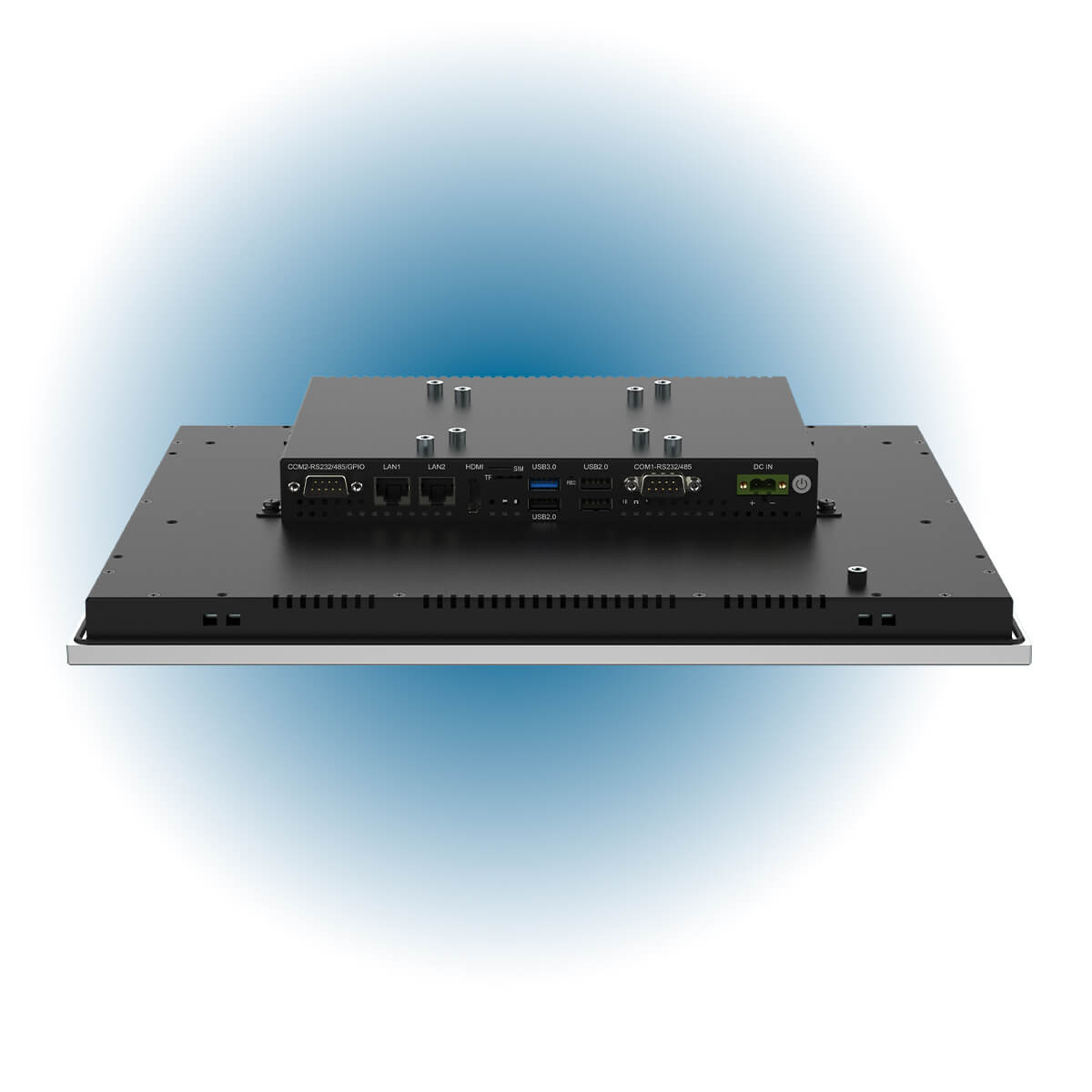

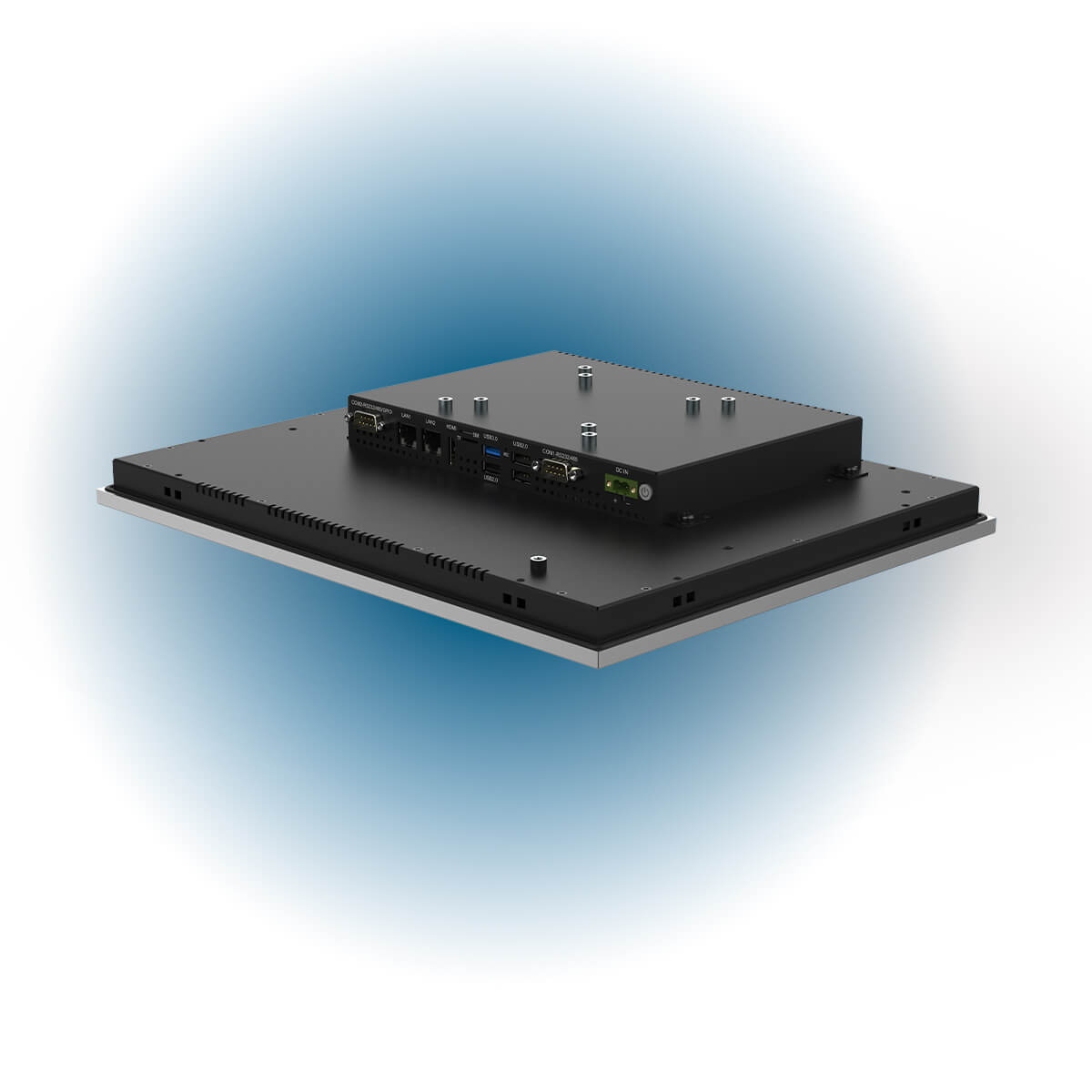

● IO: 2*GLAN, 1*USB3.0, 3*USB2.0, 2*COM (DB9), 1*HDMI,1* SIM card slot;
● Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

INQUIRE NOW
SKU: TPC-DCS R2 Series Category: Tags: , , , ,
Description
TAICENN’s ARM-Based Panel PC with Rockchip RK3568 lineup covers full-size display options ranging from 10.1-inch to 23.8-inch, supporting projective capacitive touch configurations to fit diverse operational preferences. Built on the reliable Rockchip Cortex embedded platform, these industrial-grade HMI terminals run smoothly on Android or Linux operating systems, delivering flexible software compatibility for customized industrial deployments. Featuring rugged enclosures and IP66-rated front bezels, the entire series ensures outstanding durability and consistent performance in harsh industrial environments, serving as a cost-effective solution for factory automation, building automation, security monitoring, and IoT cloud applications.
The newly released TPC-DCS R2 Series is a high-performance ARM-Based Panel PC with Rockchip RK3568 and Mali-G52 GPU. It delivers robust computing power and excellent scalability, fully meeting the data processing and interactive operation demands of modern intelligent industrial scenarios. Equipped with a comprehensive industrial I/O portfolio, this panel PC features 2×GbE Ethernet ports, 1×USB3.0, 3×USB2.0, and 2 configurable COM ports — COM1 supports switchable RS232/RS485 modes, while COM2 defaults to RS232 with optional RS485 or GPIO functions, plus 1×HDMI high-definition output for vivid visual display.
Built with a high-strength aluminum-magnesium alloy housing and fanless passive cooling structure, the TPC-DCS R2 Series ARM-Based Panel PC with Rockchip RK3568 enables silent, dust-free 24/7 operation. It supports standard panel mounting and VESA 75/100 mounting for flexible on-site installation. The device adopts 12V DC power input as standard, with an optional 9~36V wide-voltage DC range to adapt to complex industrial power supply conditions.
For wireless connectivity, the series comes with built-in Wi-Fi functionality and supports extended 3G/4G and 5G cellular modules, enabling stable wireless data transmission and edge networking. Compatible with Android 11 and Linux systems, this versatile industrial panel PC is widely applicable for M2M communication, smart building automation, IIoT systems, intelligent manufacturing, MES production management, service robot control, and commercial automation projects.

ARM-Based Panel PC

Specification
Hardware & System CPU ARM Rockchip RK3568, Quad-core Cortex-A55, Clock speed up to 2.0Ghz
Memory SDRAM LPDDR4X-3200Mhz on board, 4GB capacity
Storage eMMC 5.1, 32GB; 1* TF Card slot
Display 1* HDMI (Type-A), Max. resolution up to 4096x2304 @60Hz
Ethernet 2* Realtek GbE LAN Chip
Wireless Realtek Wireless module on-board, support Wi-Fi 2.4/5 Ghz by default
Expansion slots 1* Mini-PCIe slot (for 4G/3G); 1* M.2 (NGFF) B-key 3052 slot (for 5G)
OS Android 11, Linux
IO interface COM 2*RS232 (COM1 can jumper setting RS485; COM2 optional support RS485/GPIO)
Ethernet 2* RJ45, 10/100/1000 Mbps
Speaker Optional
USB 1* USB3.0/OTG, 3* USB2.0
Power 1x 2pins, phenix terminal
Other ports 1* Recovery Button
LCD Display & Touchsceen Pcap. Touch 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD, 23.8" FHD
Structure Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
IP protection Front Panel IP66
Power & Environmetal Relative Humidity 10 ~ 95% @ 10C (non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
EMC CE/FCC/ROHS
Ordering information
Part no. Description
TPC-DCS101R2B Widescreen 10.1”, WXGA 1280 * 800, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS101R2BW Widescreen 10.1”, WXGA 1280 * 800, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS104R2B 10.4”, XGA 1024 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS104R2BW 10.4”, XGA 1024 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS121R2B 12.1”, XGA 1024 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS121R2BW 12.1”, XGA 1024 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS150R2B 15.0”, XGA 1024 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS150R2BW 15.0”, XGA 1024 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS156HR2B Widescreen 15.6”, 1920 * 1080, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS156HR2BW Widescreen 15.6”, 1920 * 1080, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS170R2B 17.0”, SXGA 1280 * 1024, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS170R2BW 17.0”, SXGA 1280 * 1024, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS185R2B Widescreen 18.5”, 1366 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS158R2BW Widescreen 18.5”, 1366 * 768, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS185HR2B Widescreen 18.5”, 1920 * 1080, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS158HR2BW Widescreen 18.5”, 1920 * 1080, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS190R2B 19.0”, SXGA 1280 * 1024, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS190R2BW 19.0”, SXGA 1280 * 1024, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS215R2B Widescreen 21.5”, 1920 * 1080, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
TPC-DCS215R2BW Widescreen 21.5”, 1920 * 1080, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 9-36V
TPC-DCS238R2B Widescreen 23.8”, 1920 * 1080, Rockchip 3568, Pcap. touch, 4GB RAM+32GB eMMC, 2*GLAN, 1*USB3.0, 3*USB2.0, 2*RS232, 1*HDMI, WiFi+BT, DC Terminal 12V, PSU
Download
Description Download link
TPC-DCS101R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS101R2_EN_V10_Datasheet.PDF
TPC-DCS104R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS104R2_EN_V10_Datasheet.PDF
TPC-DCS121R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS121R2_EN_V10_Datasheet.PDF
TPC-DCS150R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS150R2_EN_V10_Datasheet.PDF
TPC-DCS156HR2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS156HR2_EN_V10_Datasheet.PDF
TPC-DCS170R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS170R2_EN_V10_Datasheet.PDF
TPC-DCS185R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS185R2_EN_V10_Datasheet.PDF
TPC-DCS185HR2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS185HR2_EN_V10_Datasheet.PDF
TPC-DCS190R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS190R2_EN_V10_Datasheet.PDF
TPC-DCS215R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS215R2_EN_V10_Datasheet.PDF
TPC-DCS238R2 Data-sheet https://www.taicenn.com/pdf/TPC_DCS238R2_EN_V10_Datasheet.PDF
