TBOX-6N25 | Cabinet Automation PC with Intel N95 CPU
● Rugged & compact design, fanless design;
● Powerful Intel 12th Gen. Alder Lake-N series N95 processors;
● Single DDR4 memory, up to 16GB, 1* M.2 2280 M-key storage;
● DC terminal 12/24V input, Auto Detect;
● 2 GbE, optional with Wi-Fi/BT wireless function;
● 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, Audio;
● 2 M.2 fast-speed expansion slots;
● Cabinet mount, optional Din-Rail mount;
● Industrial operating -20 ~ +60℃ temp. range.
The Taicenn Cabinet Automation PC with Intel N95 CPU is powered by the high-performance Intel® Alder Lake -N series processor. Therefore, it delivers exceptional computing power, efficiency, and future proof technology. It is an ideal automation PC for various of industrial applications in manufacturing systems engineering, Industrial IoT controller, and embedded system.

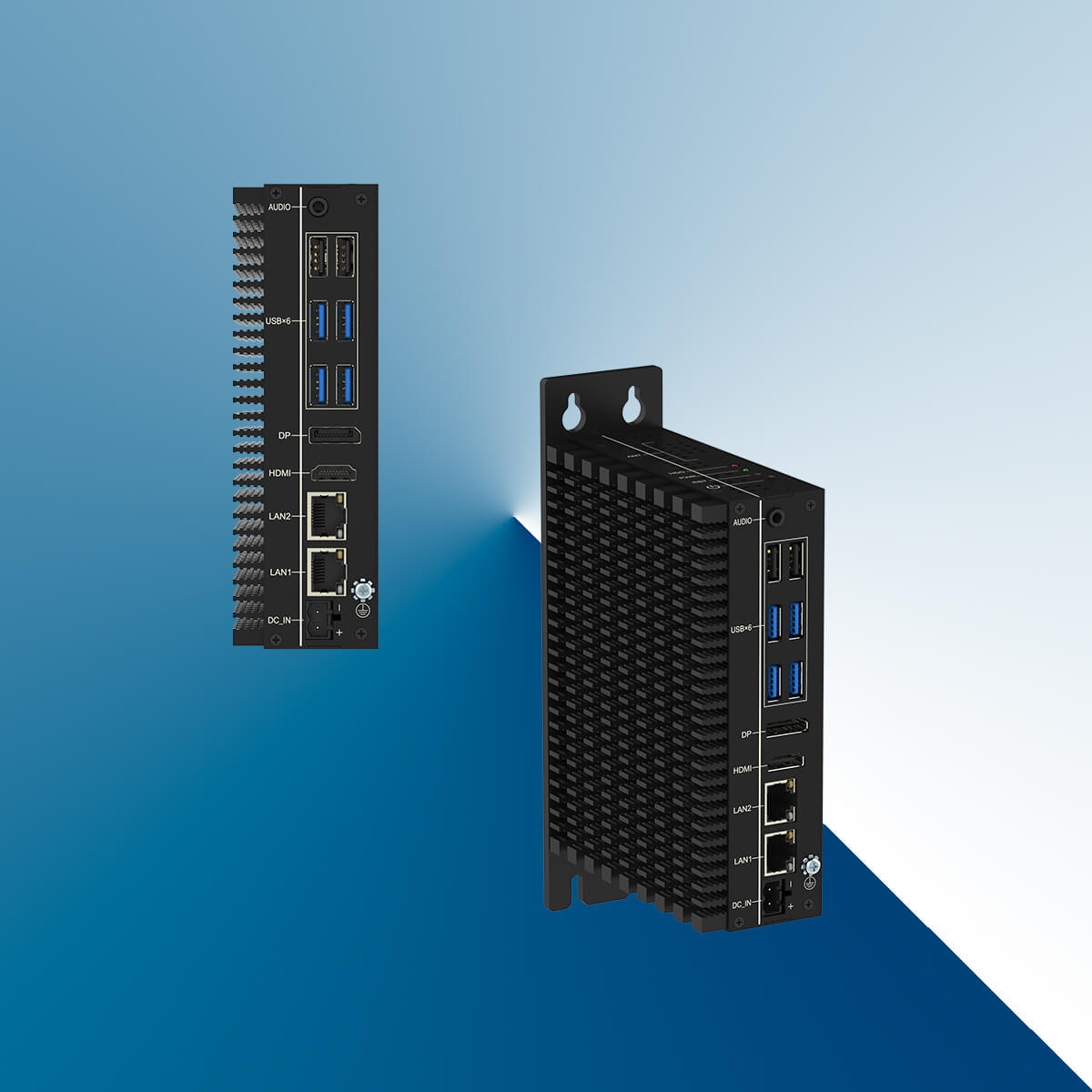

The TAICENN new TBOX-6N25 I/O connections are on one side of the housing, includes 4 USB 3.0 & 2 USB 2.0 ports, 1x HDMI, 1x DP, 2x GbE LAN and Audio ports. This industrial PC can fasten with screws in the control cabinet and optionally equipped with Din-Rail mounting plates on another sides. The Cabinet Automation PC with Intel N95 CPU TBOX-6N15 PCs are supplied with a auto detected 12/24 V DC power supply unit.
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 12th Gen. Alder Lake-N series N95 processor, up to 3.40Ghz, 4E-Core | |
| CPU Ghz | Up to 3.40Ghz, 4E-Core | |
| TDP | 15W | |
| Graphic | Intel UHD Graphics (Up to 16EUs, 1.20Ghz) | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 16GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIex1 & SATA) SSD | |
| Network | 1* Intel I226V, 1* Intel I210AT, Optional support Wi-Fi/BT & Wi-Fi 6 wireless | |
| Expansion | 1* M.2 3042/3052 B-key slot, 1* M.2 E-key slot (Wi-Fi/BT) | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10/Win11 64-bit; Linux | |
| IO interface | Serial port | N/A |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| USB | 4* USB3.0, 2* USB2.0, | |
| Display | 1* HDMI (Max. support 4096 *2160 @30Hz), 1* DP++ (Max. 4096*2160 @60Hz) | |
| Audio | 1* Mic-in/Line-out (2-in-1, 3.5mm Jack) | |
| Power input | 1* 2 pin, DC terminal | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black | |
| Mount method | Cabinet mount, Din-Rail mount (optional) | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |

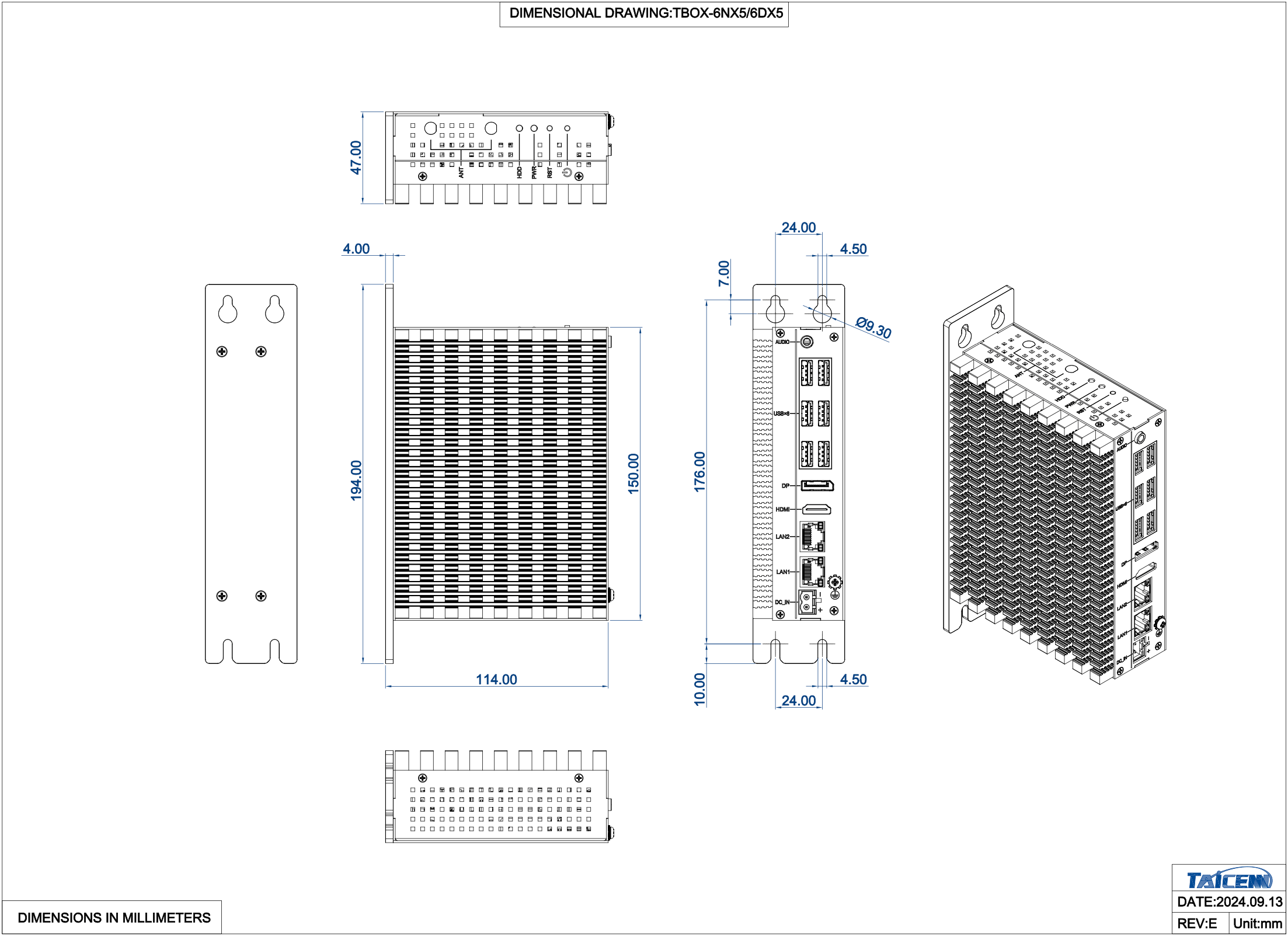

| Dimension | 150.00mm * 114.00mm * 47.00 mm (194.00mm with mount rack) | |
| Net weight | About 1.0 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12/24V (Auto detect) | |
| Power consumption | About 25W | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-6N25 | Intel 12th Gen. Alder Lake-N N95 Processor, 2 RJ45, 4 USB3.0, 2 USB2.0, 1 HDMI, 1DP, Audio, DC terminal 12/24V, No PSU, Cabinet mount rack |
| TBOX-6N25R | Intel 12th Gen. Alder Lake-N N95 Processor, 2 RJ45, 4 USB3.0, 2 USB2.0, 1 HDMI, 1DP, Audio, DC terminal 12/24V, No PSU, Din-Rail mount rack |
| TBOX-6N25N | Intel 12th Gen. Alder Lake-N N95 Processor, 2 RJ45, 4 USB3.0, 2 USB2.0, 1 HDMI, 1DP, Audio, DC terminal 12/24V, No PSU, No mount rack |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB |
| Storage | M.2 (PCIe x1 & SATA) SSD: 128GB/256GB/512GB/1TB |
| Wireless | Wi-Fi module with BT integrated, with antenna |
| Power Supply | 60W/12V power supply unit (If needed) |
| Description | Download link |
| TBOX-6N25 V3.0 Datasheet | https://www.taicenn.com/pdf/TBOX_6N15_EN_V30_Datasheet_241009.PDF |
| TBOX-6N25 Series V1.0 User Manual | https://www.taicenn.com/pdf/TBOX_6N15_ControlCabinet_IndustrialPC_UserManual_en_V10_250617.PDF |
| TBOX-6N25 Mount Method & Dimension | https://www.taicenn.com/pdf/TBOX_6N15_Mount_Dimension.PDF |
| TBOX-6N25 Win10 64bits Drive | https://drive.google.com/file/d/1QCMDOK5Zckr1f8HKXgHkh8tTuQjg04Kv/view?usp=drive_link |
