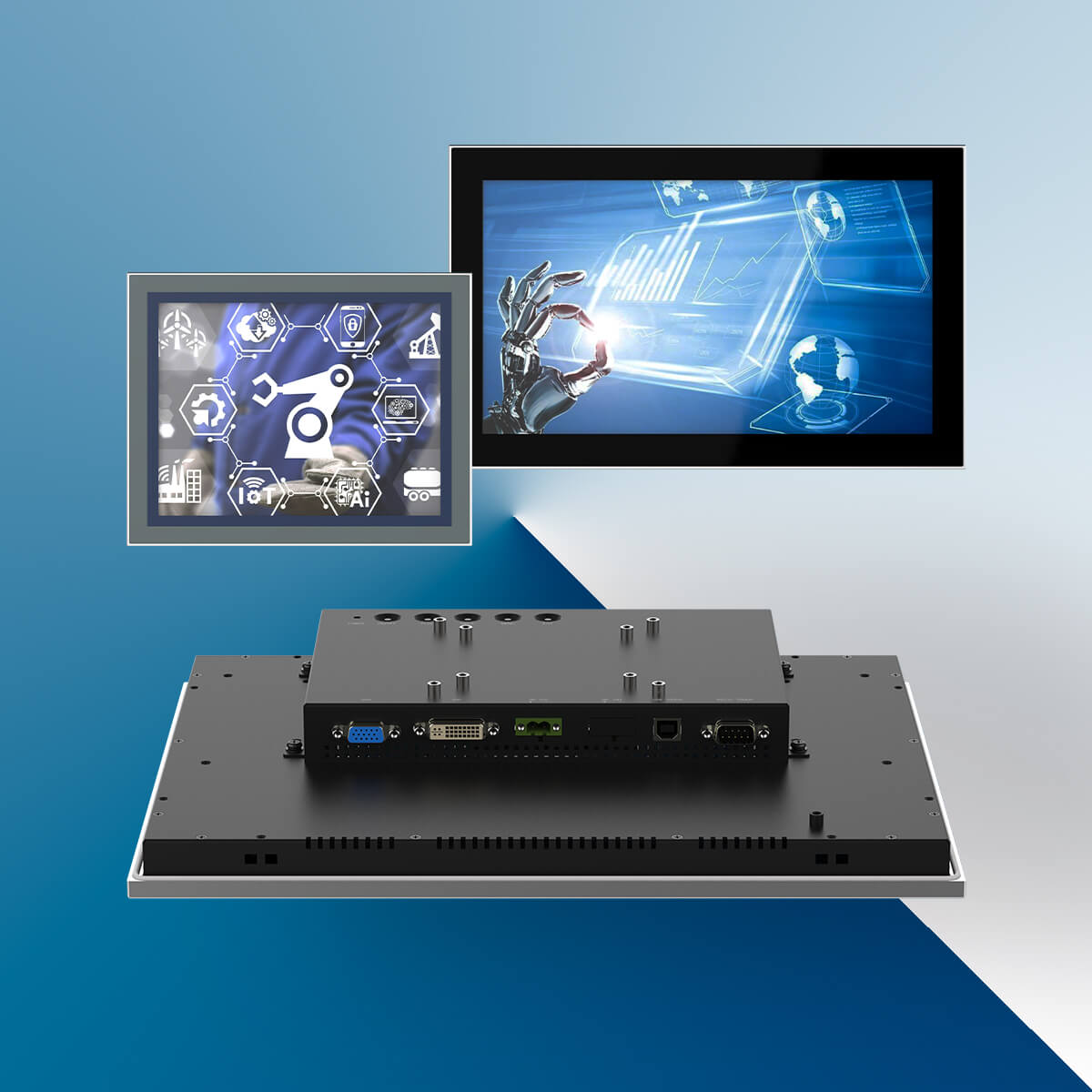

TM-PC/PR Series | Panel mount Touch Monitor with 1 VGA and 1 DVI
● Full dimensions: from small 10.1″ to large 23.8″ dimensions;
● Aluminum-magnesium alloy, Anodized treatment, modular designed;
● Available Pcap. and Resistive touchscreen, EETI controller;
● Default USB touch interface, optional with RS232 touch interface;
● DC 12V power input, optional with wide voltage DC 9~36V;
● Dual signal inputs (USB touch interface): 1 DVI, 1 VGA;
● Panel mount, support VESA 75/100 mount, Front IP65 rate protection;
● Optional support High brightness, RS232 Touch communication.
Industrial Monitors – Mounted Anywhere
These versatile industrial displays can be mounted into control cabinets, integrated onto an OEM machine, or used in a manufacturing environment. Industrial touchscreen monitors provide a graphical user interface where you may perform tasks such as, operate a machine, view sensor data, or interact with ERP software. TAICENN TM-PC/PR Series is Panel mount Touch Monitor with 1 VGA and 1 DVI, so you can easily integrate your touchscreen monitor with your system.
Panel mount Pcap. Touch Monitor | TM-PC Series
1 VGA + 1 DVI
Basic Introduction
The TM-PC series Panel mount Touch Monitor with 1 VGA and 1 DVI are modular concept designed & manufactured industrial HMI monitor series. These true flat industrial monitors are full inventory from 10.1”to 23.8” dimensions, includes 10.1″, 10.4″, 12.1″, 15.0″, 15.6″ FHD, 17.0″, 18.5″, 18.5″ FHD, 19.0″, 21.5″ and 23.8″ range. It comes with high precision multiple-points (Max. up to 10 points) Pcap. Touchscreen option for industrial display applications.
The TM-PC series power input is DC 12V, optional with wide voltage DC 9~36V range; These front IP66 industrial monitors support VESA 75/100 mount options, and are optional with RS232 touch interface, and high brightness 1000 nits for outdoors applications.

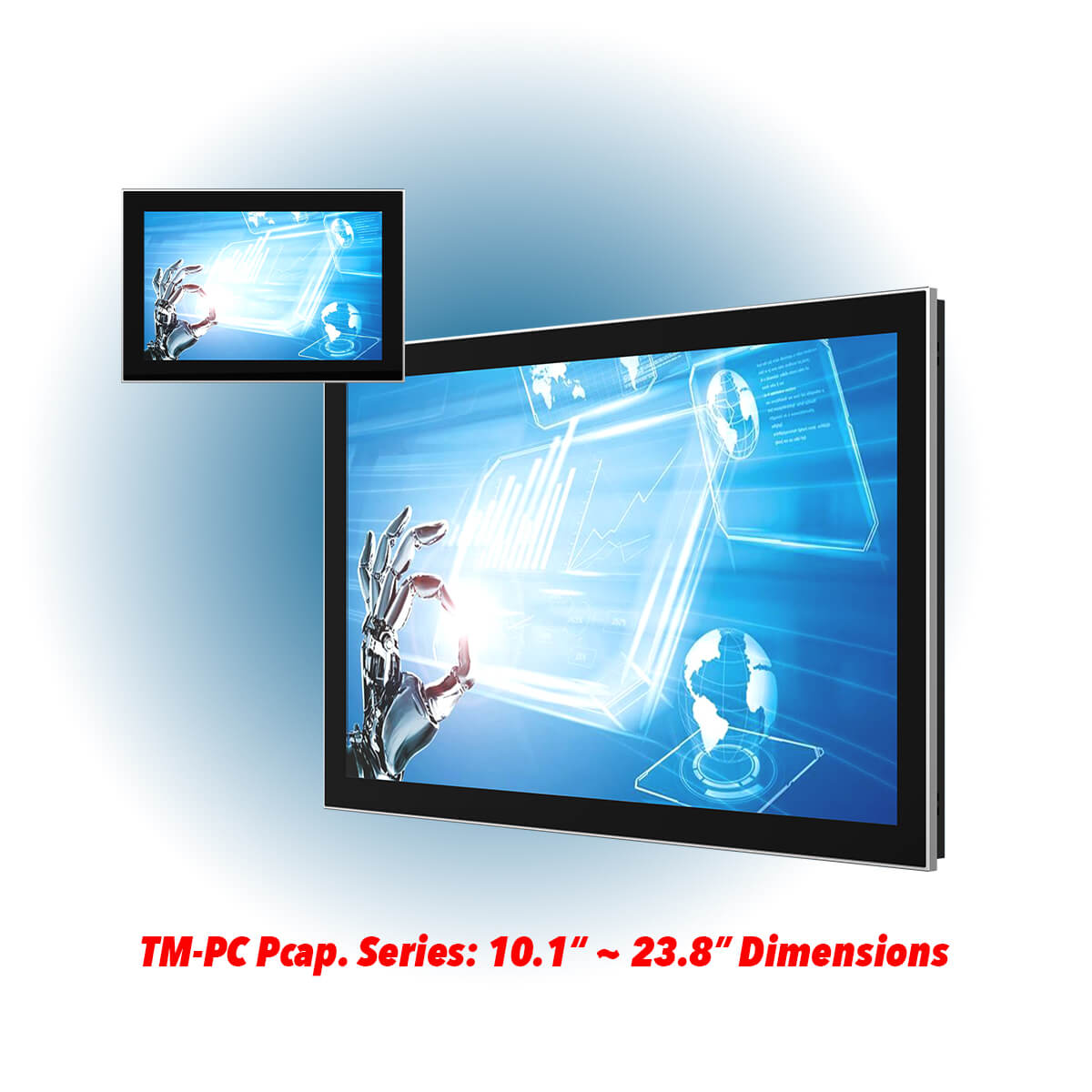

TM-PC Series Image
Flat designed Panel mount Resistive Touch HMI Monitor | TM-PR Series
1 VGA + 1 DVI
Basic Introduction
TAICENN TM-PR series is an enhanced stability and reliability Panel mount Touch Monitor with 1 VGA and 1 DVI product. The design uses a high-temp precision 5-wires Resistive touch screen, and it can fulfill front panel NEMA/IP66 dust-proof and water-proof standards.
The TM-PR series uses full-sealed box construction, and its front panel complaints NEMA / IP66 waterproof and dust-proof standard, to prevent installation in the control cabinet because of the scene splashing water droplets and water vapor into the host and thus affect equipment operation; high-strength steel box structure, so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
TM-PR Series Image
| Basic | Front Panel | Magnesium-aluminum alloy, anodized treatment |
| Rear Panel | SGCC Plate sheet, sand-blasting | |
| Control Button | OSD button on top of backside | |
| Signal Input | 1 VGA, 1 DVI | |
| Mount Method | Panel mount, VESA 75/100 | |
| IP Rate | Front Surface IP66 water-proof/Dust-proof | |
| LCD & Touchscreen | Size/Type | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5" FHD, 23.8" FHD (Pcap. Touch) |
| Size/Type | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5" FHD, (Resistive Touch) | |
| Power & Environmental | Humidity | 10 ~ 95% @ 10C (No condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (Optional wide voltage DC 9~36V) | |
| Certificate | CE/FCC/ROHS |
TM-PC Series | Pcap. Touch Monitor
| Part no. | Description |
| TM-PC101 | 10.1” LCD, WXGA 1280*800, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC104 | 10.4” LCD, XGA 1024*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC121 | 12.1” LCD, XGA 1024*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC150 | 15.0” LCD, XGA 1024*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC156H | 15.6” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC170 | 17.0” LCD, SXGA 1280*1024, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC185 | 18.5” LCD, WXGA 1366*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC185H | 18.5” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC190 | 19.0” LCD, SXGA 1280*1024, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC215 | 21.5” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC238 | 23.8” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PC101W | 10.1” LCD, WXGA 1280*800, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC104W | 10.4” LCD, XGA 1024*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC121W | 12.1” LCD, XGA 1024*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC150W | 15.0” LCD, XGA 1024*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC156HW | 15.6” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC170W | 17.0” LCD, SXGA 1280*1024, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC185W | 18.5” LCD, WXGA 1366*768, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC185HW | 18.5” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC190W | 19.0” LCD, SXGA 1280*1024, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC215W | 21.5” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PC238W | 23.8” LCD, FHD 1920*1080, Pcap. touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
TM-PR Series | Resistive Touch Monitor
| Part no. | Description |
| TM-PR101 | 10.1” LCD, WXGA 1280*800, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR104 | 10.4” LCD, XGA 1024*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR121 | 12.1” LCD, XGA 1024*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR150 | 15.0” LCD, XGA 1024*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR156H | 15.6” LCD, FHD 1920*1080, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR170 | 17.0” LCD, SXGA 1280*1024, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR185 | 18.5” LCD, WXGA 1366*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR185H | 18.5” LCD, FHD 1920*1080, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR190 | 19.0” LCD, SXGA 1280*1024, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR215 | 21.5” LCD, FHD 1920*1080, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, DC 12V, PSU |
| TM-PR101W | 10.1” LCD, WXGA 1280*800, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR104W | 10.4” LCD, XGA 1024*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR121W | 12.1” LCD, XGA 1024*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR150W | 15.0” LCD, XGA 1024*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR156HW | 15.6” LCD, FHD 1920*1080, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR170W | 17.0” LCD, SXGA 1280*1024, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR185W | 18.5” LCD, WXGA 1366*768, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR185HW | 18.5” LCD, FHD 1920*1080, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR190W | 19.0” LCD, SXGA 1280*1024, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
| TM-PR215W | 21.5” LCD, FHD 1920*1080, Resistive touch, USB interface, 1* VGA, 1* DVI, 1* USB, Wide DC 9~36V Input |
