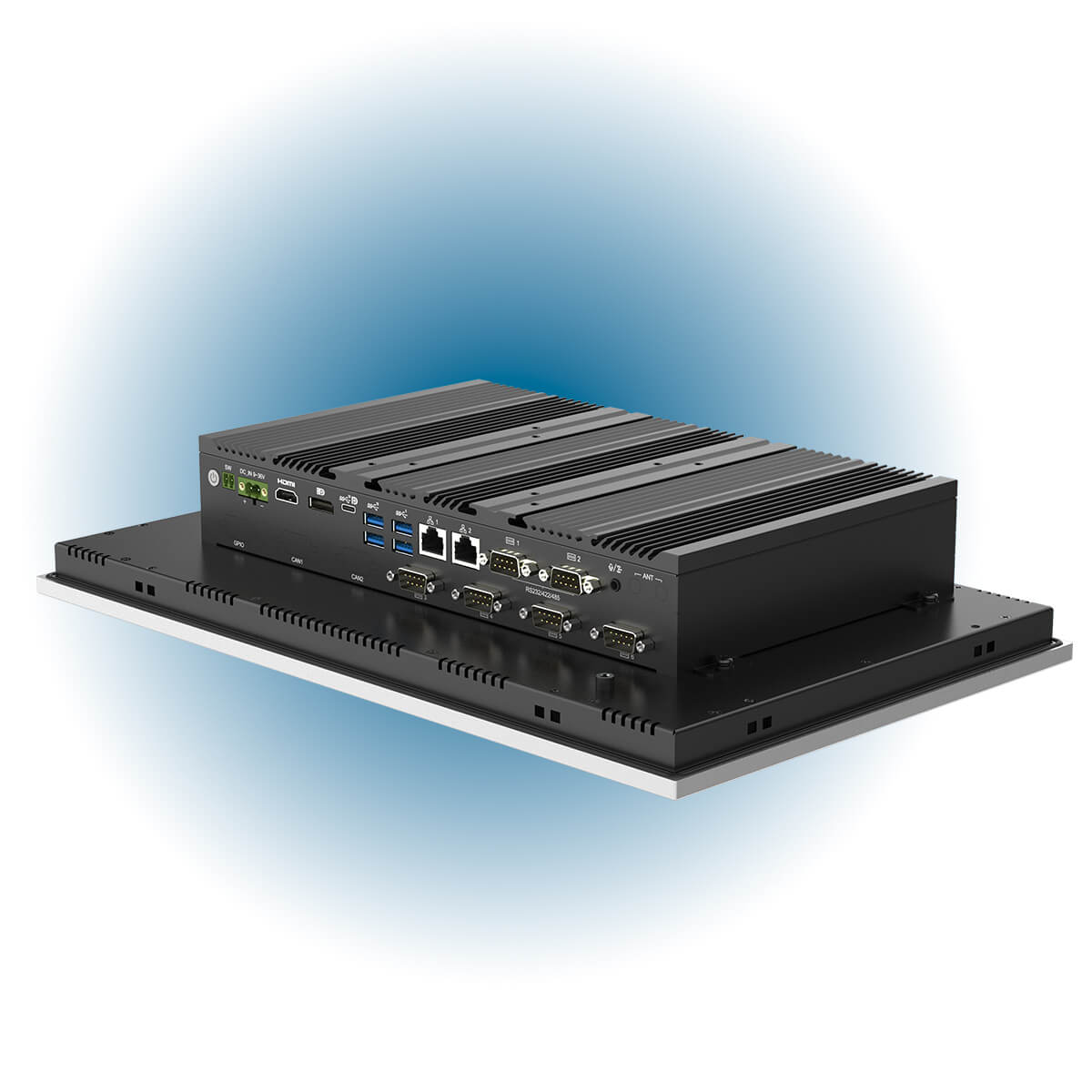

TPC-PCT&PRT T Series | Expandable Rich IO Panel PCs with Intel 11th Gen. Core i3/i5/i7

● Modular & Fanless designed, aluminum-magnesium alloy;
● Intel 11th Gen. Tiger Lake UP3 Core i3/i5/i7 processors;
● Modular concept designed, ranging from 15.0″ to 23.8″ dimensions;
● Support both Pcap. & Resistive touchscreen, EETI controller;
● Wide DC 9~36V input range;

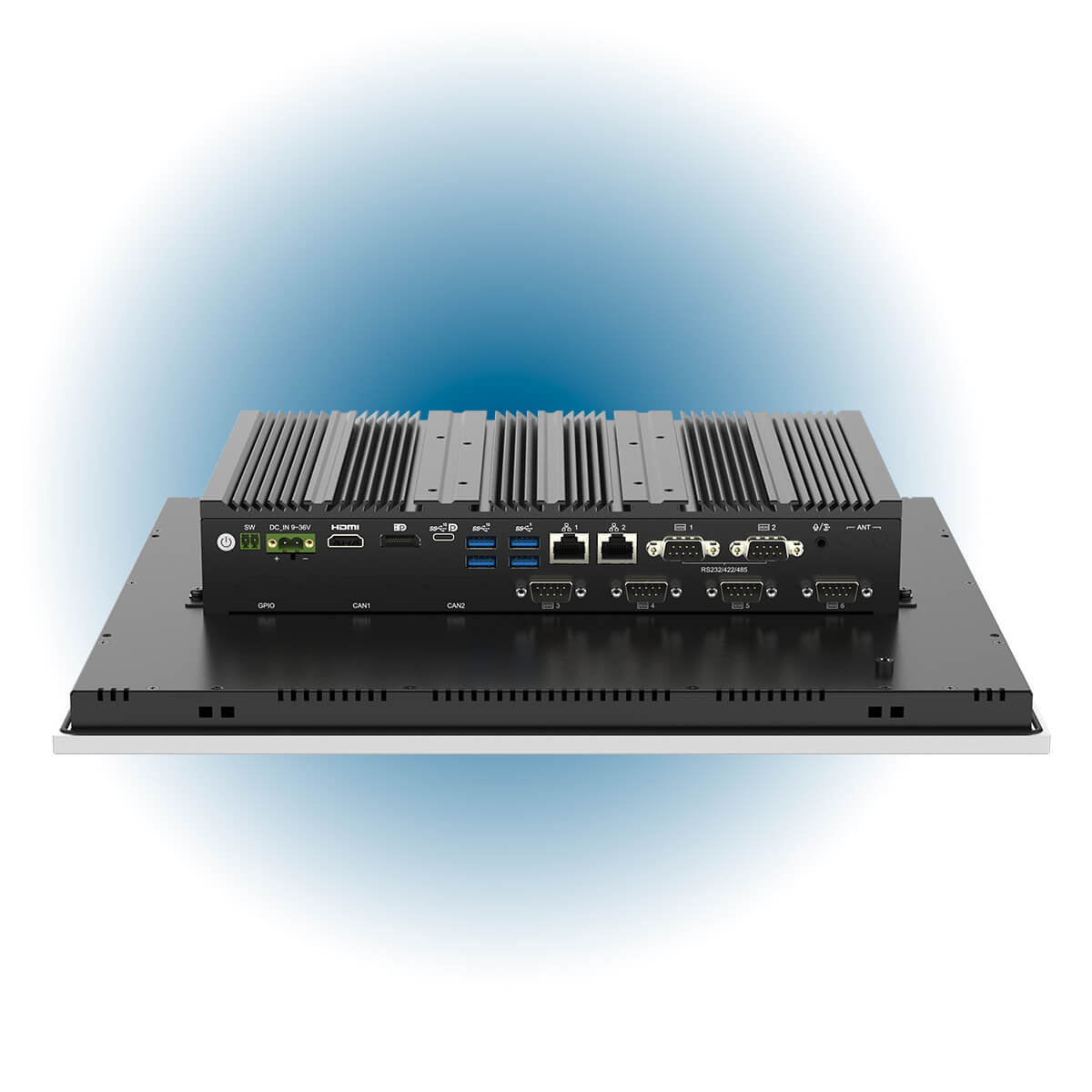

● I/O ports: 2 GbE, 2 USB3.1, 2 USB3.0, 6 COM, 1 HDMI, 1 DP;
● 1 USB-C (USB3.1 & DP1.4a), 1 SW Remote Switch;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● Optional 2 M.2 and 1 Mini-PCIe expansion slots.

INQUIRE NOW
SKU: TPC-PCT&PRT T Series Category: Tags: , , , ,
Description

The new TAICENN TPC-PCT/PRT T series is a rugged, fanless and cableless Expandable Rich IO Panel PCs with Intel 11th Gen. Core i3/i5/i7, delivering outstanding stability and reliability for industrial HMI applications. Adopting a fully modular architecture, it is built with standardized projected capacitive touch display and computer modules for flexible integration and simplified maintenance.

Powered by 11th Gen Intel Tiger Lake UP3 SoC processors, the system balances high computing performance and optimized power efficiency. Integrated Intel Iris Xe GPU architecture significantly enhances image processing and video decoding capabilities.

Equipped with rich industrial I/O, the TPC-PCT/PRT T series features 2× GbE, 2× USB3.1, 2× USB3.0, 1× USB‑C (USB3.1 & DP1.4a), 6× COM, HDMI, DP and audio interfaces. It supports TPM2.0 (PTT2.0) and Windows 11, along with 2× M.2 and 1× Mini‑PCIe expansion slots for Wi‑Fi/BT, 3G/4G and 5G wireless connectivity.

Designed for versatile industrial deployment, this Expandable Rich IO Panel PCs with Intel 11th Gen. Core i3/i5/i7 is ideal for industrial automation, IIoT, Industry 4.0, smart building automation, M2M and commercial automation projects.

Specification
Hardware & System BIOS SPI AMI EEI BIOS
CPU Intel 11th Gen. Core i3-1115G4, Core i5-1155G7, Core i7-1165G7
Graphic Intel UHD/Iris Xe Graphic
Memory 2* SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 64GB
Storage 1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, 1* 2.5” SATA III SSD
Network 1* Intel I219LM, 1* Intel I226V GbE (Optional wireless 3G/4G/LTE, Wi-Fi/BT, 5G/Wi-Fi 6)
Audio On-board Realtek ACL 897 Audio controller
Expansion 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2230 slot, 1* Mini-PCIe slot
Watch dog 0 ~ 256 seconds programmable
Operating System Win10, Win11, Linux, Ubuntu
I/O Interface Ethernet 2 RJ45, 10/100/1000 Mbps
COM 2 RS232/RS485/RS422 (BIOS configured), 4 RS232 (COM3~COM6)
Audio Mic-in/Line-out (2 in 1, 3.5mm Jack)
USB 2* USB3.1 (USB3.2 Gen2 x1, 10 Gbps), 2* USB3.0 (USB3.2 Gen1 x1, 5Gbps), 1* USB-C (USB3.1 & DP1.4a)
Display 1* HDMI (Max. support 4096 * 2304 @60Hz), 1* DP1.4a (Max. 7680*4320 @60Hz)
Power 1* 2 Pins, Phenix Terminal
Optional 8* GPIO (1* DB9), 2* CAN (2* DB9)
LCD Display & Touchsceen Pcap. Touch 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD, 23.8" FHD
Resistive Touch 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD
Structure Structure & Surface Magnesium-Aluminum alloy, sand blasting, anodized treated

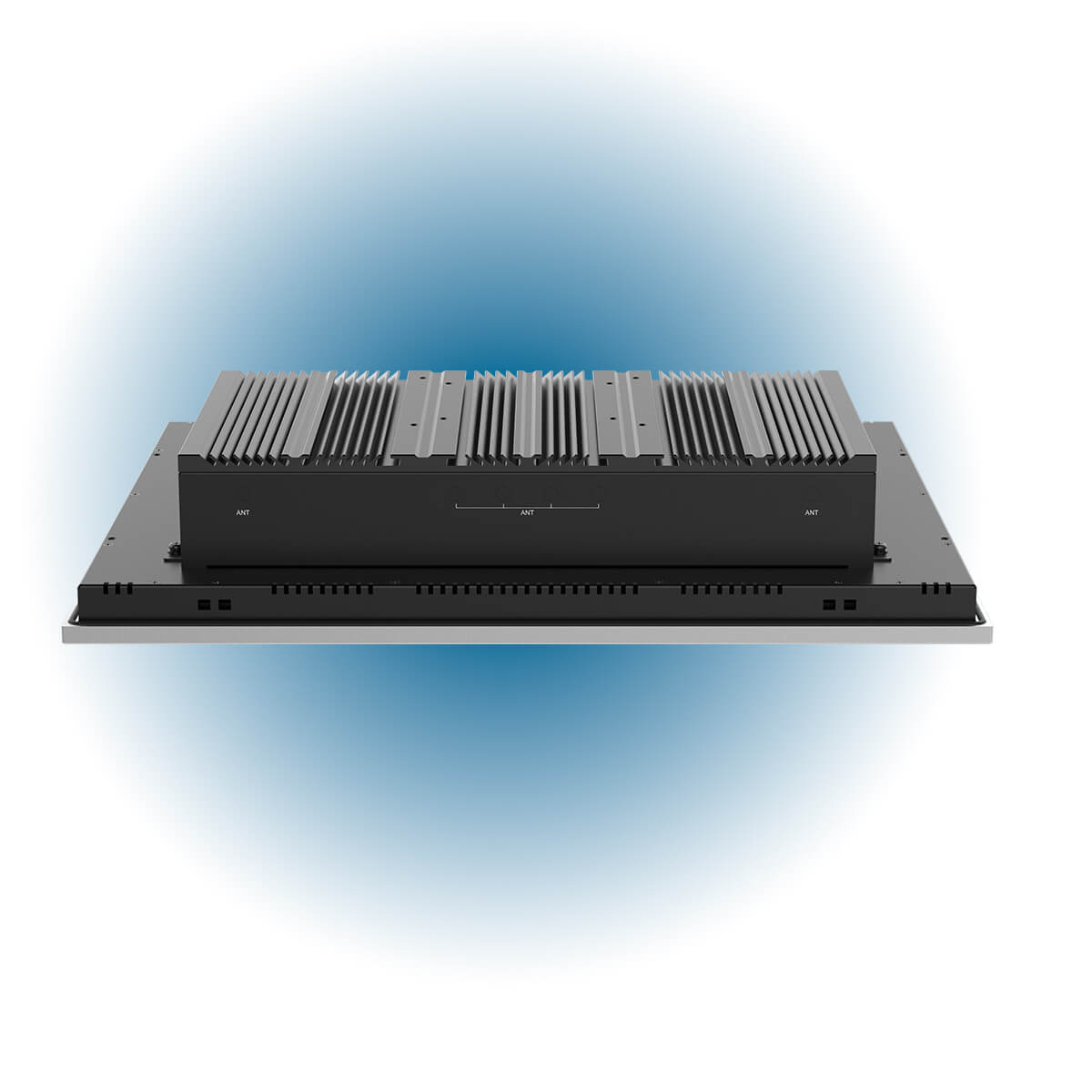

Cooling System Large area finned heatsink (Fanless designed)
Mount Method Panel mount, VESA 75/100 Mount
Power & Environmetal Humidity 10 ~ 95% @ 10C (No condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input Wide DC 9~36 V
Certificate CE/FCC/ROHS
Ordering information
Part no. Description
TPC-PCT150T1 15.0” LCD, XGA 1024 *768, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT150T2 15.0” LCD, XGA 1024 *768, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT150T3 15.0” LCD, XGA 1024 *768, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT150T1 15.0” LCD, XGA 1024 *768, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT150T2 15.0” LCD, XGA 1024 *768, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT150T3 15.0” LCD, XGA 1024 *768, Intel Core i7-1165G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT156HT1 Widescreen 15.6” LCD, FHD 1920 *1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT156HT2 Widescreen 15.6” LCD, FHD 1920 *1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT156HT3 Widescreen 15.6” LCD, FHD 1920 *1080, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT156HT1 Widescreen 15.6” LCD, FHD 1920 *1080, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT156HT2 Widescreen 15.6” LCD, FHD 1920 *1080, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT156HT3 Widescreen 15.6” LCD, FHD 1920 *1080, Intel Core i7-1165G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT170T1 17.0” LCD, SXGA 1280 *1024, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT170T2 17.0” LCD, SXGA 1280 *1024, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT170T3 17.0” LCD, SXGA 1280 *1024, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT170T1 17.0” LCD, SXGA 1280 *1024, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT170T2 17.0” LCD, SXGA 1280 *1024, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT170T3 17.0” LCD, SXGA 1280 *1024, Intel Core i7-1165G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT185T1 Widescreen 18.5” LCD, WXGA 1366 *768, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT185T2 Widescreen 18.5” LCD, WXGA 1366 *768, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT185T3 Widescreen 18.5” LCD, WXGA 1366 *768, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT185T1 Widescreen 18.5” LCD, WXGA 1366 *768, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT185T2 Widescreen 18.5” LCD, WXGA 1366 *768, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT185T3 Widescreen 18.5” LCD, WXGA 1366 *768, Intel Core i7-1165G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT185HT1 Widescreen 18.5” LCD, FHD 1920 *1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT185HT2 Widescreen 18.5” LCD, FHD 1920 *1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT185HT3 Widescreen 18.5” LCD, FHD 1920 *1080, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT185HT1 Widescreen 18.5” LCD, FHD 1920 *1080, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT185HT2 Widescreen 18.5” LCD, FHD 1920 *1080, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT185HT3 Widescreen 18.5” LCD, FHD 1920 *1080, Intel Core i7-1165G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT190T1 19.0” LCD, SXGA 1280 *1024, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT190T2 19.0” LCD, SXGA 1280 *1024, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT190T3 19.0” LCD, SXGA 1280 *1024, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT190T1 19.0” LCD, SXGA 1280 *1024, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT190T2 19.0” LCD, SXGA 1280 *1024, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT190T3 19.0” LCD, SXGA 1280 *1024, Intel Core i7-1165G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT215T1 Widescreen 21.5” LCD, FHD 1920 *1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT215T2 Widescreen 21.5” LCD, FHD 1920 *1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT215T3 Widescreen 21.5” LCD, FHD 1920 *1080, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT215T1 Widescreen 21.5” LCD, FHD 1920 *1080, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT215T2 Widescreen 21.5” LCD, FHD 1920 *1080, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PRT215T3 Widescreen 21.5” LCD, FHD 1920 *1080, Intel Core i7-1165G7, Resistive Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT238T1 Widescreen 23.8” LCD, FHD 1920 *1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT238T2 Widescreen 23.8” LCD, FHD 1920 *1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
TPC-PCT238T3 Widescreen 23.8” LCD, FHD 1920 *1080, Intel Core i7-1165G7, Pcap. Touch, 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 6 COM, Audio, 1 SW, DC 9~36V, PSU
Optional Accessories Description
Memory SO-DIMM, DDR4, 4GB/8GB/16GB/32GB
Storage M.2 SSD: 128GB/256GB/512GB/1TB
Wireless Wi-Fi Module, with Antenna
Wi-Fi Module with BT Integrated, With Antenna
All Network 4G module, with Antenna
5G Network module, with Antenna
Download
Description Download link
TPC-PCT150T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT150T_EN_V32_Datasheet_250926.PDF
TPC-PCT156HT V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT156HT_EN_V32_Datasheet_250926.PDF
TPC-PCT170T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT170T_EN_V32_Datasheet_250926.PDF
TPC-PCT185T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT185T_EN_V32_Datasheet_250926.PDF
TPC-PCT185HT V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT185HT_EN_V32_Datasheet_250926.PDF
TPC-PCT190T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT190T_EN_V32_Datasheet_250926.PDF
TPC-PCT215T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT215T_EN_V32_Datasheet_250926.PDF
TPC-PCT238T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PCT238T_EN_V32_Datasheet_250926.PDF
TPC-PCTxxxT Series V1.0 User Manual https://www.taicenn.com/pdf/TPC_PCTxxxT_Series_PanelPC_UserManual_EN_V10_250926.PDF
TPC-PRT150T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PRT150T_EN_V32_Datasheet_250926.PDF
TPC-PRT156HT V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PRT156HT_EN_V32_Datasheet_250926.PDF
TPC-PRT170T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PRT170T_EN_V32_Datasheet_250926.PDF
TPC-PRT185T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PRT185T_EN_V32_Datasheet_250926.PDF
TPC-PRT185HT V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PRT185HT_EN_V32_Datasheet_250926.PDF
TPC-PRT190T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PRT190T_EN_V32_Datasheet_250926.PDF
TPC-PRT215T V3.2 Datasheet https://www.taicenn.com/pdf/TPC_PRT215T_EN_V32_Datasheet_250926.PDF
TPC-PRTxxxT Series V1.0 User Manual https://www.taicenn.com/pdf/TPC_PRTxxxT_Series_PanelPC_UserManual_EN_V10_250926.PDF
