TPC-DCP T Series | PoE Panel PC with Intel 11th Gen. Core i3/i5/i7

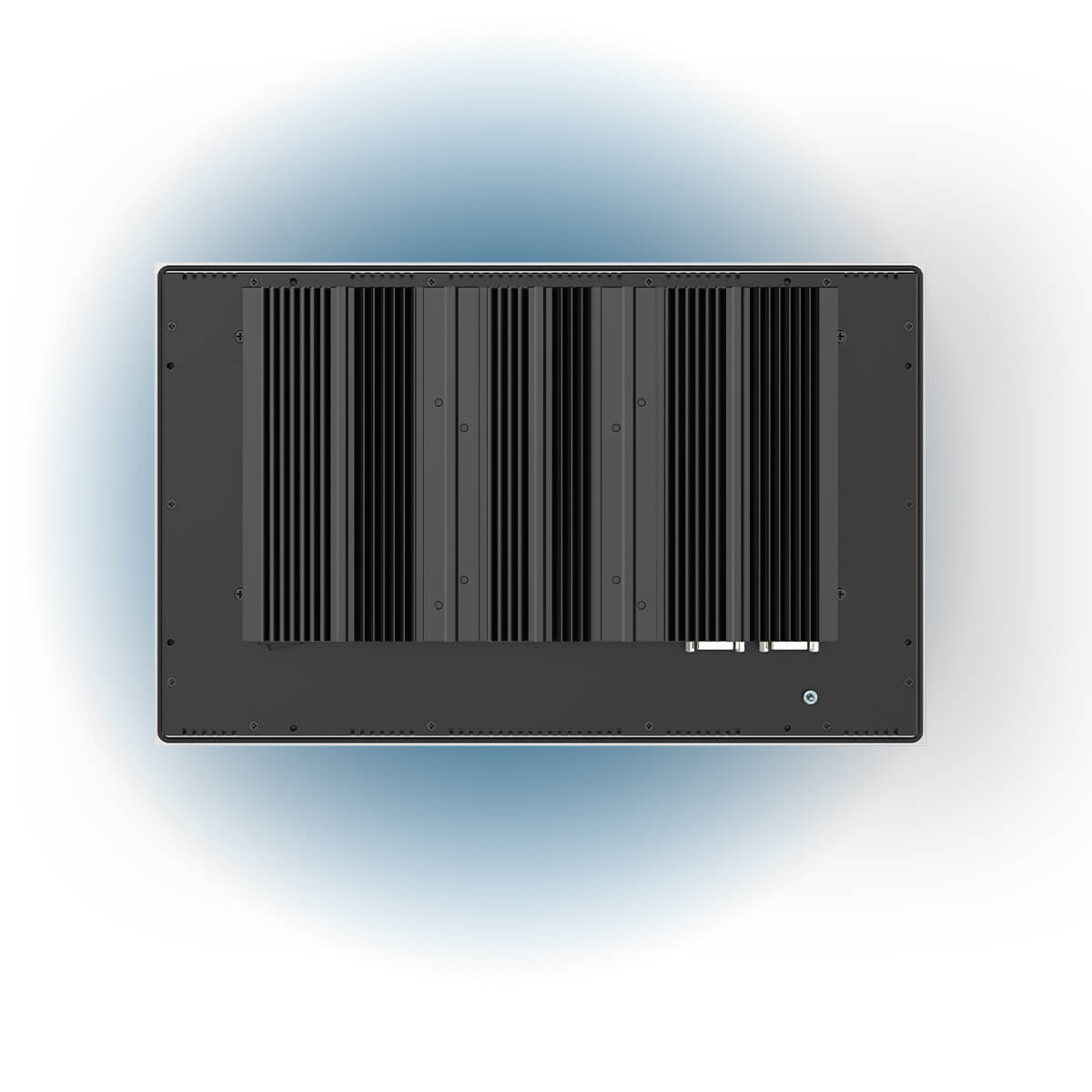

● Modular & Fanless designed, aluminum-magnesium alloy;
● Intel 11th Gen. Tiger Lake UP3, Core i3/i5/i7 CPUs;
● Available dimensions from 15.0″ to 23.8″ range;

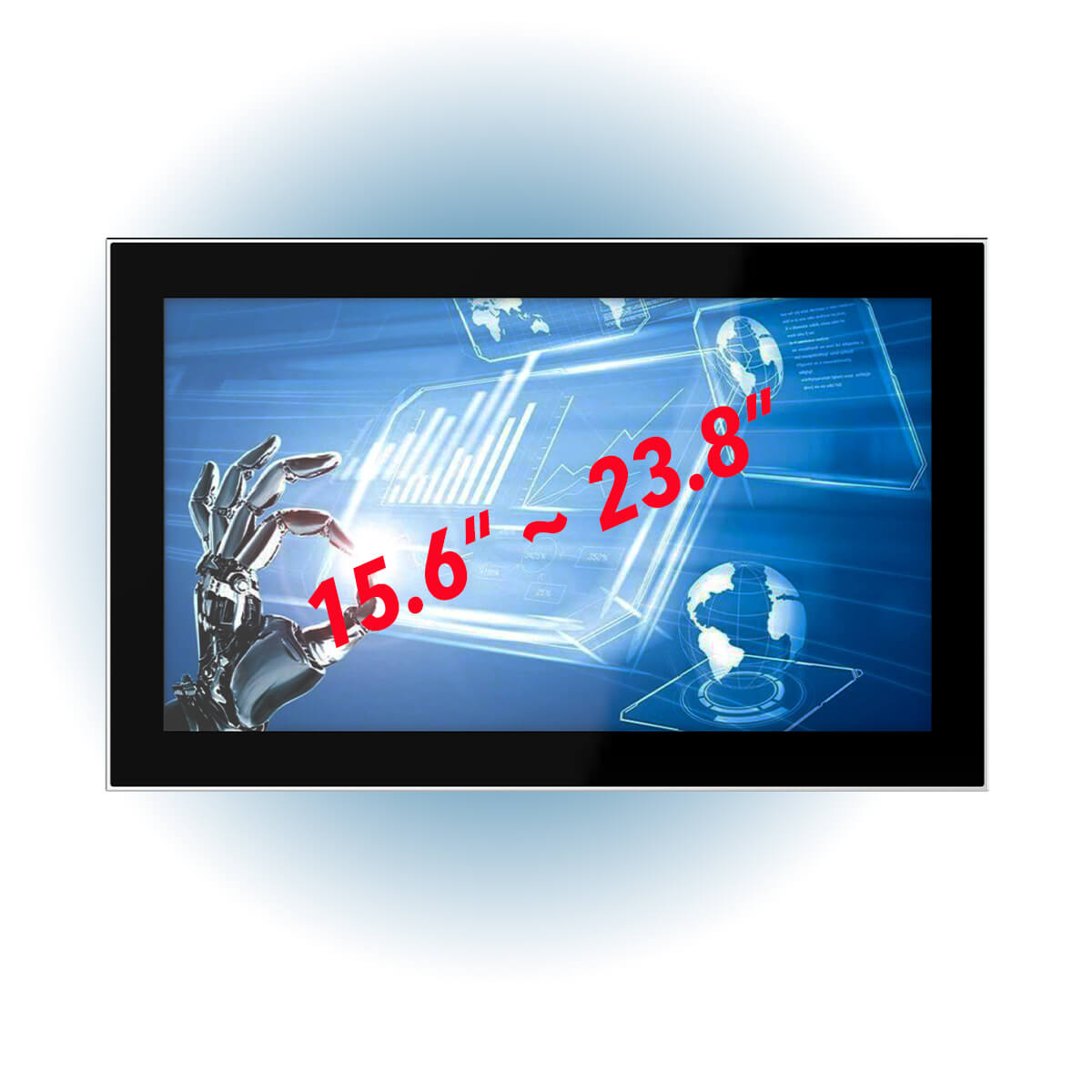

● Multi up to 10 points Pcap. touchscreen, EETI controller;
● DC 9~36V input, with over-current, over-voltage, polarity protection;

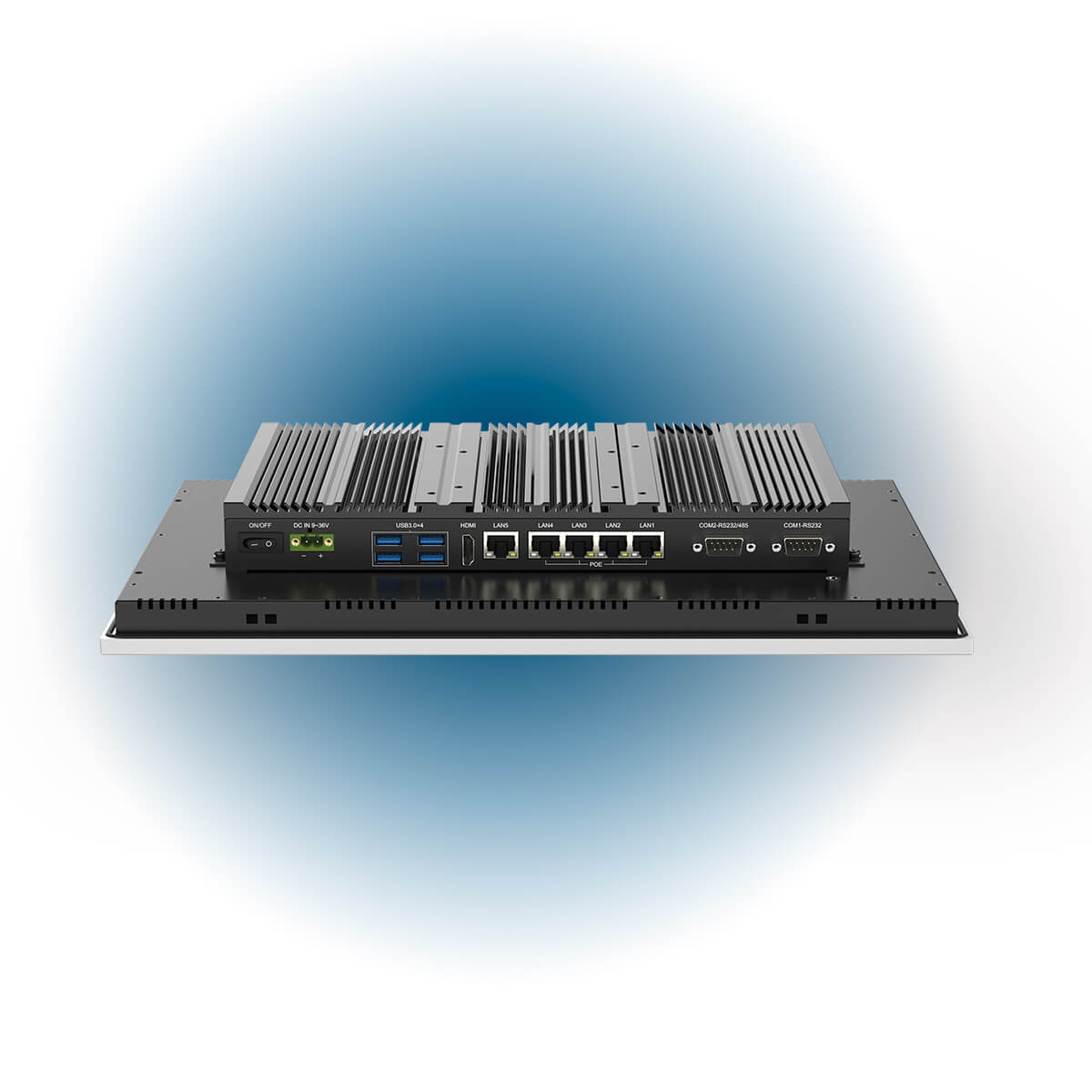

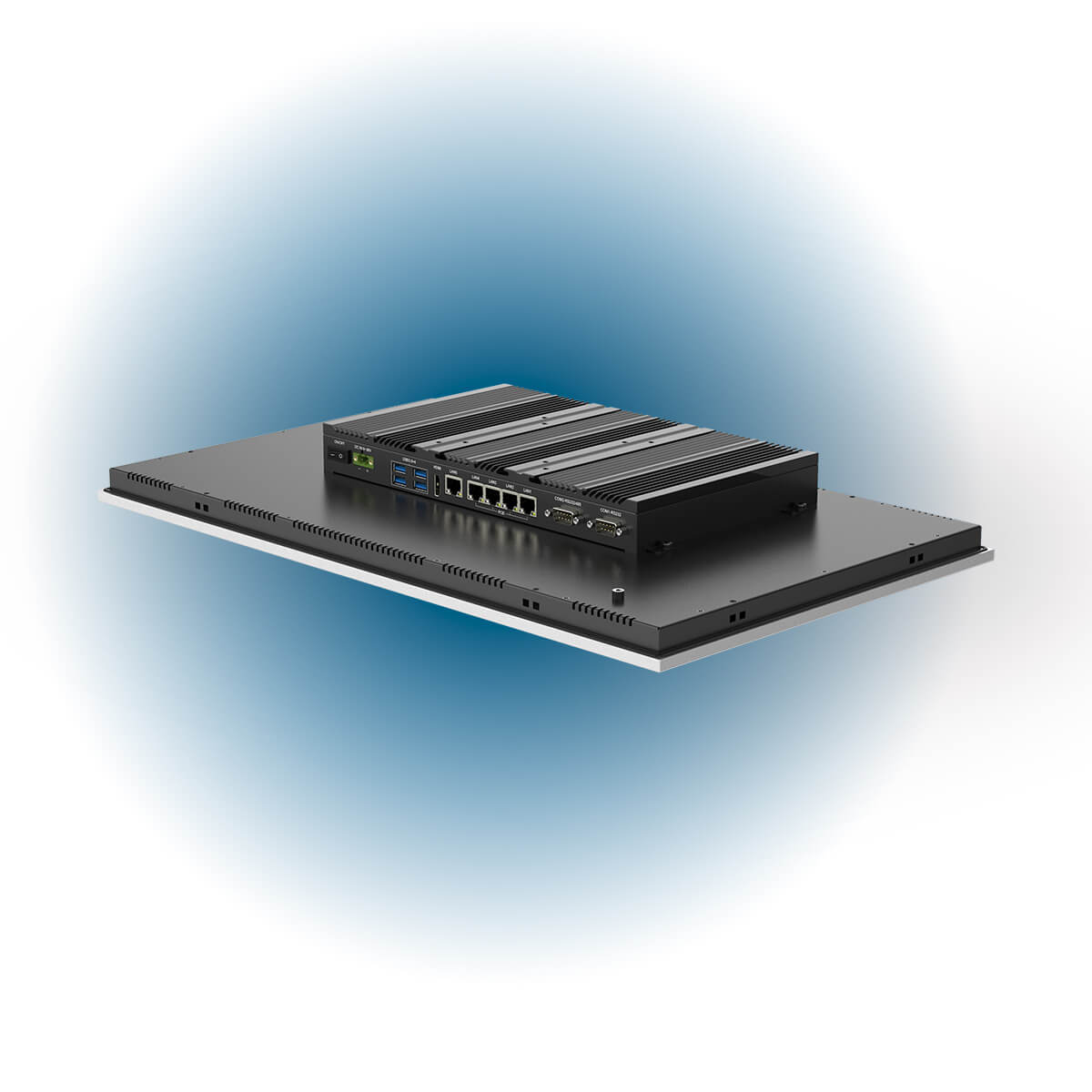

● I/O interfaces: 5 GbE (4 PoE), 4USB3.0, 2 COM, 1 HDMI;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● Optional 1 Mini-PCIe Expansion slot.
Description

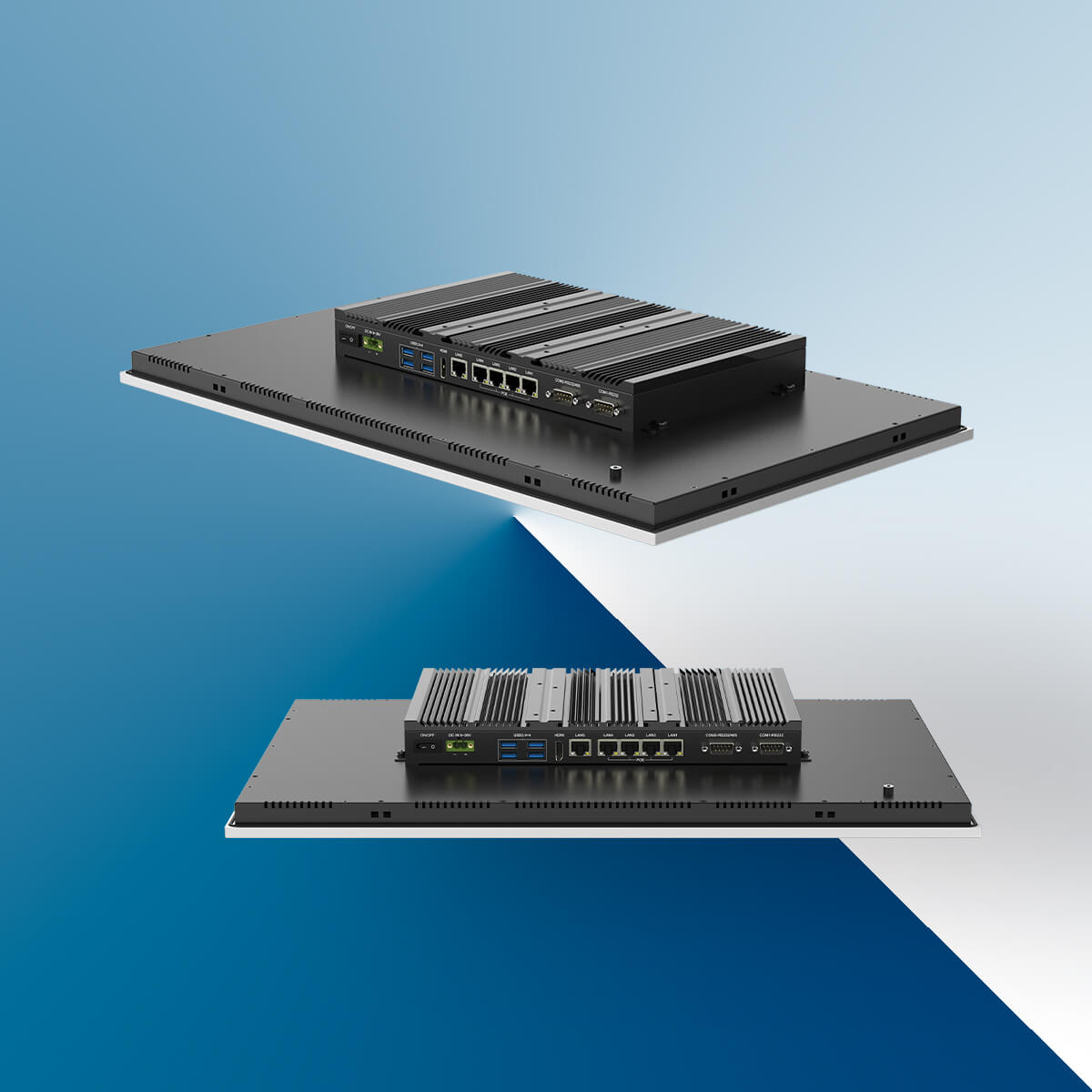

The TAICENN TPC-DCP T series is a rugged, fanless, PoE Panel PC with Intel 11th Gen. Core i3/i5/i7 processors, featuring 10-point projective capacitive touch, perfectly built for industrial HMI scenarios.
Powered by 11th Gen Intel® Tiger Lake UP3 SoC processors (Core i3-1115G4 / i5-1135G7 / i7-1165G7), this multi-PoE industrial panel PC delivers outstanding power efficiency and robust computing performance. Equipped with integrated Intel Iris Xe Graphics, it greatly optimizes image processing and video decoding capabilities to support high-definition visual tasks.
Designed for industrial security and expandability, the TPC-DCP T series supports TPM 2.0 (Intel PTT 2.0) and fully complies with Windows 11 systems. It features 1 × Mini-PCIe expansion slot for flexible connectivity upgrades, including Wi-Fi/BT, 3G/4G and 5G cellular modules.
This PoE Panel PC with Intel 11th Gen. Core i3/i5/i7 series comes with rich industrial-grade I/O interfaces: 5 × GbE LAN ports (4 PoE-enabled), 4 × USB 3.0, 2 × DB9 COM ports and 1 × HDMI output. It serves as a reliable all-in-one industrial computing solution for machine vision, building automation, industrial automation, IIoT, smart manufacturing, Industry 4.0 and commercial automation applications.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS | |||||||
| CPU | Intel 11th Gen. Tiger Lake UP3 Core i3-1115G4, Core i5-1135G7, Core i7-1195G7 | ||||||||
| TDP | Default 15W (BIOS Configured) | ||||||||
| Graphic | Intel UHD/Iris Xe Graphics | ||||||||
| Memory | SO-DIMM, Support DDR4 3200 Mhz, Max. up to 32GB | ||||||||
| Storage | 1* M.2 2280 M-Key SSD, 1* 2.5” SATA SSD | ||||||||
| Network | 5* Intel i210AT, Optional wireless 3G/4G/LTE, Wi-Fi/BT | ||||||||
| Expansion | 1* Full size Mini-PCIe slot | ||||||||
| Watch dog | 0 ~ 256 seconds programmable | ||||||||
| Operating System | Win10, Win11, Linux, Ubuntu | ||||||||
| I/O Interface | Ethernet | 5 RJ45, 10/100/1000 Mbps, 4 support PoE 802.3 AF (Single port max. up to 15.4W, total less than 45W) | |||||||
| COM | 1* RS232, 1* RS485 | ||||||||
| USB | 4* USB3.0 | ||||||||
| Display | 1* HDMI | ||||||||
| Power | 1* 2 Pins, Phenix Terminal | ||||||||
| LCD Display | Size/Type | 15.0” TFT LCD Display | 15.6” TFT LCD Display | 17.0” TFT LCD Display | 18.5” TFT LCD Display | 18.5” TFT LCD Display | 19.0” TFT LCD Display | 21.5” TFT LCD Display | 23.8” TFT LCD Display |
| Resolution | 1024 * 768 (XGA) | 1920 * 1080 (FHD) | 1280 * 1024 (SXGA) | 1366 * 768 (WXGA) | 1920 * 1080 (FHD) | 1280 * 1024 (SXGA) | 1920 * 1080 (FHD) | 1920 * 1080 (FHD) | |
| Brightness | 350 nits | 450 nits | 250 nits | 250 nits | 350 nits | 250 nits | 250 nits | 250 nits | |
| Backlit & Lifetime | LED Backlit & 70K hours | LED Backlit & 50K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 50K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | |
| Display Area | 304.1* 228.1 (mm) | 344.16* 193.59(mm) | 337.92* 270.336 (mm) | 409.8* 230.4 (mm) | 408.96* 230.4 (mm) | 376.32* 301.06 (mm) | 476.64* 268.11 (mm) | 527.04* 296.46 (mm) | |
| View Angle | 88/88/88/88 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 85/85/85/85 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | |
| Touchscreen | Type | Projective capacitive touchscreen | |||||||
| Touch points | Multi points touch, max. up to 10 points | ||||||||
| Durability | >100 000 000 times | ||||||||
| Surface Hardness | MOHS 6H | ||||||||
| Touch Controller | EETI | ||||||||
| Special Treatment | Anti-Fingerprint (AF) | ||||||||
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated | |||||||
| Cooling System | Large area finned heatsink (Fanless designed) | ||||||||
| Overall Dimension | 352.2 * 279.3 * 57.5 (mm) | 395.6 * 247.9 * 57.5 (mm) | 385.6 * 323.5 * 57.5 (mm) | 462.4 * 296.6 * 57.5 (mm) | 462.4 * 296.6 * 57.5 (mm) | 422.3 * 353.0 * 57.5 (mm) | 527.0 * 318.7 * 57.5 (mm) | 578.4 * 347.9 * 57.5 (mm) | |
| Cut-out Dimension | 341* 268(mm) | 385* 237 (mm) | 376* 313 (mm) | 451* 276 (mm) | 451* 276 (mm) | 411* 342 (mm) | 516* 308 (mm) | 568* 338 (mm) | |
| Net Weight | 3.8KG | 4.3 KG | 4.7 KG | 5.6 KG | 5.6 KG | 6.2 KG | 7.0 KG | 7.6 KG | |
| Mount Method | Panel mount, VESA 75/100 Mount | ||||||||
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | 0 ~ + 50 (℃) | 0 ~ + 50 (℃) | -20 ~ + 60 (℃) | 0 ~ + 50 (℃) | 0 ~ + 50 (℃) | 0 ~ + 50 (℃) |
| Storage temp. | -30 ~ + 80 (℃) | -30 ~ + 70 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | -30 ~ + 70 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | ||||||||
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | ||||||||
| Shock | 10G/Peak (11 ms) | ||||||||
| Power input | DC 9~36V | ||||||||
| Power consumption | About 40W | About 40W | About 40W | About 40W | About 40W | About 40W | About 45W | About 45W | |
| Certificate | CE/FCC/ROHS | ||||||||
Ordering information
| Part no. | Description | ||
| TPC-DCP150T1 | 15.0” LCD, XGA 1024*768, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP150T2 | 15.0” LCD, XGA 1024*768, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP150T3 | 15.0” LCD, XGA 1024*768, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP156HT1 | 15.6” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP156HT2 | 15.6” LCD, FHD 1920*1080, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP156HT3 | 15.6” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP170T1 | 17.0” LCD, SXGA 1280*1024, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP170T2 | 17.0” LCD, SXGA 1280*1024, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP170T3 | 17.0” LCD, SXGA 1280*1024, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP185T1 | 18.5” LCD, WXGA 1366*768, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP185T2 | 18.5” LCD, WXGA 1366*768, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP185T3 | 18.5” LCD, WXGA 1366*768, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP185HT1 | 18.5” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP185HT2 | 18.5” LCD, FHD 1920*1080, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP185HT3 | 18.5” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP190T1 | 19.0” LCD, SXGA 1280*1024, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP190T2 | 19.0” LCD, SXGA 1280*1024, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP190T3 | 19.0” LCD, SXGA 1280*1024, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP215T1 | 21.5” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP215T2 | 21.5” LCD, FHD 1920*1080, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP215T3 | 21.5” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP238T1 | 23.8” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9 ~ 36V, No PSU by default | ||
| TPC-DCP238T2 | 23.8” LCD, FHD 1920*1080, Intel Core i5-1135G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| TPC-DCP238T3 | 23.8” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 5 GbE (4 PoE), 4 USB3.0, 1 HDMI, 2 COM, DC 9~36V, No PSU by default | ||
| Optional Accessories | Description | Packing List | |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB | Standard TPC-DCP T Series Panel PC Product | 1 set |
| Storage | SSD: 128GB/256GB/512GB/1TB/2TB | Panel Mount Clips (Metal) | 1 set (8 pieces) |
| Wireless | Wi-Fi Module, with Antenna | Power Cable & Plug | 1 set |
| Wi-Fi Module with BT Integrated, With Antenna | |||
| All Network 4G module, with Antenna | |||
| Power Supply | PSU if needed | ||
