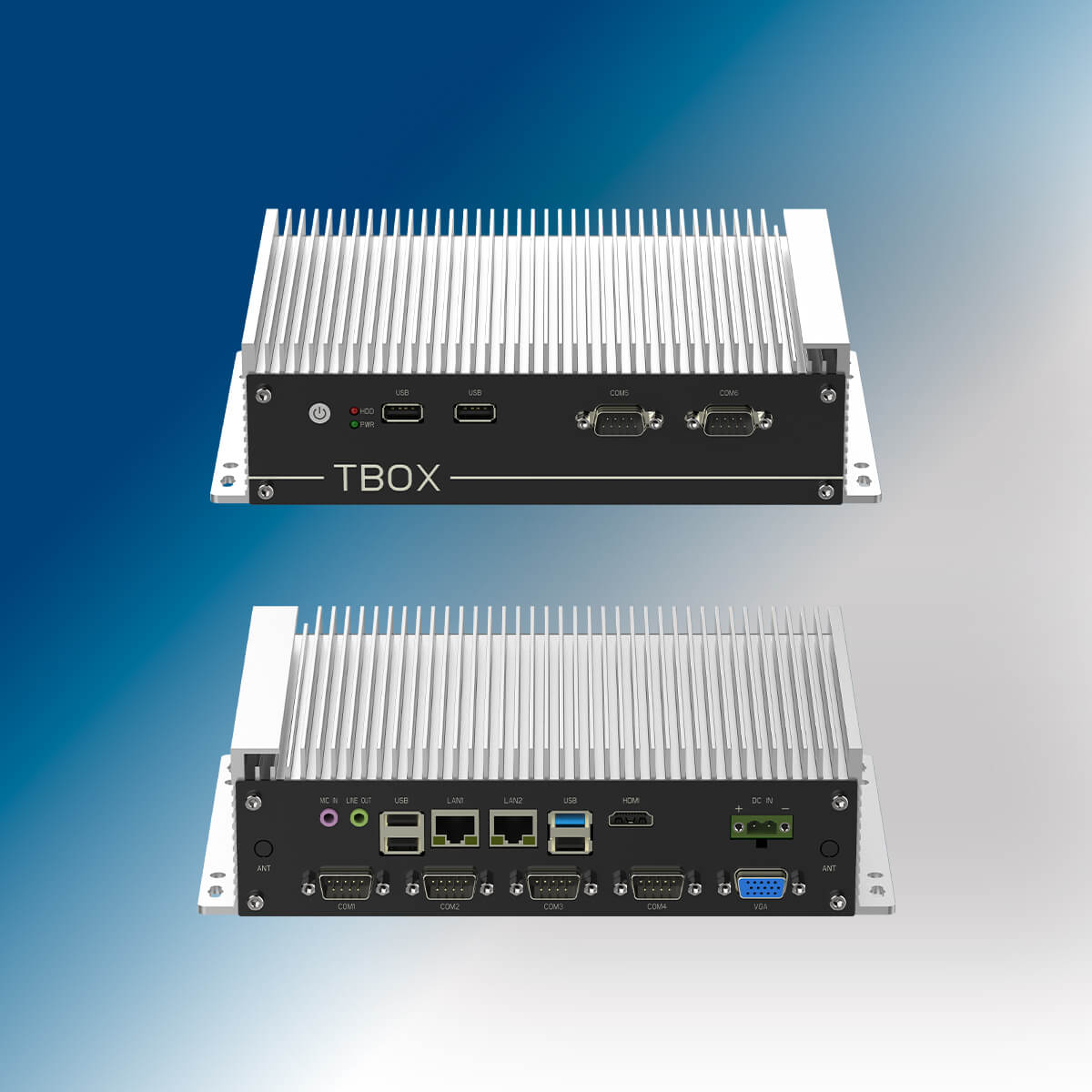

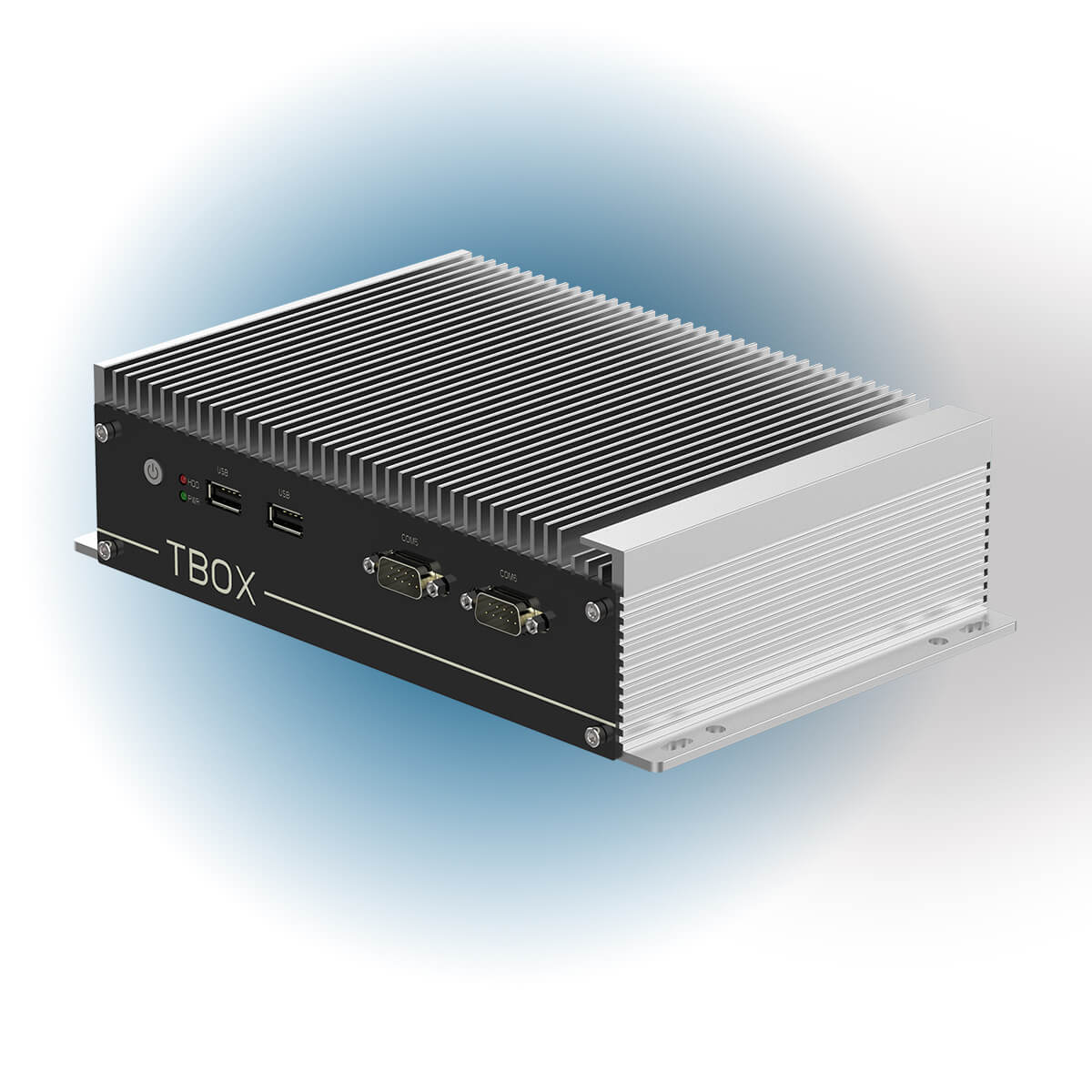

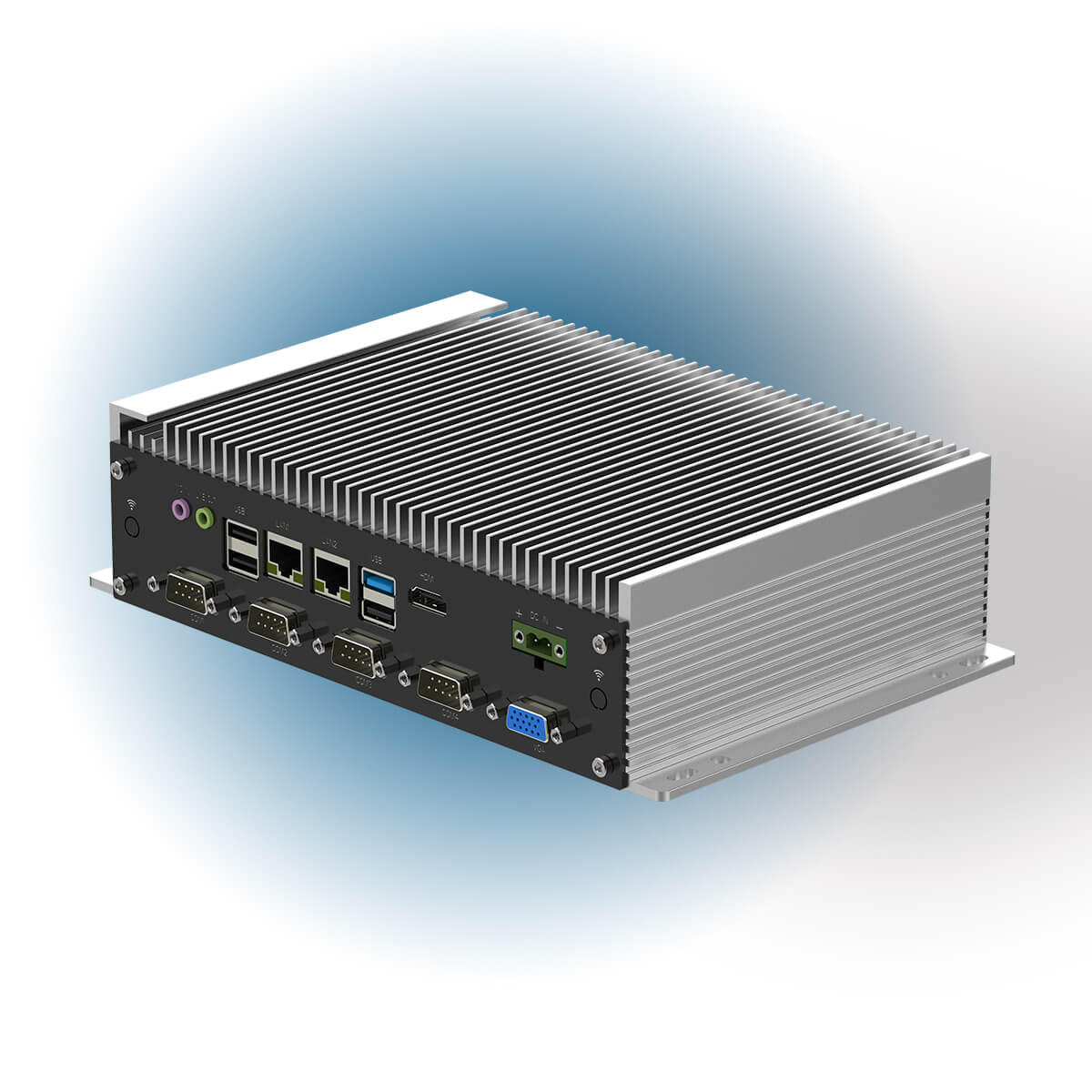

TBOX-2310 | Fanless Embedded system with Intel J1900
• Rugged compact fanless enclosure;
• Intel® Celeron J1900 Quad-Core (Bay Trail) processor;
• Single DDR3L slot, up to 8GB RAM; 1 × mSATA storage slot;
• Terminal-block wide DC input: 9~24V;
• 2× Gigabit LAN; supports optional 3G/4G/LTE, Wi-Fi/BT modules;

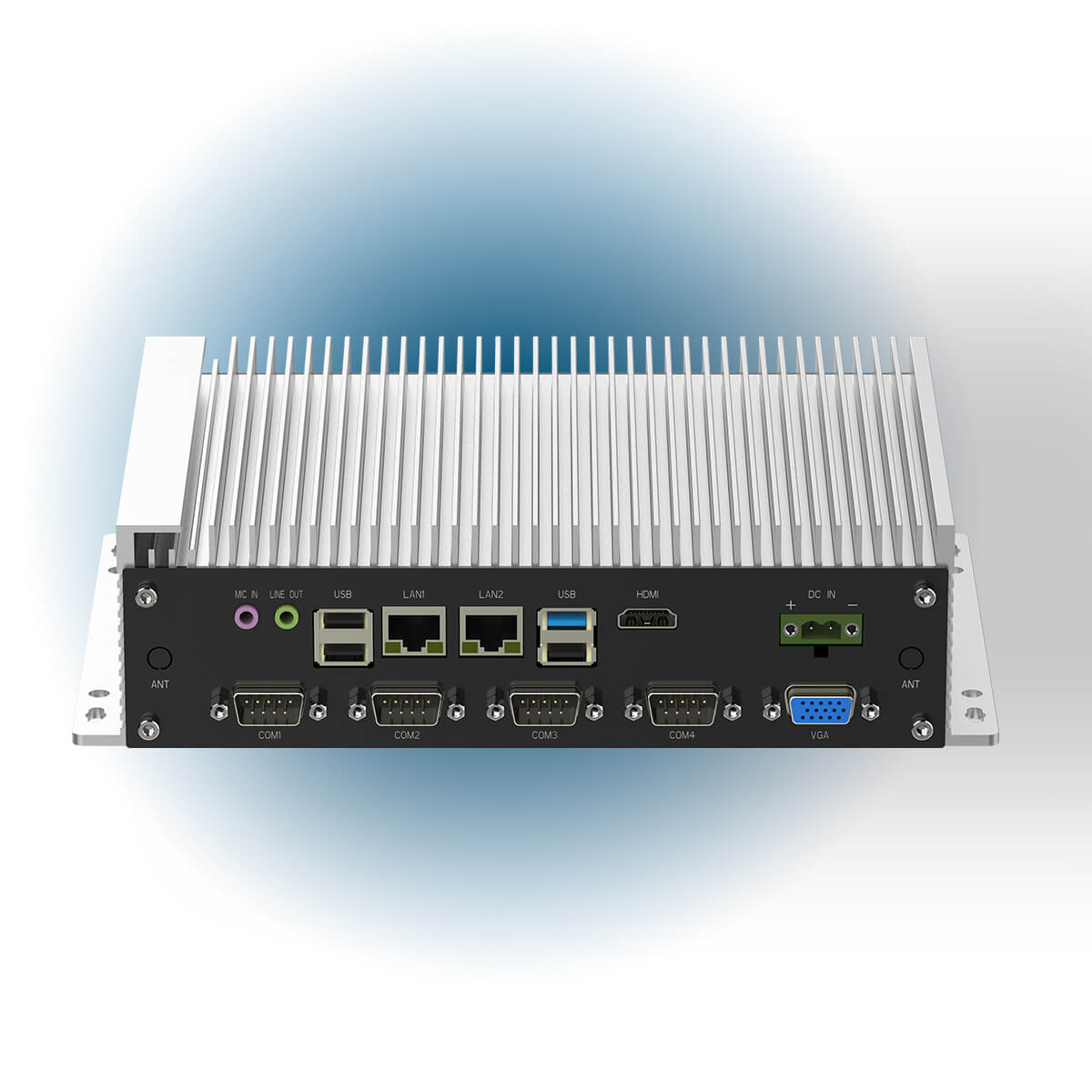

• I/O: 1x USB3.0, 5x USB2.0, 6x COM, 1x HDMI, 1x VGA, Mic-in/Line-out;
• 1x Mini-PCIe expansion slot;
• Extended industrial temperature range: -20°C ~ +70°C.
The TAICENN TBOX-2310 is a legacy Fanless Embedded system with Intel J1900, delivering solid computing performance with low power draw.
For storage, the unit supports 1× mSATA alongside one 2.5” SATA SSD or HDD. It comes equipped with versatile communication interfaces: 2× LAN ports, 5× USB 2.0, 1× USB 3.0 and 6× RS232 ports (1× RS485 optional). Power input covers a wide DC voltage range of 9~24V.
This model operates across an extended temperature range of -20°C ~ +70°C, built for 24/7 continuous operation in rugged industrial environments. Typical use cases include intelligent transportation, machine vision, medical equipment, textile machinery, railway transport and industrial automation.
This Fanless Embedded system with Intel J1900 TBOX-2310 supports Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Linux and embedded operating systems, and works with application software developed for these platforms.
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Baytrial Celeron J1900 processor | |
| CPU Ghz | Quad-core 2.0Ghz, burst to 2.42Ghz | |
| TDP | 10W | |
| Memory | SO-DIMM, DDR3L-1333 Mhz, Max. up to 8GB (Compatible with DDR3) | |
| Storage | 1* mSATA slot (Optional support 1* 2.5” SATA slot) | |
| Graphic | Intel HD Graphics Gen7 | |
| Network | 2* Intel I210AT, optional support 3G/4G/Wi-Fi wireless | |
| Audio | On-board Realtek ACL 282 Audio controller | |
| Expansion | 1* Mini-PCIe expansional slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win7, Win8, Win10, Linux | |
| IO interface | Serial port | 6* RS232 (Optional 1* RS485) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| Audio | Mic-in/Line-out | |
| USB | 1* USB3.0, 5* USB2.0, | |
| Display | 1* HDMI, 1 VGA | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 8* GPIO (Optional via 1* DB9) | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black & Silver | |
| Mount method | Desktop, wall mount, optional with Din-rail mount | |
| Cooling system | Finned aluminum heatsinks | |

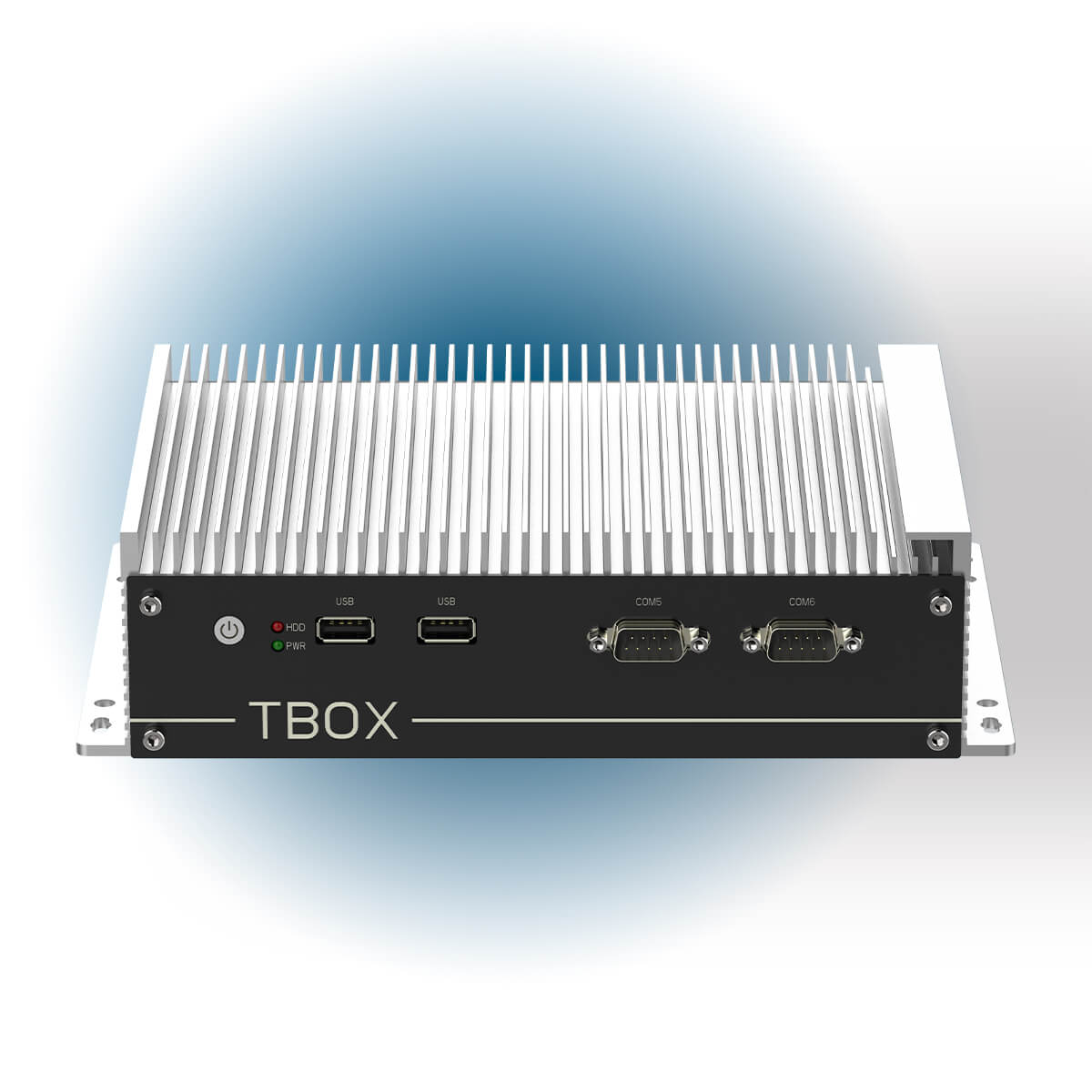

| Indicator & Button | Power switch, Power LED, HDD LED | |

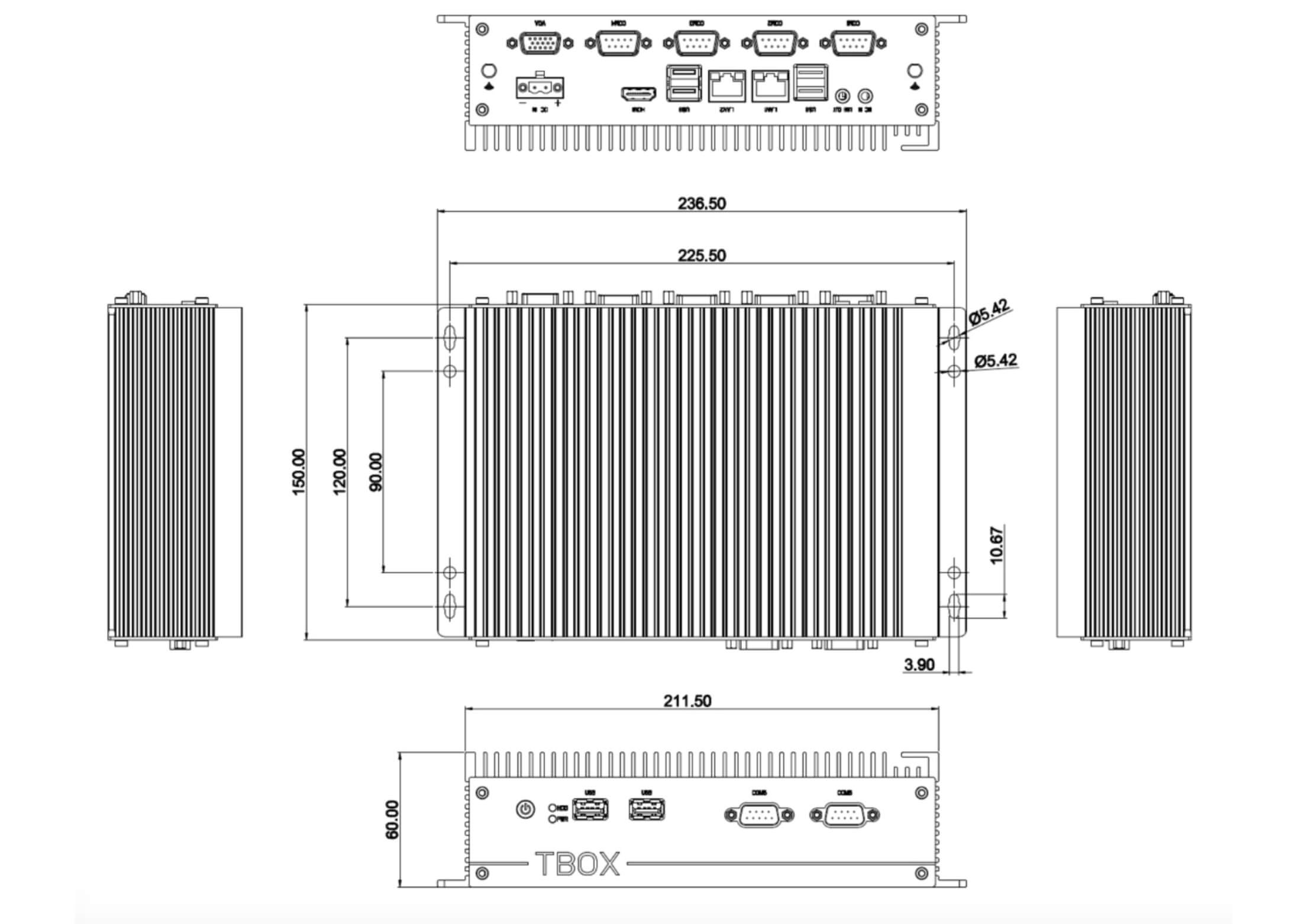

| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.4 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 70 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~24V (Optional DC 9 to 36V: Model TBOX-2310W) | |
| Power consumption | About 20W | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-2310 | Intel Baytrail J1900 processor, 2 GbE, 1 USB3.0, 5 USB2.0, 6 COM, 1 HDMI,1 VGA, Mic-in/Line-out, DC 9~24V, PSU |
| TBOX-2310W | Intel Baytrial J1900 processor, 2 GbE, 1 USB3.0, 5 USB2.0, 6 COM, 1 HDMI,1 VGA, Mic-in/Line-out, DC 9 ~ 36V (No PSU by default) |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR3L,4GB/8GB |
| Storage | mSATA SSD: 32GB/64GB/128GB/256GB/512GB |
| 2.5” SATA SSD: 128GB/256GB/512GB/1TB | |
| 2.5” HDD: 1TB/2TB/4TB | |
| Wireless | Wi-Fi module, with Antenna |
| Wi-Fi module with BT integrated, with antenna | |
| All network 4G module, with Antenna | |
| Mount Rack | Din 35 mount clip (2 set per unit) |
| Power Supply | 40W PSU (extra for TBOX-2310W, if requested) |
| Description | Download link |
| TBOX-2310 EN V3.2 Datasheet | https://www.taicenn.com/pdf/TBOX_2310_EN_V32_Datasheet.PDF |
| TBOX-2310 EN V2.0 User Manual | https://www.taicenn.com/pdf/TBOX_2310_Rugged_Fanless_Box_PC_UserManual_EN_V20.PDF |
| TBOX-2310 Intel Baytrial J1900 Win7 Drive | https://drive.google.com/file/d/1tk-dLkfhpUyAJSHn69vWwvWdlXi7Ic4o/view?usp=share_link |
| TBOX-2310 Intel Baytrial J1900 Win10 Drive | https://drive.google.com/file/d/1LNqatgCUeN5PYjqVg9tQ-p2Xs4PuzXhX/view?usp=share_link |
