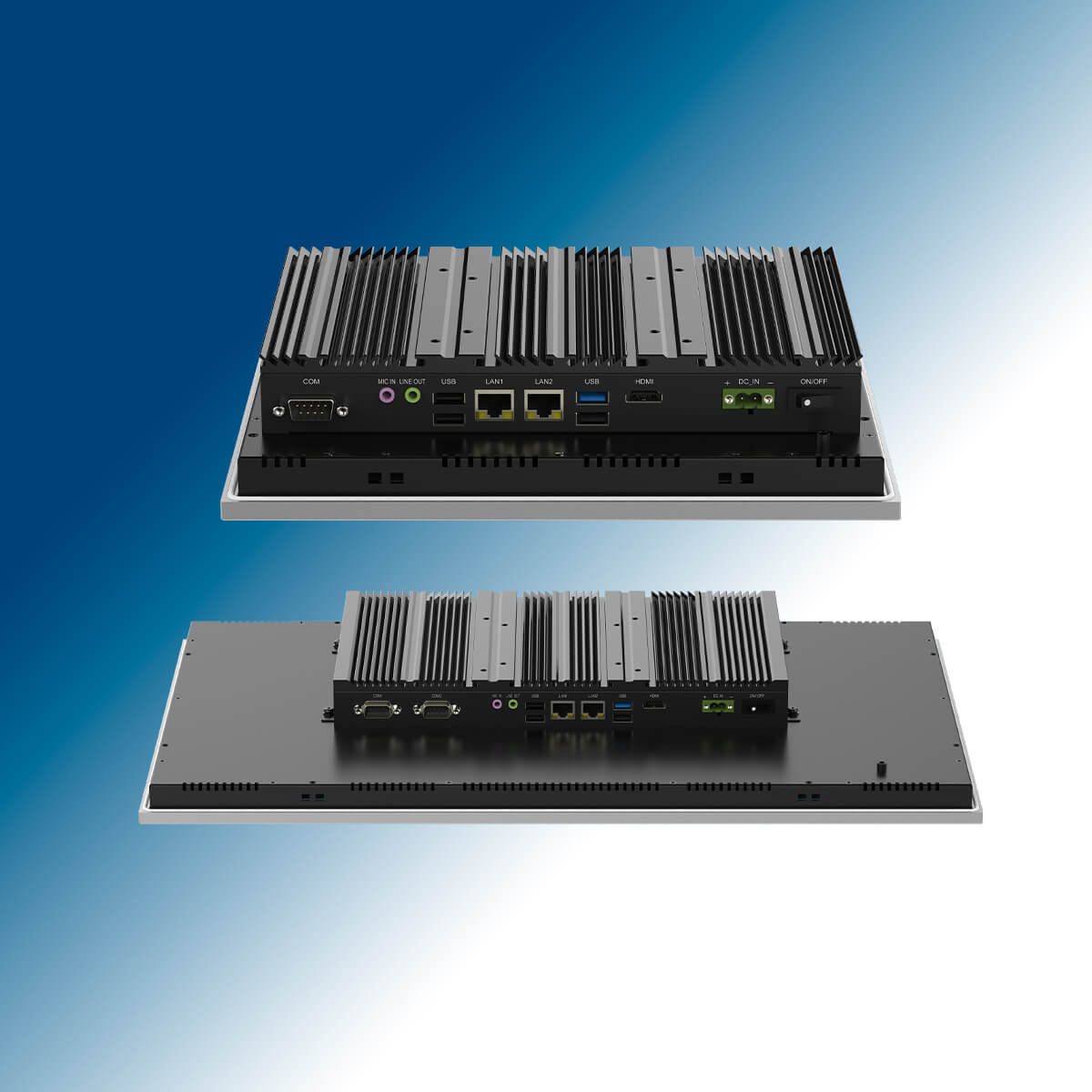

TPC-DCM&DRM C1 Series | Rugged Industrial Panel PC with Intel J1900 processor
– Modular fanless aluminum-magnesium alloy housing for rugged reliability
– Intel Baytrail J1900 2.0GHz quad-core CPU for stable low-power performance
– Wide industrial LCD displays, ranging from 10.4″ to 23.8″ dimensions
– Support both Pcap. and Resistive touchscreen, EETI controller
– 9~24V wide DC input, compatible with diverse industrial power systems

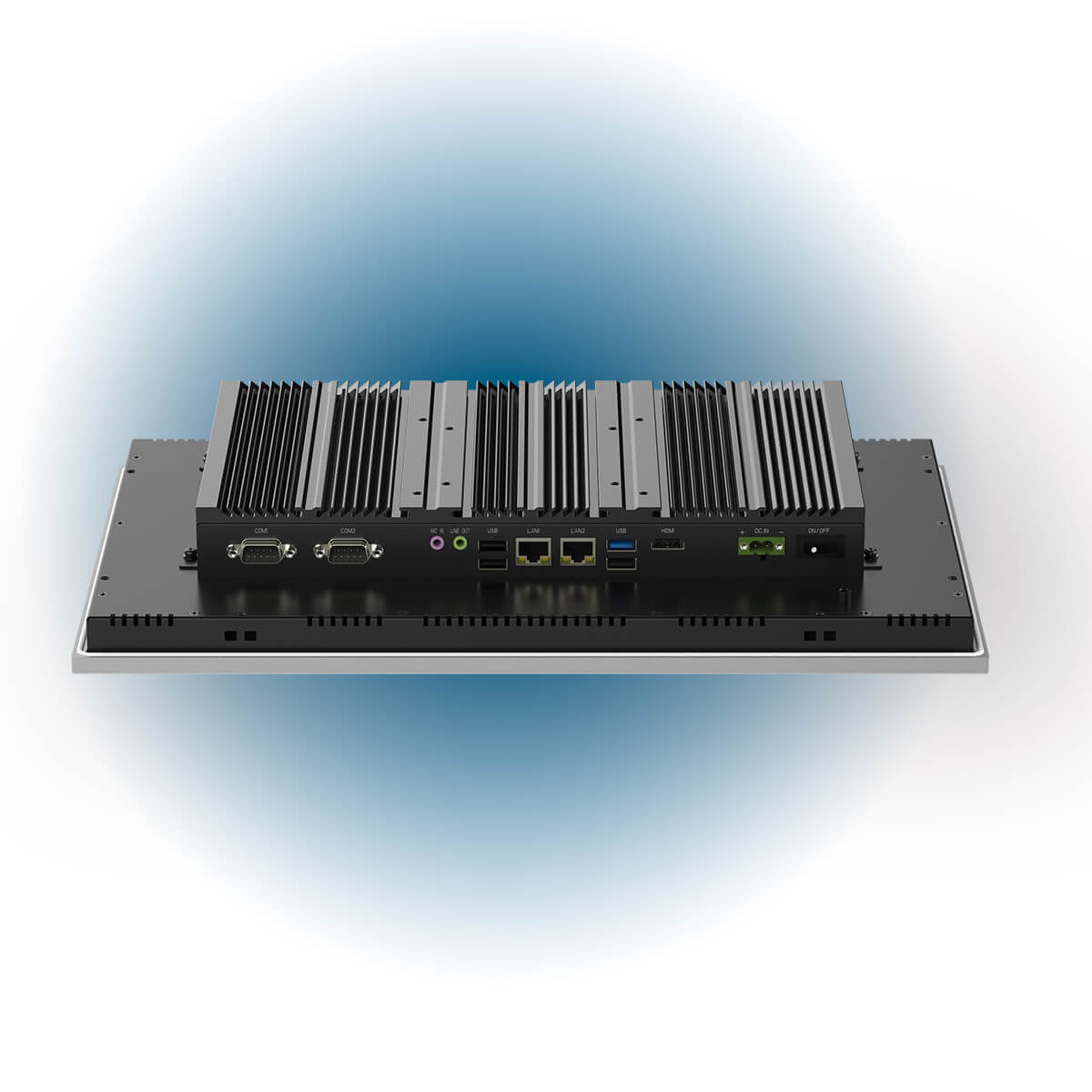

– Rich I/O: 2×GbE, 4×USB, 2×COM, 1×HDMI, Mic-in/Line-out
– Front IP66-rated protection, supports panel and VESA 75/100 mounting
– Optional Mini-PCIe slot for flexible wireless and functional expansion
Description
The TAICENN TPC-DCM&DRM C1 Series is Rugged Industrial Panel PC with Intel J1900 built for ultra-low power consumption and long-term operational stability. Powered by the Intel Baytrail J1900 quad-core processor, this fanless industrial computing platform delivers steady, reliable performance suited for continuous industrial operation.
Designed with flexible dual storage support, the system integrates one 2.5-inch SATA bay and one mSATA slot, allowing users to deploy either SSD or HDD for customized capacity and speed requirements. Its front panel is fully certified to IP65 and NEMA standards, providing effective dust and water resistance for deployment in demanding factory and field environments.
Featuring a fully sealed enclosure, Rugged Industrial Panel PC with Intel J1900 Series effectively blocks dust and particle ingress to extend device service life. It offers extensive operating system compatibility, supporting Windows 7, Windows 8, Windows 10, Windows Embedded, and Linux. The highly adaptable system architecture ensures seamless integration with custom industrial software and diverse on-site application scenarios.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Baytrail J1900, Quad-core 2.0Ghz, burst to 2.42Ghz, TDP=10W | |
| Graphic | Intel HD Graphic Gen7 | |
| Memory | SO-DIMM, Support DDR3L 1333Mhz, Max. up to 8GB (Compatible with DDR3) | |
| Storage | 1* mSATA SSD | |
| Network | 2* Intel i210AT GbE network chips (Optional wireless 3G/4G/LTE, Wi-Fi/BT) | |
| Audio | On-board Realtek ACL 282 Audio controller | |
| Expansion | 1* Full sized Mini-PCIe slot | |
| Watch dog | 0 ~ 256 seconds programmable | |
| Operating System | Win7, Win8, Win Embedded, Win10, Linux, Ubuntu | |
| I/O Interface | Ethernet | 2 RJ45, 10/100/1000 Mbps |
| COM | 1* RS232 by default (Optional RS485 or 8* GPIO) | |
| Audio | Mic-in/Line-out | |
| USB | 1* USB3.0, 3* USB2.0 | |
| Display | 1* HDMI | |
| Power | 1* 2 Pins, Phenix Terminal | |
| LCD Display & Touchsceen | Pcap. Touch | 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD, 23.8" FHD |
| Resistive Touch | 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD | |
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated |

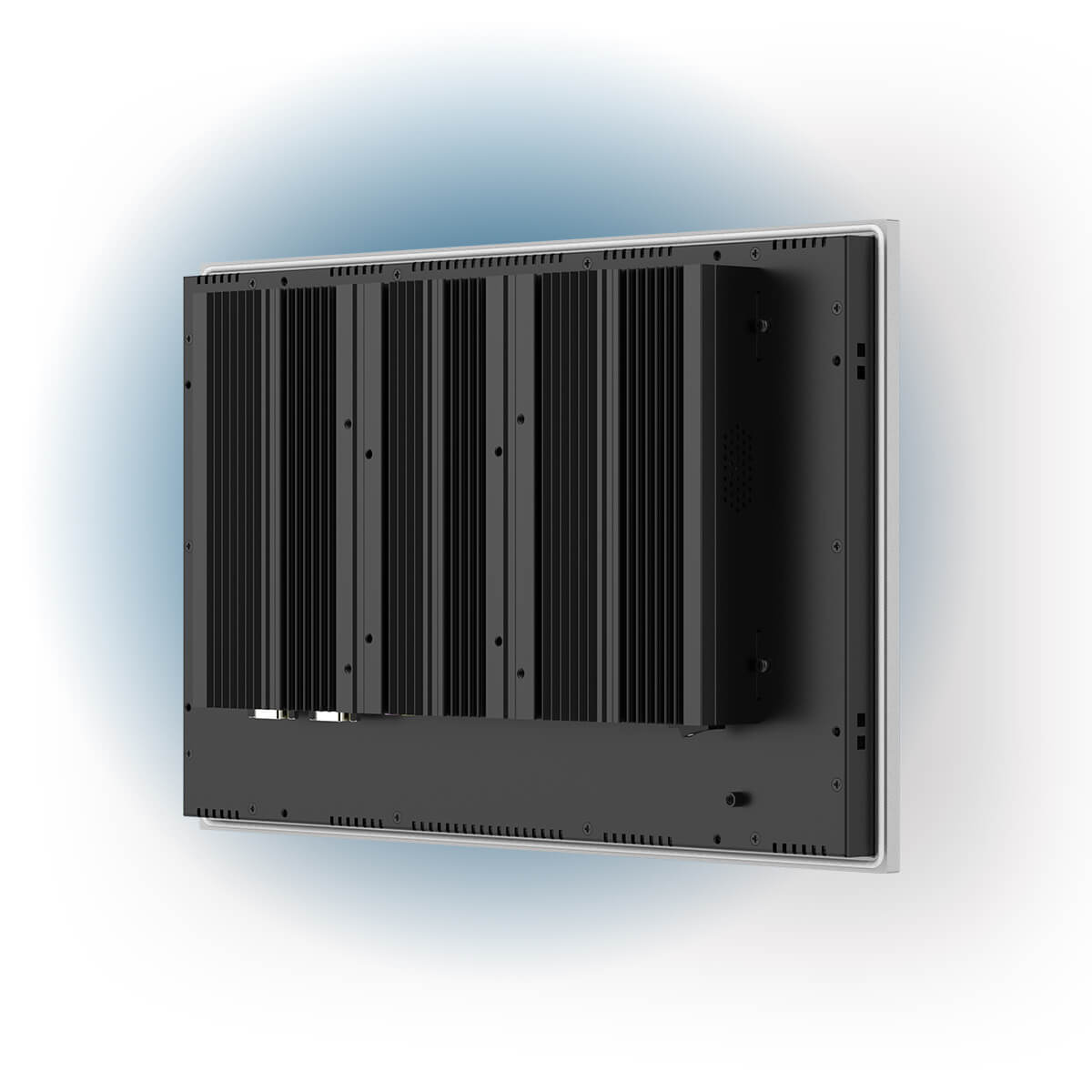

| Cooling System | Large area finned heatsink (Fanless designed) | |
| Mount Method | Panel mount, VESA 75/100 Mount | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Certificate | CE/FCC/ROHS |
Ordering information
| Part no. | Description |
| TPC-DCM104C1 | 10.4” LCD, XGA 1024 *768, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 1 COM, DC 9~24V, PSU |
| TPC-DRM104C1 | 10.4” LCD, XGA 1024 *768, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 1 COM, DC 9~24V, PSU |
| TPC-DCM121C1 | 12.1” LCD, XGA 1024 *768, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 1 COM, DC 9~24V, PSU |
| TPC-DRM121C1 | 12.1” LCD, XGA 1024 *768, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 1 COM, DC 9~24V, PSU |
| TPC-DCM150C1 | 15.0” LCD, XGA 1024 *768, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DRM150C1 | 15.0” LCD, XGA 1024 *768, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DCM156HC1 | 15.6” LCD, FHD 1920 *1080, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DRM156HC1 | 15.6” LCD, FHD 1920 *1080, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DCM170C1 | 17.0” LCD,SXGA 1280 *1024, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DRM170C1 | 17.0” LCD,SXGA 1280 *102, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DCM185C1 | 18.5” LCD, WXGA 1366 *768, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DRM185C1 | 18.5” LCD, WXGA 1366 *768, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DCM185HC1 | 18.5” LCD, FHD 1920 *1080, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DRM185HC1 | 18.5” LCD, FHD 1920 *1080, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DCM190C1 | 19.0” LCD, SXGA 1280 *1024, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DRM190C1 | 19.0” LCD, SXGA 1280 *1024, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DCM215C1 | 21.5” LCD, FHD 1920 *1080, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DRM215C1 | 21.5” LCD, FHD 1920 *1080, Intel J1900, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| TPC-DCM238C1 | 23.8” LCD, FHD 1920 *1080, Intel J1900, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 1 USB3.0, 3* USB2.0, 1 HDMI, 2 COM, DC 9~24V, PSU |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR3L, 4GB/8GB |
| Storage | SSD: 64GB/128GB/256GB |
| Wireless | Wi-Fi Module with BT Integrated, With Antenna |
| All Network 4G module, with Antenna | |
