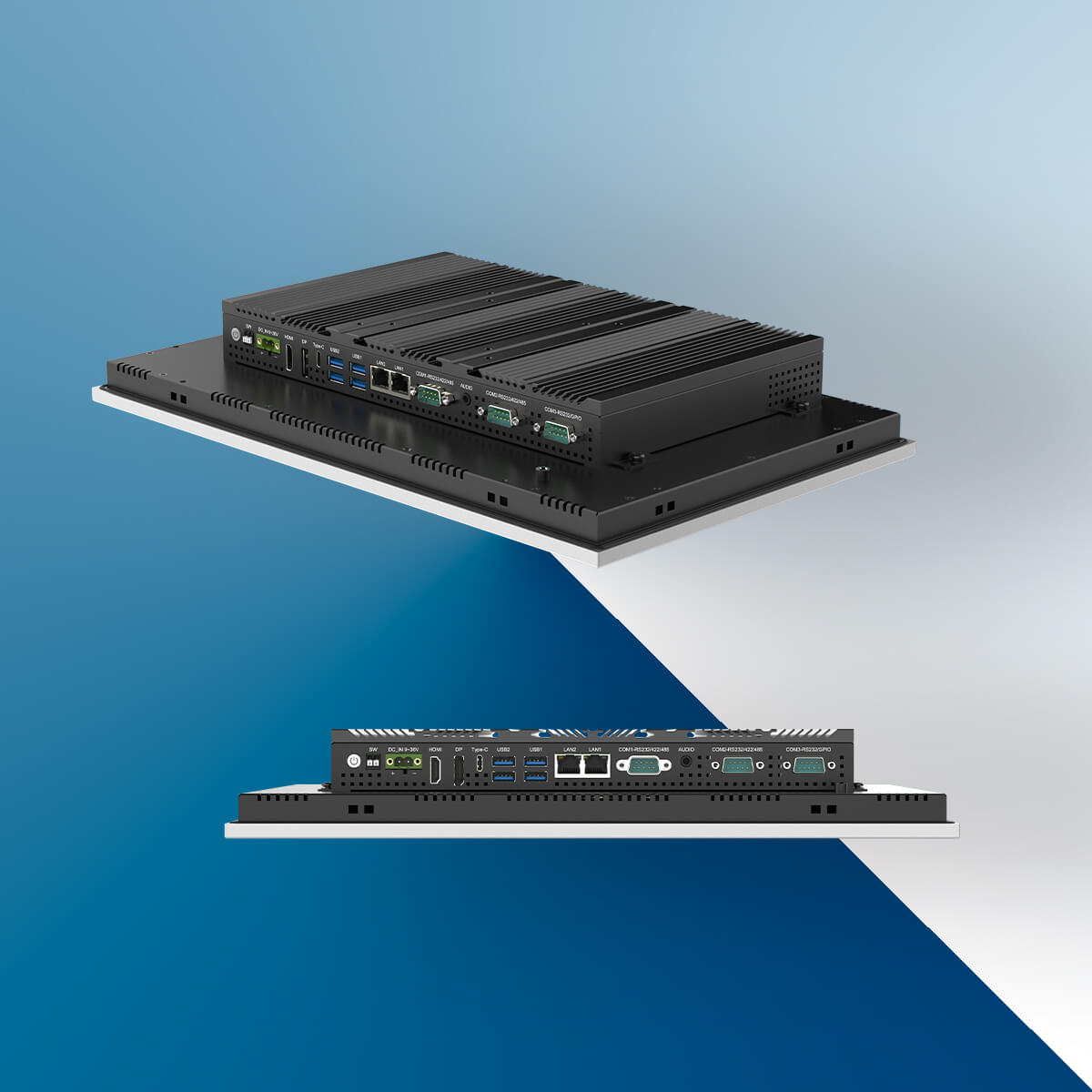

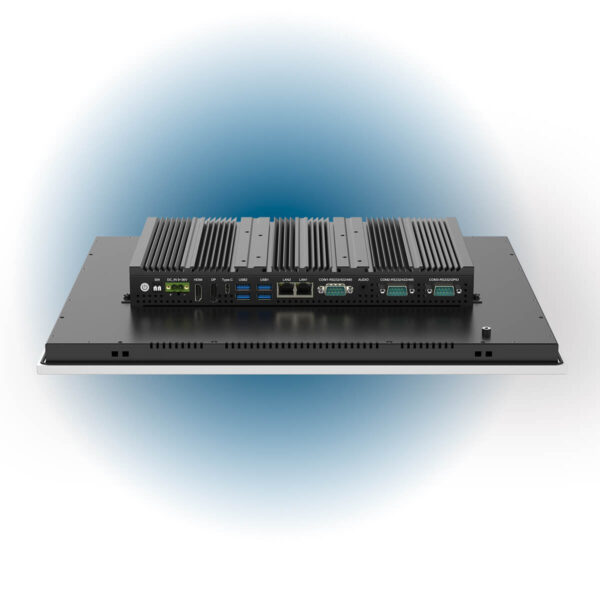

TPC-DCT&DRT D Series | Powerful Modular Panel PC with Intel 12th Gen. Core i3/i5/i7
● Modular & Fanless designed, aluminum-magnesium alloy;
● Intel 12th Gen. Alder Lake-U Core i3/i5/i7 processors;
● Available dimensions ranging from 10.1 ” to 23.8″;
● Support both Pcap. and Resistive touchscreen, EETI controller;
● DC terminal, wide 9~36 V input range;

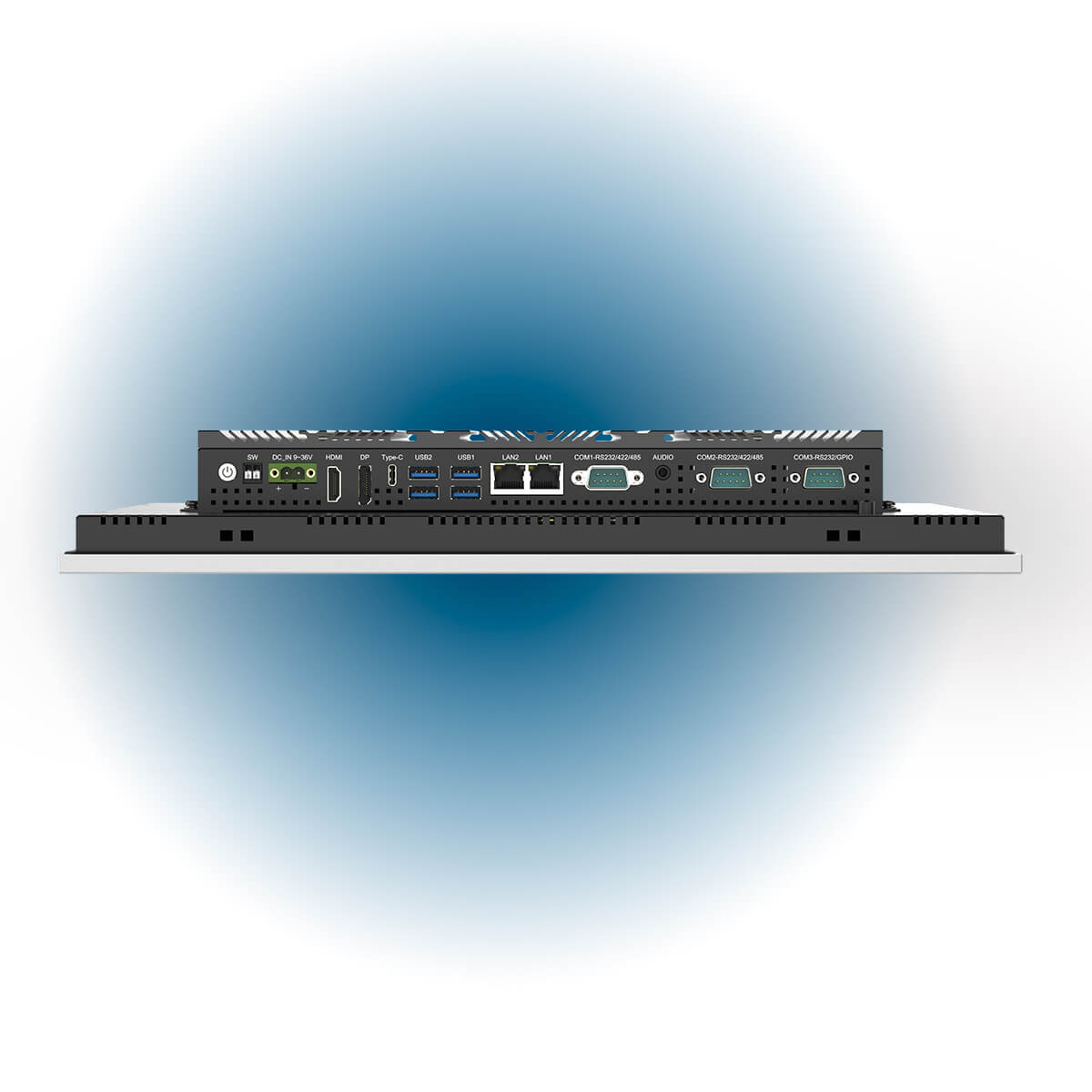

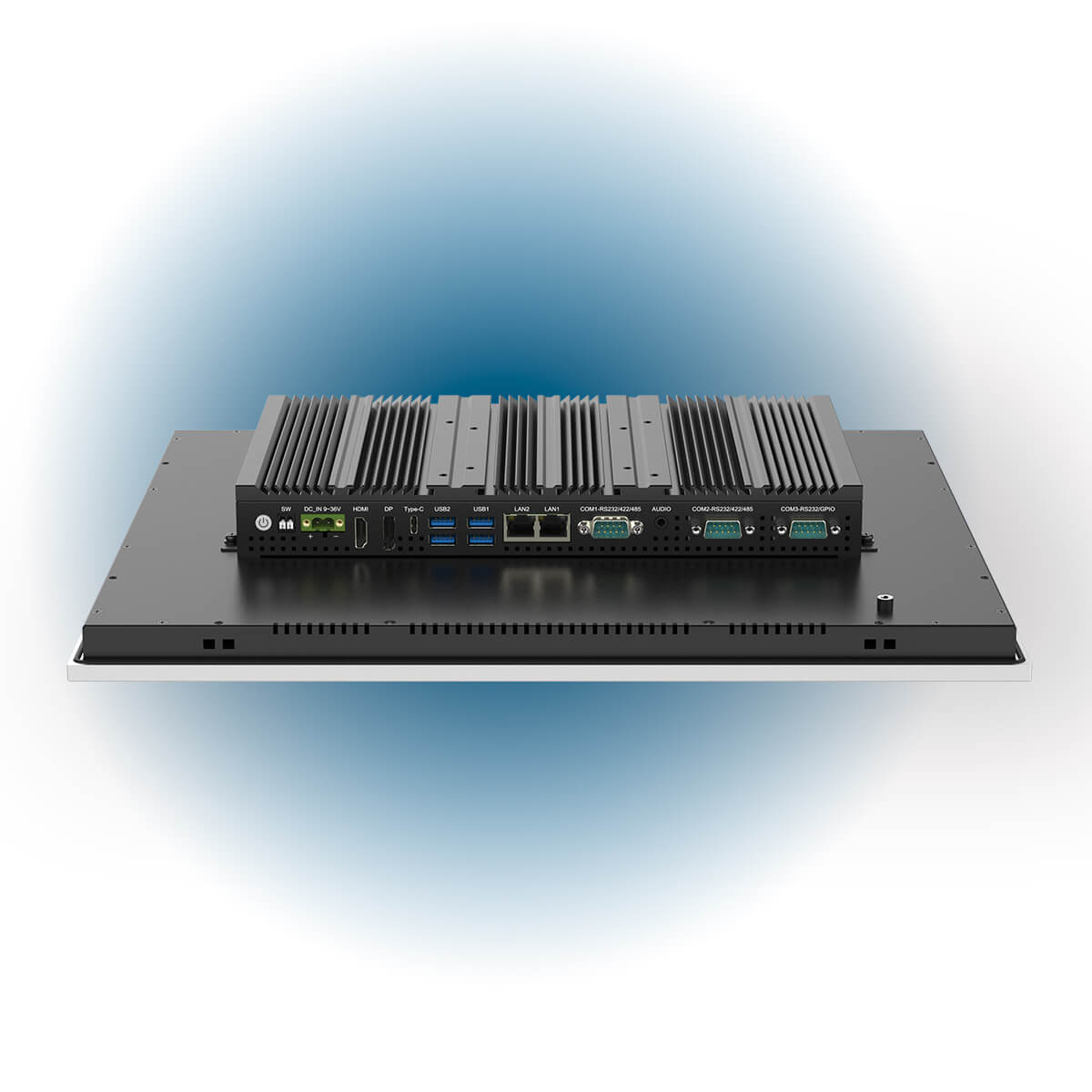

● 2 RJ45, 2 USB3.1, 2 USB3.0, 3 COM, 1 HDMI, 1 DP, Audio;
● 1 USB type-C (USB3.1 & DP1.4a), 1 SW Remote Switch;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● Optional 2 M.2 and 1 Mini-PCIe expansion slots.
Description
The all-new TAICENN Powerful Modular Panel PC series with Intel 12th Gen. Core i3/i5/i7, is built with high-grade industrial mainboard, it delivers powerful, stable performance and serves as a reliable HMI touch solution for diverse industrial scenarios.
This Powerful Modular Panel PC with Intel 12th Gen. Core i3/i5/i7, offering configurable Core i3-1215U, i5-1235U, and i7-1255U processors. Adopting Intel’s advanced P-core and E-core hybrid architecture, it assigns high-intensive tasks to high-performance P-cores and handles background processes with high-efficiency E-cores, achieving an optimal balance of outstanding computing power and low power consumption.
Designed with ultra-rich industrial-grade I/O interfaces, the TPC-DCT/DRT D fully meets multi-scenario connection demands and ensures smooth, stable data transmission. Its comprehensive port configuration includes 2 × RJ45 Ethernet (1 × 2.5GbE), 2 × USB3.1, 2 × USB3.0, 1 × USB-C (supports USB3.1 & DP1.4), 2 × BIOS-configurable RS232/RS485/RS422 serial ports, 1 × RS232 port (optional GPIO), 1 × remote switch, 1 × HDMI, 1 × DP, and audio jacks. The panel PC supports 9~36V wide-range DC terminal power input, with built-in over-current, over-voltage and reverse polarity protection for safe and steady operation in complex industrial power environments.
The Powerful Modular Panel PC with Intel 12th Gen. Core i3/i5/i7 supports Intel PTT TPM 2.0 security chip and full Windows 11 compatibility, delivering hardware-level data security and stable system operation. It features three high-speed expansion slots, including 1 × M.2 3042/3052 B-key, 1 × M.2 2230 E-key, and 1 × Mini-PCIe slot, enabling flexible upgrades for Wi-Fi/BT, Wi-Fi 6, 3G/4G and 5G wireless modules. The highly expandable design maximizes equipment scalability and effectively optimizes total cost of ownership (TCO) for industrial field applications. Versatile and high-performance, it is perfectly suited for M2M communication, smart building automation, industrial automation, IIoT, smart manufacturing, Industry 4.0 and commercial automation projects.
TAICENN Panel PCs are Built for Long-Term Operation in the Most Demanding industrial site Environments, built to reliably withstand the rigors of 24/7 operation period. Taicenn’s industrial touch panel PCs deliver reliable quality and stable operation. Each Expandable Touch Panel PC HMI PC’s interior comprises high-quality industrial-grade components designed to stand the test of time operating in harsh environments.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS | ||||||||||
| CPU | Intel 12th Gen. Core i3-1215U, Core i5-1235U, Core i7-1255U | |||||||||||
| Graphic | Intel UHD/Iris Xe Graphic | |||||||||||
| Memory | 2* SO-DIMM, Support DDR5-4800 MHz, Max. up to 64GB | |||||||||||
| Storage | 1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, 1* M.2 2280 M-Key slot (NVMe/SATA, auto-detected) SSD | |||||||||||
| Network | 1* Intel I226 (2.5GbE), 1* Intel I219 (1.0GbE) Network chips, optional 3G/4G/5G/Wi-Fi/BT, Wi-Fi 6 wireless | |||||||||||
| Audio | On-board Realtek ACL 897 Audio controller | |||||||||||
| Expansion | 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2230 slot, 1* Mini-PCIe slot, 1* SIM Card slot | |||||||||||
| Watch dog | 0 ~ 256 seconds programmable | |||||||||||
| Operating System | Win10 IoT 2021 LTSC; Win10 (21H2), Win11(21H2 or later); Linux Kernel 5.17 or later | |||||||||||
| I/O Interface | Ethernet | 2 RJ45 | ||||||||||
| COM | COM1: RS232/RS485/RS422 (BIOS configured); COM2: RS232/RS485/RS422 (Optional GPIO); COM3: RS232 (from 15.0") | |||||||||||
| Audio | Mic-in/Line-out (2 in 1, 3.5mm Jack) | |||||||||||
| USB | 2* USB3.1 (USB3.2 Gen2 x1, 10 Gbps), 2* USB3.0 (USB3.2 Gen1 x1, 5Gbps), 1* USB-C (USB3.1 & DP1.4a) | |||||||||||
| Display | 1* HDMI1.4 (Max. resolution to 4K@30Hz), 1* DP++ (Max. support 8K @30Hz) | |||||||||||
| Power | 1* 2 Pins, Phenix Terminal | |||||||||||
| LCD Display | Size/Type | 10.1” TFT LCD Display | 10.4” TFT LCD Display | 12.1” TFT LCD Display | 15.0” TFT LCD Display | 15.6” TFT LCD Display | 17.0” TFT LCD Display | 18.5” TFT LCD Display | 18.5” TFT LCD Display | 19.0” TFT LCD Display | 21.5” TFT LCD Display | 23.8” TFT LCD Display |
| Resolution | 1280 * 800 (WXGA) | 1024 * 768 (XGA) | 1024 * 768 (XGA) | 1024 * 768 (XGA) | 1920 * 1080 (FHD) | 1280 * 1024 (SXGA) | 1366 * 768 (WXGA) | 1920 * 1080 (FHD) | 1280 * 1024 (SXGA) | 1920 * 1080 (FHD) | 1920 * 1080 (FHD) | |
| Brightness | 350 nits | 350 nits | 350 nits | 350 nits | 450 nits | 250 nits | 250 nits | 350 nits | 250 nits | 250 nits | 250 nits | |
| Backlit & Lifetime | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 70K hours | LED Backlit & 50K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 50K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | |
| Display Area | 216.96 * 135.6 (mm) | 211.2 * 158.4 (mm) | 245.76 * 184.32 (mm) | 304.1 * 228.1 (mm) | 344.16 * 193.59 (mm) | 337.92 * 270.336 (mm) | 409.8 * 230.4 (mm) | 408.96 * 230.4 (mm) | 376.32 * 301.06 (mm) | 476.64 * 268.11 (mm) | 527.04 * 296.46 (mm) | |
| View Angle | 85/85/80/80 | 80/80/80/80 | 80/80/80/80 | 88/88/88/88 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 85/85/85/85 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | |
| Touchscreen | Type | Available with both Projective capacitive touchscreen and 5-wires resistive touchscreen | ||||||||||
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated | ||||||||||
| Cooling System | Large area finned heatsink (Fanless designed) | |||||||||||
| Overall Dimension | 259.0 * 177.0 * 54.0 (mm) | 264.0* 205.6 * 59.0 (mm) | 306.0* 242.5 * 59.0 (mm) | 352.2* 279.3 * 59.0 (mm) | 395.6* 247.9 * 59.0 (mm) | 385.6* 323.5 * 59.0 (mm) | 462.4* 296.6 * 59.0 (mm) | 462.4* 296.6 * 59.0 (mm) | 422.3* 353.0 * 59.0 (mm) | 527.0* 318.7 * 59.0 (mm) | 578.4* 347.9 * 59.0 (mm) | |
| Cut-out Dimension | 253 * 171 (mm) | 253 * 195 (mm) | 295 * 232 (mm) | 341 * 268 (mm) | 383 * 237 (mm) | 376 * 313 (mm) | 451 * 276 (mm) | 451 * 276 (mm) | 411 * 342 (mm) | 516 * 308 (mm) | 568 * 338 (mm) | |
| Net Weight | 3.0 KG | 3.1 KG | 3.5 KG | 3.9 KG | 4.3 KG | 4.7 KG | 5.6 KG | 5.6 KG | 6.2 KG | 7.0 KG | 7.6 KG | |
| Mount Method | Panel mount, VESA 75/100 Mount | |||||||||||
| Power & Environmental | Operating temp. | -20 ~ + 70 (℃) | -20 ~ + 70 (℃) | -20 ~ + 70 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | -0 ~ + 50 (℃) | -0 ~ + 50 (℃) | -20 ~ + 60 (℃) | -0 ~ + 50 (℃) | -0 ~ + 60 (℃) | -0 ~ + 50 (℃) |
| Storage temp. | -30 ~ + 80 (℃) | -30 ~ + 70 (℃) | -30 ~ + 80 (℃) | -30 ~ + 80 (℃) | -30 ~ + 70 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | -30 ~ + 70 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |||||||||||
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |||||||||||
| Shock | 10G/Peak (11 ms) | |||||||||||
| Power input | Wide DC 9~36 V | |||||||||||
| Power consumption | About 35W | About 35W | About 35W | About 40W | About 40W | About 40W | About 40W | About 40W | About 40W | About 45W | About 45W | |
| Certificate | CE/FCC/ROHS | |||||||||||
Ordering information
| Part no. | Description | ||
| TPC-DCT101D1 | 10.1” LCD, WXGA 1280 *800, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT101D2 | 10.1” LCD, WXGA 1280 *800, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT101D1 | 10.1” LCD, WXGA 1280 *800, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT101D2 | 10.1” LCD, WXGA 1280 *800, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT104D1 | 10.4” LCD, XGA 1024 *768, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT104D2 | 10.4” LCD, XGA 1024 *768, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT104D1 | 10.4” LCD, XGA 1024 *768, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT104D2 | 10.4” LCD, XGA 1024 *768, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT121D1 | 12.1” LCD, XGA 1024 *768, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT121D2 | 12.1” LCD, XGA 1024 *768, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT121D1 | 12.1” LCD, XGA 1024 *768, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT121D2 | 12.1” LCD, XGA 1024 *768, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT150D1 | 15.0” LCD, XGA 1024 *768, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT150D2 | 15.0” LCD, XGA 1024 *768, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT150D1 | 15.0” LCD, XGA 1024 *768, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT150D2 | 15.0” LCD, XGA 1024 *768, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT156HD1 | 15.6” LCD, FHD 1920 *1080, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT156HD2 | 15.6” LCD, FHD 1920 *1080, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT156HD1 | 15.6” LCD, FHD 1920 *1080, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT156HD2 | 15.6” LCD, FHD 1920 *1080, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT170D1 | 17.0” LCD, SXGA 1280 *1024, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT170D2 | 17.0” LCD, SXGA 1280 *1024, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT170D1 | 17.0” LCD, SXGA 1280 *1024, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT170D2 | 17.0” LCD, SXGA 1280 *1024, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT185D1 | 18.5” LCD, WXGA 1366 *768, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT185D2 | 18.5” LCD, WXGA 1366 *768, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT185D1 | 18.5” LCD, WXGA 1366 *768, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT185D2 | 18.5” LCD, WXGA 1366 *768, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT185HD1 | 18.5” LCD, FHD 1920 *1080, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT185HD2 | 18.5” LCD, FHD 1920 *1080, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT185HD1 | 18.5” LCD, FHD 1920 *1080, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT185HD2 | 18.5” LCD, FHD 1920 *1080, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT190D1 | 19.0” LCD, SXGA 1280 *1024, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT190D2 | 19.0” LCD, SXGA 1280 *1024, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT190D1 | 19.0” LCD, SXGA 1280 *1024, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT190D2 | 19.0” LCD, SXGA 1280 *1024, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT215D1 | 21.5” LCD, FHD 1920 *1080, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT215D2 | 21.5” LCD, FHD 1920 *1080, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT215D1 | 21.5” LCD, FHD 1920 *1080, Intel Core i3-1215U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DRT215D2 | 21.5” LCD, FHD 1920 *1080, Intel Core i5-1235U, Resistive Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 3 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT238D1 | 23.8” LCD, FHD 1920 *1080, Intel Core i3-1215U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| TPC-DCT238D2 | 23.8” LCD, FHD 1920 *1080, Intel Core i5-1235U, Pcap. Touch, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 HDMI, 1 DP, 2 COM, Audio, 1 SW, DC 9~36V, PSU | ||
| Optional Accessories | Description | Packing List | |
| Memory | SO-DIMM, DDR5, 8GB/16GB/32GB/64GB | Standard Panel PC Product | 1 set |
| Storage | SSD: 128GB/256GB/512GB/1TB | PSU (90W Power Supply) | 1 set |
| Wireless | Wi-Fi Module, with Antenna | Panel mount clips (Metal) | 1 set (8 pieces) |
| Wi-Fi Module with BT Integrated, With Antenna | Power Cable & Plug | 1 set | |
| All Network 4G module, with Antenna | |||
| 5G Network module, with Antenna | |||
