TPC-DCT&DRT T Series | Powerful Modular Panel PC with Intel 11th Gen. Core i3/i5/i7
– 15.0“ to 23.8″ dimensions, for sharp industrial visualization
– 11th Gen Intel Tiger Lake UP3 Core i5, balanced performance & low power consumption
– Max 64GB DDR4 dual memory + M.2 2280 storage, fast & expandable
– Both Pcap. and Resistive touchscreen, EETI controller, sensitive and durable operation

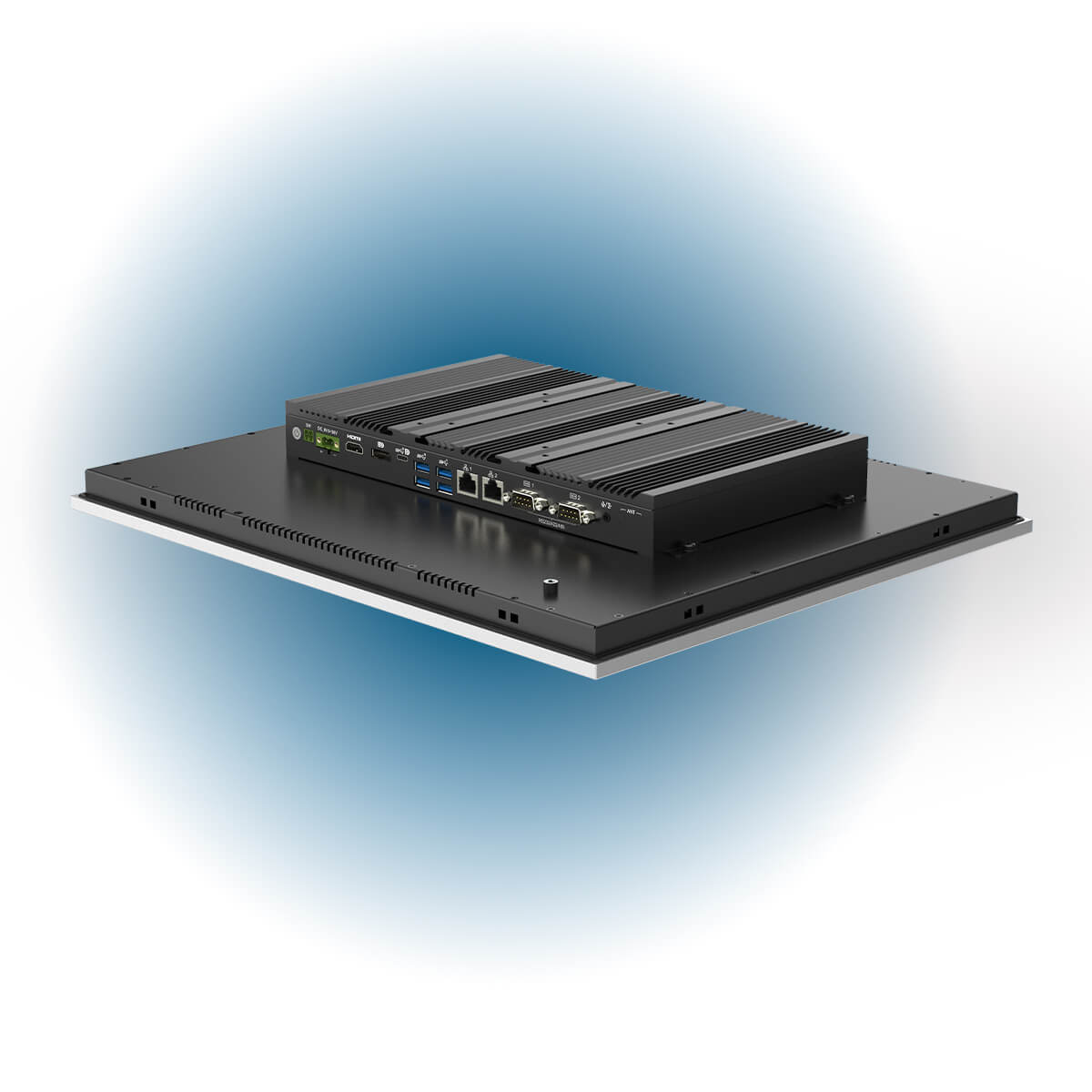

– Aluminum-magnesium alloy anodized housing, modular & cableless structure
– 9~36V wide DC input, adapts to complex industrial power supply environments

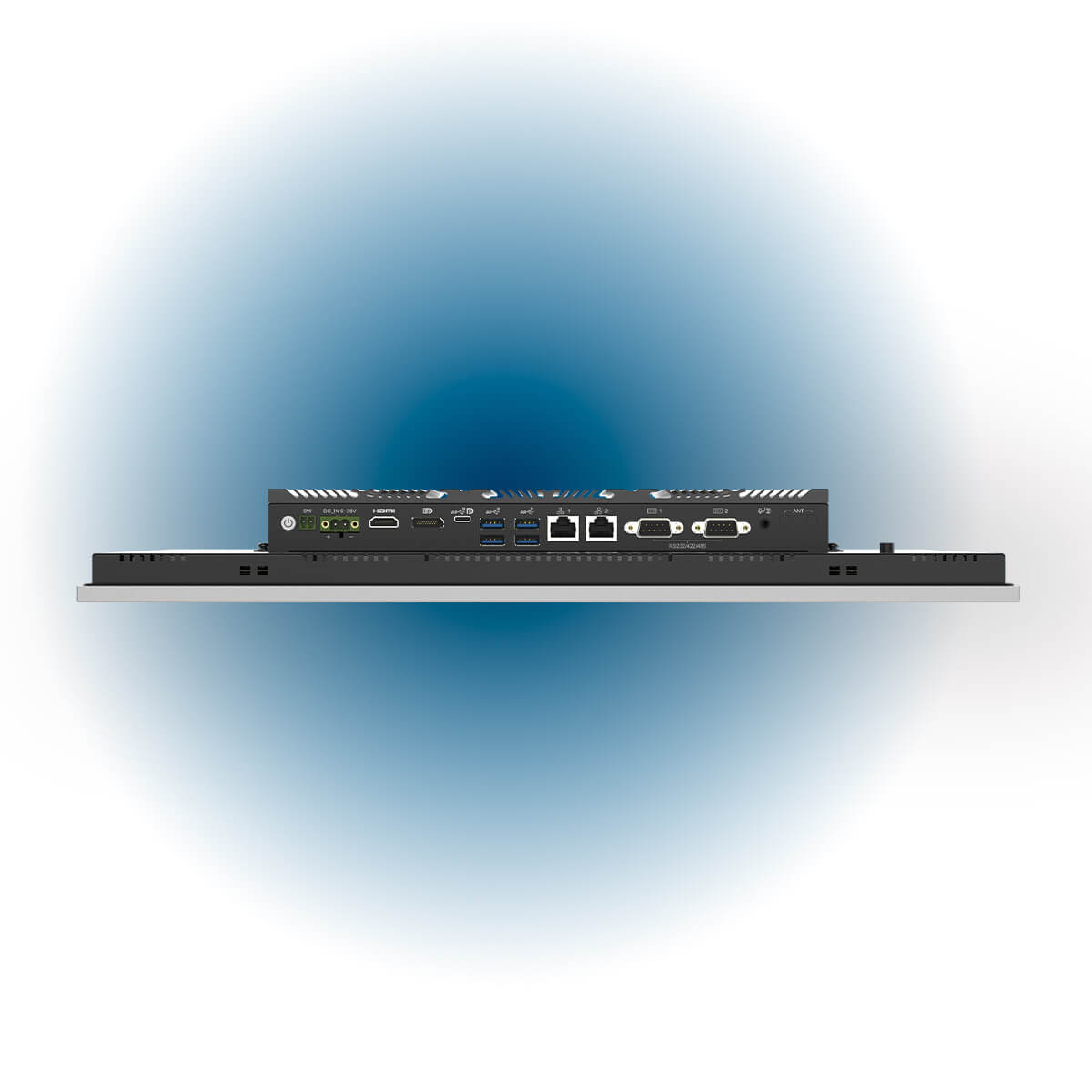

– Rich I/O: 2×GbE, 2×USB3.1, 2×USB3.0, 2×COM, HDMI, DP, Audio
– Independent USB-C (USB3.1 + DP1.4a) & remote switch for flexible usage
– Intel PTT TPM2.0 equipped, fully Windows 11 compatible for high security
– Fanless slim design, front IP66 protection, panel mount& VESA mount
Description

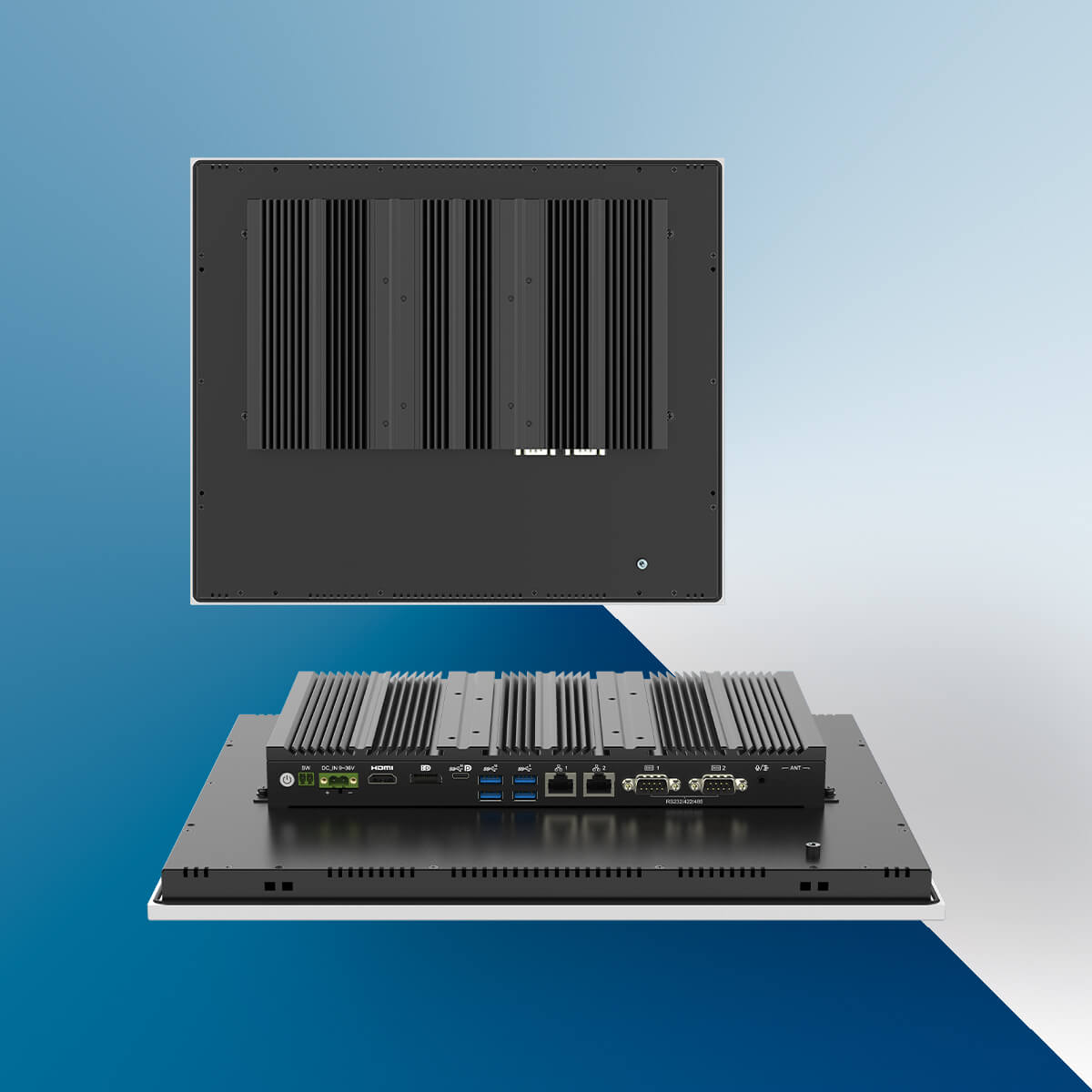

The TAICENN TPC-DCT&DRT T Series represents Powerful Modular Panel PC with Intel 11th Gen. Core i5, featuring a rugged, fanless and cableless integrated structure. Differentiated from conventional integrated panel PCs, this series adopts a separated modular design with standardized projected capacitive touch display and independent computer core modules, delivering exceptional stability, maintainability and upgradeability for long-term industrial HMI deployment.
Engineered for balanced high performance and energy efficiency, the T-Series Powerful Modular Panel PC with Intel 11th Gen. Core i5 are powered by Intel 11th Gen Tiger Lake UP3 SoC processors, with flexible i5-1135G7 configuration. Equipped with advanced Intel Iris Xe Graphics architecture, the series delivers vastly improved image processing, video decoding and graphical rendering capabilities, perfectly catering to high-resolution display and visual industrial control scenarios.
Focusing on powerful scalability and multi-scenario adaptability, the TPC-DCT&DRT T Series reserves abundant high-speed expansion resources, breaking the port and function limitations of ordinary industrial panel PCs. It integrates 2 × M.2 high-speed slots and 1 × Mini-PCIe expansion slot, supporting flexible installation of Wi-Fi/BT, 3G/4G and 5G cellular modules to realize diversified wireless networking functions.
All models in this T Series support Intel PTT TPM 2.0 hardware security encryption and full Windows 11 system compatibility, ensuring secure, stable and compliant system operation for industrial scenarios. With rich native I/O interfaces and ultra-high expandability, this modular panel PC platform serves as a future-proof industrial computing solution. It is widely applicable for M2M communication linkage, intelligent building automation, factory industrial automation, IIoT data transmission, smart manufacturing, Industry 4.0 and diversified commercial automation projects.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS | |||||||
| CPU | Intel 11th Gen. Core i5-1135G7 CPU | ||||||||
| Graphic | Intel UHD/Iris Xe Graphic | ||||||||
| Memory | 2* SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 64GB | ||||||||
| Storage | 1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, 1* 2.5” SATA III SSD | ||||||||
| Network | 1* Intel I219LM, 1* Intel I226V GbE (Optional wireless 3G/4G/LTE, Wi-Fi/BT, 5G/Wi-Fi 6) | ||||||||
| Audio | On-board Realtek ACL 897 Audio controller | ||||||||
| Expansion | 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2230 slot, 1* Mini-PCIe slot | ||||||||
| Watch dog | 0 ~ 256 seconds programmable | ||||||||
| Operating System | Win10, Win11, Linux, Ubuntu | ||||||||
| I/O Interface | Ethernet | 2 RJ45, 10/100/1000 Mbps | |||||||
| COM | 2 RS232/RS485/RS422 (BIOS configured) | ||||||||
| Audio | Mic-in/Line-out (2 in 1, 3.5mm Jack) | ||||||||
| USB | 2* USB3.1 (USB3.2 Gen2 x1, 10 Gbps), 2* USB3.0 (USB3.2 Gen1 x1, 5Gbps), 1* USB-C (USB3.1 & DP1.4a) | ||||||||
| Display | 1* HDMI (Max. support 4096 * 2304 @60Hz), 1* DP1.4a (Max. 7680*4320 @60Hz) | ||||||||
| Power | 1* 2 Pins, Phenix Terminal | ||||||||
| LCD Display | Size/Type | 15.0” TFT LCD Display | 15.6” TFT LCD Display | 17.0” TFT LCD Display | 18.5” TFT LCD Display | 18.5” TFT LCD Display | 19.0” TFT LCD Display | 21.5” TFT LCD Display | 23.8” TFT LCD Display |
| Resolution | 1024 * 768 (XGA) | 1920 * 1080 (FHD) | 1280 * 1024 (SXGA) | 1366 * 768 (WXGA) | 1920 * 1080 (FHD) | 1280 * 1024 (SXGA) | 1920 * 1080 (FHD) | 1920 * 1080 (FHD) | |
| Brightness | 350 nits | 450 nits | 250 nits | 250 nits | 350 nits | 250 nits | 250 nits | 250 nits | |
| Backlit & Lifetime | LED Backlit & 70K hours | LED Backlit & 50K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 50K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | LED Backlit & 30K hours | |
| Display Area | 304.1 * 228.1 (mm) | 344.16 * 193.59 (mm) | 337.92 * 270.336 (mm) | 409.8 * 230.4 (mm) | 408.96 * 230.4 (mm) | 376.32 * 301.06 (mm) | 476.64 * 268.11 (mm) | 527.04 * 296.46 (mm) | |
| View Angle | 88/88/88/88 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 85/85/85/85 | 85/85/80/80 | 89/89/89/89 | 89/89/89/89 | |
| Touchscreen | Type | Projective capacitive touchscreen | |||||||
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated | |||||||
| Cooling System | Large area finned heatsink (Fanless designed) | ||||||||
| Overall Dimension | 352.2 * 279.3 * 57.0 (mm) | 395.6 * 247.9 * 57.0 (mm) | 385.6 * 323.5 * 57.0 (mm) | 462.4 * 296.6 * 57.0 (mm) | 462.4 * 296.6 * 57.0 (mm) | 422.3 * 353.0 * 57.0 (mm) | 527.0 * 318.7 * 57.0 (mm) | 578.4 * 347.9 * 57.0 (mm) | |
| Cut-out Dimension | 341 * 268 (mm) | 385 * 237 (mm) | 376 * 313 (mm) | 451 * 276 (mm) | 451 * 276 (mm) | 411 * 342 (mm) | 516 * 308 (mm) | 568 * 338 (mm) | |
| Net Weight | 3.9 KG | 4.3 KG | 4.7 KG | 5.6 KG | 5.6 KG | 6.2 KG | 7.0 KG | 7.6 KG | |
| Mount Method | Panel mount, VESA 75/100 Mount | ||||||||
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | 0 ~ + 50 (℃) | 0 ~ + 50 (℃) | -20 ~ + 60 (℃) | 0 ~ + 50 (℃) | 0 ~ + 60 (℃) | 0 ~ + 50 (℃) |
| Storage temp. | -30 ~ + 80 (℃) | -30 ~ + 80 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | -30 ~ + 70 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | -20 ~ + 60 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | ||||||||
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | ||||||||
| Shock | 10G/Peak (11 ms) | ||||||||
| Power input | Wide DC 9~36 V | ||||||||
| Power consumption | About 40W | About 40W | About 40W | About 40W | About 40W | About 40W | About 45W | About 45W | |
| Certificate | CE/FCC/ROHS | ||||||||
Ordering information
| Part no. | Description |
| TPC-DCT150T2 | 15.0”, 1024 * 768, Core i5-1135G7,Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DRT150T2 | 15.0”, 1024 * 768, Core i5-1135G7, Resistive touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DCT156HT2 | 15.6”, 1920 * 1080, Core i5-1135G7,Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DRT156HT2 | 15.6”, 1920 * 1080, Core i5-1135G7, Resistive touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DCT170T2 | 17.0”, 1280 * 1024, Core i5-1135G7,Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DRT170T2 | 17.0”, 1280 * 1024, Core i5-1135G7, Resistive touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DCT185T2 | 18.5”, 1366 * 768, Core i5-1135G7,Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DRT185T2 | 18.5”, 1366 * 768, Core i5-1135G7, Resistive touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DCT185HT2 | 18.5”, 1920 * 1080, Core i5-1135G7,Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DRT185HT2 | 18.5”, 1920 * 1080, Core i5-1135G7, Resistive touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DCT190T2 | 19.0”, 1280 * 1024, Core i5-1135G7,Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DRT190T2 | 19.0”, 1280 * 1024, Core i5-1135G7, Resistive touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DCT215T2 | 21.5”, 1920 * 1080, Core i5-1135G7,Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DRT215T2 | 21.5”, 1920 * 1080, Core i5-1135G7, Resistive touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
| TPC-DCT238T2 | 23.8”, 1920 * 1080, Core i5-1135G7, Pcap. touch, 2*GLAN, 2*USB3.1, 2* USB3.0, 1* USB-C, 2*COM, Audio, 1* SW, 1*HDMI, 1* DP, DC 9~36V, PSU |
