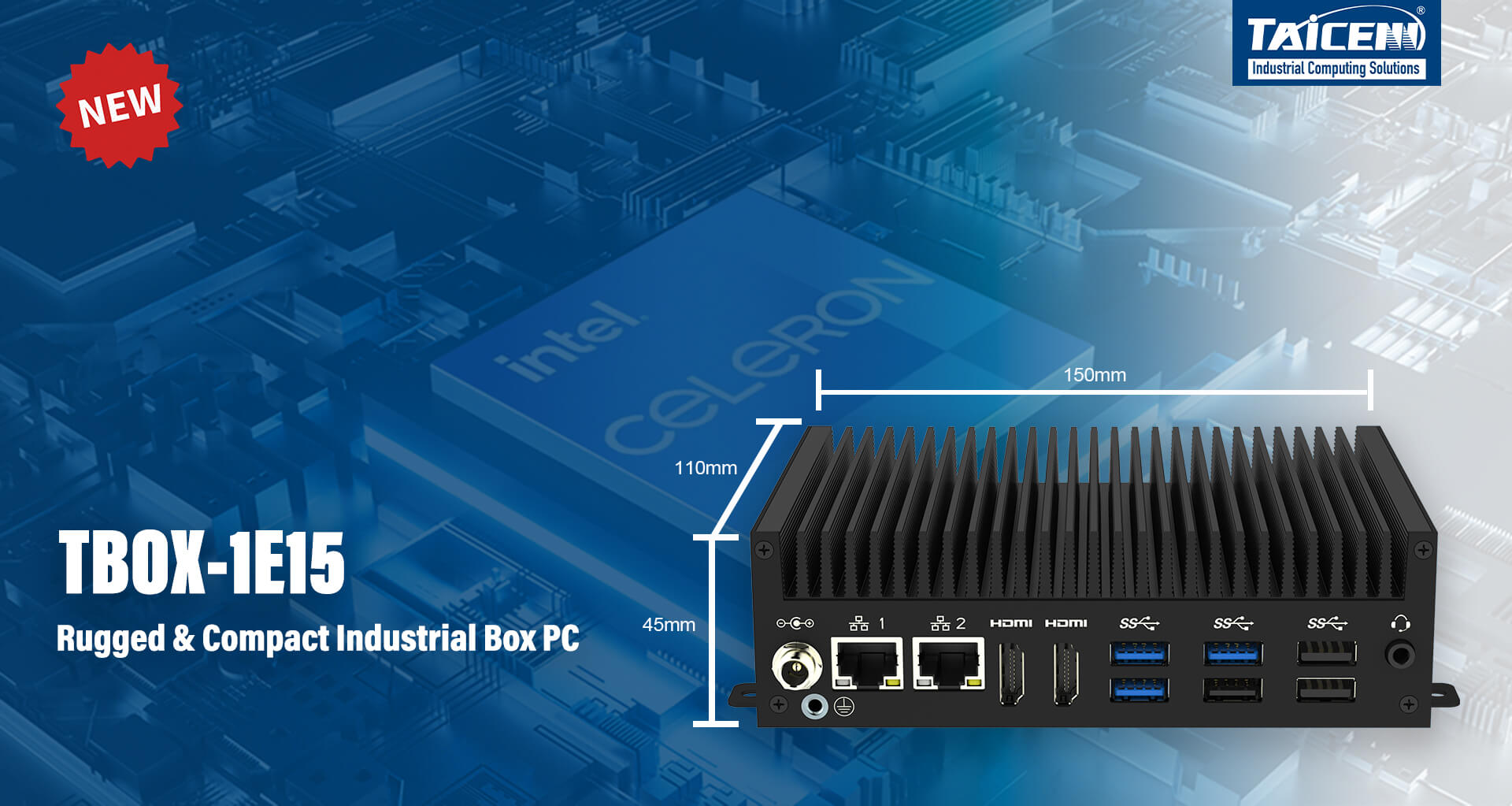

TAICENN has launched our newest modular palm-sized industrial mini Box PC model TBOX-1E15. The Box PC series is a ruggedized, cableless & fanless designed with extreme small space housing that’s to provide an ideal computing embedded system solution for industrial, Automation, Edge Computing & IIoT applications.
The TBOX-1E15 released by TAICENN is a newest released compact industrial computer, which is powered by Intel’s Elkhart Lake Celeron J6412 quad-core 2.0Ghz processor to continuously empower the manufacturing process and efficiency. The product is modular designed with rich I/O interfaces to meet different various requirements in the industrial field. The product can also run stably at -20 to +60 degrees temperature range to meet the application needs of different fields.
The new TBOX-1E15 industrial automation embedded system support TPM2.0 (PTT2.0) and Windows 11 Operating systems, and exceptional 2 high speed expansion modules slots: 1* Mini-PCIe slot to support Wi-Fi/BT/3G/4G wireless expansion, 1* M.2 3042/3052 for 5G and more requested industrial modules expansions. It’s an ideal solution for various of industrial projects, including Machine-to-Machine (M2M), smart building automation, industrial automation, Industrial Internet of Things (IIoT), machinery, industry 4.0, commercial automation
Outstanding performance – Intel’s latest 10nm process
TBOX-1E10 industrial Mini Box PC adopts Intel’s latest 10nm process chip. Compared with the previous generation 14nm process, 10nm technology can not only reduce the chip size by 30%, but also improve the performance by 27% and reduce the power by 40% consumption (Source from Intel).
The performance of Elkhart Lake J6412 is extremely strong. From the Single Thread Rating data, J6412 is almost same level as Core i3-6100U. In a word, J6412 is high performance and equal to Intel 6th /7th Core i3 performance, but low cost as J1900/J3455 CPUs level. Under such high-cost performance conditions, it is more competitive for various smart automation projects, which can reduce costs and increase efficiency for industrial projects.
Small size but rich IO connections – Meet different industrial needs
TBOX-1E15 Mini Box computer is ultra-small and fanless designed. Its dimension is similar as an audit’s palm, very suitable for limited space automation applications. Besides, TBOX-1E15 designs with rich IO interfaces, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI can meet basic interface requirements and help information transmission more smoothly. The TBOX-1E15 Box PC is designed with two expansion slots (1x Mini-PCIe and 1x M.2 3042/3052 Key slot), can optional support 3G/4G, Wi-Fi/BT, 5G wireless expansion for industrial field applications to improve product performance.
Besides, we also offer 2-layer housing design model TBOX-1E16 with more optional features, such as 3 COM ports, DC terminal and wide voltage DC 9~36V input. It helps to implement a suitable embedded system in space limited cabinet applications.
Installation scenarios:
Main features:
● Rugged, Ultra-small, fanless designed box structure;
● Intel Elkhart Lake J6412 Quad-core processor;
● DC 12V power input, with DC jack;
● Industrial -20 ~ + 60℃ operating range;
● 2 GLAN, optional with 3G/4G, and Wi-Fi/BT expansion;
● 3 USB3.0, 3 USB2.0, 2 HDMI, Audio;
● 1 Mini-PCIe slot, and optional 1 M.2 3042/3052 slot.
● Optional 3 COM ports, DC terminal 9~36V range (TBOX-1E16).
Product Image:
Delivery plan:
In our schedule, TBOX-1E15 series products are above to deliver small and middle batch from middle July 2023. Any further information, welcome to contact with TAICENN sales team.
