Powerful Performance Fanless Embedded Mini Computer TBOX-1xx5 series

Powerful Performance Fanless Embedded Mini Computer | TBOX-1xx5 series

TAICENN TBOX-1xx5 Series is a powerful performance & compact size fanless embedded pc designed with onboard Intel® Elkhart Lake and Intel® 11th Gen. Tiger Lake UP3 platforms. It designs with basic I/O ports, dual expansion slots capability. TBOX-1xx5 Series is very small and efficient with low power consumption so that is ideal for various of embedded applications where space is limited.

Ultra Compact Fanless Embedded Mini Box PC | TBOX-1E15

with Intel longevity Elkhart Lake J6412 processor

Basic Information

TAICENN TBOX-1E15 is a new palm-sized fanless Box PC model, it adapts Intel Elkhart Lake J6412 Quad-core CPU, having advanced computing performance and low power consumption. TBOX-1E15 storage can support 1* M.2 NVMe SSD; The design has rich IO interfaces, with 2* LAN ports, 3* USB3.0, 3* USB2.0, 2*HDMI and 1* Audio ports; The power input is DC 12V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-1E15 operating temp. is -20℃~+60℃, can be suitable for longer-time operating and harsh environment industrial application projects. TAICENN TBOX-1E15 can be compatible with Windows10, Windows 11, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Key Features

● Rugged, Ultra-small, fanless designed box structure;
● Intel Elkhart Lake J6412 Quad-core processor;
● DC 12V power input, with DC jack;
● Industrial -20 ~ + 60℃ operating range;
● 2 GLAN, optional with 3G/4G, and Wi-Fi/BT expansion;
● 3 USB3.0, 3 USB2.0, 2 HDMI, Audio;
● 1 Mini-PCIe slot, and optional 1 M.2 Key-B 3052 slot.

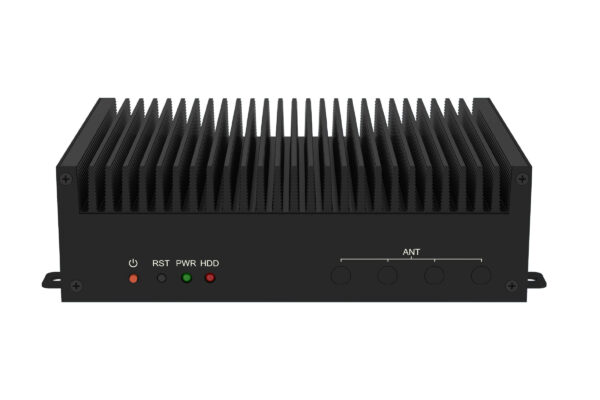

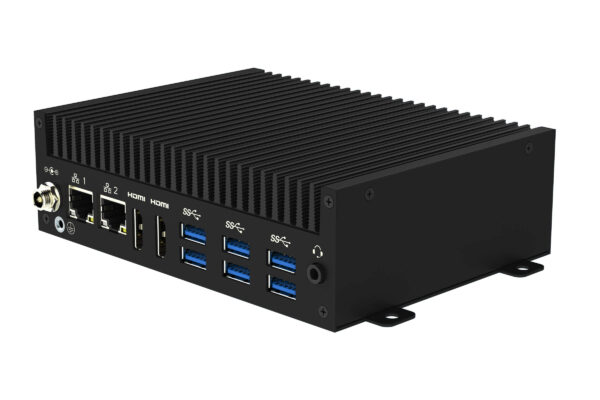

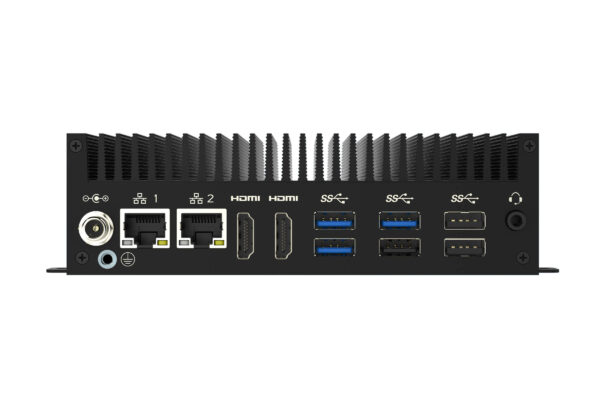

TBOX-1E15 Image

Ultra Compact Powerful Performance Mini Box PC | TBOX-1Tx5

with Intel 11th Gen. Core i3/i5/i7 powerful processor

Basic Information

TAICENN TBOX-1Tx5 is a new ultra compact powerful performance Mini Box PC model, it adapts Intel 11th Gen. Tiger Lake UP3 Core i3-1115G4, Core i5-1135G7, Core i7-1165G7 CPU processors, having advanced computing performance and low power consumption. TBOX-1Tx5 storage can support 1* M.2 NVMe SSD; The design has rich IO interfaces, with 2* LAN ports, 6* USB3.0, 2*HDMI and 1* Audio ports; This embedded system TBOX-1Tx5 design with 1* M.2 2230 E-key slot and 1* M.2 3052 B-key slot; The power input is DC 12V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-1Tx5 operating temp. is -20℃~+60℃, can be suitable for longer-time operating and harsh environment industrial application projects. TAICENN TBOX-1Tx5 can be compatible with Windows10, Windows 11, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Key Features

● Rugged, Ultra-small, fanless designed box structure;
● Intel Tiger Lake UP3 Core i3-1115G4, Core i5-1135G7, Core i7-1165G7 processors;
● DC 12V power input, with DC jack;
● Industrial -20 ~ + 60℃ operating range;
● 2 GLAN, optional with 3G/4G/5G, and Wi-Fi/BT expansion;
● 6 USB3.0, 2 HDMI, Audio;
● 1 M.2 2230 E-key slot, 1 M.2 3052 B-key slot.

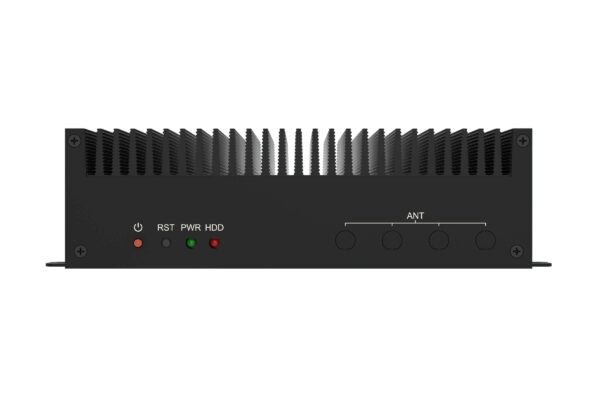

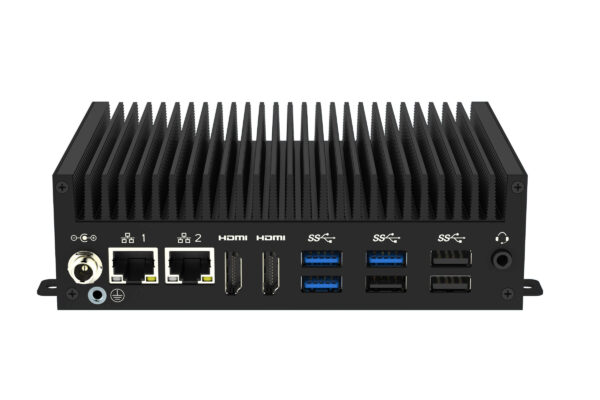

TBOX-1Tx5 Image
