Rugged Fanless Mini PC TBOX-1xx0 Series

TAICENN TBOX-1xx0 is an ultra-compact size fanless Mini PC powered by Intel Apollo Lake J3455 and Intel Elkhart Lake J6412 Quad-core platforms. In its limited space, it can deliver basic IO ports to fulfill the needs for industrial computing tasks. TBOX-1xx0 series Industrial Mini PCs support flexible wireless expansions. It allows users to extend various I/Os according to their needs.

Ultra Compact Palm Sized Box PC | TBOX-1E10

with Powerful Intel Elkhart Lake J6412 processor

Basic Introduction

TAICENN TBOX-1E10 is a new ultra-small palm-sized fan-less industrial Box PC model, it adapts Intel Elkhart Lake J6412 Quad-core CPU, having advanced computing performance and low power consumption. TBOX-1E10 storage can support one super fast M.2 NVMe SSD; The design has a limited communication interface, with 2* LAN ports, 4* USB3.0 ports, 1*HDMI and 1* DP, Audio ports; The power input is wide DC 9~ 36V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-1E10 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. TAICENN TBOX-1E10 operating temp. is -20℃~+60℃, can be suitable for longer-time operating and harsh environment industrial application projects. TAICENN TBOX-1E10 can be compatible with Windows10, Windows 11, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Key Features:

● Rugged, Ultra-small, fanless designed box structure;
● Intel Elkhart Lake Celeron J6412 Quad-core processor;
● Wide voltage DC 9 to 36V power input;
● Industrial -20 ~ + 60℃ operating range;
● 2 GLAN, optional with 3G/4G/LTE/5G, and Wi-Fi/BT expansion;
● 4 USB3.0, 1 HDMI, 1 DP, Mic-in/Line-out;
● 1 M.2 3042/3052 B-Key, and 1 M.2 2230 E-key;
● Optional support Din-Rail mount.

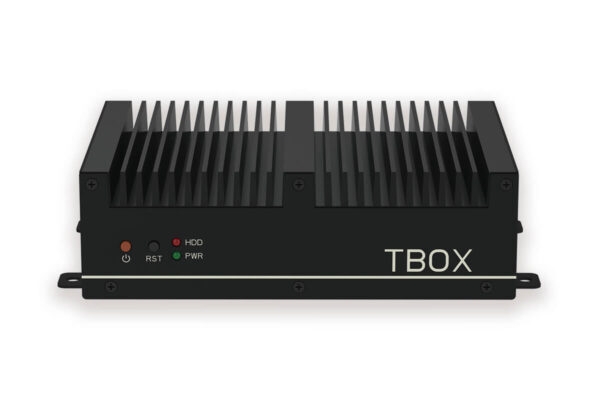

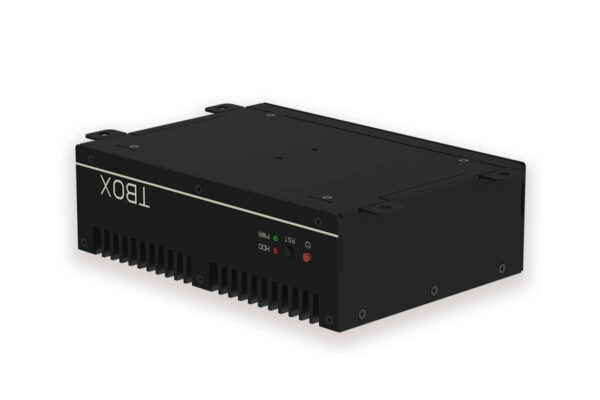

TBOX-1E10 Image:

Ultra compact palm-sized Box PC

With Intel Apollo Lake J3455 Quad-core processor

Basic Introduction

TAICENN TBOX-1410 is an ultra-small fan-less industrial Box PC model, it adapts Intel Apollo lake J3455 CPU, having advanced computer performance and low power consumption. TBOX-1410 storage can support 1 *mSATA SSD; The design has a limited communication interface, with 2* LAN ports, 4* USB ports; The power input is DC 12V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-1410 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. TAICENN TBOX-1410 operating temp. is -20℃~+60℃, can be suitable for longer-time operating and harsh environment industrial application projects, such as intelligent transportation system, machine vision, medical device, textile machinery, rail transportation and industry automation.
TAICENN TBOX-1410 can be compatible with Windows10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Key features

● Rugged, Ultra-small, fanless designed box structure;
● Intel Apollo Lake Celeron J3455 Quad-core processor;
● DC 12V power input, with over-voltage, polarity protection;
● Industrial -20 ~ + 60℃ operating range;
● 2 GLAN, optional with 3G/4G/LTE, and Wi-Fi/BT expansion;
● 4 USB3.0, 1 HDMI, Mic-in/Line-out;
● 1 Mini-PCIe expansion slot;
● Optional support Din-Rail mount.

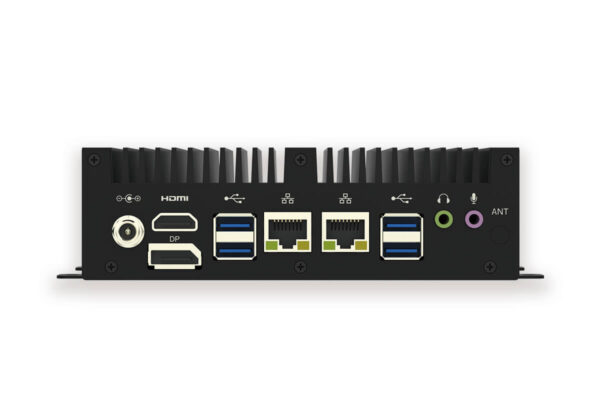

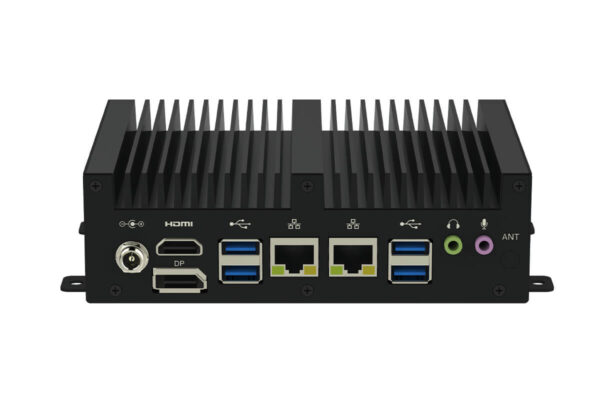

Product Image
