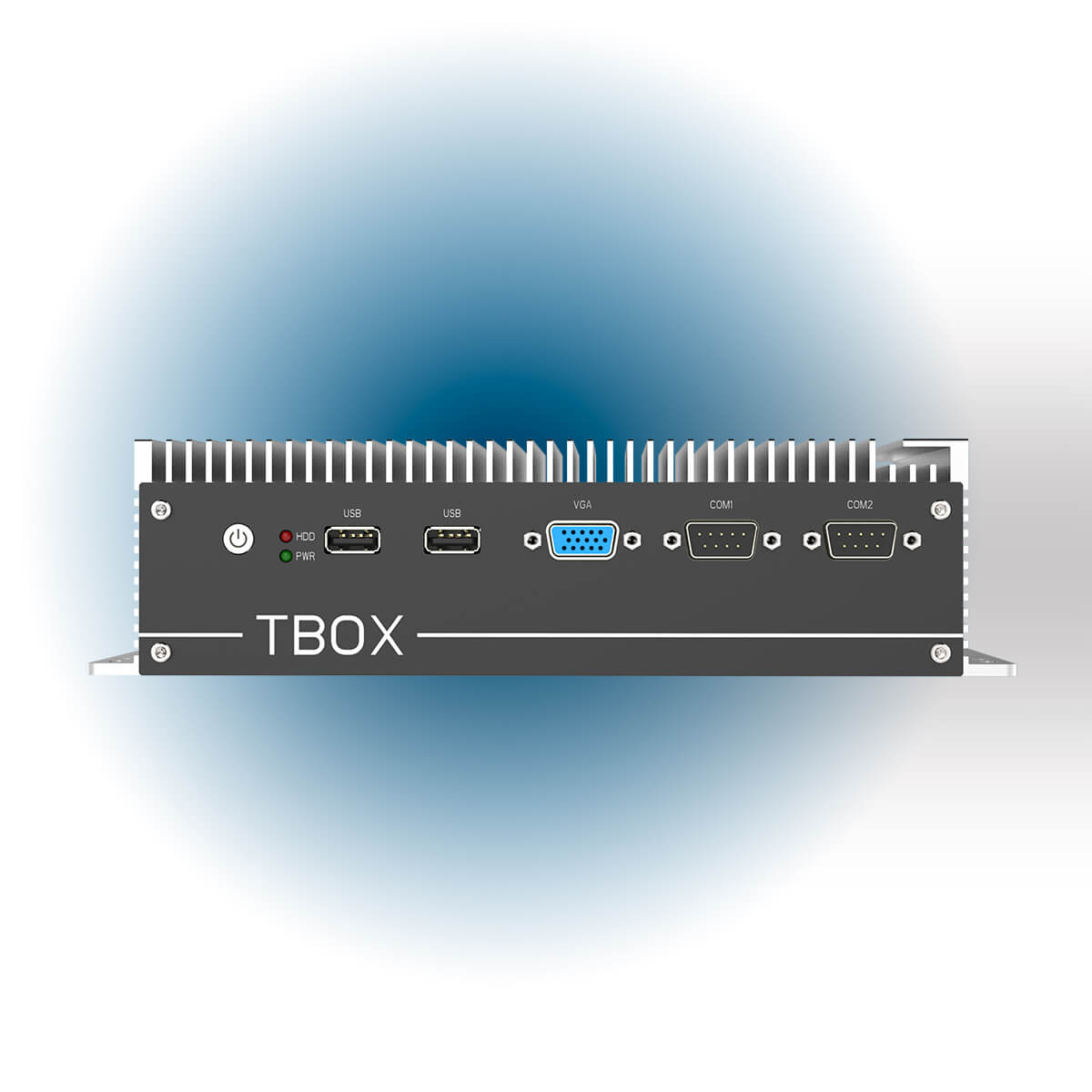

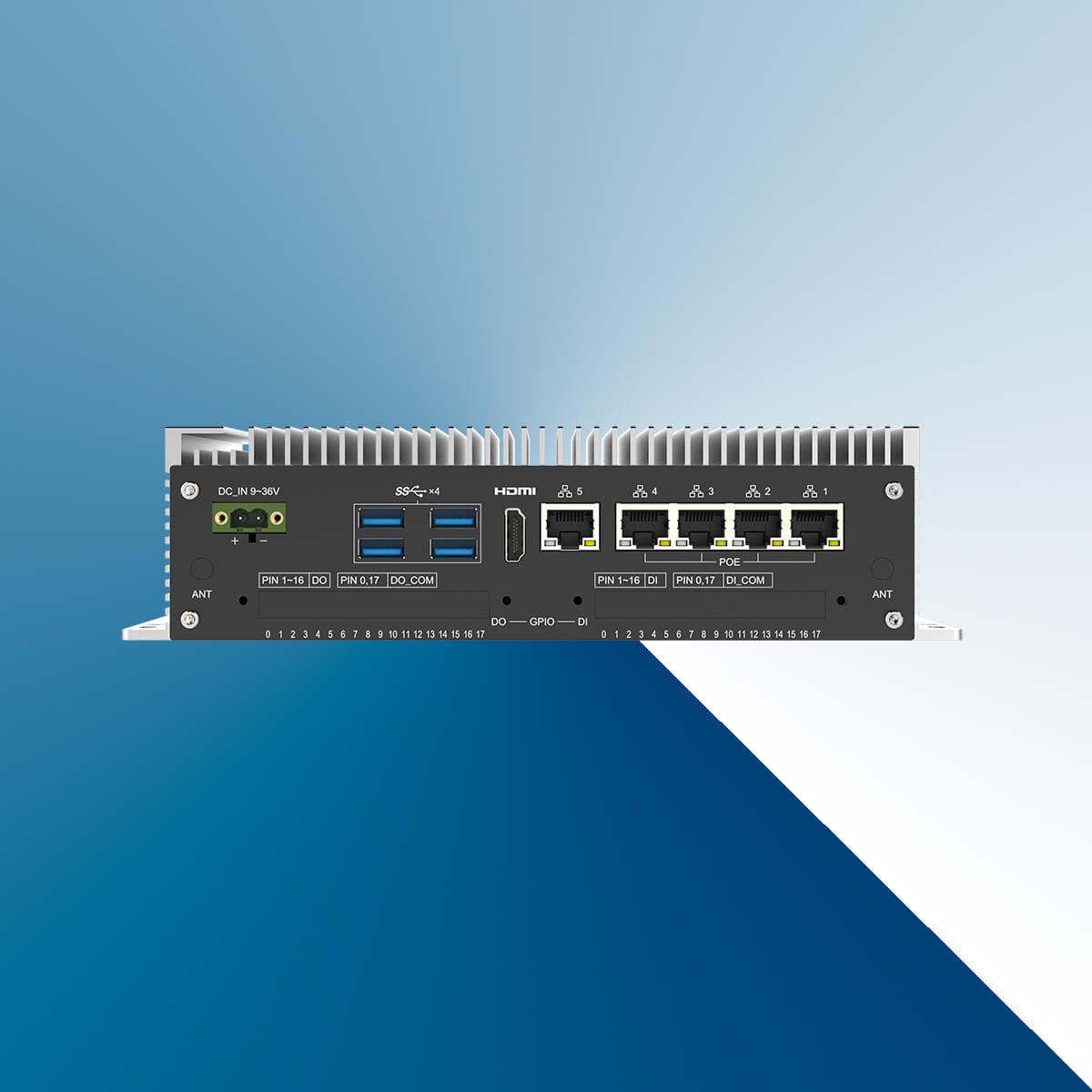

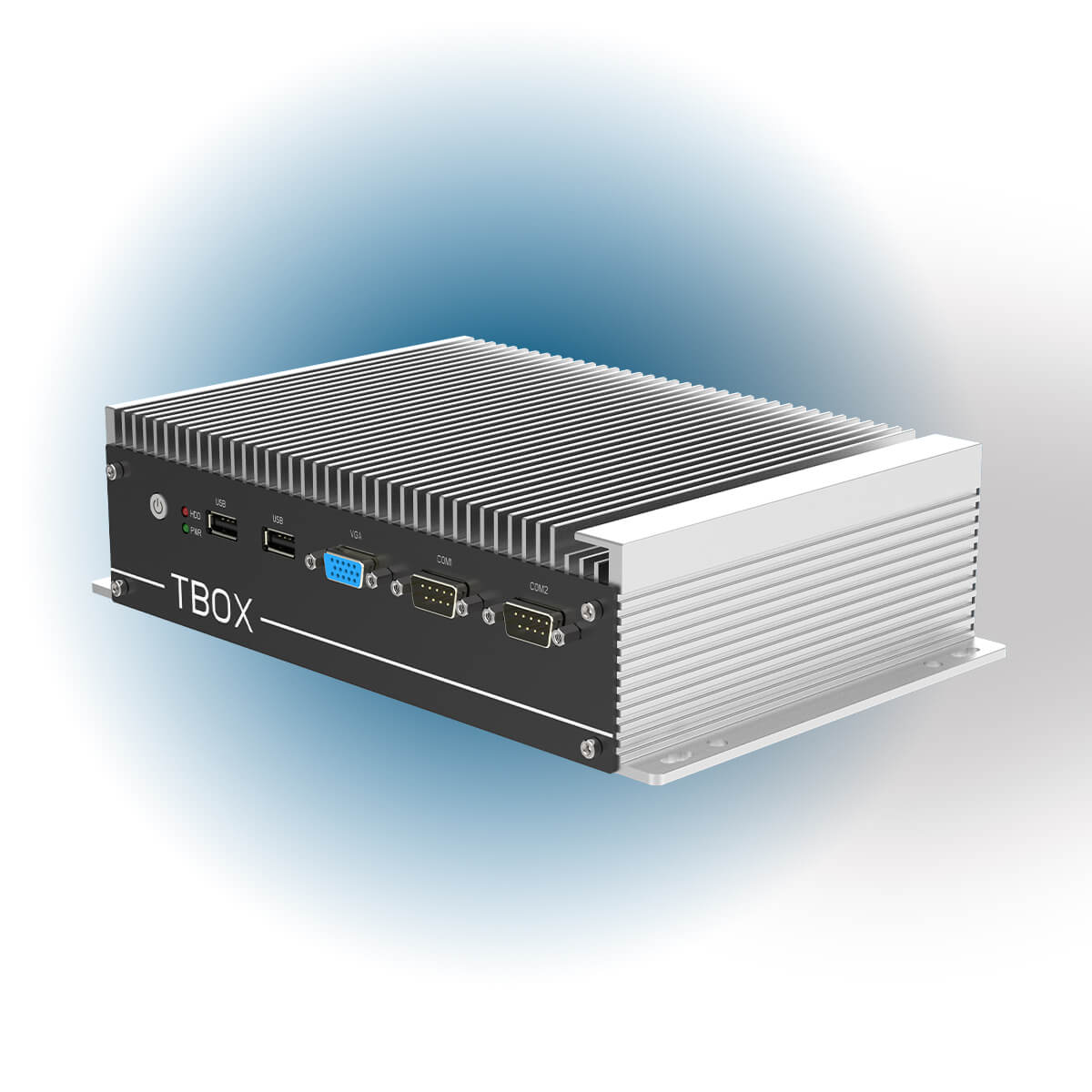

TBOX-3Tx0 series | PoE Box PC with Intel 11th Gen. Core i3/i5/i7 Processors
● Rugged & compact, fanless designed box structure;
● Intel 11th Gen. Core i3-115G4, i5-1155G7, i7-1165G7 processorS;
● Single DDR4 memory, up to 32GB, 1* M.2 2280 storage slot;
●Wide DC 9~36V power input;
● 5 GbE (4 support PoE functional), optional wireless expansions;
● 4 USB3.1, 2 USB2.0, 1 HDMI, 1 VGA, 2 COM;
● optional 1 Mini-PCIe for wireless expansion;
● Industrial operating -20 ~ +60℃ temp. range.

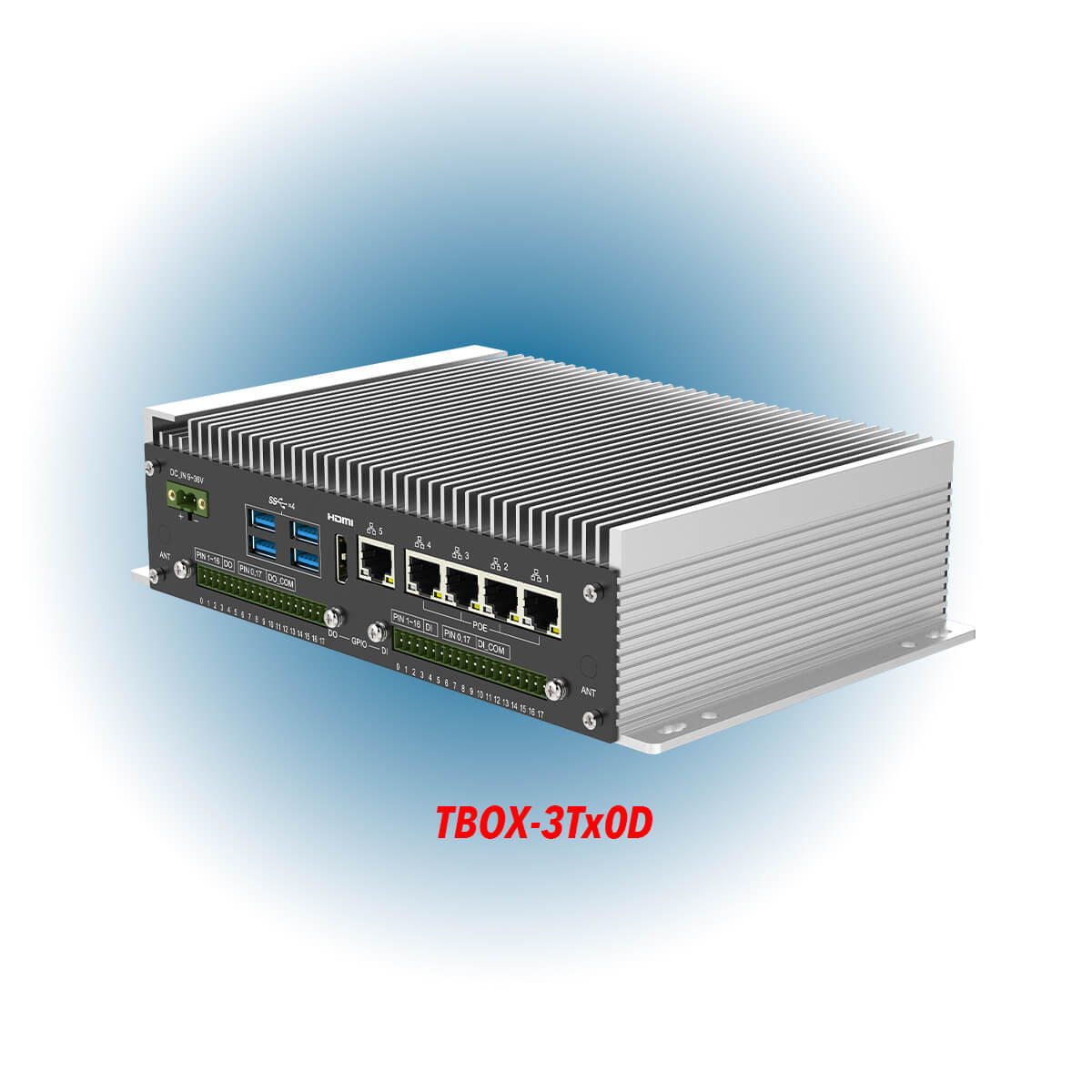

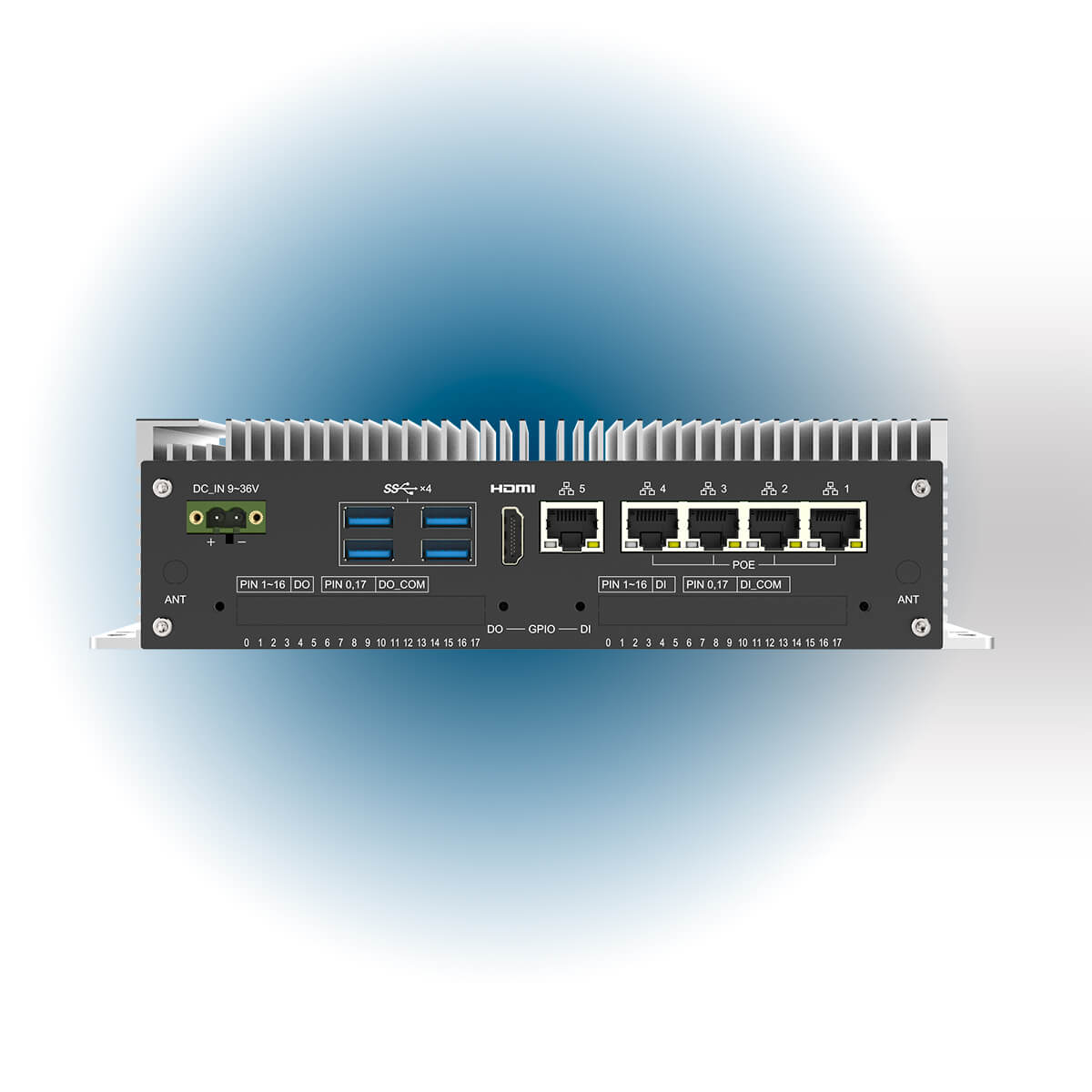

TAICENN TBOX-3T20 is a PoE Box PC serieswith Intel 11th Gen. Core i3/i5/i7 Processors. It adapts Intel 11th Gen. Tiger Lake UP3 Core i3-1115G4, i5-G1135G7, i7-1165G7 processors, having advanced computer and graphic performance. The design has a variety of communication interface, with 5* LAN ports (4*Support PoE), 4* USB3.1 ports, 2* USB2.0 port, 1* RS232 and 1* RS485, Optional 32*GPIO (TBOX-3Tx0D model); The power input is DC 9~36V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-3Tx0 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. TAICENN TBOX-3Tx0 operating temp. is -20℃~+70℃, can be suitable for longer-time operating and harsh environment industrial application projects, such as intelligent transportation system, machine vision, medical device, textile machinery, rail transportation and industry automation.
TBOX-3T10 Specification:
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Core i3-1115G4 processor | |
| CPU Ghz | Dual core 3.0Ghz | |
| TDP | 15W | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 M-Key 2280 (PCIe *4 NVMe) slot SSD, Optional support 1* 2.5” SATA III SSD | |
| Graphic | Intel UHD Graphics | |
| Network | 5* Intel I210AT | |
| Audio | N/A | |
| Expansion | 1* Ful length Mini-PCIe expansion slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | COM1: RS232; COM2: RS485 |
| Ethernet | 5* RJ45, 10/100/1000 Mbps, LAN1~LAN4 support PoE 802.3AF (Single port max. up to 15.4W, total less than 45W);
LAN5 support standard 10/100/1000 Mbps |
|
| USB | 4* USB3.1, 2* USB2.0, | |
| Display | 1* HDMI, 1* VGA | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 32* GPIO (16* DI, 16* DO, with isolated) [TBOX-3T10D model] | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black + Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Big Finned aluminum heatsinks, fanless design | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 70 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~36V | |
| Certificate | CE/FCC/ROHS |
TBOX-3T20 Specification:
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Core i5-1155G7 processor | |
| CPU Ghz | Quad-core 2.5Ghz | |
| TDP | 15W | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 M-Key 2280 (PCIe *4 NVMe) slot SSD, Optional support 1* 2.5” SATA III SSD | |
| Graphic | Intel Iris Xe Graphics | |
| Network | 5* Intel I210AT | |
| Audio | N/A | |
| Expansion | 1* Ful length Mini-PCIe expansion slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | COM1: RS232; COM2: RS485 |
| Ethernet | 5* RJ45, 10/100/1000 Mbps, LAN1~LAN4 support PoE 802.3AF (Single port max. up to 15.4W, total less than 45W);
LAN5 support standard 10/100/1000 Mbps |
|
| USB | 4* USB3.1, 2* USB2.0, | |
| Display | 1* HDMI, 1* VGA | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 32* GPIO (16* DI, 16* DO, with isolated) [TBOX-3T20D model] | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black + Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Big Finned aluminum heatsinks, fanless design | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 70 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~36V | |
| Certificate | CE/FCC/ROHS |
TBOX-3T30 Specification:
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Core i7-1165G7 processor | |
| CPU Ghz | Quad-core 2.8Ghz | |
| TDP | 15W | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 M-Key 2280 (PCIe *4 NVMe) slot SSD, Optional support 1* 2.5” SATA III SSD | |
| Graphic | Intel Iris Xe Graphics | |
| Network | 5* Intel I210AT | |
| Audio | N/A | |
| Expansion | 1* Ful length Mini-PCIe expansion slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | COM1: RS232; COM2: RS485 |
| Ethernet | 5* RJ45, 10/100/1000 Mbps, LAN1~LAN4 support PoE 802.3AF (Single port max. up to 15.4W, total less than 45W);
LAN5 support standard 10/100/1000 Mbps |
|
| USB | 4* USB3.1, 2* USB2.0, | |
| Display | 1* HDMI, 1* VGA | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 32* GPIO (16* DI, 16* DO, with isolated) [TBOX-3T30D model] | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black + Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Big Finned aluminum heatsinks, fanless design | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 70 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~36V | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-3T10 | Intel Core i3-1115G4, 5 GbE, 4 USB3.1, 2 USB2.0, 2 COM, 1 HDMI, 1 VGA, DC 9~36V, No GPIO, PSU |
| TBOX-3T10D | Intel Core i3-1115G4, 5 GbE, 4 USB3.1, 2 USB2.0, 2 COM, 1 HDMI, 1 VGA, ADC 9~36V, 32 GPIO, PSU |
| TBOX-3T20 | Intel Core i5-1135G7, 5 GbE, 4 USB3.1, 2 USB2.0, 2 COM, 1 HDMI, 1 VGA, DC 9~36V, No GPIO, PSU |
| TBOX-3T20D | Intel Core i5-1135G7, 5 GbE, 4 USB3.1, 2 USB2.0, 2 COM, 1 HDMI, 1 VGA, ADC 9~36V, 32 GPIO, PSU |
| TBOX-3T30 | Intel Core i7-1165G7, 5 GbE, 4 USB3.1, 2 USB2.0, 2 COM, 1 HDMI, 1 VGA, DC 9~36V, No GPIO, PSU |
| TBOX-3T30D | Intel Core i7-1165G7, 5 GbE, 4 USB3.1, 2 USB2.0, 2 COM, 1 HDMI, 1 VGA, ADC 9~36V, 32 GPIO, PSU |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB |
| Storage | M.2 SSD: 128GB/256GB/512GB |
| 2.5” SATA SSD: 128GB/256GB/512GB/1TB | |
| 2.5” HDD: 1TB/2TB/4TB | |
| Wireless | Wi-Fi module, with Antenna |
| Wi-Fi module with BT integrated, with antenna | |
| All network 4G module, with Antenna |
| Description | Download link |
| TBOX-3T20 EN V3.2 Datasheet | https://www.taicenn.com/pdf/TBOX_3T20_EN_V32_Datasheet_241118.PDF |
| TBOX-3Tx0 series EN V2.0 User Manual | https://www.taicenn.com/pdf/TBOX_3Tx0_Multiple_PoE_Box_PC_UserManual_EN_V20.PDF |
