TBOX-2Tx5 series | Industrial Box PC with Intel 11th Gen. Core i3/i5/i7 processors
● Rugged & compact, fanless designed box structure;
● On-board Intel 11th Gen. Core i3-1115G4, Core i5-1155G7, Core i7-1195G7 processor;
● 1* DDR4 memory, single slot, max. up to 32GB,
● 1* M.2 2280(NGFF) Key-M slot (PCIe x4 NVME) SSD;
● DC 12V input, optional wide voltage DC 9~36V input;
● 2 GLAN, optional 2 wireless expansion 4G/5G, WIFI/BT support;
● 8 USB (6 USB3.0), 6 COM, GPIO (Optional), 2 HDMI, Audio;
● Industrial -20 ~ + 70℃ operating range, optional -40~+80 ℃.

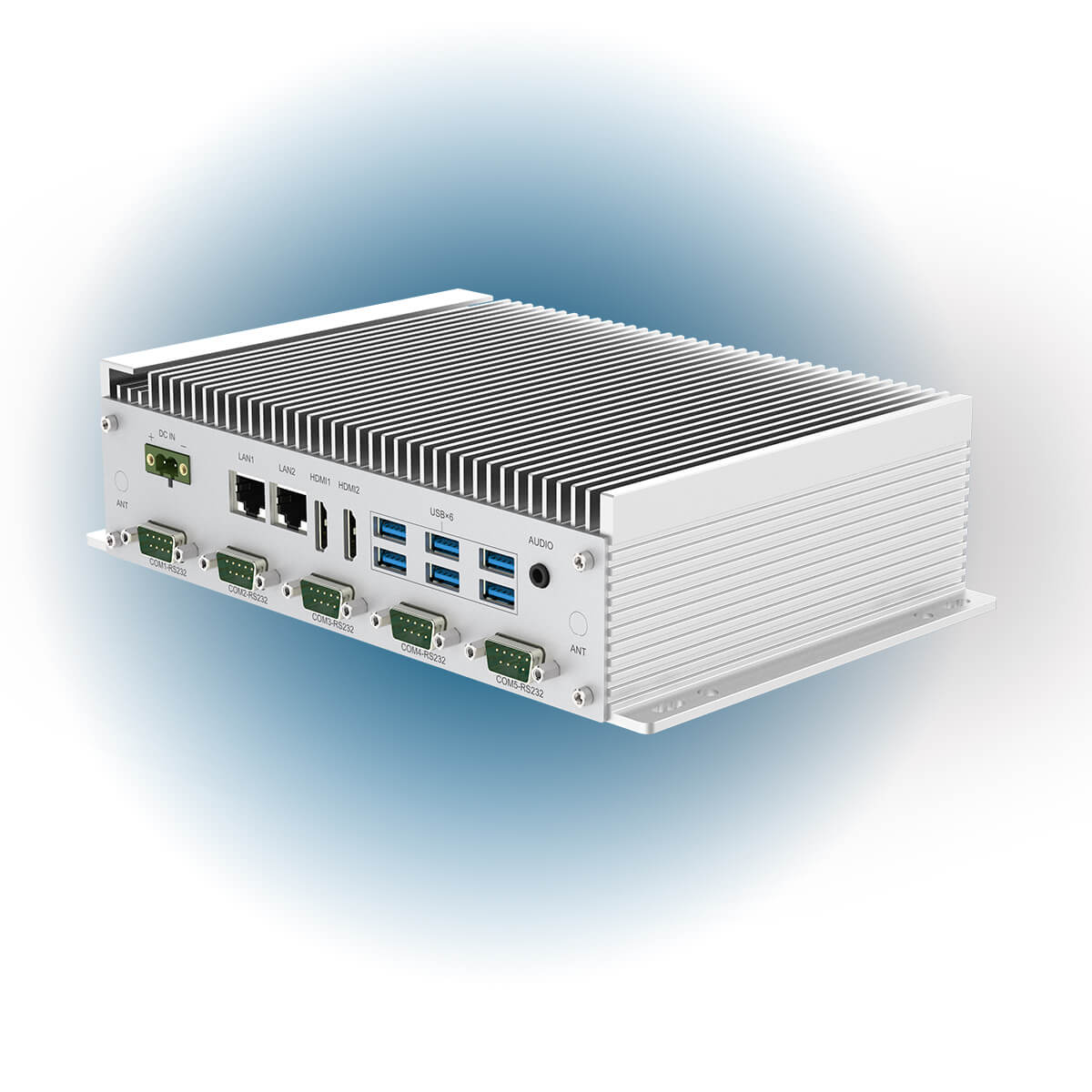

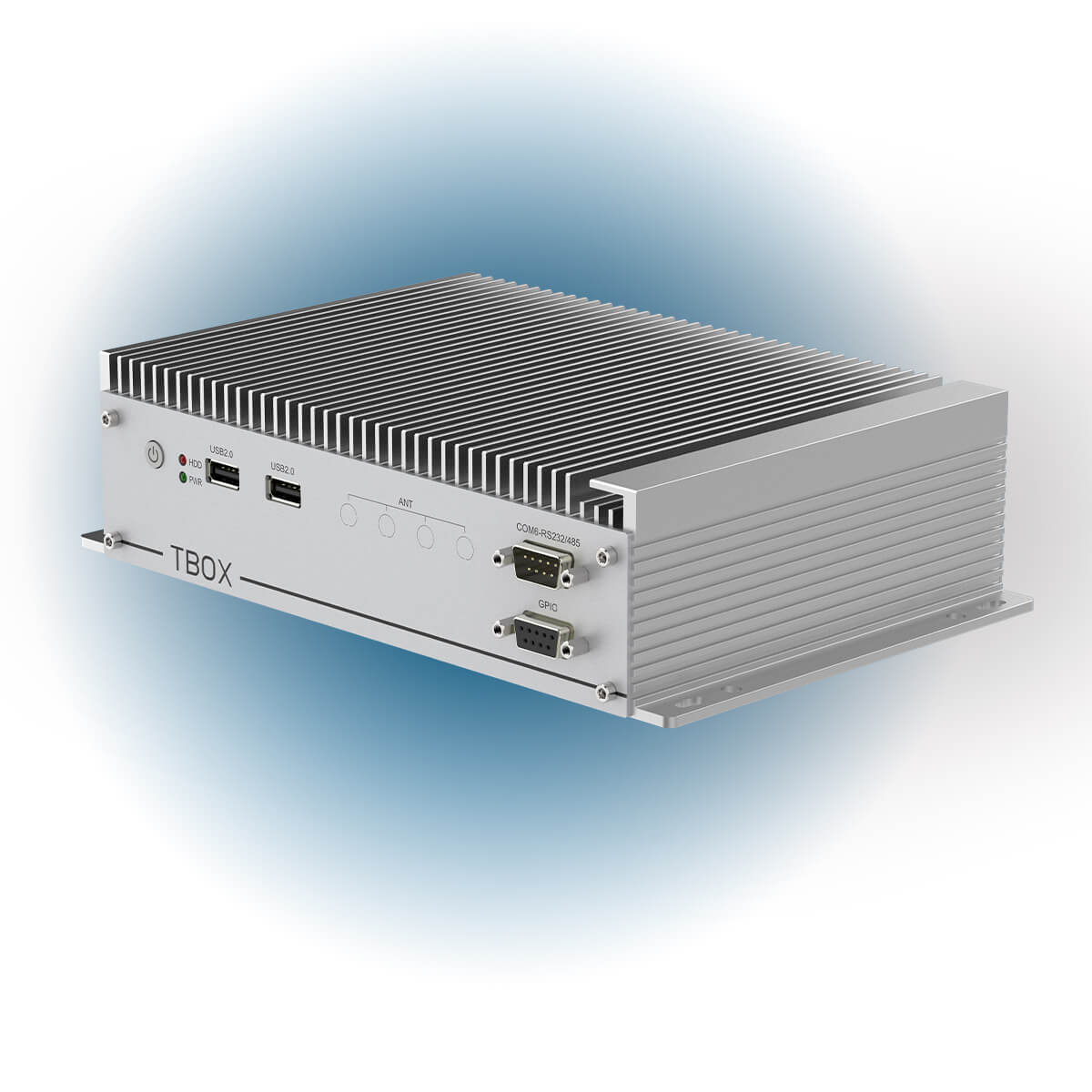

The TAICENN TBOX‑2Tx5 is a high‑performance fanless industrial box PC powered by Intel 11th‑gen Tiger Lake UP3 processors, ranging Core i3 to Core i7. Delivering outstanding cost‑efficiency, it is well‑suited for diverse industrial automation deployments.

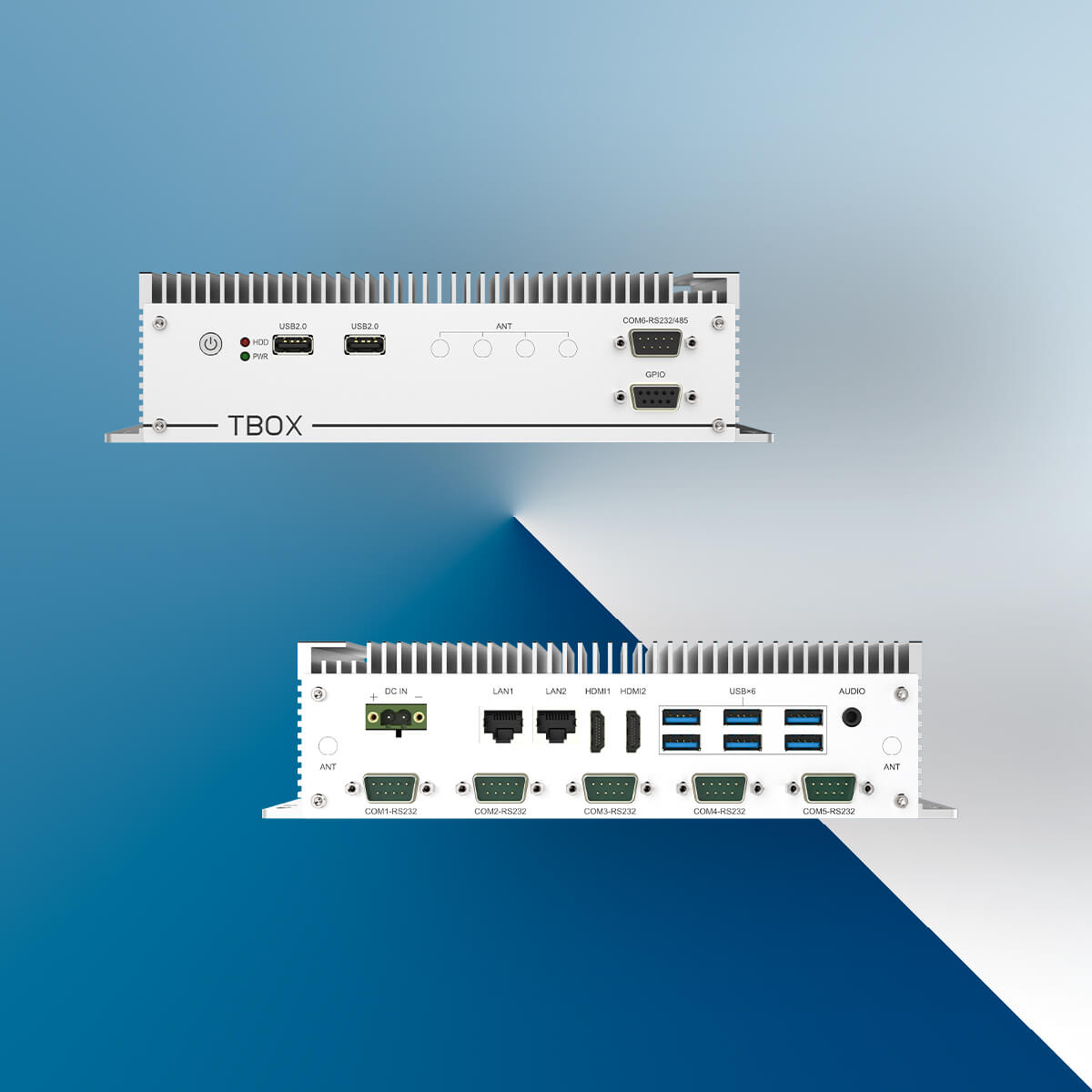

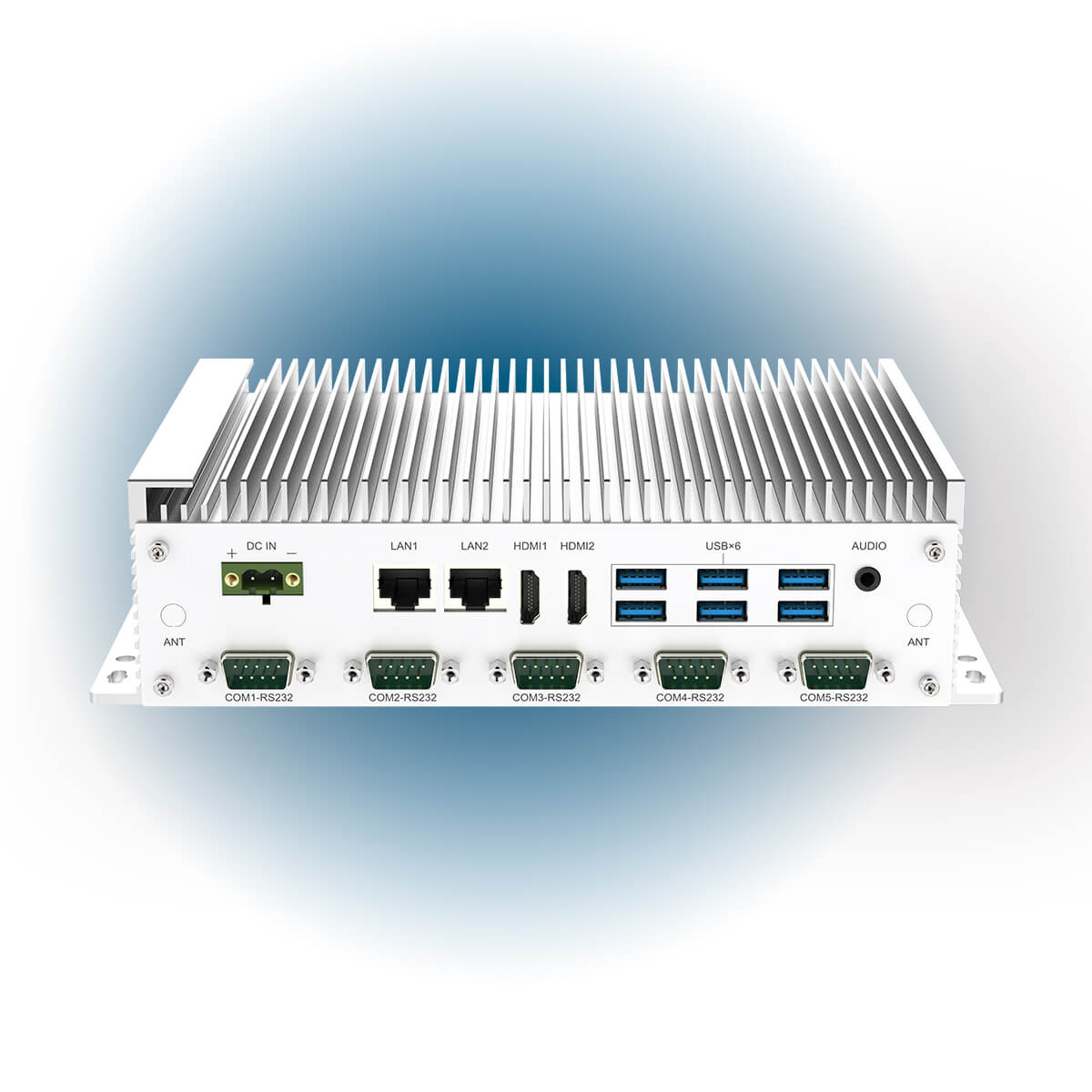

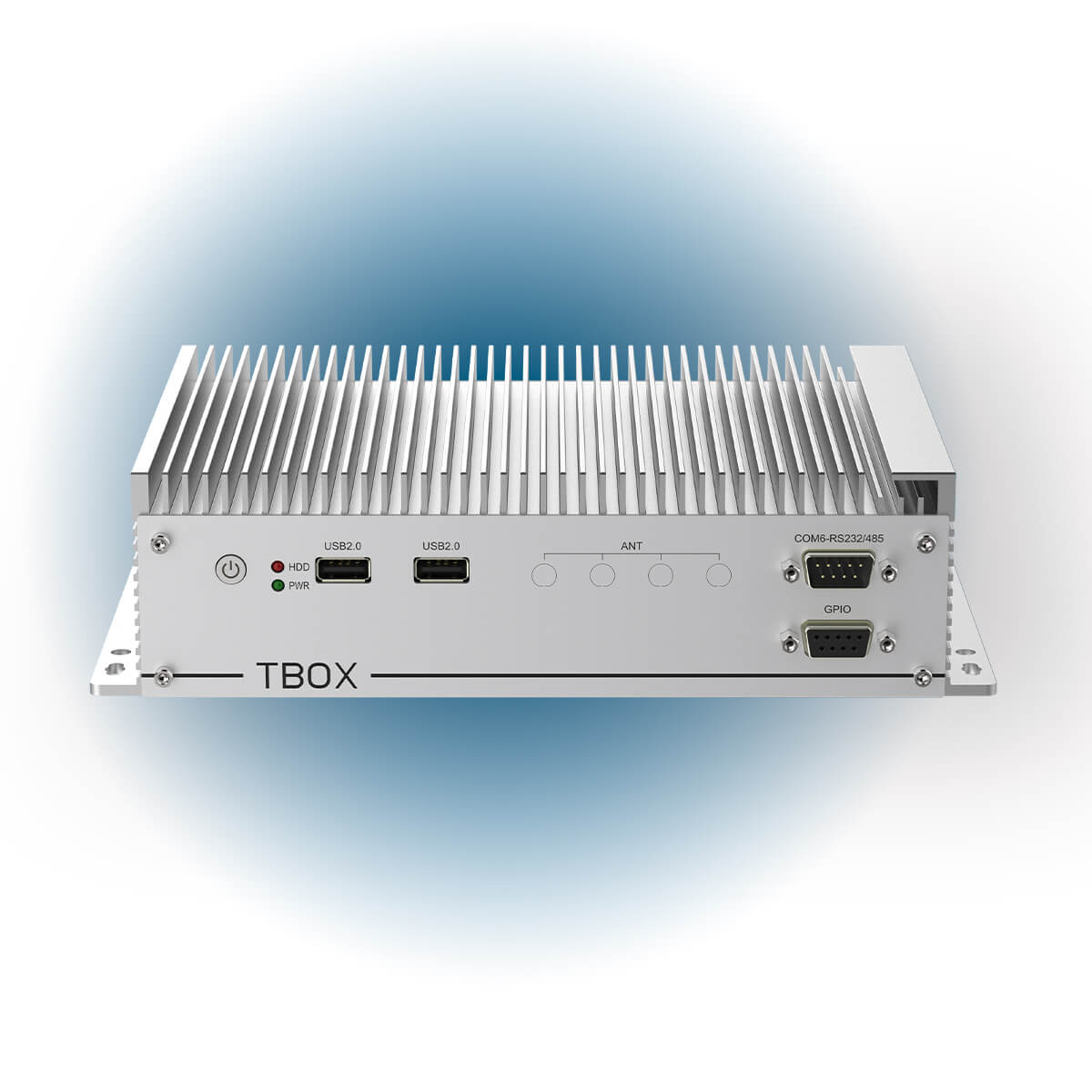

Engineered for rugged industrial scenarios, it adopts a DC terminal power input of 12 V, with an optional wide‑range DC 9‑36 V variant. Equipped with abundant I/O resources, the unit features 6 × USB3.0, 2 × USB2.0, six DB9 ports for RS232 (one configurable for RS485 as an option), an optional 8‑channel GPIO, dual‑HDMI outputs, 2 × GbE LAN and an audio jack.
Two M.2 key slots enable flexible dual‑module wireless expansion, supporting 4G/5G, Wi‑Fi and Bluetooth connectivity. Integrated TPM 2.0 security is onboard. The system maintains compatibility with Windows 10, Windows 11, Linux and mainstream embedded operating systems.
| System | BIOS | SPI AMI EEI BIOS |
| CPU1 | Intel 11th Gen. Core i3-1115G4 processor (TBOX-2T15) | |
| CPU2 | Intel 11th Gen. Core i5-1155G7 processor (TBOX-2T25) | |
| CPU3 | Intel 11th Gen. Core i7-1195G7 processor (TBOX-2T35） | |
| TPM | Intel PTT TPM2.0 | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, Optional support 1* 2.5” SATA III SSD | |
| Graphic | Intel Iris Xe Graphics | |
| Network | 1* Intel i226V, 1* Intel i219V Network chips, optional support 3G/4G/5G/Wi-Fi/BT wireless | |
| Audio | On-board Realtek ACL897 Audio controller | |
| Expansion | 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2230 slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | COM1/2/3/4/5: RS232, COM6: RS485 (optional RS232) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| Audio | 1* Mic-in/Line-out (2 in 1, 3.5mm Jack) | |
| USB | 6* USB3.0, 2* USB2.0, | |
| Display | 2* HDMI (Max. support 4096 *2160 @30Hz) | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 8* GPIO (Optional via 1* DB9) | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 70 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (Optional wide DC 9~36V) | |
| Power consumption | About 25W | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-2T15 | Intel Core i3-1115G4 Quad-core processor, 2 GbE, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 12V, PSU |
| TBOX-2T15W | Intel Core i3-1115G4 Quad-core processor, 2 GbE, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 9~36V, No PSU by default |
| TBOX-2T25 | Intel Core i5-1155G7 Quad-core processor, 2 GbE, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 12V, PSU |
| TBOX-2T25W | Intel Core i5-1155G7 Quad-core processor, 2 GbE, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 9~36V, No PSU by default |
| TBOX-2T35 | Intel Core i7-1195G7 Quad-core processor, 2 GbE, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 12V, PSU |
| TBOX-2T35W | Intel Core i9-1195G7 Quad-core processor, 2 GbE, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 9~36V, No PSU by default |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB |
| Storage | M.2 SSD: 128GB/256GB/512GB |
| 2.5” SATA SSD: 128GB/256GB/512GB/1TB | |
| 2.5” HDD: 1TB/2TB/4TB | |
| Wireless | Wi-Fi module, with Antenna |
| Wi-Fi module with BT integrated, with antenna | |
| All network 4G module, with Antenna | |
| 5G network module, with Antenna | |
| Power Supply | Optional PSU for TBOX-2Tx5W (If needed only) |
