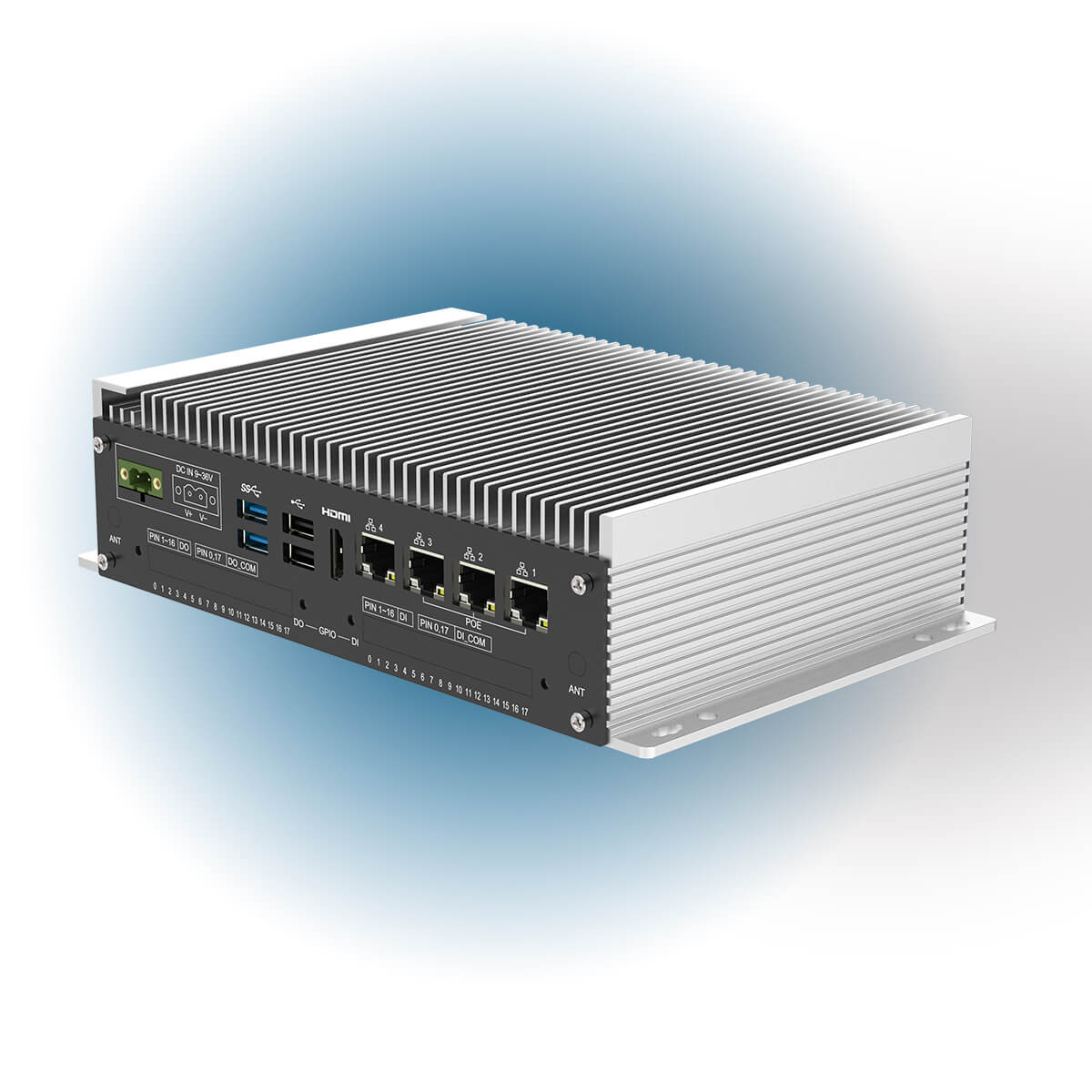

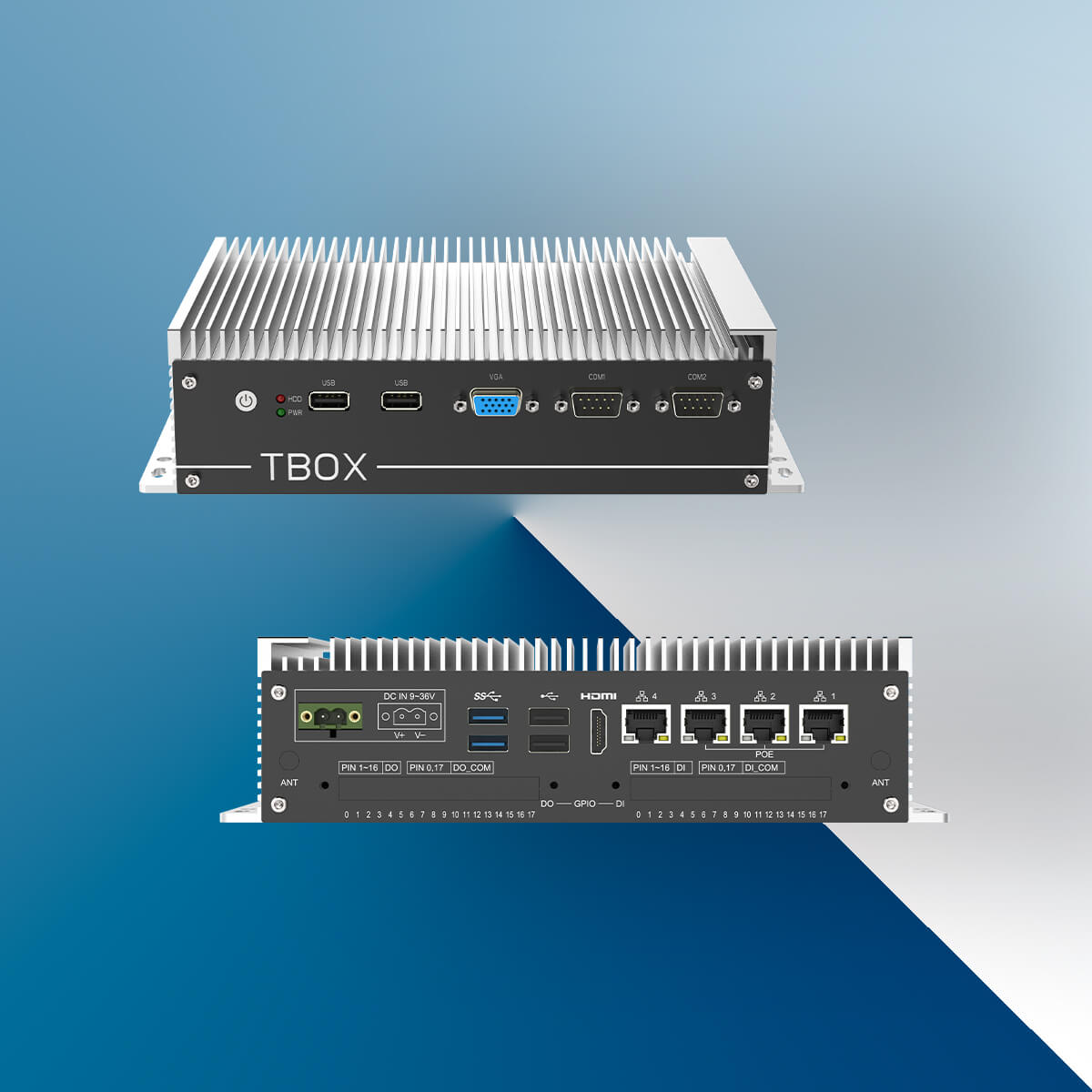

TBOX-3E00 | Multiple Ethernets PoE Box PC with Intel J6412
● Rugged & compact, fanless designed box structure;
● On-board Intel Elkhart Lake J6412 Quad-core processor;
● Single DDR4 memory, up to 32GB, 1* M.2 2280 storage slot;
●Wide DC 9~36V power input;
● 4 GbE (3 support PoE functional), optional wireless expansions;

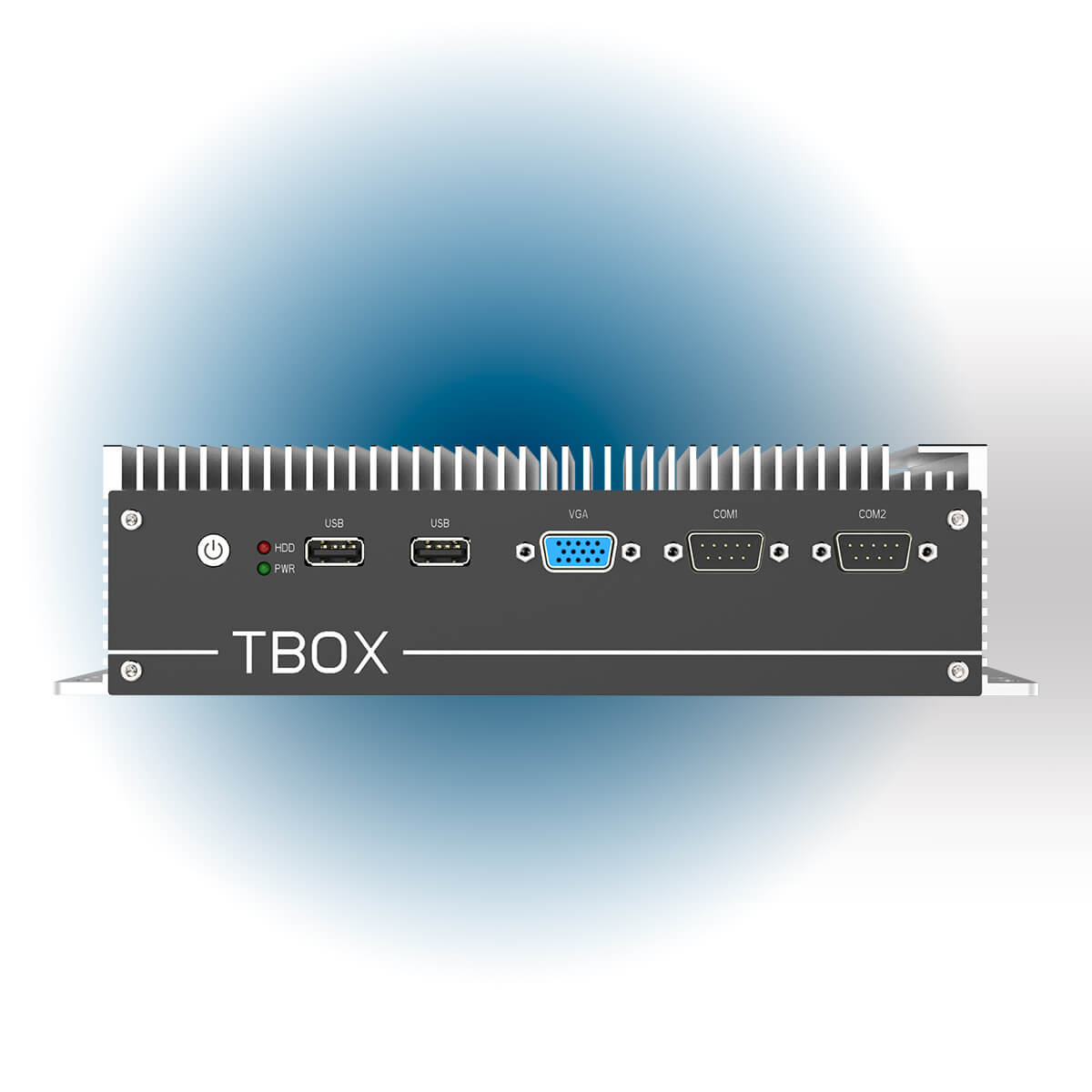

● 2 USB3.0, 4 USB2.0, 1 HDMI, 1 VGA, 2 COM;
● 1 M.2 2230 E-key for Wi-Fi, 1 Mini-PCIe for 4G expansion;
● Industrial operating -20 ~ +70℃ temp. range.
TAICENN TBOX-3E00 is a newest fan-less industrial Box PC model, specially designed for machine vision, industrial network applications. It adapts newest Intel Elkhart Lake Celeron J6412 Quad-core CPU, having advanced computer and graphic performance and low power consumption. TBOX-3E00 storage can support 1 *M.2 M-key SATA SSD and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 4* LAN ports (3*Support PoE), 2* USB3.0 ports, 4* USB2.0 port, 1* RS232 and 1* RS485, Optional 32*GPIO (TBOX-3E00D model); The power input is DC 9~36V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-3E00 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. TAICENN TBOX-3E00 operating temp. is -20℃~+70℃, can be suitable for longer-time operating and harsh environment industrial application projects, such as intelligent transportation system, machine vision, medical device, textile machinery, rail transportation and industry automation.
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Elkhart Lake J6412 processor | |
| CPU Ghz | Quad-core, four threads, 2.0Ghz, burst to 2.6Ghz, TDP 10W | |
| TPM | Intel PTT TPM2.0 | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 M-Key 2242/2280 SATA slot SSD, Optional support 1* 2.5” SATA III SSD | |
| Graphic | Intel UHD Graphics for 10th Gen. Intel Processors | |
| Network | LAN 1~LAN3: Intel I210AT; LAN4: I225V | |
| Audio | On-board Realtek ACL269 Audio controller | |
| Expansion | 1* M.2 E-Key 2230 slot, 1* Ful length Mini-PCIe expansion slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | COM1: RS232; COM2: RS485 |
| Ethernet | 4* RJ45, 10/100/1000 Mbps, LAN1~LAN3 support PoE 802.3AF (Single port max. up to 15.4W, total less than 45W);
LAN4 support standard 10/100/1000 Mbps |
|

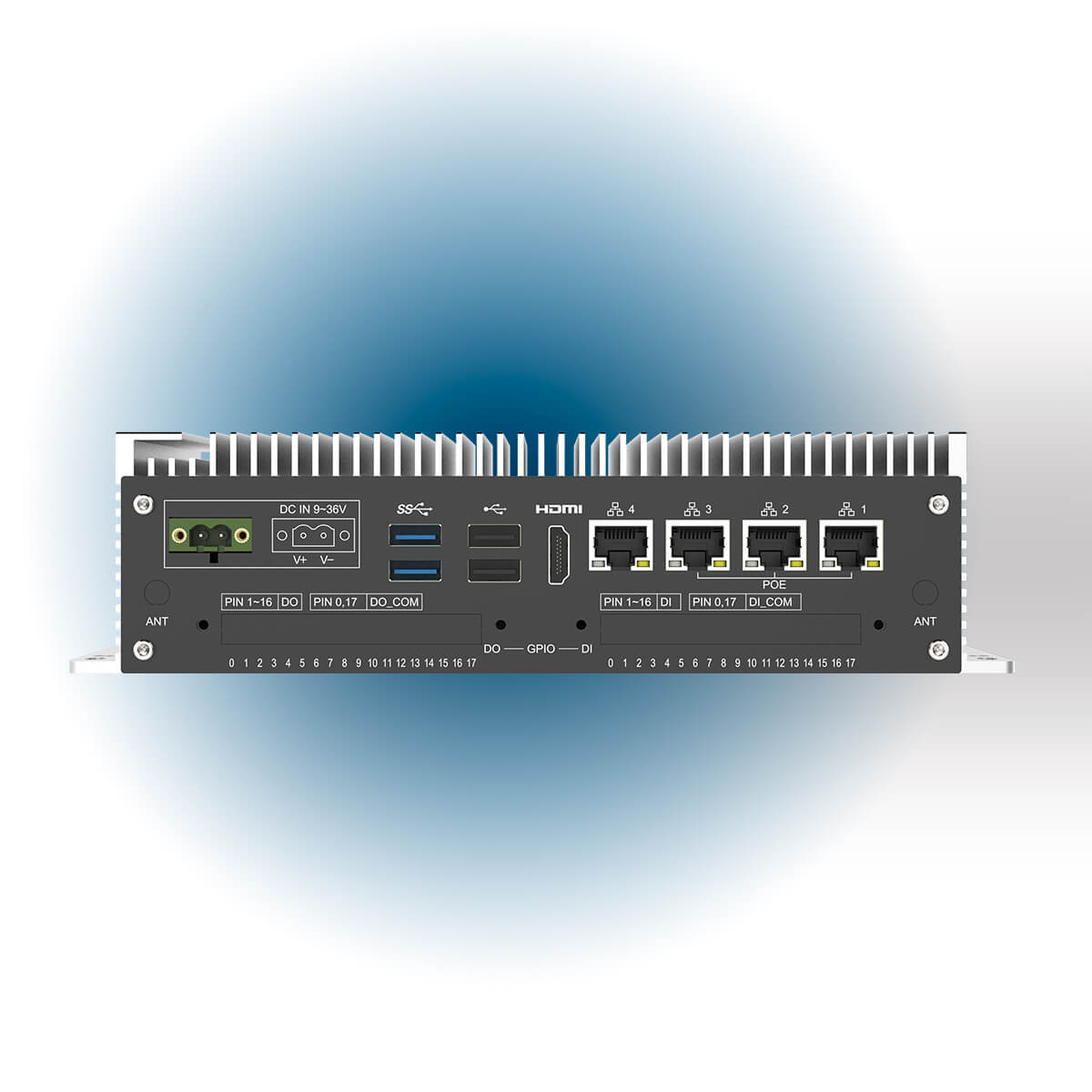

| USB | 2* USB3.0, 4* USB2.0, | |
| Display | 1* HDMI, 1* VGA | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 32* GPIO (16* DI, 16* DO, with isolated) [TBOX-3E00D model] | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black + Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Big Finned aluminum heatsinks, fanless design | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 70 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~36V | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-3E00 | Intel Elkhart Lake J6412 Quad-core processor, 4 GbE, 2 USB3.0, 4 USB2.0, 2 COM, 1 HDMI, 1 VGA, DC 9~36V, No GPIO, PSU |

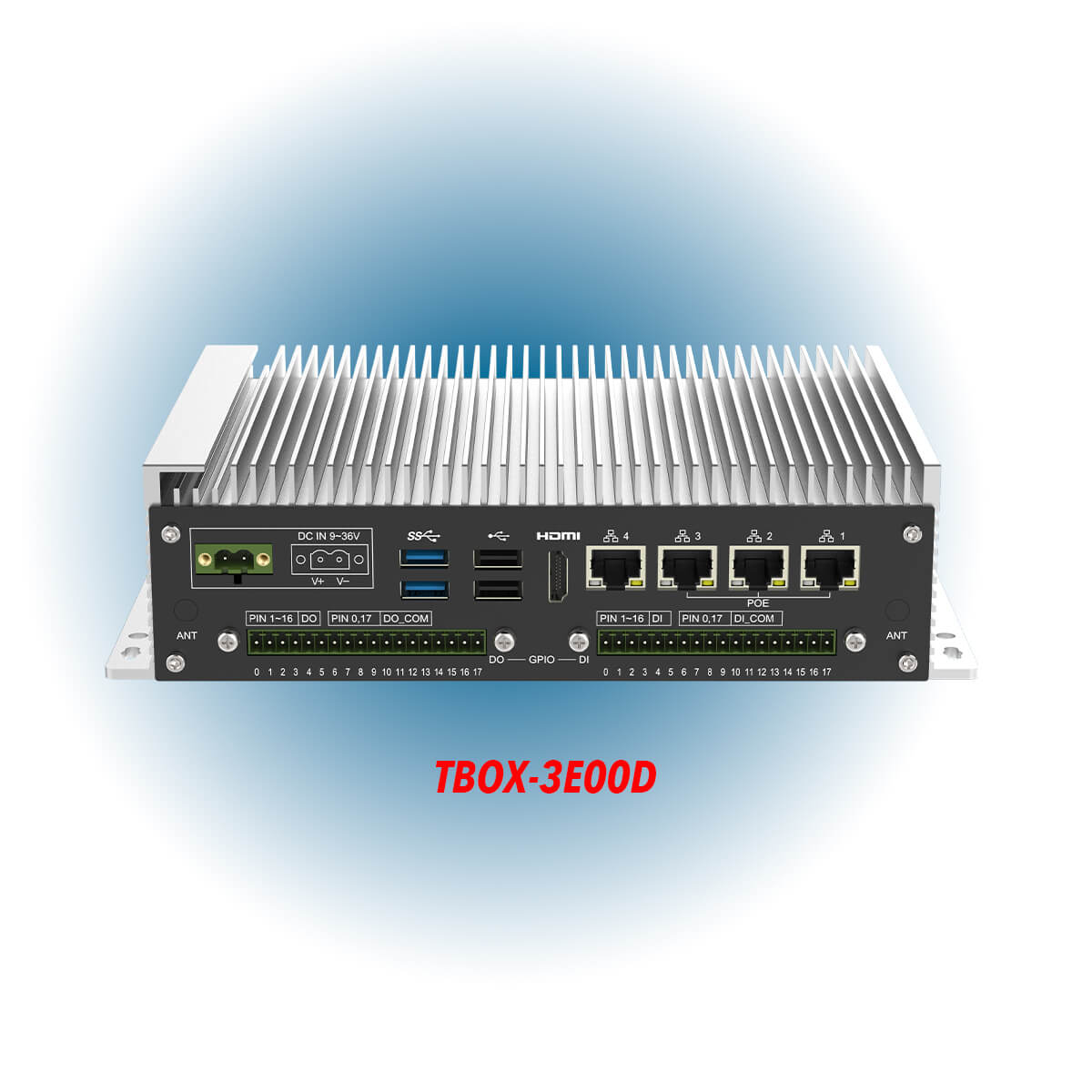

| TBOX-3E00D | Intel Elkhart Lake J6412 Quad-core processor, 4 GbE, 2 USB3.0, 4 USB2.0, 2 COM, 1 HDMI, 1 VGA, ADC 9~36V, 32 GPIO, PSU |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB |
| Storage | M.2 SSD: 128GB/256GB/512GB |
| 2.5” SATA SSD: 128GB/256GB/512GB/1TB | |
| 2.5” HDD: 1TB/2TB/4TB | |
| Wireless | Wi-Fi module, with Antenna |
| Wi-Fi module with BT integrated, with antenna | |
| All network 4G module, with Antenna |
| Description | Download link |
| TBOX-3E00 J6412 EN V3.2 Datasheet | https://www.taicenn.com/pdf/TBOX_3E00_EN_V32_Datasheet_251112.PDF |
| TBOX-3E00 EN V2.0 User Manual | https://www.taicenn.com/pdf/TBOX_3E00_Multiple_PoE_BoxPC_UserManual_en_V20_251112.PDF |

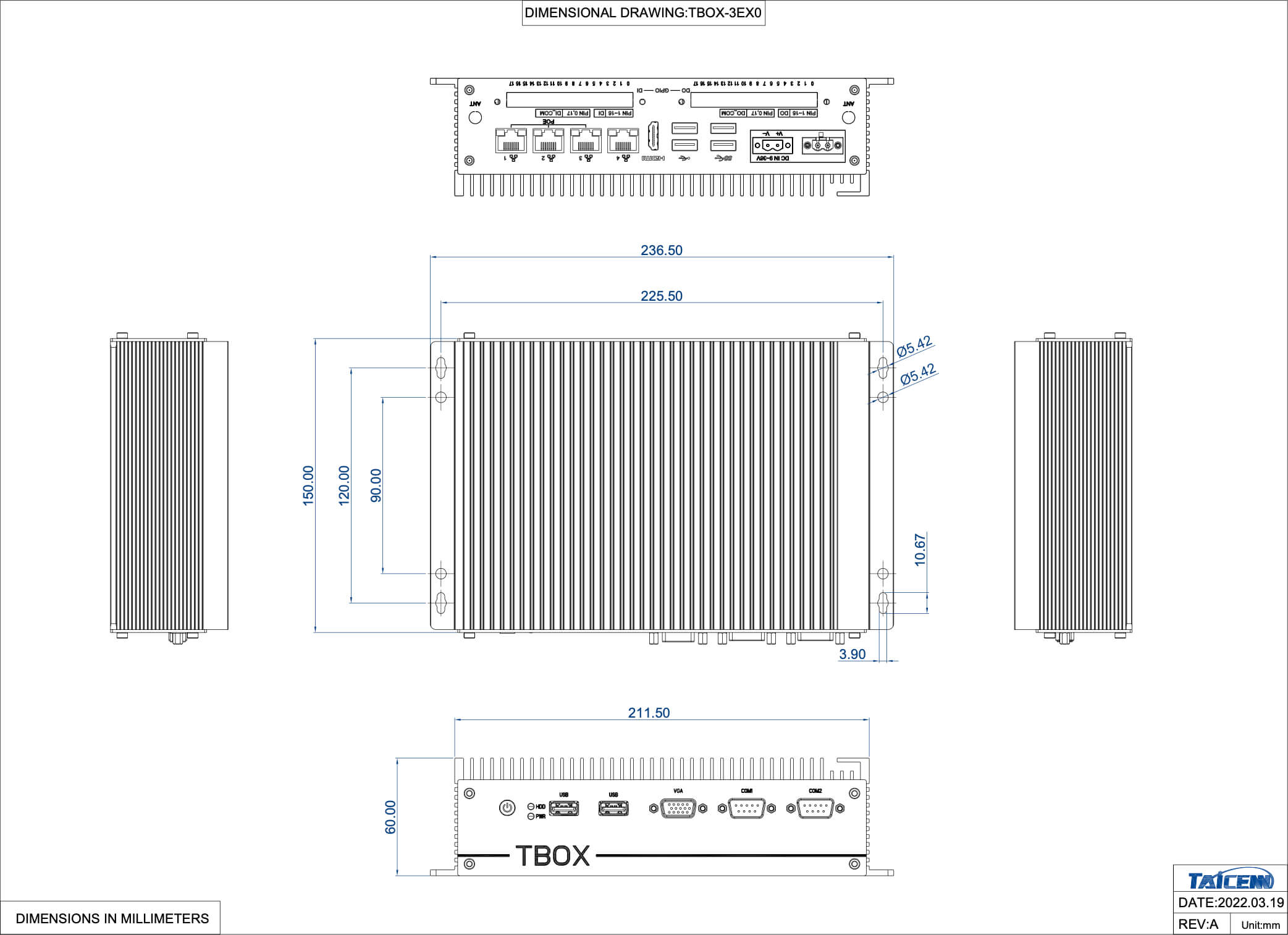

| TBOX-3E00 Dimension | https://www.taicenn.com/pdf/TBOX3EX0_Dimension.PDF |
| TBOX-3E00D (With GPIO) Dimension | https://www.taicenn.com/pdf/TBOX3EX0D_Dimension.PDF |
| TBOX-3E00 Intel Elkhart Lake J6412 Windows Drive | https://drive.google.com/file/d/1MpNtVbfE2HYd40PRz2y-lqWAL6wwRRqd/view?usp=share_link |
