Expandable & Industrial | Rugged Embedded system TBOX-2xx8 series
● Rugged & compact, fanless designed box structure;
● Powerful Intel Alder Lake 12th Gen. Core i5-1235U processor;
● Dual DDR5 memory, max. up to 64GB, 2* M.2 & 1 SATA 3.0 storage;
● DC Terminal, wide 9~36V power input, 1 SW remote switch;
● 2 RJ45, optional with 3G/4G/LTE, 5G, Wi-Fi/BT and Wi-Fi 6;
● 2 USB3.1, 2 USB3.0, 1 USB-C, 6 COM, 1 HDMI, 1 DP, Audio;
● 2 M.2 and 1 Mini-PCIe expansion slots;
● Industrial operating -20 ~ +60℃ temp. range.
Expandable & Rugged Embedded system for any automations
TAICENN TBOX-2xx8 series is new rugged computing system with tailored I/O interfaces specification and expandable options to fit various of industrial & automation projects. This industrial Box PC series is equipped with Intel 12th Gen. Alder Lake motherboards now, and more latest CPU platforms in future. TBOX-2xx8 Series provides best I/O interfaces and expandable capacity in our rugged fanless Box PC category.
TBOX-2xx8 Series | Expandable & Industrial | Rugged system
With Intel Alder Lake-U 12th Gen. Core i3/i5/i7 powerful CPU Processors
Basic Introduction
The new released TBOX-2Dx8 was a perfect Industrial Box PC model, with newest intel 12th Gen. Alder Lake-U Core i3-1215U, Core i5-1235U, Core i7-1255U CPU processors. Its super high computing capacity makes it an ideal industrial computing solution for various of Industrial projects. This new platform industrial computer TBOX-2Dx8 includes a DC terminal with wide DC 9~36V range power input, and rich I/O interfaces that includes 2 RJ45, 2 USB 3.1 & 2 USB 3.0 ports, 1 USB-C (USB3.1 & DP1.4), 6 DB9 COM (2 RS232/RS485/RS422 selected via BIOS), 1 HDMI, 1 DP, 1 SW switch and optionally GPIO ports.
TAICENN TBOX-2Dx8 also design with expandable features, includes 2 M.2 & 1 Mini-PCIe slots, very suitable for 4G/5G, Wi-Fi/BT, and Wi-Fi 6 functions. It also support TPM2.0, can be compatible with Windows10, Windows11, Linux Operating system and embedded Operating system.
TAICENN TBOX-2Dx8 series now can be our flagship series for our industrial computing Box PC product line.
Key features
● Rugged & compact, fanless designed box structure;
● Powerful Intel Alder Lake 12th Gen. Core i5-1235U processor;
● Dual DDR5 memory, max. up to 64GB, 2* M.2 & 1 SATA 3.0 storage;
● DC Terminal, wide 9~36V power input, 1 SW remote switch;
● 2 RJ45, optional with 3G/4G/LTE, 5G, Wi-Fi/BT and Wi-Fi 6;
● 2 USB3.1, 2 USB3.0, 1 USB-C, 6 COM, 1 HDMI, 1 DP, Audio;
● 2 M.2 and 1 Mini-PCIe expansion slots;
● Industrial operating -20 ~ +60℃ temp. range.

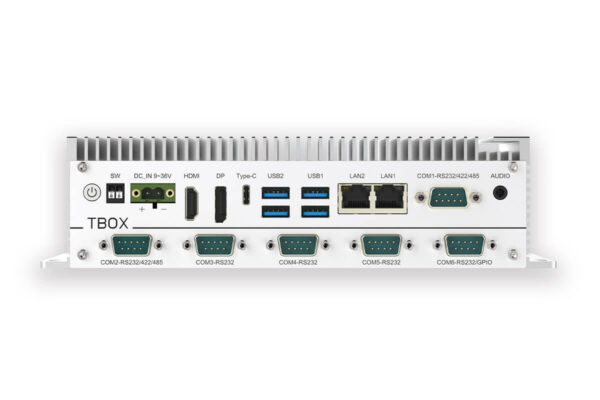

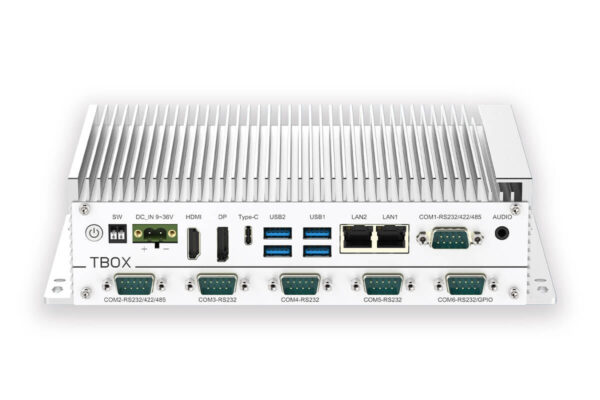

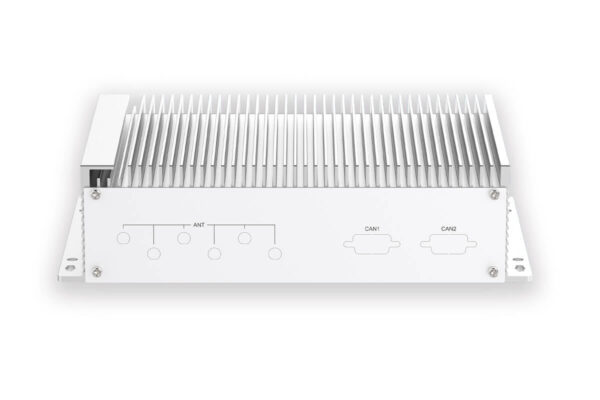

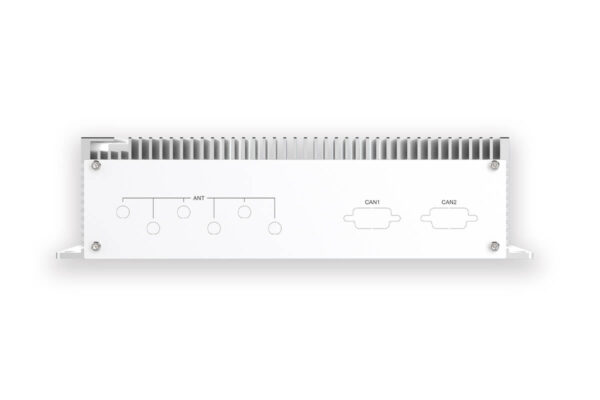

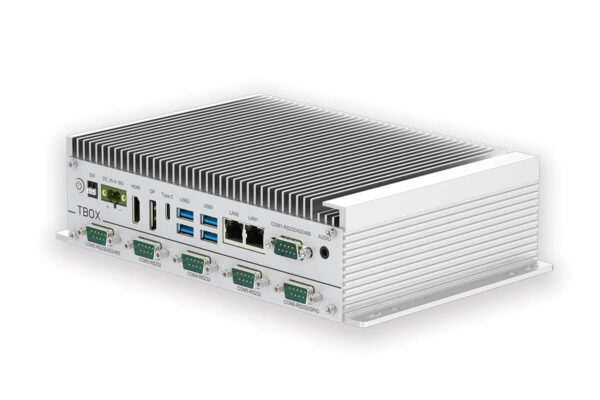

TBOX-2Dx8 Image
TBOX-2Dx8 Specs
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 12th Gen. Core i3-1215U, Core i5-1235U, Core i7-1255U processors | |
| TDP | 15W | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR5-4800 Mhz, Dual channels, Max. up to 64GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, 1* M.2 2280 M-Key slot (SATA) SSD [1], 1* SATA3.0 SSD | |
| Graphic | Intel Iris Xe Graphics (Up to 80 EUs, 1.20Ghz) | |
| Network | 1* Intel I226 (2.5GbE), 1* Intel I219 (GbE) Network chips, optional support 3G/4G/5G/Wi-Fi/BT, Wi-Fi6 wireless | |
| Audio | On-board Realtek ACL897 Audio controller | |
| Expansion | 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2240 slot, 1* Mini-PCIe slot, 1* Sim card slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10 IoT 2021 LTSC; Win10 (21H2), Win11(21H2 or later); Linux Kernel 5.17 or later | |
| IO interface | Serial port | COM1/2: RS232/RS485/RS422 (BIOS control); COM3/4/5/6: RS232 |
| Ethernet | 2* RJ45 | |
| Audio | 1* Mic-in/Line-out (2 in 1, 3.5mm Jack) | |
| USB | 2* USB3.1 type-A (USB3.2 Gen2x1 10Gbps), 2* USB3.0 type-A (USB3.2 Gen1x1 5Gbps), 1* USB-C (USB3.1 & DP1.4) | |
| Display | 1* HDMI1.4 (Max. resolution to 4K@30Hz), 1* DP++ (Max. support 8K @30Hz) | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 8* GPIO (Optional via 1* DB9) | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC terminal 9~36V range | |
| Power consumption | About 25W | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-2D18 | Intel 12th Gen. Core i3-1215U 6C/8T processor, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 6 COM, 1 HDMI,1DP, Audio Jack, DC 9~36V, 1 SW, PSU |
| TBOX-2D28 | Intel 12th Gen. Core i5-1235U 10C/12T processor, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 6 COM, 1 HDMI,1DP, Audio Jack, DC 9~36V, 1 SW, PSU |
| TBOX-2D38 | Intel 12th Gen. Core i7-1255U 10C/12T processor, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 6 COM, 1 HDMI,1DP, Audio Jack, DC 9~36V, 1 SW, PSU |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR5, 8GB/16GB/32GB/64GB |
| Storage | M.2 NVMe SSD: 256GB/512GB/1TB |
| M.2 SATA SSD: 256GB/512GB/1TB | |
| 2.5” SATA SSD: 128GB/256GB/512GB/1TB | |
| 2.5” HDD: 1TB/2TB/4TB | |
| Wireless | Wi-Fi module with BT Integrated, with Antenna |
| All network 4G module, with Antenna | |
| 5G network module, with Antenna | |
| Wi-Fi 6 module, with Antenna |
