TPC-DCS&DRS F1-4L Series | Rugged Slim Panel PC with Intel Utra5 125U CPU
● Modular & Fanless designed, aluminum-magnesium alloy;
● Support Intel Core Ultra5 (series 1) 125U processor;

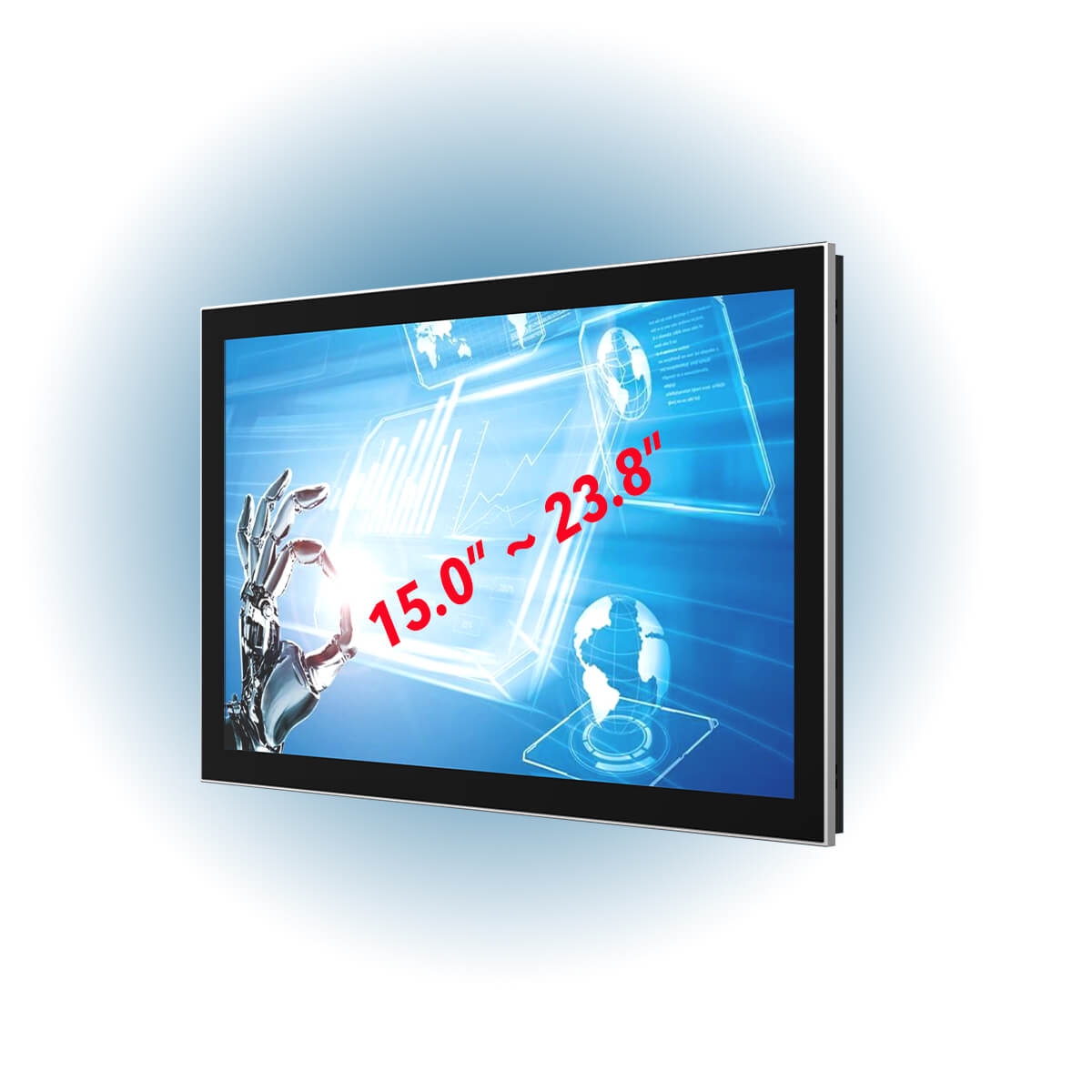

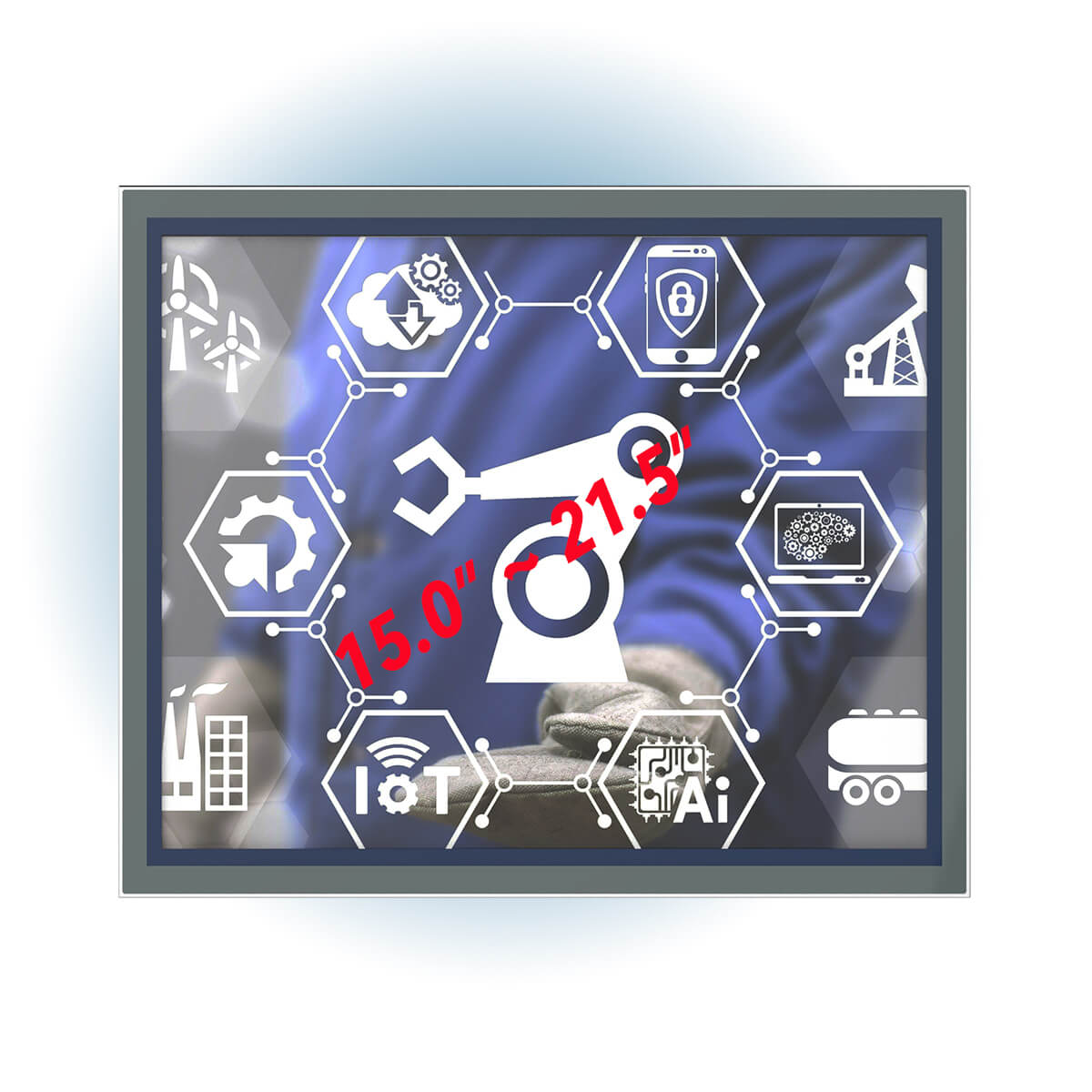

● Modular concept designed, ranging from 15.0″ to 23.8″ dimension;
● Both Pcap. or Resistive touchscreens, EETI controller;
● Auto detected DC 12/19/24V Input, optional wide DC 9~36V input;
● I/O interfaces: 4 GbE, 4 USB3.0, 2 COM, 1 HDMI;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● 1 M.2 and 1 Mini-PCIe expansion slots.
Description
Engineered for industrial AI and smart automation, the TAICENN TPC-DCS/DRS F1-4L is Rugged Slim Panel PC with Intel Core Ultra5 CPU built to deliver outstanding intelligent computing performance for modern Industry 4.0 scenarios. Equipped with advanced Intel Core Ultra processors, this unit delivers exceptional AI inference and computational power while adopting a full fanless passive cooling architecture, achieving the perfect balance of high performance, low heat generation and stable 24/7 operation.
Featuring a rugged yet sleek modular housing, the panel PC boasts an IP66-rated front bezel that provides reliable dust and water resistance, fully adapting to long-term, high-intensity industrial field operation. Its industrial LCD display pairs with a precise 10-point projected capacitive touchscreen, delivering ultra-responsive touch interaction and high-definition visual presentation for accurate AI vision monitoring and human-machine interaction.

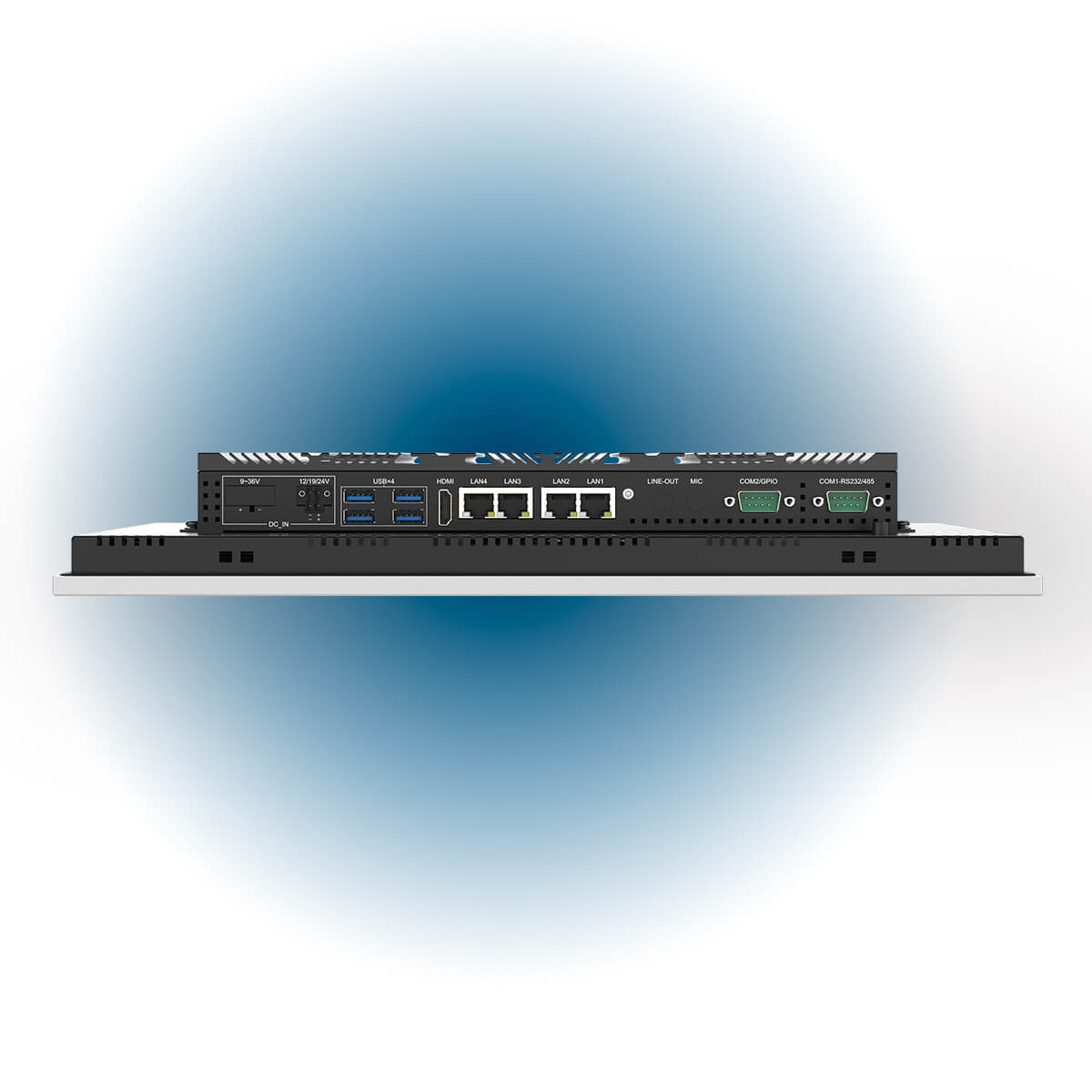

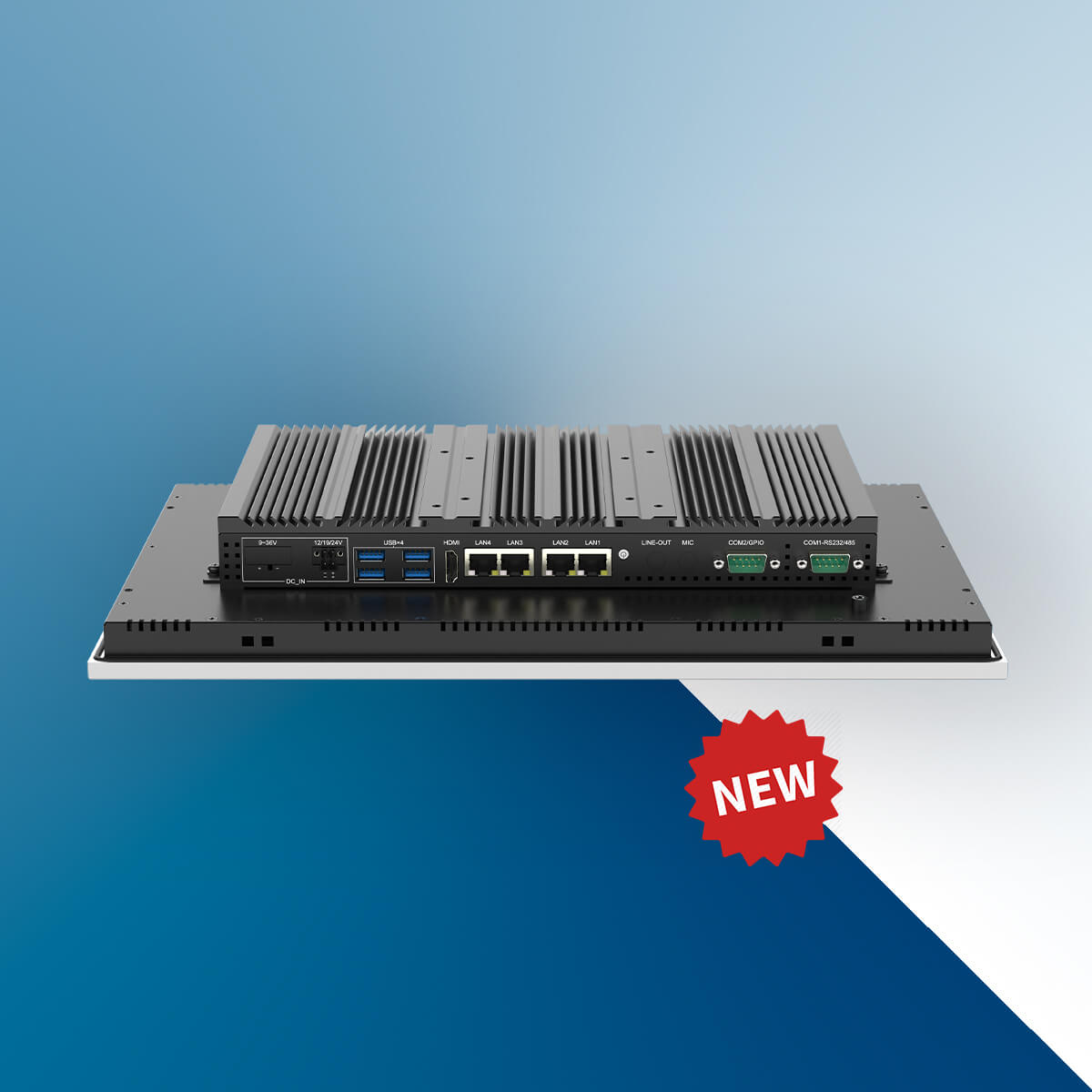

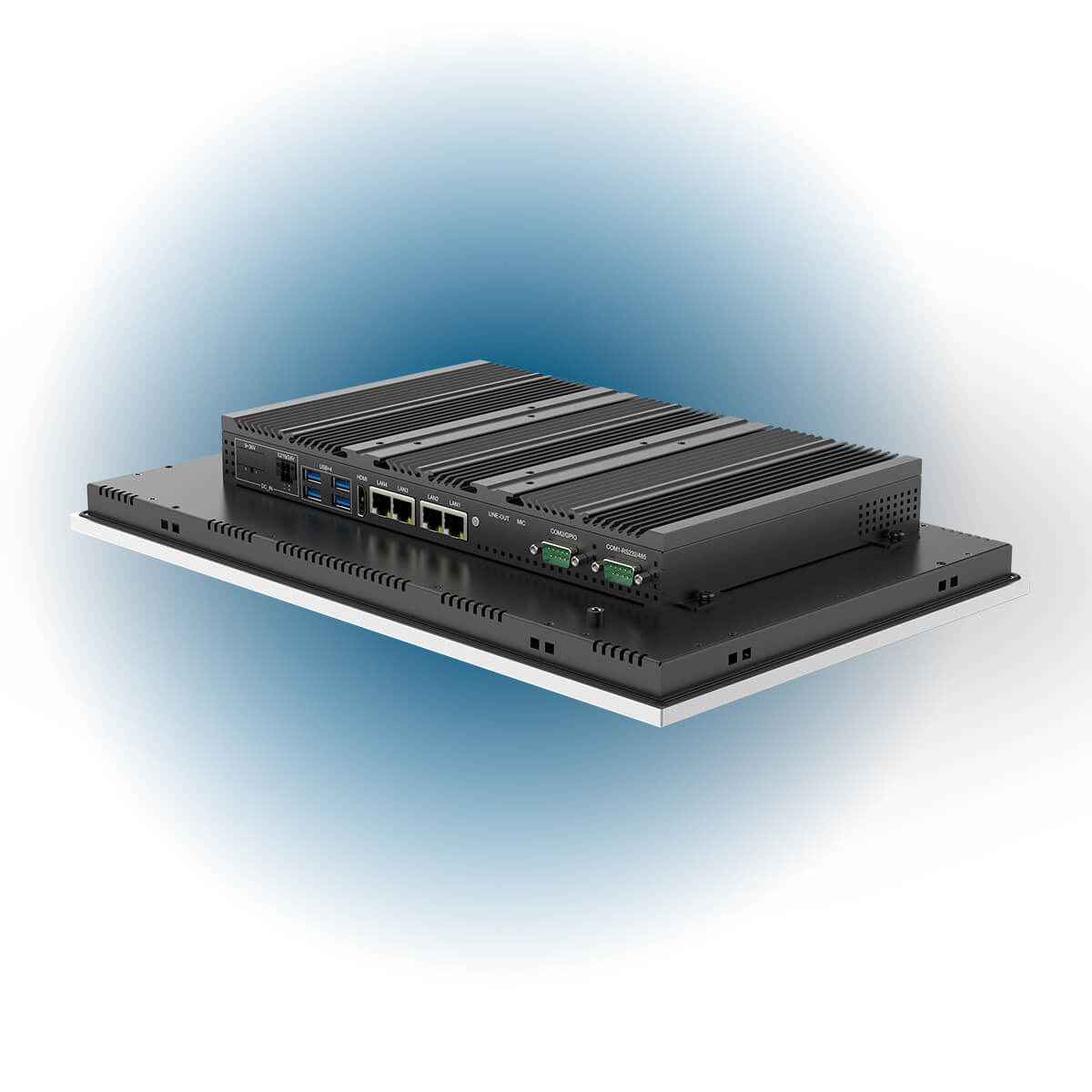

Designed for high-efficiency intelligent industrial connectivity, the TPC-DCS/DRS F1-4L is equipped with rich I/O interfaces, including 4×GbE RJ45 ports, 4×USB3.0 ports, 2×BIOS-configurable RS232/RS485 (optional GPIO) serial ports and 1×HDMI output. It supports auto-detecting 12V/19V/24V DC power input, with an optional 9~36V wide-voltage range, plus built-in OVP and UVP overvoltage protection to ensure stable power supply for continuous AI computing tasks.
Optimized for intelligent system security and expandability, this Rugged Slim Panel PC with Intel Core Ultra5 125U system integrates fTPM 2.0 hardware security and fully supports Windows 10/11 operating systems. It reserves two high-speed expansion slots — 1×M.2 2230 E-key and 1×Mini-PCIe — enabling flexible upgrades for Wi-Fi/BT and 3G/4G wireless modules to support real-time data transmission and edge AI deployment. Tailored for intelligent industrial upgrading, this Rugged Slim Panel PC with Intel Core Ultra5 CPU serves as a premium solution for industrial AI analysis, M2M communication, smart city construction, intelligent building automation, industrial automation and smart manufacturing applications.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel CoreTM Ultra5 series1 125U (Up to 4.30Ghz, 12-cores) | |
| TDP | Default 15W (BIOS Configured) | |
| Graphic | Intel 4Xe -cores Graphics (Up to 1.85Ghz) | Intel 4Xe -cores Graphics (Up to 2.0Ghz) | |
| NPU | Intel AI Boost, 11TOPS (Int8) | Intel AI Boost, 12TOPS (Int8) | |
| Memory | 1* SO-DIMM, Support DDR5 5600 Mhz, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key (PCIe x4, Gen. IV NVMe) SSD; 1* 2.5” SATA-III SSD | |
| Network | 4* Intel i210 GbE (Support PXE/PRL Boot), optional wireless 4G, Wi-Fi/BT | |
| Audio | On-board Realtek Audio HAD Codec | |
| Expansion | 1* Mini-PCIe slot (Support 4G, with 1*Sim slot); 1* M.2 E-Key 2230 slot (WiFi/BT) | |
| Watch dog | 0 ~ 256 seconds programmable | |
| Operating System | Win10/Win11 (64bits), Linux, Ubuntu | |
| I/O Interface | Ethernet | 4 RJ45, 10/100/1000 Mbps |
| COM | COM1: RS232/RS485 (Jumper); COM2:RS232 (Optional 8* GPIO) | |
| Audio | N/A (optional) | |
| USB | 4* USB3.0 (Type-A) | |
| Display | 1* HDMI (Max. 3840*2160 @30Hz) | |
| Power | 1* 2 Pins, Terminal Blocks | |
| LCD Display & Touchsceen | Pcap. Touch | 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD, 23.8" FHD |
| Resistive Touch | 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD | |
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated |
| Cooling System | Large area finned heatsink (Fanless designed) | |
| Mount Method | Panel mount, VESA 75/100 Mount | |
| Power & Environmetal | Humidity | 10 ~ 95% @ 10C (No condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | Auto detected DC 12/19/24V power input (Optional wide voltage DC 9~36V range) | |
| Certificate | CE/FCC/ROHS |
Ordering information
| Part no. | Description |
| TPC-DCS150F1-4L | 15.0” LCD, XGA 1024*768, Intel Ultra5 (series1) 125U, Pcap. Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DCS150F1W-4L | 15.0” LCD, XGA 1024*768, Intel Ultra 5 125 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DRS150F1-4L | 15.0” LCD, XGA 1024*768, Intel Ultra5 (series1) 125U, Resistive Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DRS150F1W-4L | 15.0” LCD, XGA 1024*768, Intel Ultra 5 125 CPU, Resistive Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DCS156HF1-4L | 15.6” LCD, FHD 1920*1080, Intel Ultra5 (series1) 125U, Pcap. Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DCS156HF1W-4L | 15.6” LCD, FHD 1920*1080, Intel Ultra 5 125 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DRS156HF1-4L | 15.6” LCD, FHD 1920*1080, Intel Ultra5 (series1) 125U, Resistive Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DRS156HF1W-4L | 15.6” LCD, FHD 1920*1080, Intel Ultra 5 125 CPU, Resistive Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DCS170F1-4L | 17.0” LCD, SXGA 1280*1024, Intel Ultra5 (series1) 125U, Pcap. Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DCS170F1W-4L | 17.0” LCD, SXGA 1280*1024, Intel Ultra 5 125 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DRS170F1-4L | 17.0” LCD, SXGA 1280*1024, Intel Ultra5 (series1) 125U, Resistive Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DRS170F1W-4L | 17.0” LCD, SXGA 1280*1024, Intel Ultra 5 125 CPU, Resistive Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DCS185F1-4L | 18.5” LCD, WXGA 1366*768, Intel Ultra5 (series1) 125U, Pcap. Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DCS185F1W-4L | 18.5” LCD, WXGA 1366*768, Intel Ultra 5 125 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DRS185F1-4L | 18.5” LCD, WXGA 1366*768, Intel Ultra5 (series1) 125U, Resistive Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DRS185F1W-4L | 18.5” LCD, WXGA 1366*768, Intel Ultra 5 125 CPU, Resistive Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DCS185HF1-4L | 18.5” LCD, FHD 1920*1080, Intel Ultra5 (series1) 125U, Pcap. Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DCS185HF1W-4L | 18.5” LCD, FHD 1920*1080, Intel Ultra 5 125 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DRS185HF1-4L | 18.5” LCD, FHD 1920*1080, Intel Ultra5 (series1) 125U, Resistive Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DRS185HF1W-4L | 18.5” LCD, FHD 1920*1080, Intel Ultra 5 125 CPU, Resistive Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DCS190F1-4L | 19.0” LCD, SXGA 1280*1024, Intel Ultra5 (series1) 125U, Pcap. Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DCS190F1W-4L | 19.0” LCD, SXGA 1280*1024, Intel Ultra 5 125 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DRS190F1-4L | 19.0” LCD, SXGA 1280*1024, Intel Ultra5 (series1) 125U, Resistive Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DRS190F1W-4L | 19.0” LCD, SXGA 1280*1024, Intel Ultra 5 125 CPU, Resistive Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DCS215F1-4L | 21.5” LCD, FHD 1920*1080, Intel Ultra5 (series1) 125U, Pcap. Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DCS215F1W-4L | 21.5” LCD, FHD 1920*1080, Intel Ultra 5 125 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| TPC-DRS215F1-4L | 21.5” LCD, FHD 1920*1080, Intel Ultra5 (series1) 125U, Resistive Touch, 4 GbE, 4 USB3.0, 1 HDMI, 2 COM, DC 12/19/24V, No PSU by default |
| TPC-DRS215F1W-4L | 21.5” LCD, FHD 1920*1080, Intel Ultra 5 125 CPU, Resistive Touch, 2 GbE, 4 USB3.0, 1 HDMI, 2 COM, Wide DC 9~36V, No PSU by default |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR5, 8GB/16GB/32GB |
| Storage | M.2 SSD: 128GB/256GB/512GB/1TB/2TB |
| Wireless | Wi-Fi Module, with Antenna (M.2 2230) |
| Wi-Fi with BT Integrated, With Antenna (M.2 2230) | |
| All Network 4G module, with Antenna (Mini-PCIe) | |
| Power Supply | PSU (If needed) |
