TPC-DCS&DRS E1 Series | Rugged Slim Panel PC with Intel J6412
● Modular & Fanless designed, aluminum-magnesium alloy;
● Intel Elkhart Lake J6412, Quad-core 2.0Ghz;
● Full dimensions, ranging from 10.1″ to 23.8″ sizes;
● Multi up to 10 points Pcap. touchscreen, EETI controller;
● DC 12V Power input, optional wide DC 9~36V input;

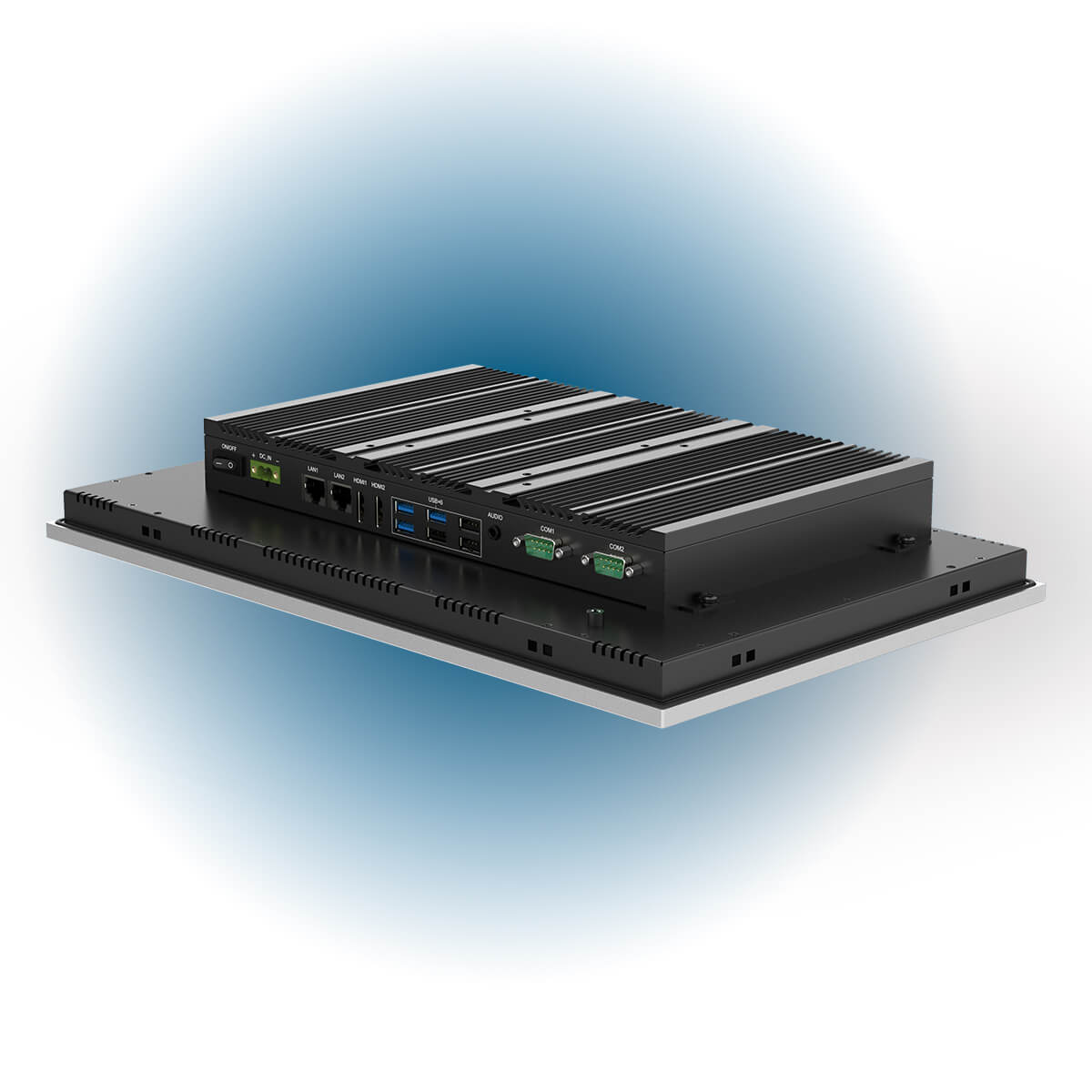

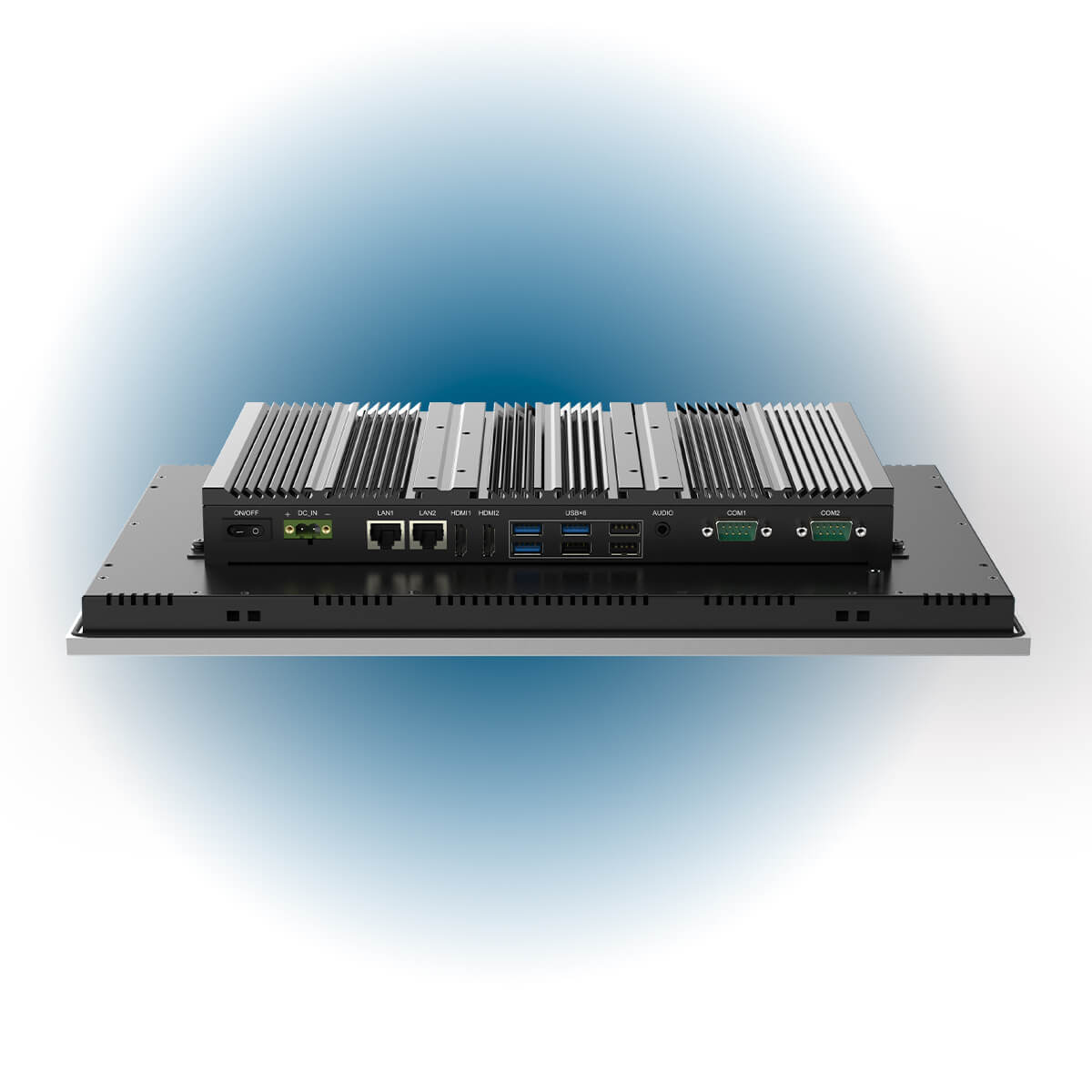

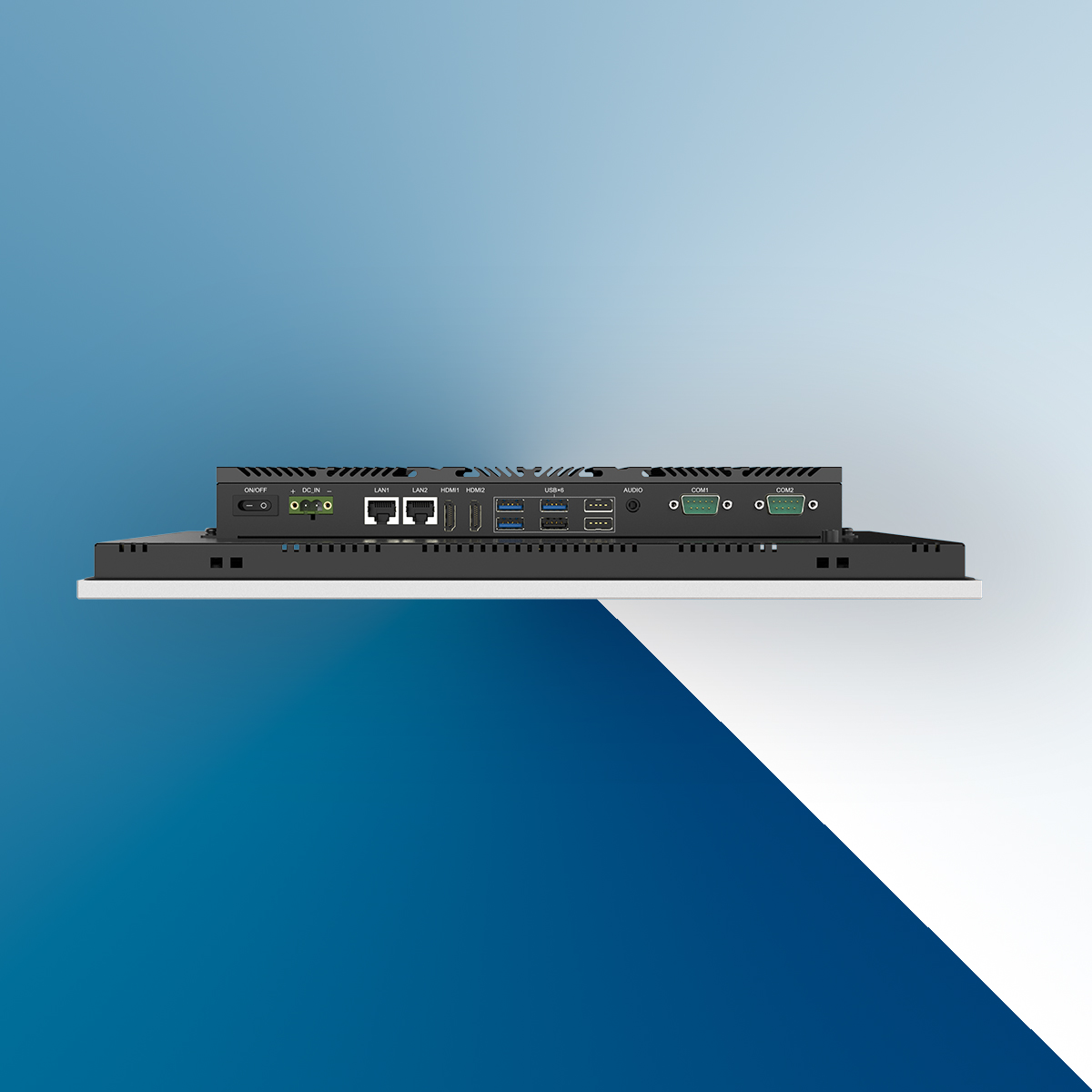

● I/O interfaces: 2 GbE, 3 USB3.0, 3 USB2.0, 2 COM, 2 HDMI, Audio;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● Optional 1 M.2 & 1 Mini-PCIe Expansion slots.
Description
The TAICENN TPC-DCS/DRS E1 Series is a low-power, fanless expandable Slim Panel PC with Intel J6412 built for exceptional stability and long-term reliability in rigorous industrial environments. Powered by the cost-effective Intel Elkhart Lake J6412 quad-core processor, it delivers steady, efficient computing performance while keeping power consumption low, making it ideal for 24/7 continuous industrial operation.
Designed for high-speed storage performance, this industrial panel PC supports 1×M.2 2280 NVMe PCIe SSD, enabling fast data reading, writing and rapid system response. It is equipped with a full set of rich industrial I/O interfaces, including 2×GbE LAN, 3×USB3.0, 3×USB2.0, 1×COM port, 2×HDMI outputs and audio ports, fully meeting multi-device connection and multi-scenario data transmission demands.
Boasting powerful multi-level wireless expandability, the Rugged Slim Panel PC with Intel J6412 features 1×Mini-PCIe slot for 3G/4G, Bluetooth and Wi-Fi expansion, as well as an exclusive M.2 Key B slot that supports 5G high-speed wireless networking. This flexible expansion architecture greatly enhances equipment scalability and adapts to diverse intelligent industrial networking requirements.
Adopting a sleek true-flat front design, the panel supports two professional touch solutions: precision 5-wire resistive touch and projective capacitive touch. The front panel complies with IP66 and NEMA dustproof and waterproof standards. Combined with a fully sealed enclosure structure, it effectively blocks dust and moisture ingress, ensuring stable operation in harsh factory and field conditions.
Integrated with Intel PTT TPM 2.0 hardware security encryption, the system provides reliable data security protection. It offers extensive OS compatibility, supporting Windows 10, Windows 11, Linux and Ubuntu systems. With excellent software adaptability, it seamlessly supports various customized industrial applications and program deployment, serving as a cost-effective and future-proof HMI solution for industrial automation scenarios.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Elkhart Lake J6412, Quad-core 2.0Ghz, burst to 2.5Ghz, TDP=10W | |
| Graphic | Intel UHD Graphics for 10th Gen. Intel Processors | |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 Mhz, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key (PCIe x2, Gen III NVMe) SSD, 1* 2.5” SATA slot | |
| Network | 1* Intel i226V & 1* Intel i210AT GbE network chips (Optional wireless 3G/4G/LTE, Wi-Fi/BT, 5G/Wi-Fi 6) | |
| Audio | On-board Realtek ACL 897 Audio controller | |
| Expansion | 1* M.2 B-Key 3052 slot; 1* Mini-PCIe slot | |
| Watch dog | 0 ~ 256 seconds programmable | |
| Operating System | Win10, Win11, Linux, Ubuntu | |
| I/O Interface | Ethernet | 2 RJ45, 10/100/1000 Mbps |
| COM | 2* RS232 by default (Optional 1* RS485 or 8* GPIO) | |
| Audio | Mic-In/Line-out (2 in 1, 3.5mm Jack) | |
| USB | 3* USB3.0, 3* USB2.0 | |
| Display | 2* HDMI | |
| Power | 1* 2 Pins, Phenix Terminal | |
| LCD Display & Touchscreen | Pcap. Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD, 23.8" FHD |
| Resistive Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD | |
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated |
| Cooling System | Large area finned heatsink (Fanless designed) | |
| Mount Method | Panel mount, VESA 75/100 Mount | |
| Power & Environmental | Humidity | 10 ~ 95% @ 10C (No condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (Optional wide voltage DC 9~36V) | |
| Certificate | CE/FCC/ROHS |
Ordering information
| Part no. | Description |
| TPC-DCS101E1 | Wide 10.1” LCD, WXGA 1280*800, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 12V, PSU |
| TPC-DCS101E1W | Wide 10.1” LCD, WXGA 1280*800, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 9~36V, No PSU by default |
| TPC-DRS101E1 | Wide 10.1” LCD, WXGA 1280*800, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 12V, PSU |
| TPC-DRS101E1W | Wide 10.1” LCD, WXGA 1280*800, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 9~36V, No PSU by default |
| TPC-DCS104E1 | 10.4” LCD, XGA 1024*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 12V, PSU |
| TPC-DCS104E1W | 10.4” LCD, XGA 1024*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 9~36V, No PSU by default |
| TPC-DRS104E1 | 10.4” LCD, XGA 1024*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 12V, PSU |
| TPC-DRS104E1W | 10.4” LCD, XGA 1024*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 9~36V, No PSU by default |
| TPC-DCS121E1 | 12.1” LCD, XGA 1024*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 12V, PSU |
| TPC-DCS121E1W | 12.1” LCD, XGA 1024*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 9~36V, No PSU by default |
| TPC-DRS121E1 | 12.1” LCD, XGA 1024*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 12V, PSU |
| TPC-DRS121E1W | 12.1” LCD, XGA 1024*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 1 COM, DC 9~36V, No PSU by default |
| TPC-DCS150E1 | 15.0” LCD, XGA 1024*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS150E1W | 15.0” LCD, XGA 1024*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DRS150E1 | 15.0” LCD, XGA 1024*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DRS150E1W | 15.0” LCD, XGA 1024*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DCS156HE1 | Wide 15.6” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS156HE1W | Wide 15.6” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DRS156HE1 | Wide 15.6” LCD, FHD 1920*1080, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DRS156HE1W | Wide 15.6” LCD, FHD 1920*1080, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DCS170E1 | 17.0” LCD, SXGA 1280*1024, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS170E1W | 17.0” LCD, SXGA 1280*1024, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DRS170E1 | 17.0” LCD, SXGA 1280*1024, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DRS170E1W | 17.0” LCD, SXGA 1280*1024, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DCS185E1 | Wide 18.5” LCD, WXGA 1366*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS185E1W | Wide 18.5” LCD, WXGA 1366*768, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DRS185E1 | Wide 18.5” LCD, WXGA 1366*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DRS185E1W | Wide 18.5” LCD, WXGA 1366*768, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DCS185HE1 | Wide 18.5” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS185HE1W | Wide 18.5” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DRS185HE1 | Wide 18.5” LCD, FHD 1920*1080, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DRS185HE1W | Wide 18.5” LCD, FHD 1920*1080, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DCS190E1 | 19.0” LCD, SXGA 1280*1024, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS190E1W | 19.0” LCD, SXGA 1280*1024, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DRS190E1 | 19.0” LCD, SXGA 1280*1024, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DRS190E1W | 19.0” LCD, SXGA 1280*1024, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DCS215E1 | Wide 21.5” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS215E1W | Wide 21.5” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DRS215E1 | Wide 21.5” LCD, FHD 1920*1080, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DRS215E1W | Wide 21.5” LCD, FHD 1920*1080, Intel J6412, Resistive Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| TPC-DCS238E1 | Wide 23.8” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 12V, PSU |
| TPC-DCS238E1W | Wide 23.8” LCD, FHD 1920*1080, Intel J6412, Pcap. Touch, 2 GbE, 3 USB3.0, 3 USB2.0, 2 HDMI, 2 COM, DC 9~36V, No PSU by default |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB |
| Storage | SSD: 128GB/256GB/512GB/1TB/2TB |
| Wireless | Wi-Fi Module, with Antenna |
| Wi-Fi Module with BT Integrated, With Antenna | |
| All Network 4G module, with Antenna | |
| 5G Network module, with Antenna | |
| Power Supply | PSU for TPC-DCS215E1W (If needed) |
