TPC-DCS&DRS T Series | Rugged Slim Panel PC with Intel 11th Gen. Core i3/i5/i7
● Modular & Fanless designed, aluminum-magnesium alloy;
● Intel 11th Gen. Tiger Lake UP3, Core i3/i5/i7 CPUs;
● Full dimensions, ranging from 10.1″ to 23.8″ sizes;
● Support both Pcap. and Resistive touchscreen, EETI controller;
● DC 12V Power input, optional wide DC 9~36V input;

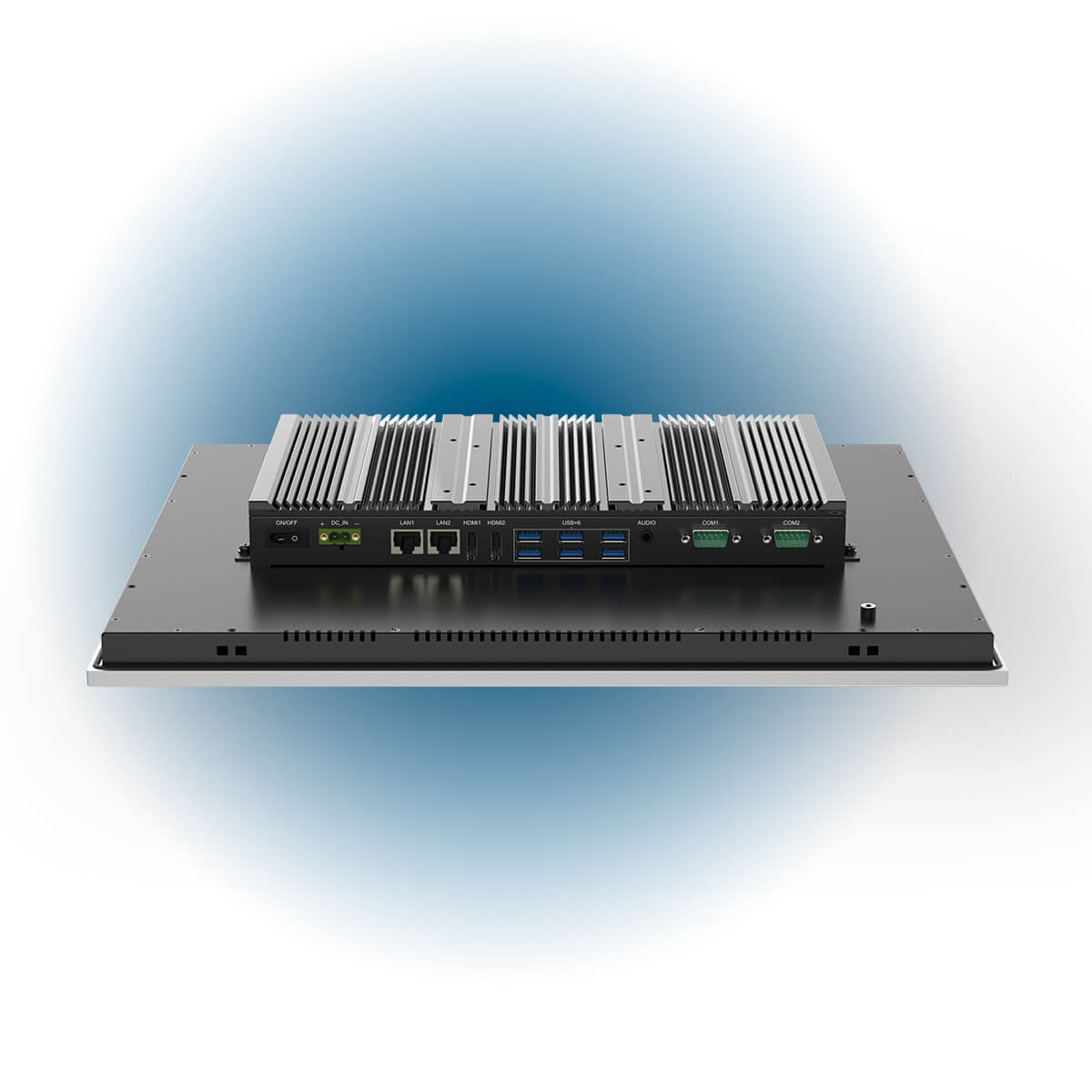

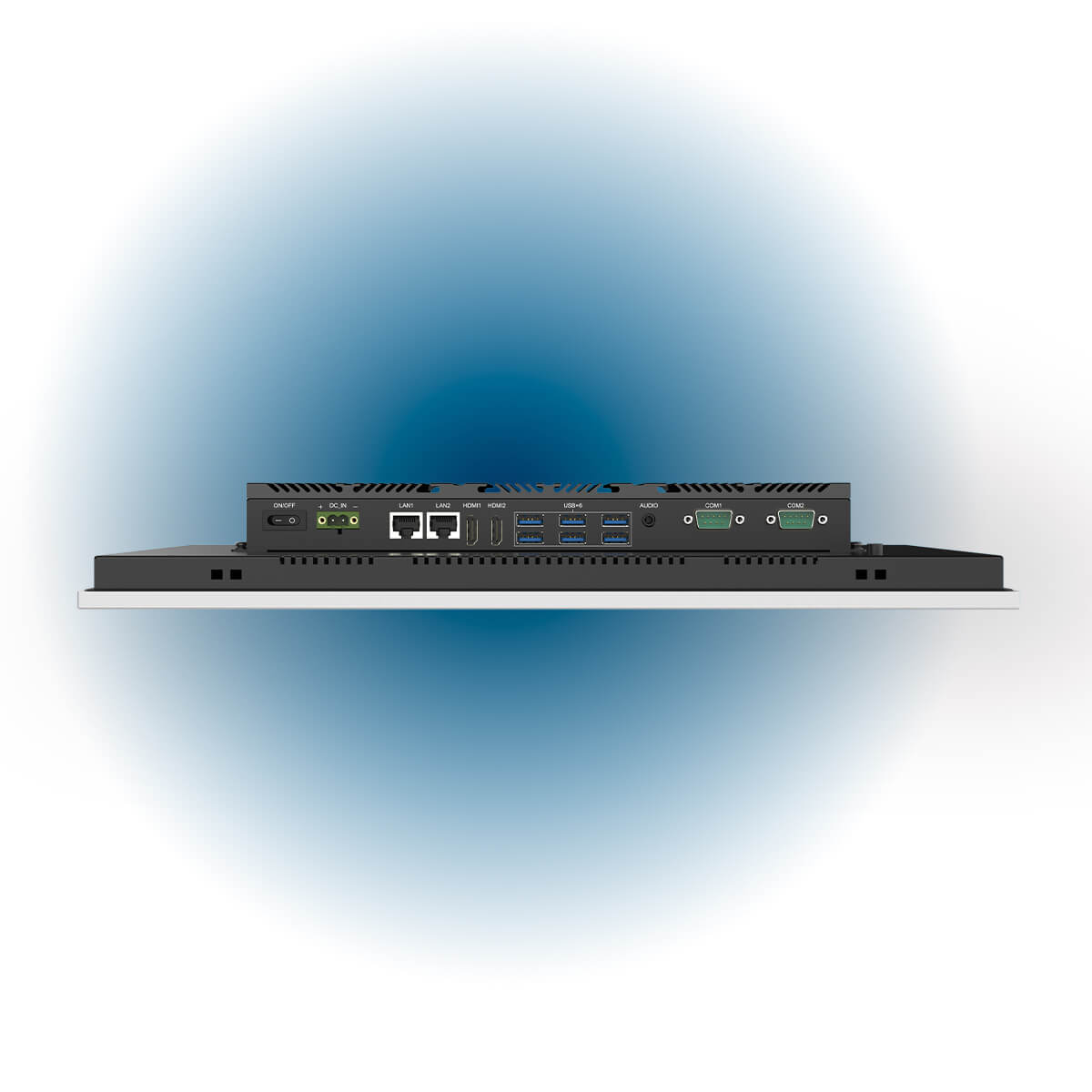

● I/O interfaces: 2 GbE, 6 USB3.0, 2 COM, 2 HDMI, Audio;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● Optional 2 M.2 Expansion slots.
Description
The all-new TAICENN TPC-DCS/DRS T Series is a Rugged Slim Panel PC with Intel 11th Gen. Core i3/i5/i7 engineered for high-performance visual control and intelligent industrial applications. Built with standardized projective capacitive touch display and independent computer modules, its modular architecture delivers superior flexibility, easy maintenance, and long-term operational stability for diverse industrial HMI scenarios. Equipped with a high-clarity wide LCD screen, the unit renders crisp still images and ultra-smooth streaming video, ensuring precise visual feedback for industrial monitoring and control tasks.
Powered by the 11th Gen Intel Tiger Lake UP3 SoC platform, this upgraded panel PC offers versatile processor options, including Core i3-1115G4, Core i5-1155G7, and Core i7-1195G7. The scalable CPU lineup delivers accelerated computing performance to handle complex industrial workloads efficiently. Integrated with advanced Intel Iris Xe Graphics, the innovative GPU architecture significantly enhances image processing, video decoding and graphical rendering capabilities, perfectly suited for high-definition visual inspection and multi-task industrial visualization.
Designed for high expandability and intelligent networking, the Rugged Slim Panel PC with Intel 11th Gen. Core i3/i5/i7 features dual high-speed M.2 expansion slots. It supports full-range wireless connectivity, including Wi-Fi/BT, 3G/4G and 5G cellular modules, enabling flexible network deployment for edge computing and smart industrial transmission. Integrated Intel PTT TPM 2.0 hardware security ensures reliable data protection and full compatibility with Windows 11, delivering secure and stable system operation.
With powerful comprehensive performance and outstanding scalability, the TPC-DCS/DRS T Series Rugged Slim Panel PC with Intel 11th Gen. Core i3/i5/i7 serves as a future-proof industrial solution. It is widely deployed in M2M communication, smart building automation, general industrial automation, IIoT data acquisition and transmission, smart manufacturing, Industry 4.0 and various commercial automation projects.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 11th Gen. Tiger Lake UP3, Core i3-1115G4, Core i5-1155G7, Core i7-1195G7 | |
| TDP | Default 15W (BIOS Configured) | |
| Graphic | Intel UHD/Iris Xe Graphics | |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 Mhz, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key (PCIe x4, Gen. IV NVMe) SSD, 1* 2.5” SATA SSD | |
| Network | 1* Intel i219V, 1* Intel i226V, Optional wireless 3G/4G/LTE, Wi-Fi/BT, 5G/Wi-Fi 6 | |
| Audio | On-board Realtek ACL 897 Audio controller | |
| Expansion | 1* M.2 (NGFF) B-Key 3052 slot; 1* M.2 (NGFF) E-Key 2230 slot | |
| Watch dog | 0 ~ 256 seconds programmable | |
| Operating System | Win10, Win11, Linux, Ubuntu | |
| I/O Interface | Ethernet | 2 RJ45, 10/100/1000 Mbps |
| COM | 2* RS232 by default (Optional 1* RS485 or 8* GPIO) | |
| Audio | Mic-In/Line-out (2 in 1, 4.0mm Jack) | |
| USB | 6* USB3.0 | |
| Display | 2* HDMI | |
| Power | 1* 2 Pins, Phenix Terminal | |
| LCD Display & Touchscreen | Pcap. Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD, 23.8" FHD |
| Resistive Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD | |
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated |
| Cooling System | Large area finned heatsink (Fanless designed) | |
| Mount Method | Panel mount, VESA 75/100 Mount | |
| Power & Environmental | Humidity | 10 ~ 95% @ 10C (No condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (Optional wide voltage DC 9~36V) | |
| Certificate | CE/FCC/ROHS |
Ordering information
| Part no. | Description |
| TPC-DCS101T1 | Wide 10.1” LCD, WXGA 1280*800, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS101T2 | Wide 10.1” LCD, WXGA 1280*800, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS101T3 | Wide 10.1” LCD, WXGA 1280*800, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS101T1 | Wide 10.1” LCD, WXGA 1280*800, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS101T2 | Wide 10.1” LCD, WXGA 1280*800, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS101T3 | Wide 10.1” LCD, WXGA 1280*800, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS104T1 | 10.4” LCD, XGA 1024*768, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS104T2 | 10.4” LCD, XGA 1024*768, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS104T3 | 10.4” LCD, XGA 1024*768, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS104T1 | 10.4” LCD, XGA 1024*768, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS104T2 | 10.4” LCD, XGA 1024*768, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS104T3 | 10.4” LCD, XGA 1024*768, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS121T1 | 12.1” LCD, XGA 1024*768, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS121T2 | 12.1” LCD, XGA 1024*768, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS121T3 | 12.1” LCD, XGA 1024*768, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS121T1 | 12.1” LCD, XGA 1024*768, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS121T2 | 12.1” LCD, XGA 1024*768, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS121T3 | 12.1” LCD, XGA 1024*768, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS121T1 | 12.1” LCD, XGA 1024*768, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS121T2 | 12.1” LCD, XGA 1024*768, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS121T3 | 12.1” LCD, XGA 1024*768, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS121T1 | 12.1” LCD, XGA 1024*768, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS121T2 | 12.1” LCD, XGA 1024*768, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DRS121T3 | 12.1” LCD, XGA 1024*768, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 1 COM, Audio, DC 12V, PSU |
| TPC-DCS150T1 | 15.0” LCD, XGA 1024*768, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS150T2 | 15.0” LCD, XGA 1024*768, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS150T3 | 15.0” LCD, XGA 1024*768, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS150T1 | 15.0” LCD, XGA 1024*768, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS150T2 | 15.0” LCD, XGA 1024*768, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS150T3 | 15.0” LCD, XGA 1024*768, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS156HT1 | Wide 15.6” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS156HT2 | Wide 15.6” LCD, FHD 1920*1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS156HT3 | Wide 15.6” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS156HT1 | Wide 15.6” LCD, FHD 1920*1080, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS156HT2 | Wide 15.6” LCD, FHD 1920*1080, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS156HT3 | Wide 15.6” LCD, FHD 1920*1080, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS170T1 | 17.0” LCD, SXGA 1280*1024, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS170T2 | 17.0” LCD, SXGA 1280*1024, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS170T3 | 17.0” LCD, SXGA 1280*1024, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS170T1 | 17.0” LCD, SXGA 1280*1024, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS170T2 | 17.0” LCD, SXGA 1280*1024, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS170T3 | 17.0” LCD, SXGA 1280*1024, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS185T1 | Wide 18.5” LCD, WXGA 1366*768, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS185T2 | Wide 18.5” LCD, WXGA 1366*768, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS185T3 | Wide 18.5” LCD, WXGA 1366*768, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS185T1 | Wide 18.5” LCD, WXGA 1366*768, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS185T2 | Wide 18.5” LCD, WXGA 1366*768, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS185T3 | Wide 18.5” LCD, WXGA 1366*768, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS185HT1 | Wide 18.5” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS185HT2 | Wide 18.5” LCD, FHD 1920*1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS185HT3 | Wide 18.5” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS185HT1 | Wide 18.5” LCD, FHD 1920*1080, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS185HT2 | Wide 18.5” LCD, FHD 1920*1080, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS185HT3 | Wide 18.5” LCD, FHD 1920*1080, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS190T1 | 19.0” LCD, SXGA 1280*1024, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS190T2 | 19.0” LCD, SXGA 1280*1024, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS190T3 | 19.0” LCD, SXGA 1280*1024, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS190T1 | 19.0” LCD, SXGA 1280*1024, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS190T2 | 19.0” LCD, SXGA 1280*1024, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS190T3 | 19.0” LCD, SXGA 1280*1024, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS215T1 | Wide 21.5” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS215T2 | Wide 21.5” LCD, FHD 1920*1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS215T3 | Wide 21.5” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS215T1 | Wide 21.5” LCD, FHD 1920*1080, Intel Core i3-1115G4, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS215T2 | Wide 21.5” LCD, FHD 1920*1080, Intel Core i5-1155G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DRS215T3 | Wide 21.5” LCD, FHD 1920*1080, Intel Core i7-1195G7, Resistive Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS238T1 | Wide 23.8” LCD, FHD 1920*1080, Intel Core i3-1115G4, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS238T2 | Wide 23.8” LCD, FHD 1920*1080, Intel Core i5-1155G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| TPC-DCS238T3 | Wide 23.8” LCD, FHD 1920*1080, Intel Core i7-1195G7, Pcap. Touch, 2 GbE, 6 USB3.0, 2 HDMI, 2 COM, Audio, DC 12V, PSU |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB |
| Storage | M.2 SSD: 128GB/256GB/512GB/1TB/2TB |
| Wireless | Wi-Fi Module, with Antenna |
| Wi-Fi Module with BT Integrated, With Antenna | |
| All Network 4G module, with Antenna | |
| 5G Network module, with Antenna | |
| Power Supply | PSU for wide DC 9~36V range model TPC-DCS215TxW (If needed) |
