TPC-DCS&DRS N2 Series | Rugged Slim Panel PC with Intel N95
● Modular & Fanless designed, aluminum-magnesium alloy;
● Intel 12th Gen. Alder Lake-N series N95 processor, 4E-Core;

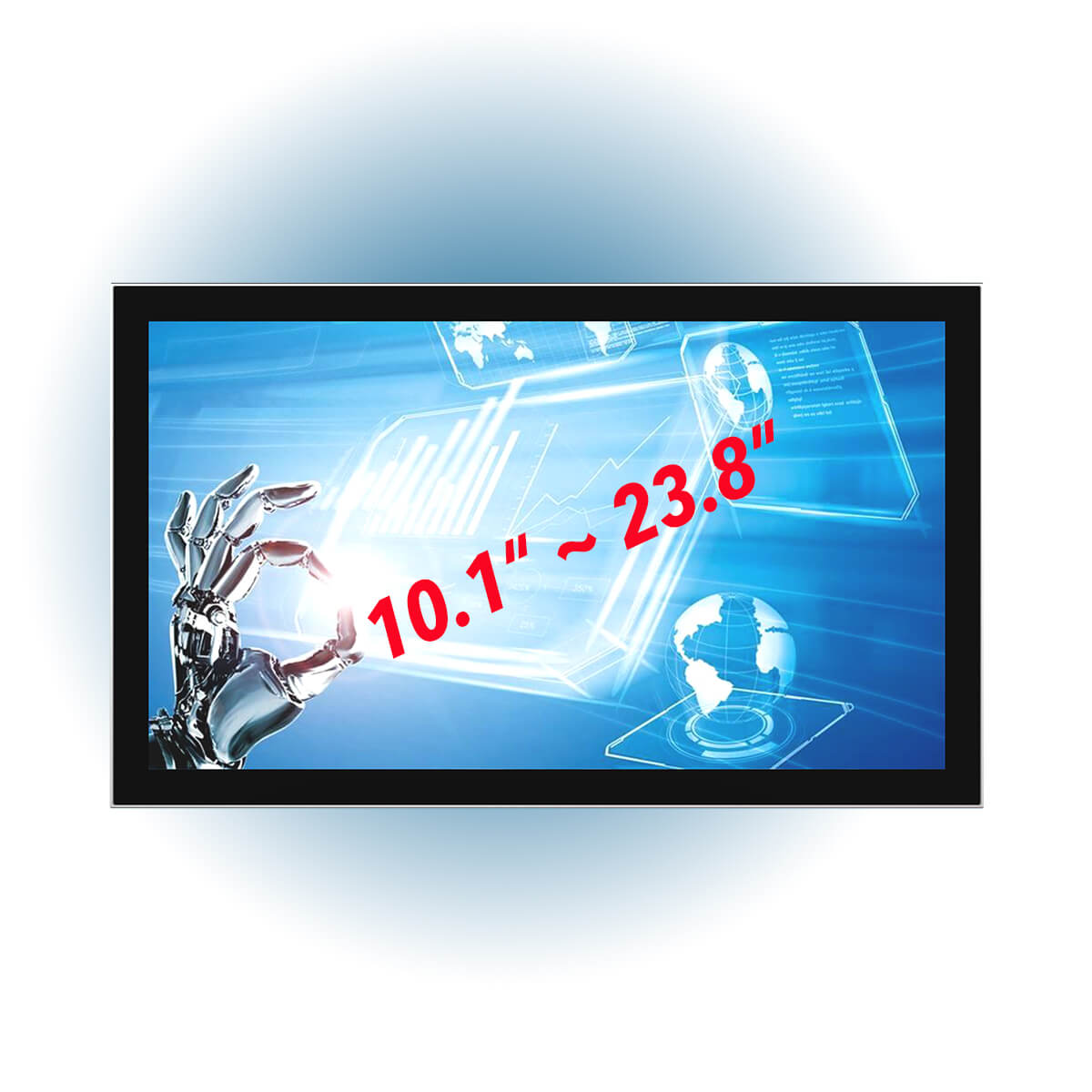

● Full Inventory, ranging from 10.1″ to 23.8″ dimensions;
● Support both Pcap. and Resistive touchscreen, EETI controller;
● DC 12/24 V Power input, optional wide DC 9~36V input;

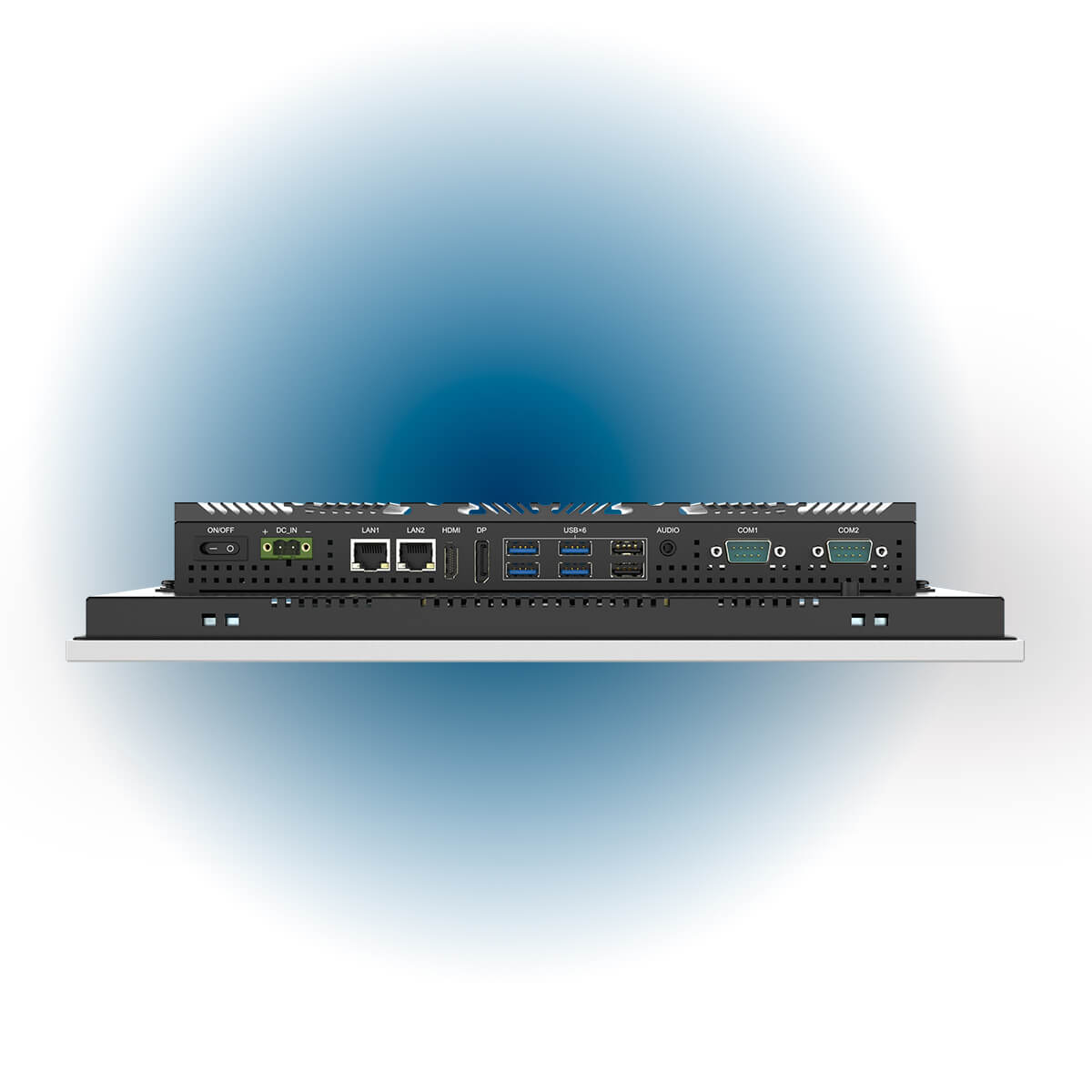

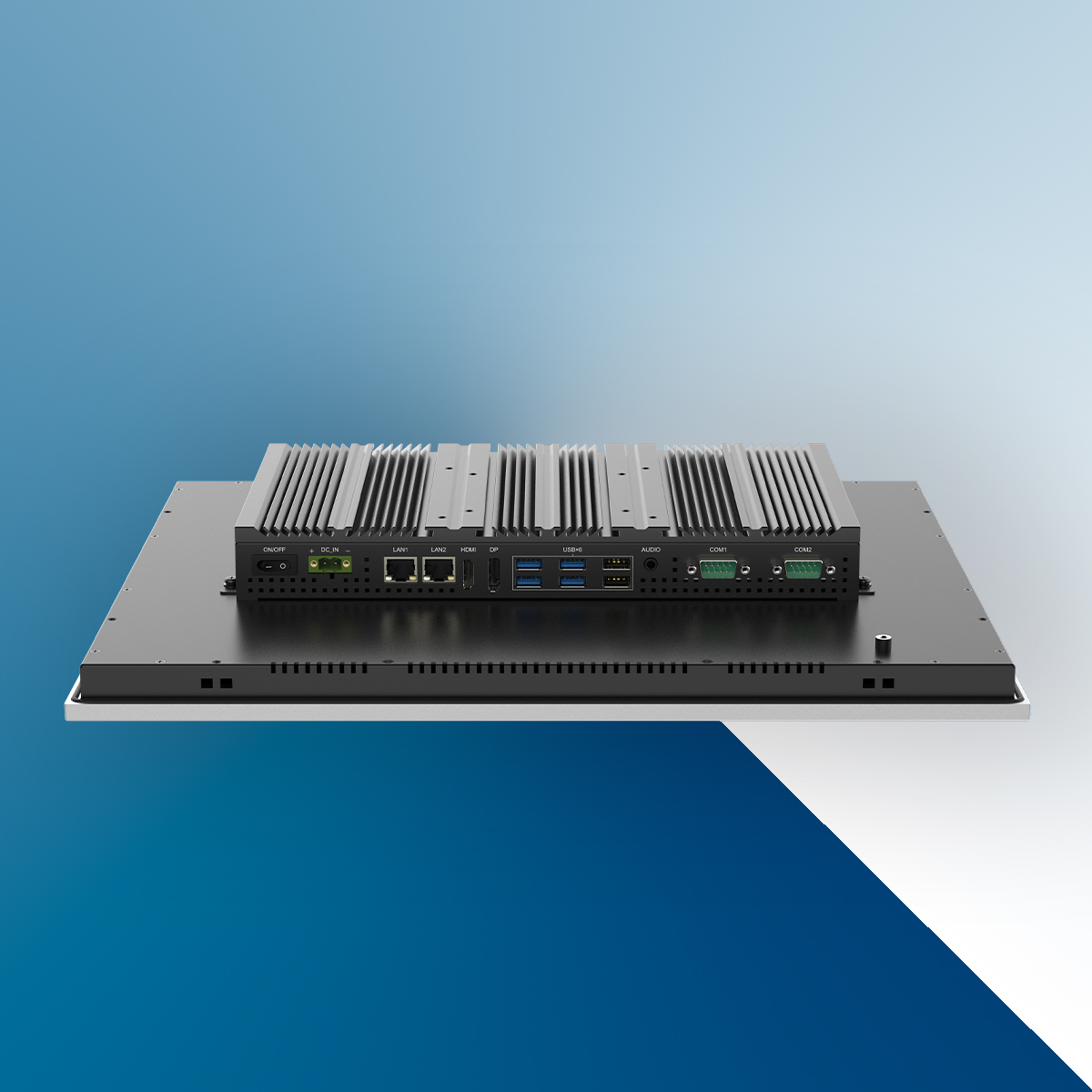

● I/O interfaces: 2 GbE, 6 USB, 2 COM, 1 HDMI, 1 DP, Audio;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● Optional 2 M.2 high speed expansion slots.
Description
The TAICENN TPC-DCS/DRS N2 series is a new-generation, low-power, fanless Rugged Slim Panel PC with Intel N95 processor, it delivers efficient, power-saving computing performance for continuous industrial operation.
Equipped with comprehensive industrial-grade I/O connectivity, this slim touch panel PC integrates 2×GbE LAN, 4×USB3.0, 2×USB2.0, 2×COM serial ports, 1×HDMI, 1×DP and audio interfaces to support diverse device connection and stable data transmission. It features dual M.2 expansion slots, enabling flexible integration of Wi-Fi/BT, 3G/4G and 5G wireless modules to meet diversified industrial networking demands.
Built with a 10-point projective capacitive touchscreen, the front panel meets IP66 and NEMA dustproof and waterproof standards. Adopting a fully sealed enclosure structure, this Rugged Slim Panel PC with Intel N95 effectively resists dust and moisture ingress in harsh working environments. Integrated with Intel PTT TPM 2.0 security technology, it ensures reliable and secure system operation.
The system offers wide-ranging OS compatibility, fully supporting Windows 10, Windows 11, Linux and Ubuntu systems. It maintains excellent adaptability with custom industrial software and application programs, serving as a versatile and reliable HMI solution for various industrial scenarios.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 12th Gen. Alder Lake-N series N95 processor, up to 3.4Ghz, 4E-core, TDP=15W | |
| Graphic | Intel UHD Graphics (up to 16EUs, 1.2Ghz) | |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 Mhz; Single slot, max. up to 16GB | |
| Storage | 1* M.2 2280 M-Key (PCIex1/SATA) SSD; 1* 2.5” SATA SSD | |
| Network | 1* Intel I226V, 1* Intel I210AT network chips (Optional wireless 3G/4G/LTE, Wi-Fi/BT, 5G/Wi-Fi 6) | |
| Audio | On-board Realtek ACL 897 Audio controller | |
| Expansion | 1* M.2 B-Key 3042/3052 slot; 1* M.2 E-key 2230 slot | |
| Watch dog | 0 ~ 256 seconds programmable | |
| Operating System | Win10/Win11 64bits; Linux, Ubuntu | |
| I/O Interface | Ethernet | 2 RJ45, 10/100/1000 Mbps |
| COM | 2* RS232 (DB9) by default (Optional 1* RS485) | |
| Audio | Mic-In/Line-out (2 in 1, 3.5mm Jack) | |
| USB | 4* USB3.0, 2* USB2.0 | |
| Display | 1* HDMI (max. 4096*2160 @30Hz); 1* DP++ (max. 4096*2160 @60Hz) | |
| GPIO | Optional 8* GPIO (via 1* shared DB9) | |
| Power | 1* 2 Pins, Phenix Terminal | |
| LCD Display & Touchsceen | Pcap. Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD, 23.8" FHD |

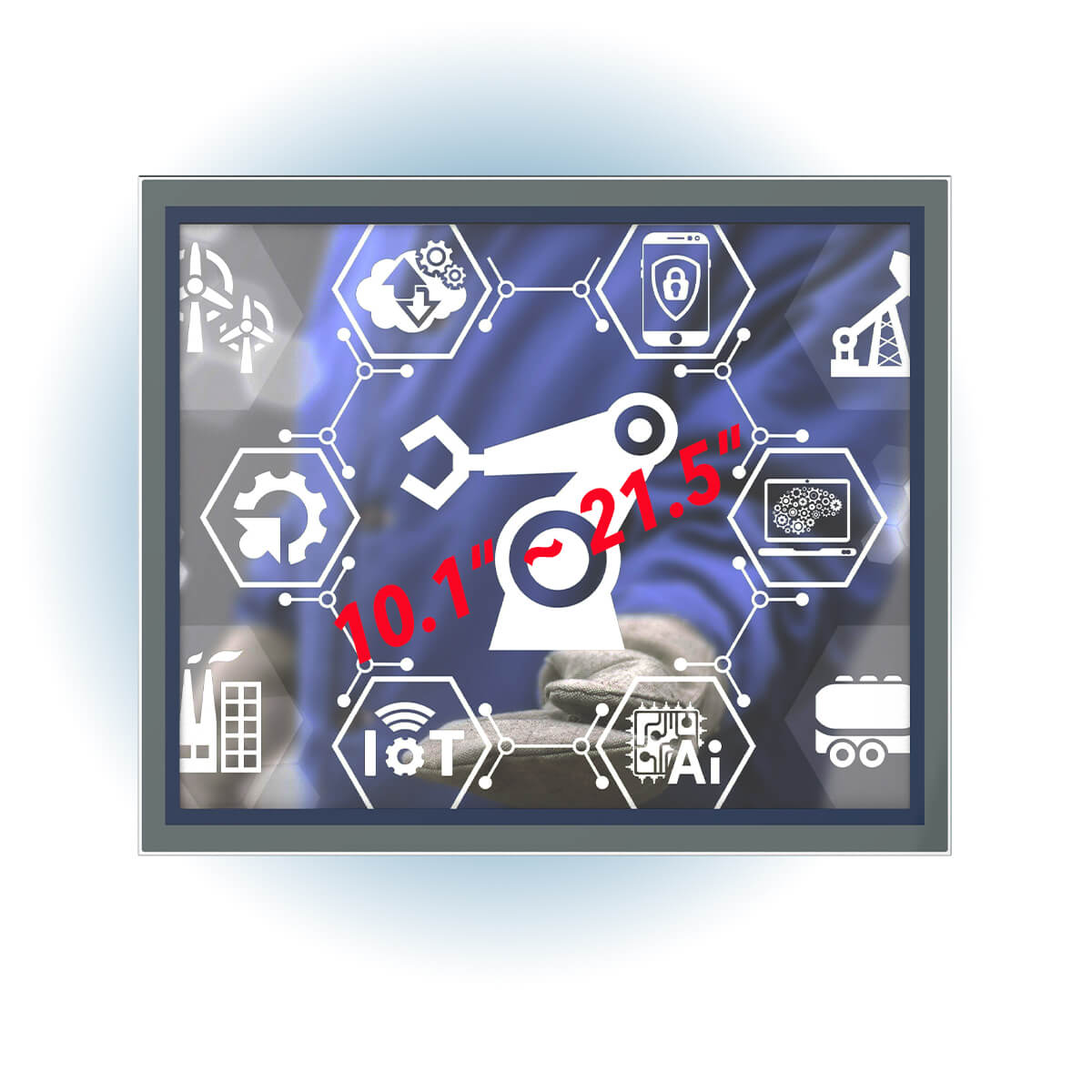

| Resistive Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD | |
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated |

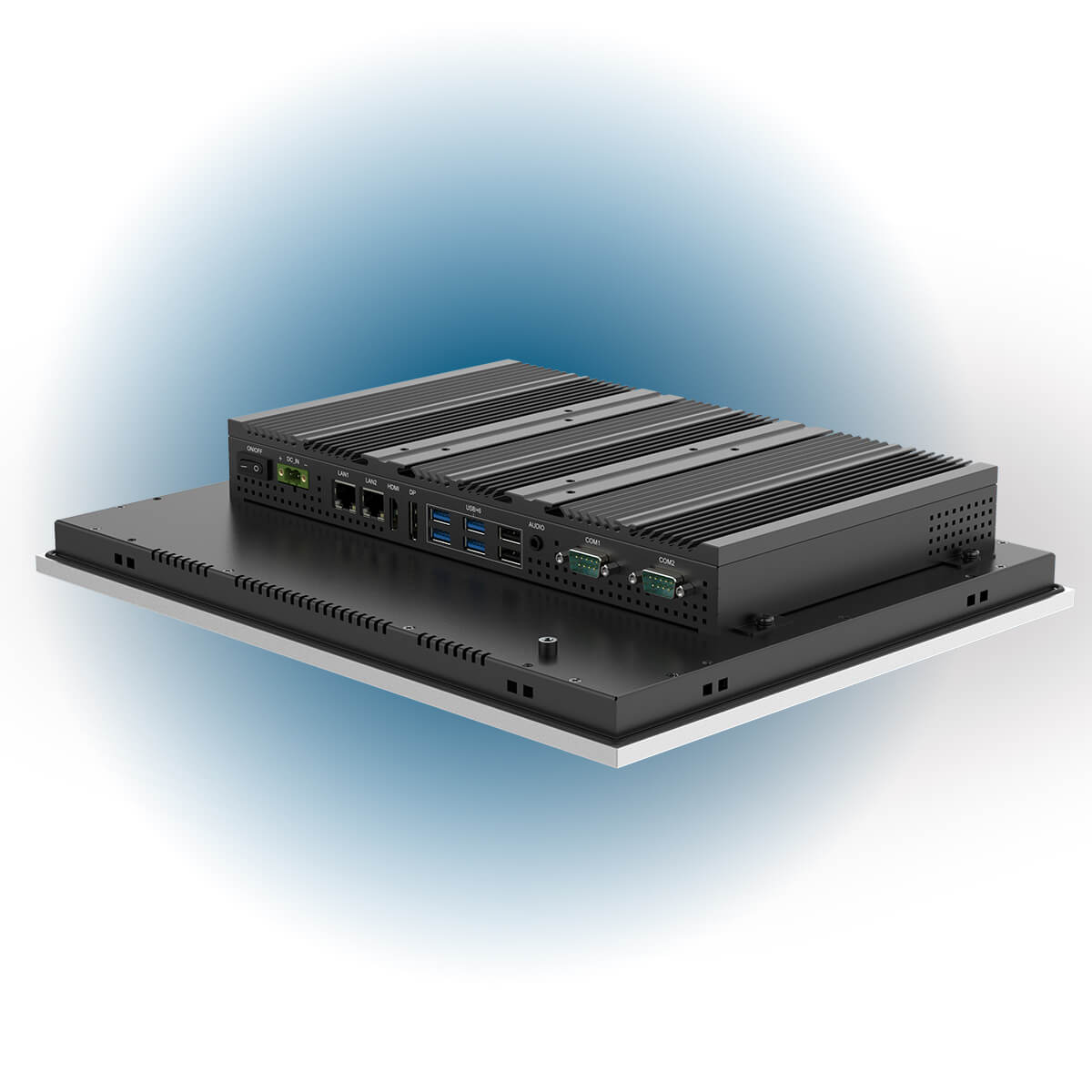

| Cooling System | Large area finned heatsink (Fanless designed) | |
| Mount Method | Panel mount, VESA 75/100 Mount | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12/24V Auto-detected (Optional wide voltage DC 9~36V) | |
| Certificate | CE/FCC/ROHS |
Ordering information
| Part no. | Description |
| TPC-DCS101N2 | 10.1” LCD, WXGA 1280*800, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 1 COM, DC 12/24V, PSU |
| TPC-DRS101N2 | 10.1” LCD, WXGA 1280*800, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 1 COM, DC 12/24V, PSU |
| TPC-DCS104N2 | 10.4” LCD, XGA 1024*768, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 1 COM, DC 12/24V, PSU |
| TPC-DRS104N2 | 10.4” LCD, XGA 1024*768, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 1 COM, DC 12/24V, PSU |
| TPC-DCS121N2 | 12.1” LCD, XGA 1024*768, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 1 COM, DC 12/24V, PSU |
| TPC-DRS121N2 | 12.1” LCD, XGA 1024*768, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 1 COM, DC 12/24V, PSU |
| TPC-DCS150N2 | 15.0” LCD, XGA 1024*768, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DRS150N2 | 15.0” LCD, XGA 1024*768, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DCS156HN2 | 15.6” LCD, FHD 1920*1080, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DRS156HN2 | 15.6” LCD, FHD 1920*1080, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DCS170N2 | 17.0” LCD, SXGA 1280*1024, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DRS170N2 | 17.0” LCD, SXGA 1280*1024, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DCS185N2 | 18.5” LCD, WXGA 1366*768, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DRS185N2 | 18.5” LCD, WXGA 1366*768, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DCS185HN2 | 18.5” LCD, FHD 1920*1080, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DRS185HN2 | 18.5” LCD, FHD 1920*1080, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DCS190N2 | 19.0” LCD, SXGA 1280*1024, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DRS190N2 | 19.0” LCD, SXGA 1280*1024, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DCS215N2 | 21.5” LCD, FHD 1920*1080, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DRS215N2 | 21.5” LCD, FHD 1920*1080, Intel N95 CPU, Resistive. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
| TPC-DCS238N2 | 23.8” LCD, FHD 1920*1080, Intel N95 CPU, Pcap. Touch, 2 GbE, 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, 2 COM, DC 12/24V, PSU |
