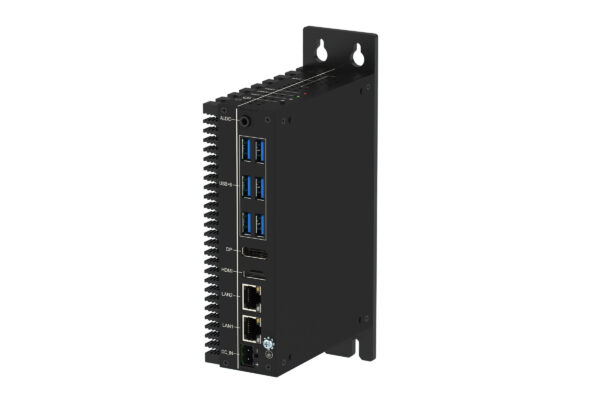

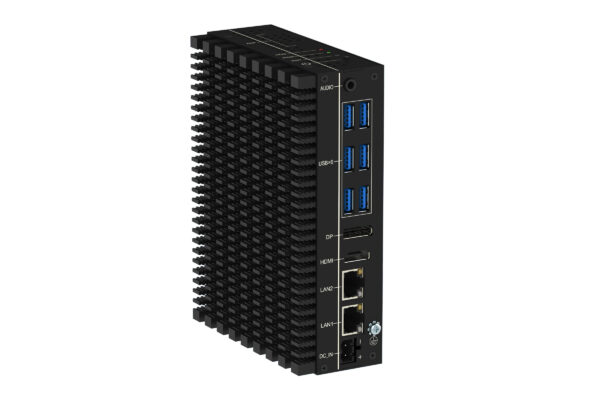

Control Cabinet Industrial PCs TBOX-6xx5
● Rugged & Slim design, fanless design;
● Intel 12th Gen. Alder Lake -N/-U processors;
● Single DDR4 memory, up to 32GB, 1* M.2 2280 NVMe storage;
● DC terminal 12V input, optional DC 24V input;
● 2 GbE, optional with Wi-Fi/BT wireless function;
● 6 USB3.0, 1 HDMI, 1 DP, Audio;
● 2 M.2 fast-speed expansion slots;
● Cabinet mount, optional Din-Rail mount;
● Industrial operating -20 ~ +60℃ temp. range.
TAICENN new control cabinet Industrial PCs series is characterized by its compact design, the robust aluminum housings, and an especially wide choice of CPU platforms and I/O interfaces. Equipped with new Intel 12th Gen. Alder Lake -N/-U/-P motherboards, our Control cabinet Industrial PCs are designed with common cabinet mount and Din-Rail mount for various industrial applications in the field of machine & automation.
Efficient Control Cabinet Industrial PC
With Intel 12th Gen. Alder Lake -N97 4E-core processor
TBOX-6N15
Basic Introduction
The TBOX-6N15 Industrial PC model is characterized by its compact design, The fanless design, and has an Intel 12th Gen. Alder Lake -N series CPU.
Equipped with Intel N97 4E-core processor, TBOX-6N15 cabinet mount Industrial PCs delivers with efficient performance for various of industrial applications in manufacturing systems engineering, Industrial IoT controller, and embedded system.
TAICENN new TBOX-6N15 I/O connections are on one side of the housing, includes 4 USB 3.0 & 2 USB 2.0 ports, 1x HDMI, 1x DP, 2x GbE LAN and Audio ports. This industrial PC can fasten with screws in the control cabinet and optionally equipped with Din-Rail mounting plates on another sides. The TBOX-6N15 PCs are supplied with a 12 V DC power supply unit, optionally with 24V DC power.
TAICENN TBOX-6N15 also support TPM2.0, can be compatible with Windows10, Windows11, Linux Operating system and embedded Operating system.
Key features
● Rugged & compact design, fanless design;
● Powerful Intel 12th Gen. Alder Lake-N series N97 processors;
● Single DDR4 memory, up to 16GB, 1* M.2 2280 SATA storage;
● DC terminal 12V input, optional DC 24V input;
● 2 GbE, optional with Wi-Fi/BT wireless function;
● 4 USB3.0, 2 USB2.0, 1 HDMI, 1 DP, Audio;
● 2 M.2 fast-speed expansion slots;
● Cabinet mount, optional Din-Rail mount;
● Industrial operating -20 ~ +60℃ temp. range.

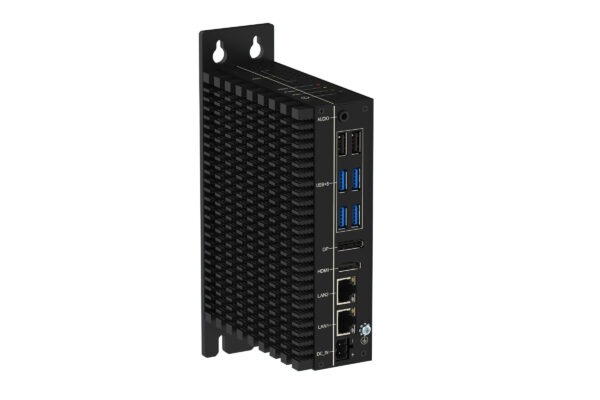

TBOX-6N15 Image
New flagship Cabinet mount Industrial PC
With Intel 12th Gen. Alder Lake -U Core i3/i5/i7 CPU processors
TBOX-6DX8
Basic Information
The new released flagship TBOX-6Dx8 Industrial PC model is equipped with Intel 12th Gen. Core i3-1215U, Core i5-1235U, Core i7-1255U CPU processors. This TBOX-6Dx8 cabinet mount Industrial PCs delivers with powerful performance for various of industrial applications in manufacturing systems engineering, automation devices, Industrial IoT controller, and embedded system.
TAICENN new TBOX-6Dx8 series have the best I/O interface design, includes 2 RJ45 (1* 2.5GbE), 2 USB3.1, 2 USB 3.0, 1 USB-C port (USB3.1 & DP1.4), 1 HDMI, 1 DP, 1 COM, 1 SW switch and Audio ports. This industrial PC can fasten with screws in the control cabinet, and optionally equipped with Din-Rail mounting plates on another sides. The TBOX-6Dx8 computer is supplied with DC terminal wide 9~36V range power input.
TAICENN TBOX-6Dx8 also support with expandable features, includes 2 M.2 & 1 Mini-PCIe slots, very suitable for 4G/5G, Wi-Fi/BT, Wi-Fi 6 and automated modules functions.
Key features
● Rugged & Slim design, fanless design;
● Intel 12th Gen. Alder Lake-U Core i3/i5/i7 CPU processors;
● Dual DDR5 memory, up to 64GB, 2* M.2 2280 storage slots;
● DC terminal wide 9 ~36V input, 1 SW remote switch;
● 2 RJ45, optional with Wi-Fi/BT, 3G/4G/5G wireless function;
● 2 USB3.1, 2 USB3.0, 1 USB-C, 1 COM, 1 HDMI, 1 DP, Audio;
● 2 M.2 & 1 Mini-PCIe expansion slots, 1 SIM card slot;
● Cabinet mount, optional Din-Rail mount;
● Industrial operating -20 ~ +60℃ temp. range.
TBOX-6Dx8 Image
High performance Cabinet mount Industrial PC
With Intel 12th Gen. Alder Lake -U Core i3/i5/i7 CPU processors
TBOX-6DX5
Basic Information
The TBOX-6Dx5 Industrial PC model is characterized by its compact design, The fanless design, and has an Intel 12th Gen. Alder Lake -U series core i3/i5/i7 CPU.
Equipped with Intel 12th Gen. Alder Lake -U core processors, TBOX-6Dx5 cabinet mount Industrial PCs delivers with powerful performance for various of industrial applications in manufacturing systems engineering, Industrial IoT controller, and embedded system.
TAICENN new TBOX-6Dx5 I/O connections are all on one side of the housing, includes 6 USB 3.0 ports, 1x HDMI, 1x DP, 2x GbE LAN and Audio ports. This industrial PC can fasten with screws in the control cabinet and optionally equipped with Din-Rail mounting plates on another sides. The TBOX-6Dx5 embedded computer are supplied with a 12 V DC power supply unit, optionally with 24V DC power.
TAICENN TBOX-6Dx5 also support TPM2.0, can be compatible with Windows10, Windows11, Linux Operating system and embedded Operating system.
Key features
● Rugged & Slim design, fanless design;
● Intel 12th Gen. Alder Lake-U Core i3/i5/i7 core processors;
● Single DDR4 memory, up to 32GB, 1* M.2 2280 NVMe storage;
● DC terminal 12V input, optional DC 24V input;
● 2 GbE, optional with Wi-Fi/BT wireless function;
● 6 USB3.0, 1 HDMI, 1 DP, Audio;
● 2 M.2 fast-speed expansion slots;
● Cabinet mount, optional Din-Rail mount;
● Industrial operating -20 ~ +60℃ temp. range.
TBOX-6Dx5 Image
Multiple Ethernet Cabinet mount Industrial PC
With Intel 12th Gen. Alder Lake -N N97 4E-Core CPU processors
TBOX-6N15-4L
Basic Information
The TBOX-6N15-4L Industrial PC model is characterized by its compact design, The fanless design, and has an Intel 12th Gen. Alder Lake -N series CPU.
Equipped with Intel N97 4E-core processor, TBOX-6N15-4L cabinet mount Industrial PCs delivers with efficient performance for various of industrial applications in manufacturing systems engineering, Industrial IoT controller, and embedded system.
TAICENN new TBOX-6N15-4L I/O connections are on one side of the housing, includes 2 USB 3.0 & 2 USB 2.0 ports, 1x HDMI, 4x GbE LAN and 2 COM ports. This industrial PC can fasten with screws in the control cabinet and optionally equipped with Din-Rail mounting plates on another sides. The TBOX-6N15-4L PCs are supplied with a 24V DC power unit.
TAICENN TBOX-6N15-4L also support TPM2.0, can be compatible with Windows10, Windows11, Linux Operating system and embedded Operating system.
Key features
● Rugged & Slim design, fanless Book-style design;
● Powerful Intel 12th Gen. Alder Lake-N series N97 processors;
● Single DDR4 memory, up to 16GB, 1* M.2 2280 SATA storage;
● DC terminal 24V input, optional DC 12V power input;
● 4 GbE, optional with Wi-Fi/BT wireless function;
● 2 USB3.0, 2 USB2.0, 1 HDMI, 2 COM;
● 2 M.2 fast-speed expansion slots;
● Industrial operating -20 ~ +60℃ temp. range.
TBOX-6N15-4L Image
TBOX-6N15 Specs
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 12th Gen. Alder Lake-N series N97 processor, up to 3.6Ghz, 4E-Core | |
| CPU Ghz | Up to 3.6Ghz, 4E-Core | |
| TDP | 12W | |
| Graphic | Intel UHD Graphics (Up to 24EUs, 1.2Ghz) | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 16GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIe x1 & SATA) SSD | |
| Network | 1* Intel I226V, 1* Intel I210AT, Optional support Wi-Fi/BT & Wi-Fi 6 wireless | |
| Expansion | 1* M.2 3042/3052 B-key slot, 1* M.2 E-key slot (Wi-Fi/BT) | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10/Win11 64-bit; Linux | |
| IO interface | Serial port | N/A |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| USB | 4* USB3.0, 2* USB2.0, | |
| Display | 1* HDMI (Max. support 4096 *2160 @30Hz), 1* DP++ (Max. 4096*2160 @60Hz) | |
| Audio | 1* Mic-in/Line-out (2-in-1, 3.5mm Jack) | |
| Power input | 1* 2 pin, DC terminal | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black | |
| Mount method | Cabinet mount, Din-Rail mount (optional) | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 150.00mm * 114.00mm * 47.00 mm (194.00mm with mount rack) | |
| Net weight | About 1.0 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (optional wide DC 9 ~36V range) | |
| Power consumption | About 25W | |
| Certificate | CE/FCC/ROHS |
TBOX-6Dx8 Specification
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 12th Gen. Alder Lake-U Core i3/i5/i7 CPU Processors | |
| CPU Ghz | P-core Up to 4.40Ghz; E-core up to 3.30Ghz | |
| TDP | 15W | |
| Graphic | Intel Iris Xe Graphics eligible (Up to 80 EUs, 1.2Ghz) | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR5-4800 Mhz, Dual Channels, Max. up to 64GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIe x4 Gen IV, NVMe) SSD, 1* M.2 2280 M-Key slot (SATA) SSD [1] | |
| Network | 1* Intel I226 (2.5GbE), 1* Intel I219 (1.0GbE) Network chips, optional support 3G/4G/5G/Wi-Fi/BT, Wi-Fi6 wireless | |
| Expansion | 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2240 slot, 1* Mini-PCIe slot, 1* Sim card slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10 IoT 2021 LTSC; Win10 (21H2), Win11(21H2 or later); Linux Kernel 5.17 or later | |
| IO interface | Serial port | COM1: RS232/RS485/RS422 (BIOS control) |
| Ethernet | 2* RJ45 | |
| USB | 2* USB3.1 type-A (USB3.2 Gen2x1 10Gbps), 2* USB3.0 type-A (USB3.2 Gen1x1 5Gbps), 1* USB-C (USB3.1 & DP1.4) | |
| Display | 1* HDMI1.4 (Max. resolution to 4K@30Hz), 1* DP++ (Max. support 8K @30Hz) | |
| Audio | 1* Mic-in/Line-out (2-in-1, 3.5mm Jack) | |
| GPIO | 8* GPIO (Optional shared via 1* DB9 COM port) | |
| Power input | 1* 2 pin, DC terminal | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black | |
| Mount method | Cabinet mount, Din-Rail mount (Optional) | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 254.50 mm * 151.00mm * 45.00 mm (210.50mm with mount rack) | |
| Net weight | About 1.3 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~36V | |
| Power consumption | About 25W | |
| Certificate | CE/FCC/ROHS |
TBOX-6Dx5 Specs
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel 12th Gen. Alder Lake-U Core i5-1235U processor, 2P/8E-Core | |
| CPU Ghz | P-core Up to 4.40Ghz; E-core up to 3.30Ghz | |
| TDP | 15W | |
| Graphic | Intel Iris Xe Graphics eligible (Up to 80 EUs, 1.2Ghz) | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 M-Key (PCIe x4 / SATA, Default PCIe 4x, Gen. IV NVMe, 2280) SSD slot | |
| Network | 1* Intel I219AT, 1* Intel I226V, Optional support Wi-Fi/BT wireless | |
| Expansion | 1* M.2 3042/3052 B-key slot, 1* M.2 E-key slot (Wi-Fi/BT) | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10/Win11; Linux Kernal 5.17 or later | |
| IO interface | Serial port | N/A |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| USB | 6* USB3.0 | |
| Display | 1* HDMI (Max. support 2048 *1080 @30Hz), 1* DP++ (Max. 4096*2304 @60Hz) | |
| Audio | 1* Mic-in/Line-out (2-in-1, 3.5mm Jack) | |
| Power input | 1* 2 pin, DC terminal | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black | |
| Mount method | Cabinet mount, Din-Rail mount (Optional) | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 150.00mm * 114.00mm * 47.00 mm (194.00mm with mount rack) | |
| Net weight | About 1.0 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (Optional wide DC 9~36V) | |
| Power consumption | About 25W | |
| Certificate | CE/FCC/ROHS |
TBOX-6Dx8 Ordering Information
| Part no. | Description |
| TBOX-6D28 | Intel 12th Gen. Alder Lake-U Core i5-1235U Processor, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 COM, 1 HDMI, 1DP, Audio, DC 9~36V, No PSU, Cabinet mount rack |
| TBOX-6D28R | Intel 12th Gen. Alder Lake-U Core i5-1235U Processor, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 COM, 1 HDMI, 1DP, Audio, DC 9~36V, No PSU, Din-Rail mount rack |
| TBOX-6D28N | Intel 12th Gen. Alder Lake-U Core i5-1235U Processor, 2 RJ45, 2 USB3.1, 2 USB3.0, 1 USB-C, 1 COM, 1 HDMI, 1DP, Audio, DC 9~36V, No PSU, No mount rack |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR5, 8GB/16GB/32GB/64GB |
| Storage | M.2 NVMe SSD: 256GB/512GB/1TB |
| M.2 SATA SSD: 256GB/512GB/1TB | |
| Wireless | Wi-Fi 6 module, with Antenna |
| Wi-Fi module with BT integrated, with Antenna | |
| Wi-Fi module, with Antenna | |
| All network 4G/5G network module, with antenna | |
| Power Supply | 60W/12V power supply unit (If needed) |
TBOX-6DX5 Ordering Information
| Part no. | Description |
| TBOX-6Dx5 | Intel 12th Gen. Alder Lake-U Core i3/i5/i7 Processor, 2 RJ45, 6 USB3.0, 1 HDMI, 1DP, Audio, DC terminal 12V, PSU, Cabinet mount |
| TBOX-6Dx5R | Intel 12th Gen. Alder Lake-U Core i3/i5/i7 Processor, 2 RJ45, 6 USB3.0, 1 HDMI, 1DP, Audio, DC terminal 12V, PSU, Din-Rail mount with 1 clip |
| TBOX-6Dx5N | Intel 12th Gen. Alder Lake-U Core i3/i5/i7 Processor, 2 RJ45, 6 USB3.0, 1 HDMI, 1DP, Audio, DC terminal 12V, PSU, Din-Rail mount without clip |
| TBOX-6Dx5-24VDC | Intel 12th Gen. Alder Lake-U Core i3/i5/i7 Processor, 2 RJ45, 6 USB3.0, 1 HDMI, 1DP, Audio, DC terminal 24V, No PSU by default, Cabinet mount |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 8GB/16GB/32GB |
| Storage | M.2 NVMe PCIe 4x SSD: 256GB/512GB/1TB |
| Wireless | Wi-Fi 6 module, with Antenna |
| Wi-Fi module with BT integrated, with antenna |
TBOX-6N15 Ordering Information
| Part no. | Description |
| TBOX-6N15 | Intel 12th Gen. Alder Lake-N N97 Processor, 2 RJ45, 4 USB3.0, 2 USB2.0, 1 HDMI, 1DP, Audio, DC terminal 12V, PSU, Cabinet mount |
| TBOX-6N15R | Intel 12th Gen. Alder Lake-N N97 Processor, 2 RJ45, 4 USB3.0, 2 USB2.0, 1 HDMI, 1DP, Audio, DC terminal 12V, PSU, Din-Rail mount with 1 clip |
| TBOX-6N15N | Intel 12th Gen. Alder Lake-N N97 Processor, 2 RJ45, 4 USB3.0, 2 USB2.0, 1 HDMI, 1DP, Audio, DC terminal 12V, PSU, Din-Rail mount without clip |
| TBOX-6N15-24VDC | Intel 12th Gen. Alder Lake-N N97 Processor, 2 RJ45, 4 USB3.0, 2 USB2.0, 1 HDMI, 1DP, Audio, DC terminal 24V, No PSU by default, Cabinet mount |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB |
| Storage | M.2 (PCIe x1 & SATA) SSD: 128GB/256GB/512GB/1TB |
| Wireless | Wi-Fi 6 module, with Antenna |
| Wi-Fi module with BT integrated, with antenna |
