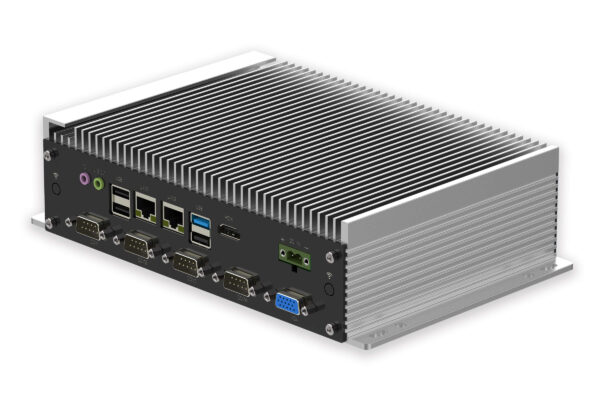

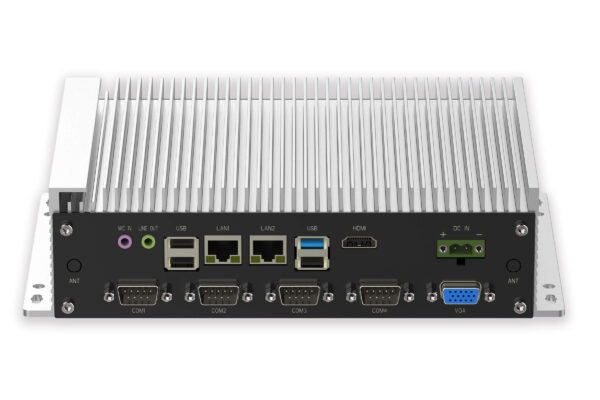

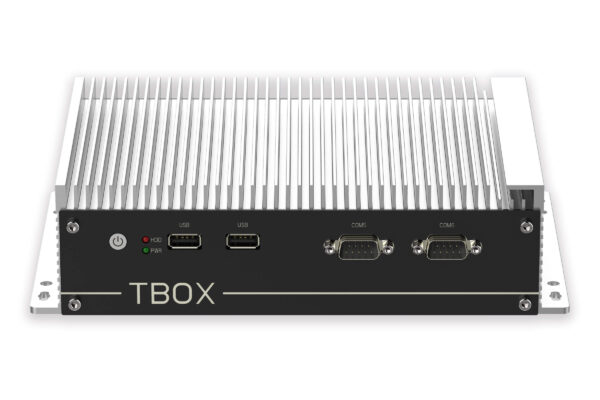

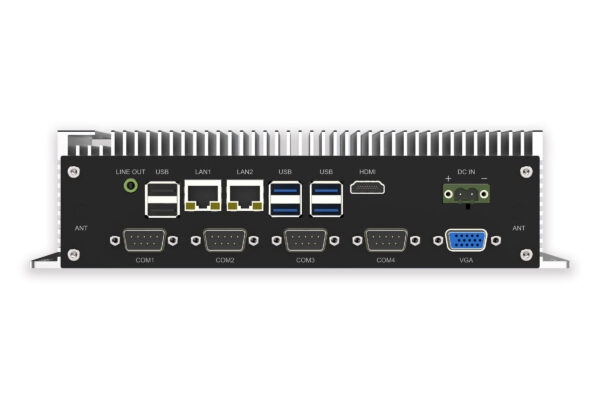

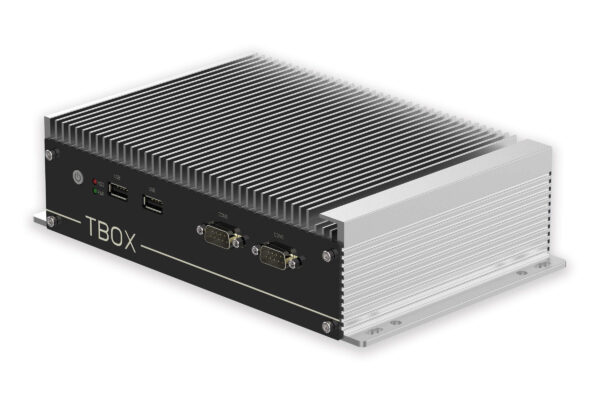

Power-efficient & Rugged Fanless Embedded system TBOX-2xx0 Series

Compute Anywhere with a Rugged Mini PC

TBOX-2xx0 series is rugged and compact designed fanless embedded system, that can be powered by Intel® Baytrial J1900, Intel® Apollo Lake J3455 and Intel® 8th Gen. Whiskey Lake platforms. It can deliver abundant IO ports and flexible expansion capacity to fulfill the needs for industrial projects. TBOX-2xx0 series is a rugged, reliable and comprehensive fanless computing solution for critical industrial environments.

TBOX-2310 | Celeron & Rugged| Fanless Embedded system

With Intel Baytrail J1900 Quad-core processor

Basic Introduction

TAICENN TBOX-2310 is a Rugged Fanless Embedded system model, it adapts Intel Celeron J1900 CPUs, having advanced computer performance and low power consumption. TBOX-2310 storage can support 1 *mSATA and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN ports, 5* USB 2.0 ports, 1* USB 3.0 port, 6* RS232 (Optional with 1* RS485); The power input is wide voltage DC 9~24V voltage range.
TAICENN TBOX-2310 Rugged Fanless Embedded system can be compatible with Windows 7, Windows 7 Embedded, Windows8, Windows10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Key features

● Rugged &compact sealed aluminum box design;
● Intel Baytrail J1900 2.0Ghz low power processor;
● Wide voltage DC 9~24V power input;
● Industrial operating temp. -20 ~ +70C;
● Dimension: 236.5 x 150 x 60 (mm);
● Expanional with 3G/4G/LTE, Wifi/BT, industrial modules;
● I/O: 6x USB, 2x GLAN, 6x COM, 1x HDMI, 1x VGA, Audio.

TBOX-2310 Image

TBOX-2410 | X86 & Rugged| Fanless Embedded system

With Intel Apollo Lake J3455 Quad-core processor

Basic Introduction

TAICENN TBOX-2410 is a high-performance fan-less industrial Box PC model, it adapts Intel Apollo lake J3455 CPUs, having advanced computer performance and low power consumption. TBOX-2410 Rugged Fanless Embedded system storage can support 1 *mSATA and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN ports, 2* USB 2.0 ports, 4* USB 3.0 port, 6* RS232 (Optional with 1* RS485); The power input is DC 12V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-2410 can be compatible with Windows10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Key features

● Rugged &compact sealed aluminum box design;
● Intel Apollo lake J3455 1.5Ghz, burst to 2.3Ghz processor;
● DDR3 memory, max. up to 8GB;
● Support 1* 2.5″ SATA and 1* mSATA storage;
● DC 12V input, with over-current, over-voltage protection;
● Dimension: 236.5 x 150 x 60 (mm);
● I/O: 6x USB, 2x GLAN, 6x COM, 1x HDMI, 1x VGA, Audio;
● Expansional with 3G/4G/LTE, Wi-Fi/BT wireless.

TBOX-2410 Image

TBOX-2xx0 Series | Power-efficient & Rugged| Fanless Embedded system

With Intel Whiskey Lake 8th Gen. Core i3/i5/i7 powerful CPU Processors

Basic Introduction

TAICENN TBOX-28×0 is a high-performance Rugged Fanless Embedded system model, it adapts Intel Whiskey lake 8th Gen. Core i3/i5/i7 CPU processors, having advanced computer performance and low power consumption. TBOX-28×0 storage can support 1 *mSATA and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN (Intel I211AT) ports, 4* USB 2.0 ports (max. up to 6*USB2.0), 4* USB 3.0 port, 6* RS232 (Optional with 1* RS485/RS422); The power input is DC 12~24V voltage, and has over-current, over-voltage and reverse-polarity protection.
TAICENN TBOX-28×0 Rugged Fanless Embedded system uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system.

Key features

● High-strength, compact, sheet metal structure, large-area finned heat-sink, fanless design;
● Intel 8th-gen. Whiskeylake-U platform, Core i5-8265U 1.6Ghz, burst to 3.9Ghz;
● DDR4, max. up to 16GB memory, 2.5 ”SATA and mSATA storage;
● Wide voltage DC 12 ~ 24v input, with over-current and over-voltage protection functions;
● Industrial operating temperature range of -20 ~ + 70C;
● Robust and compact design with dimensions 236.5 x 150 x 60 (mm)
● Optional with 3G / 4G / LTE, Wi-Fi / Bluetooth and other industrial modules;
● Rich IO design: 2* GLAN, 6* COM, 4* USB3.0, 4* USB2.0, 1* HDMI, 1* VGA, Line-out, 1* GPIO + 1* CAN (optional)

TBOX-28X0 Image

Moreover, Taicenn takes pride in incorporating advanced features, such as multiple I/O interfaces, to provide seamless connectivity options, ensuring compatibility with various peripherals required for efficient industrial automation applications. Overall, Power-efficient & Rugged Fanless Embedded system TBOX-2xx0 Series offered by taicenn technology stands out as a pinnacle of quality and reliability in the realm of industrial computing solutions.
