Multiple Expansions Box PC TBOX-4xx1 series

What Is the M.2 Expansion Slot

Formerly known as Next Generation Form Factor (NGFF), the M.2 format is technically a replacement for the mSATA standard, which was popular with manufacturers of industrial computers. The M.2 format is designed for industrial pc manufacturers to replace a variety of specific devices, do it in a tiny space, and require very little power. But actually upgrading to an M.2 drive or accessory requires a little forethought.

The Multiple Expansions Box PC TBOX-4xx1 series can be equipped with newest Intel® 11^th Gen. Tiger Lake UP3 platforms. TBOX-4xx1 series supports flexible modules expansions, including 2x fast M.2 Key slots and 1x Mini-PCIe slot for specific requested industrial projects.

Power-efficient & Expandable | Multiple Expansion Box PC

With Intel 11th Gen. Tiger Lake UP3 Core i3/i5/i7 CPU processors

Basic information

TAICENN TBOX-4Tx1 Modular Box PC is Powered by the Intel 11th Gen. Tiger Lake UP3 Core i3/i5/i7 CPU processors, which have super high cost-performance for industrial automation applications. Its advanced industrial design includes a DC terminal with a wide DC 9~36V range power input. The TBOX-4Tx1 industrial Box PC is designed with rich I/O interfaces that includes 2x USB 3.1 & 2x USB 3.0 ports, 1x USB-C (USB3.1 & DP1.4a), 2x DB9 RS232/RS485/RS422(BIOS configured), 1x SW Remote Switch, 2x HDMI, 2x GbE LAN ports, Audio port, optional 1x GPIO (8-ch). This fanless PC provides 3 high speed expansion slots (1* M.2 3042/3052 B-Key, 1* M.2 2242 E-Key, 1* Mini-PCIe),can optional support 3G/4G, 5G, Wi-Fi6, Wi-Fi/BT wireless functions. Also, TPC-DCT/DRT T series provides more powerful expansion possibilities, and offer flexible and fast expansions for industrial field applications to improve product performance.
The TBOX-4Tx1 also support TPM2.0, can be compatible with Windows10, Windows11, Linux Operating system and embedded Operating system.

Key features

● Rugged & slim, fanless designed box structure;
● On-board Intel Tiger Lake UP3 Core i3/i5/i7 processors;
● Intel PTT TPM2.0, support Windows 11;
● 2* DDR4 memory, dual slots, max. up to 64GB;
● 1* M.2 2280(NGFF) Key-M slot (PCIe x4 Gen. IV NVMe) SSD;
● Wide voltage DC 9~36V power input;
● 2 GLAN, optional support 3G/4G, 5G, WIFI/BT wireless function;
● 4 USB (2 USB3.1), 2 COM, 1 DP, 1 HDMI, Audio;
● 1* USB type-C (USB3.1 & DP1.4a) port, 1 SW Remote Switch;
● 3 expansion slots: 1* M.2 B-key, 1* M.2 E-key, 1* Mini-PCIe;
● Industrial -20 ~ + 70℃ operating range, optional -40~+80 ℃.

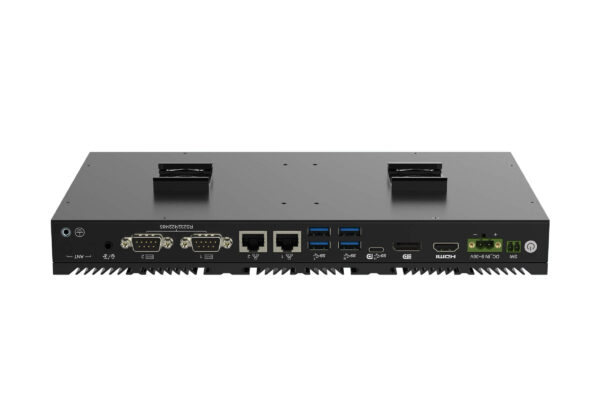

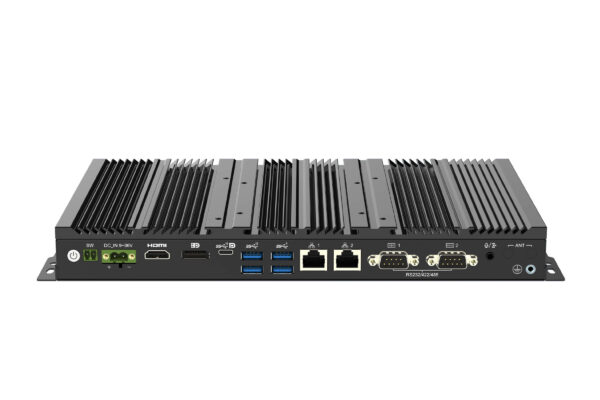

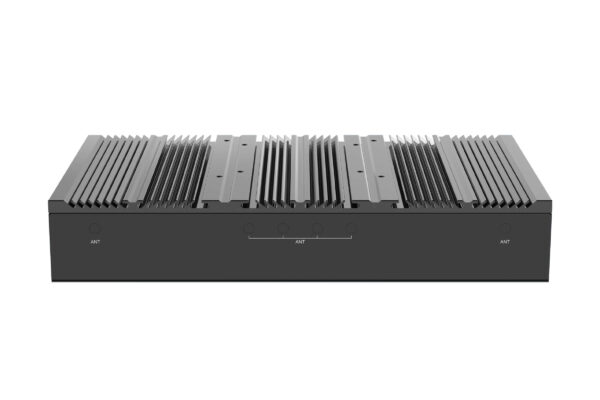

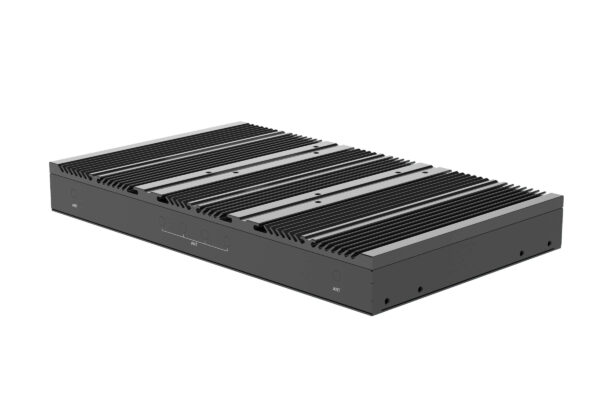

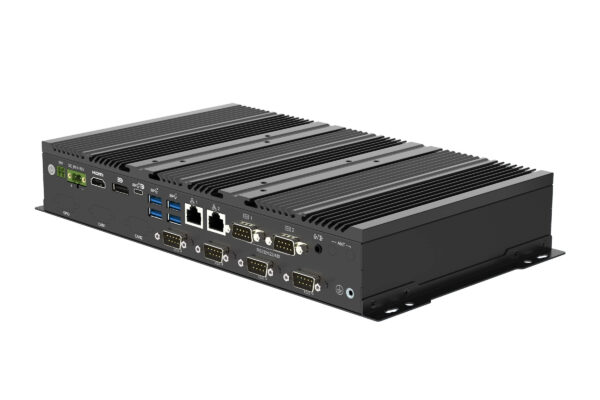

TBOX-4Tx1 Image

Benefits of M.2 Expansion

The advanced technology of M.2 expansion offers high-speed bandwidths, enhanced power efficiency, and a space-saving compact design, making it suitable for a broad spectrum of embedded computing applications. In Taicenn’s Multiple Expansions Box PC TBOX-4xx1 series, you’ll find the benefits of dual M.2 high speed expansion slots, with a more detailed explanation provided further down on why they are worth using.
