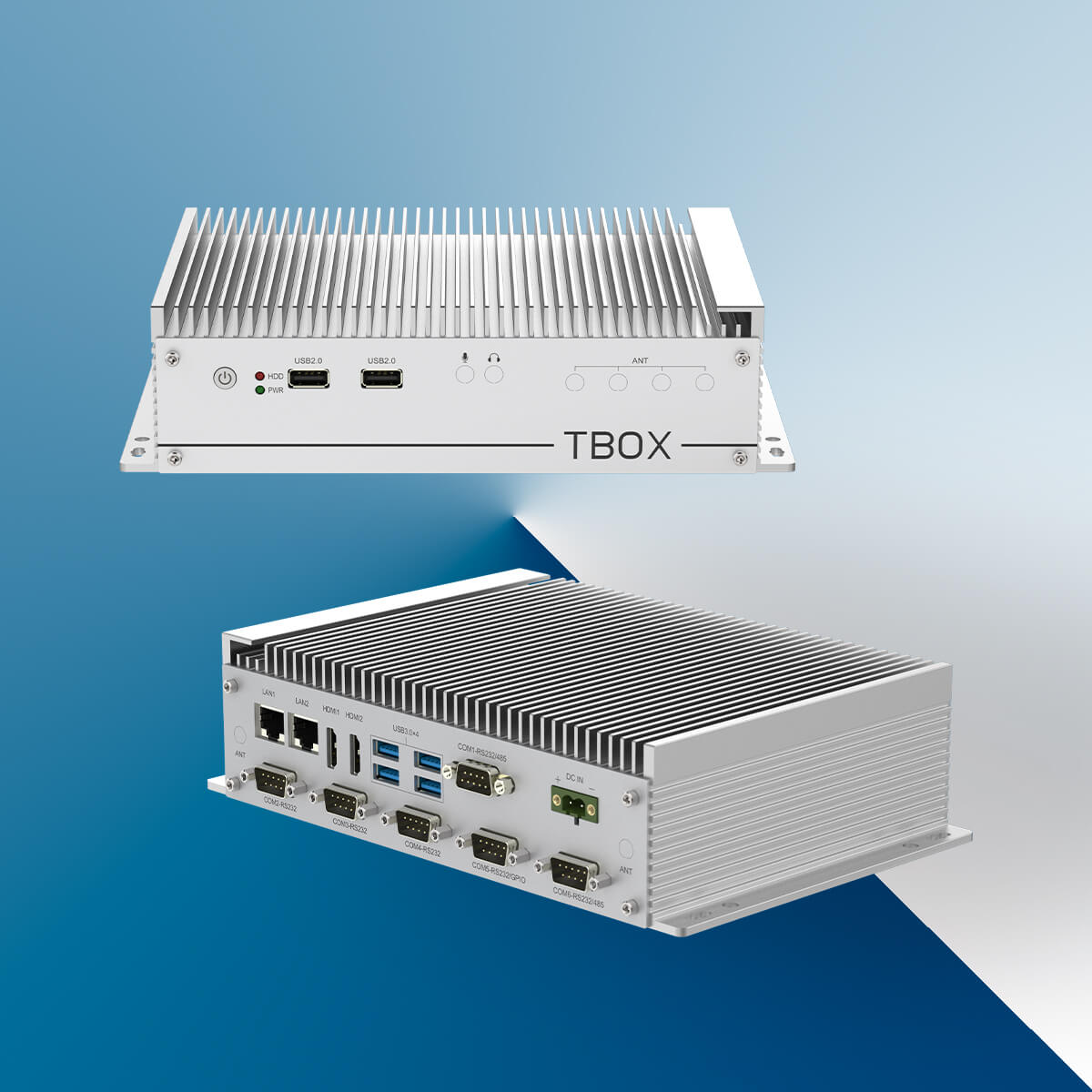

TBOX-2415 | Industrial Box PC with Intel J3455 CPU
● Rugged & compact, fanless designed box structure;
● Powerful Intel Whiskey Lake 8th Gen. Core i5-8265U processor;
● Single DDR3L memory, up to 8GB, 1* M.2 storage slot;
● DC terminal 12V input, optional wide DC 9~36V power input;
● 2 GLAN, optional with 3G/4G/LTE, 5G, and Wi-Fi/BT expansion;
● 4 USB3.0, 2 USB2.0, 2 HDMI, 6 COM;
● 2 M.2 expansion slots;
● Industrial operating -20 ~ +70℃ temp. range.
The TAICENN TBOX‑2415 is a legacy Industrial Box PC with Intel J3455 CPU, delivering solid computing performance alongside low‑power operation.
For storage, the TBOX‑2415 supports one M.2 slot (SATA 2242/2280) plus one 2.5‑inch SATA SSD/HDD bay. It comes with a comprehensive set of communication interfaces: 2 × GbE LAN ports, 2 × USB 2.0, 4 × USB 3.0, and six COM ports (RS485 / GPIO available as options). Power input is 12 V DC, with an optional wide‑range DC 9‑36 V supply variant.
The TAICENN Industrial Box PC with Intel J3455 CPU TBOX‑2415 is compatible with Windows 10, Windows 11, Linux and mainstream embedded operating systems. It features two M.2 key slots for dual‑wireless expansion, supporting 4G/5G, Wi‑Fi and Bluetooth modules.
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Apollo Lake J3455 processor | |
| CPU Ghz | Quad-core 1.5Ghz, burst to 2.3Ghz, TDP 10W | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR3L-1333/1600/1888 Mhz, Max. up to 8GB | |
| Storage | 1* M.2 2242 B-Key slot (SATA) SSD, Optional support 1* 2.5” SATA III SSD | |
| Graphic | Intel UHD Graphics 500 | |
| Network | 2* Intel I210AT, Optional support 3G/4G/5G/Wi-Fi/BT wireless | |
| Audio | On-board Realtek ACL 662 Audio controller | |
| Expansion | 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* M.2 E-Key 2230 slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Linux | |

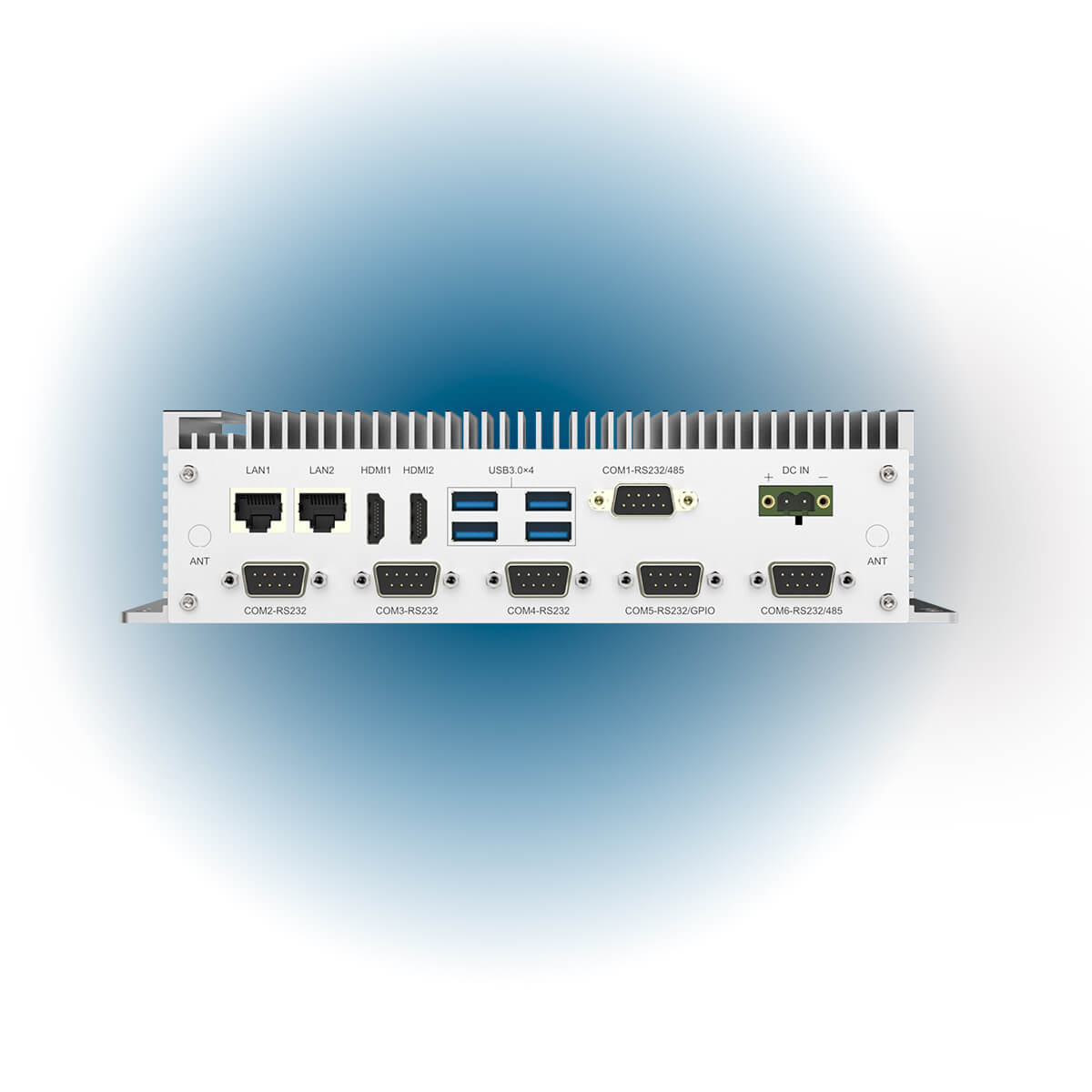

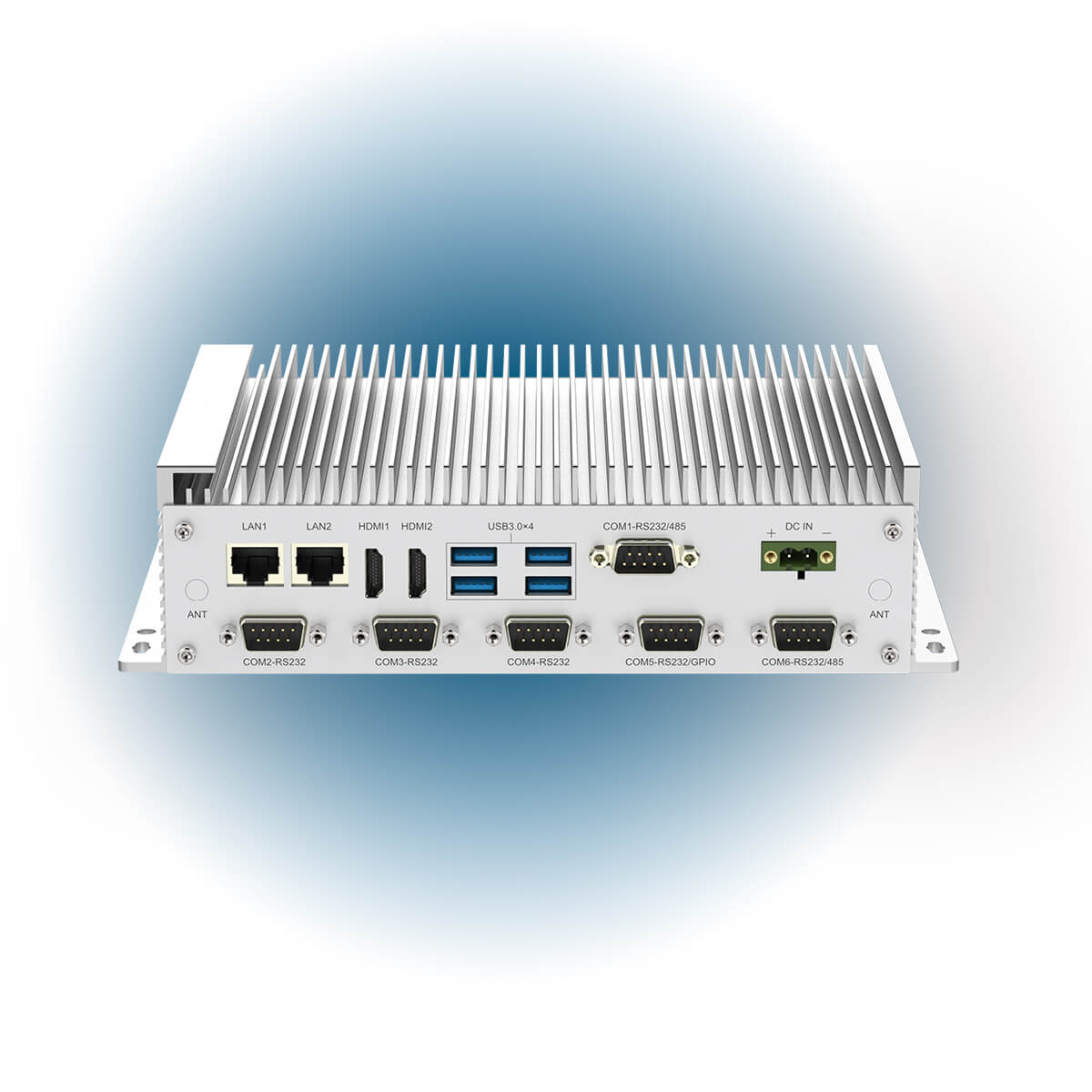

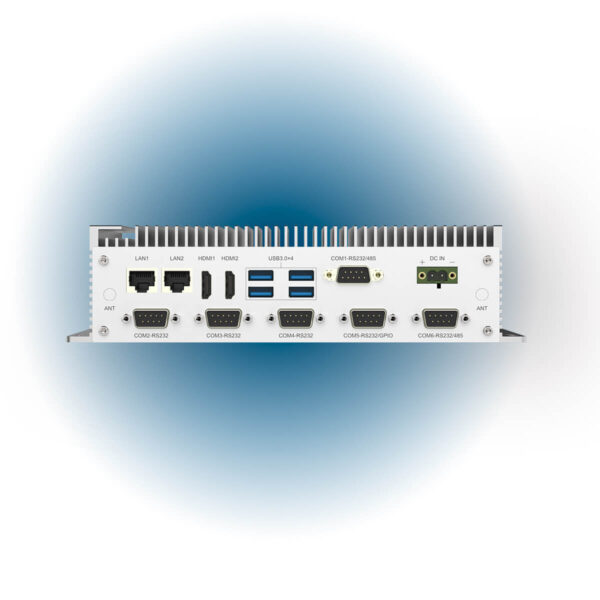

| IO interface | Serial port | COM1: RS232 (Optional RS485), COM2/3/4: RS232, COM5: RS232 (Optional GPIO), COM6: RS485 (optional RS232) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| Audio | Optional Mic-in/Line-out | |
| USB | 4* USB3.0, 2* USB2.0, | |
| Display | 2* HDMI (Max. support 4096 *2160 @30Hz) | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 8* GPIO (Optional via 1* DB9) | |

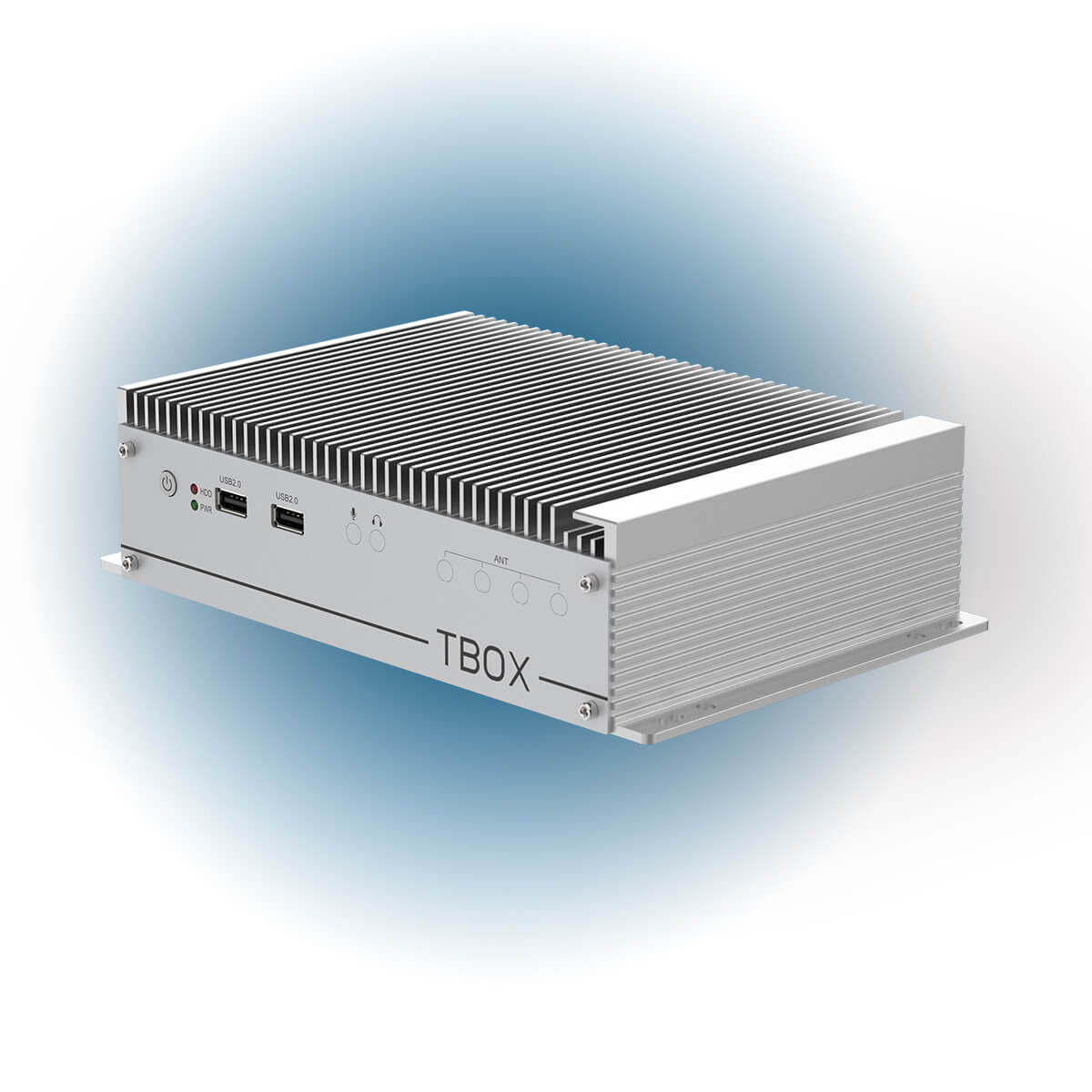

| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Finned aluminum heatsinks | |

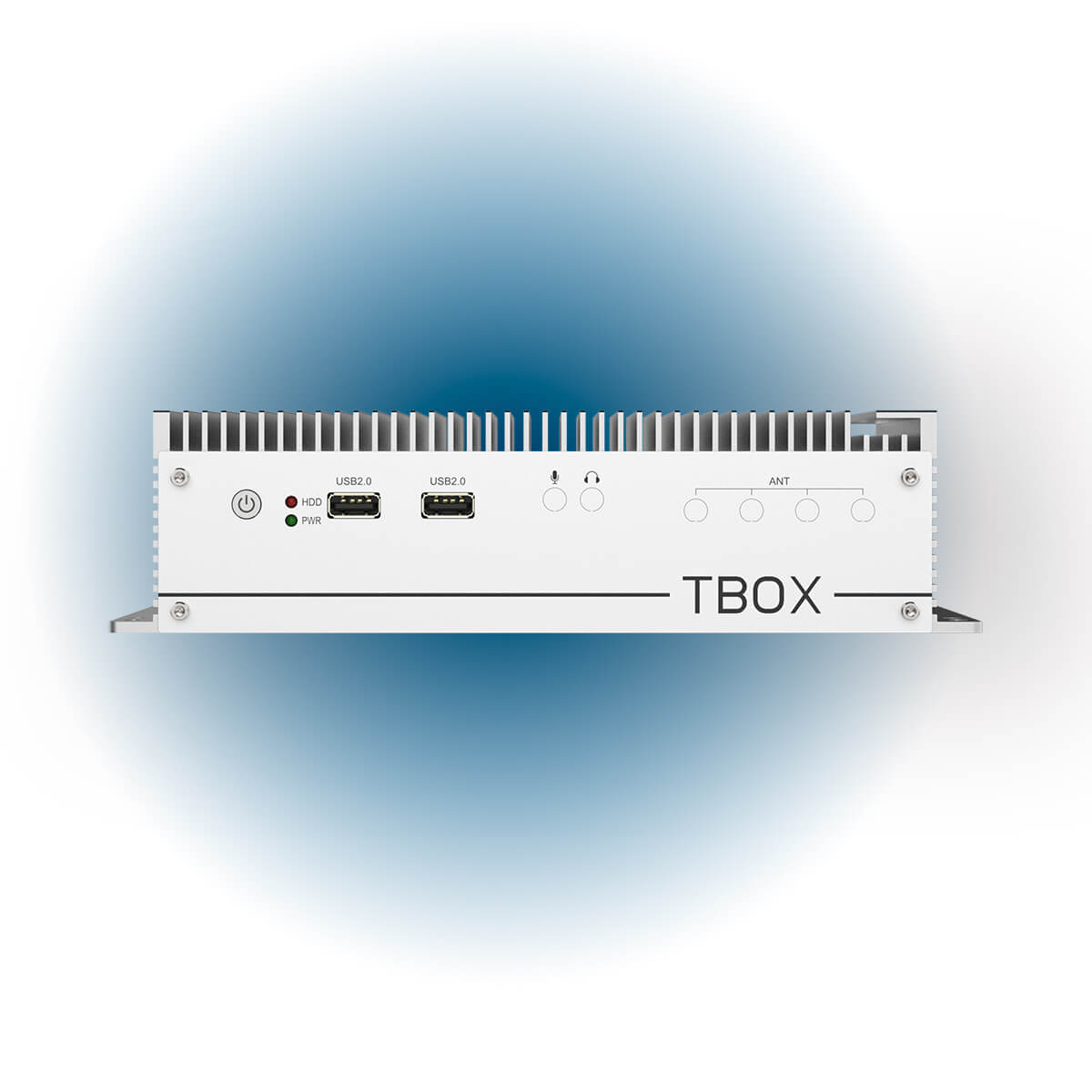

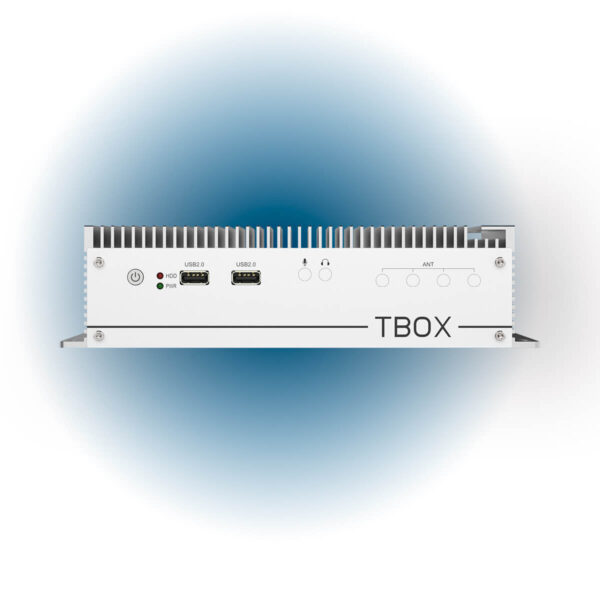

| Indicator & Button | Power switch, Power LED, HDD LED | |

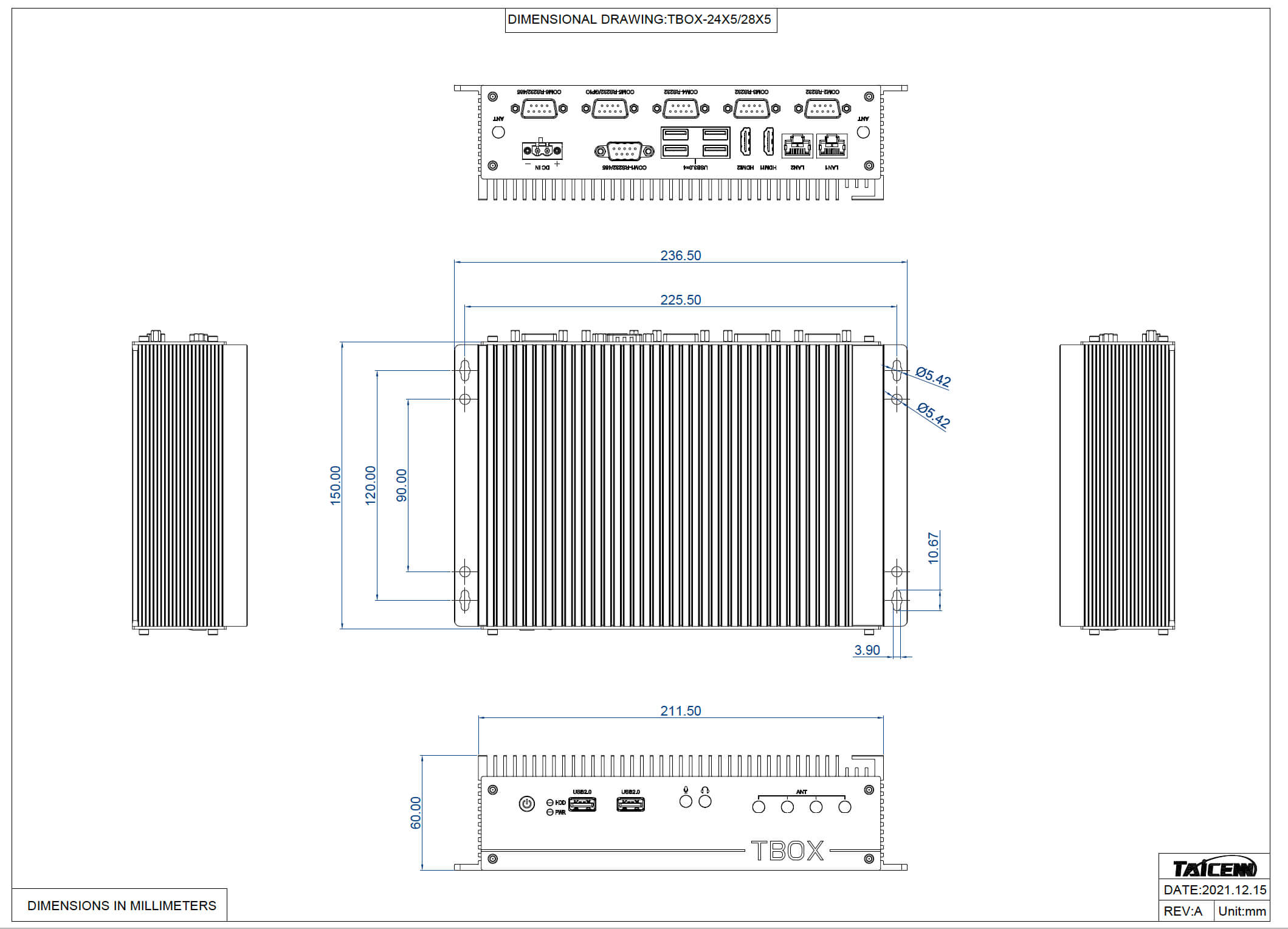

| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 70 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (Optional wide DC 9~36V) | |
| Power consumption | About 20W | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-2415 | Intel Apollo Lake J3455processor, 2 GbE, 4 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, DC 12V, PSU |
| TBOX-2415W | Intel Apollo Lake J3455 processor, 2 GbE, 4 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, DC 9~36V, No PSU by default |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR3L, 4GB/8GB |
| Storage | M.2 SSD: 128GB/256GB/512GB |
| 2.5” SATA SSD: 128GB/256GB/512GB/1TB | |
| 2.5” HDD: 1TB/2TB/4TB | |
| Wireless | Wi-Fi module, with Antenna |
| Wi-Fi module with BT integrated, with antenna | |
| All network 4G module, with Antenna | |
| 5G network module, with Antenna | |
| Power Supply | PSU for TBOX-2415W (If needed, only) |
| Description | Download link |
| TBOX-2415 EN V3.2 Datasheet | https://www.taicenn.com/pdf/TBOX_2415_EN_V32_Datasheet.PDF |
| TBOX-2415 EN V2.0 User Manual | https://www.taicenn.com/pdf/TBOX_2415_Rugged_Fanless_Box_PC_UserManual_EN_V20.PDF |
| TBOX-2415 Intel Apollo Lake J3455 Win10 Drive | https://drive.google.com/file/d/1AC3ZRBudjgY3feijamzAttE3uOY8vSnS/view?usp=sharing |
