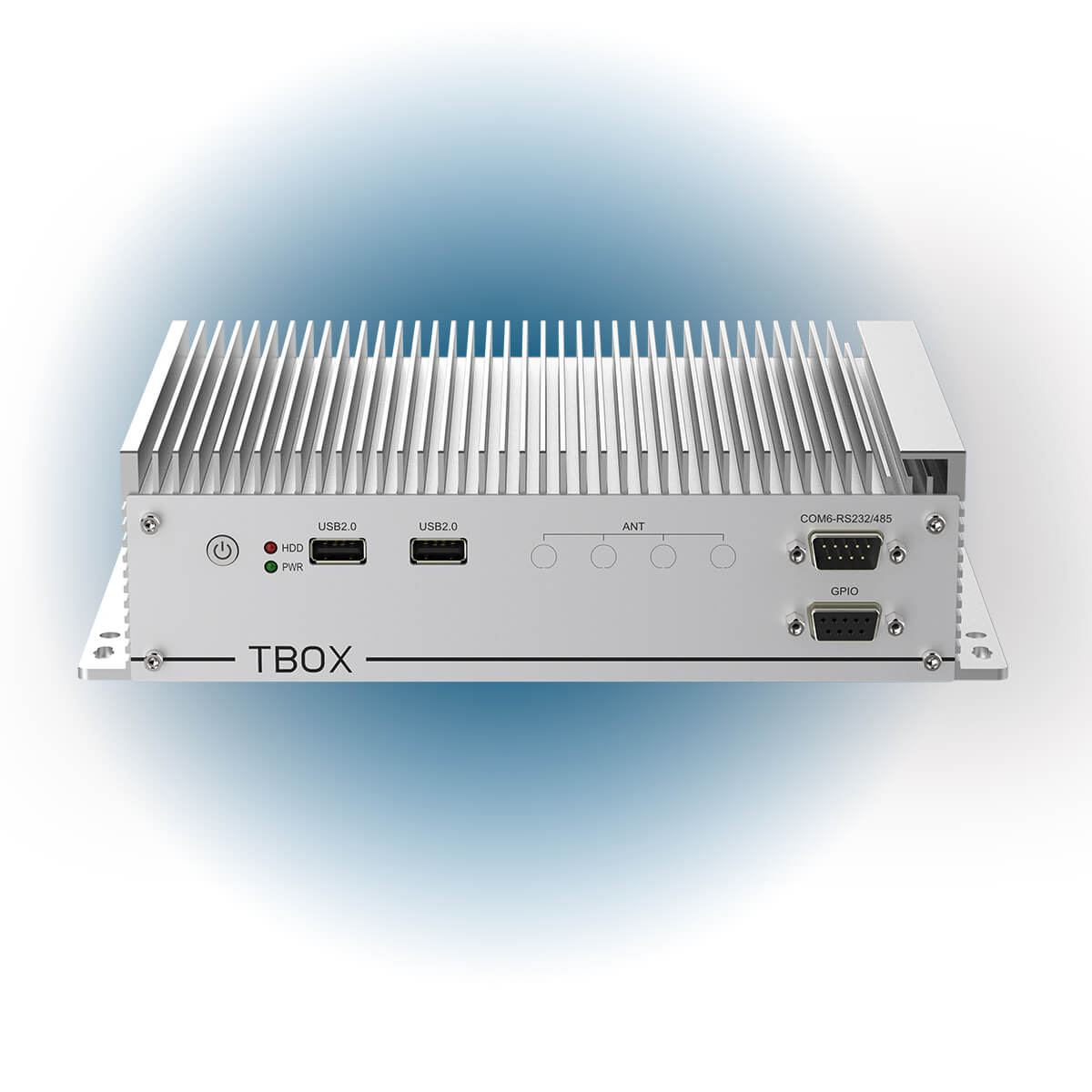

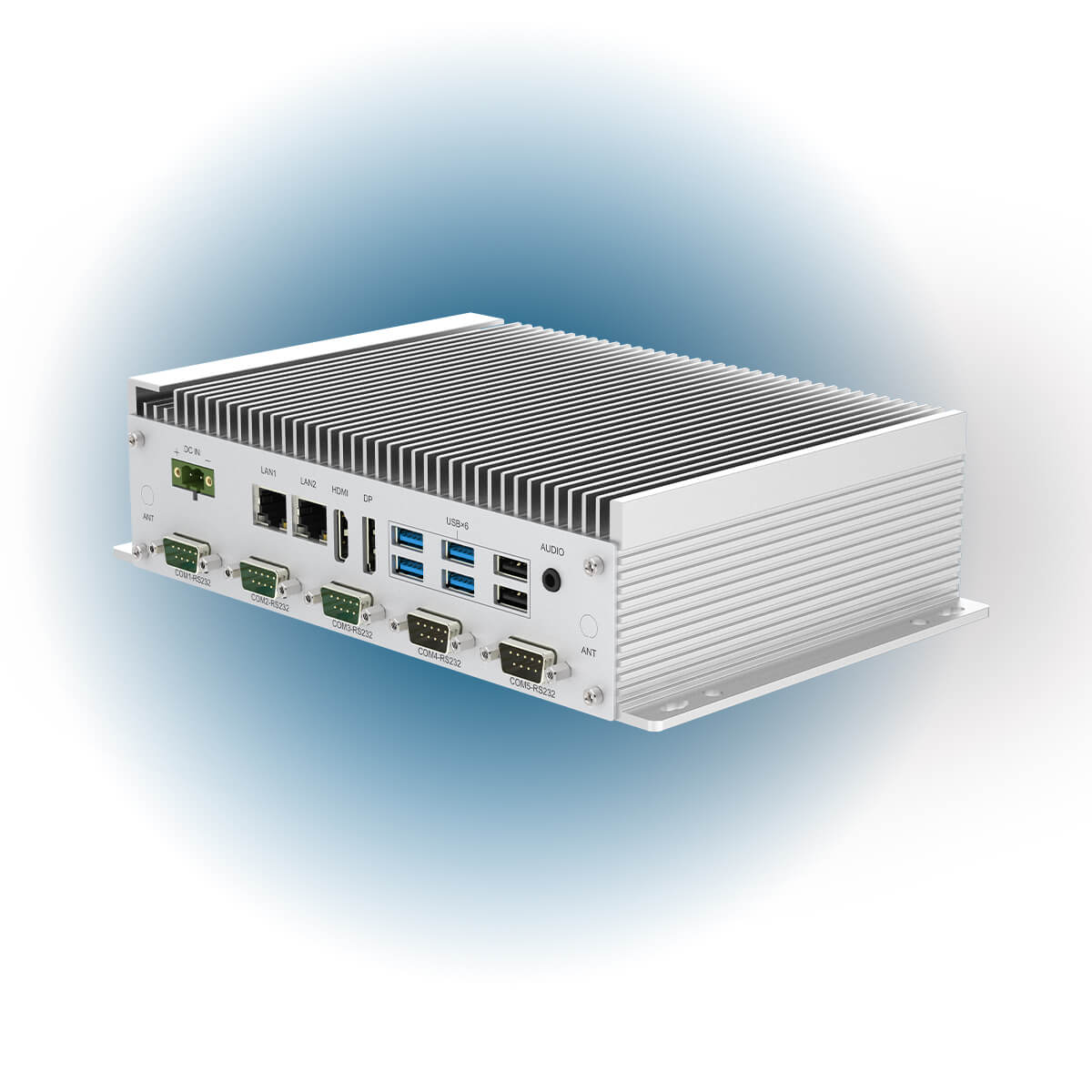

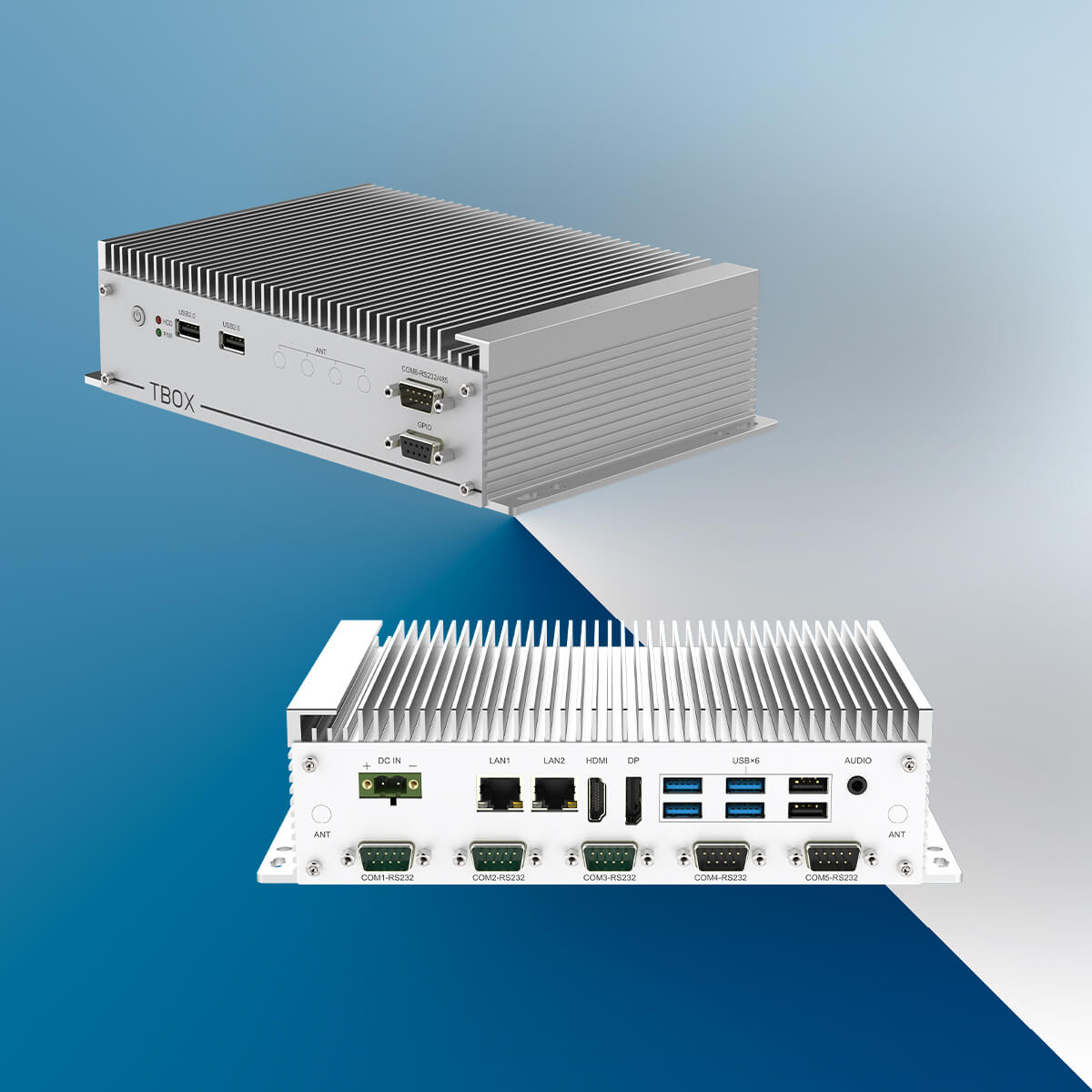

TBOX-2N25 | Industrial Box PC with Intel N95 processor
● Rugged & compact, fanless designed box structure;
● Powerful Intel Alder Lake-N series N95 processors;
● Single DDR4 memory, up to 16GB, 1* M.2 2280 M-key storage;
● DC terminal 12/24V input, optional wide DC 9~36V input;
● 2 GbE, optional with 3G/4G/LTE, 5G, Wi-Fi/BT;

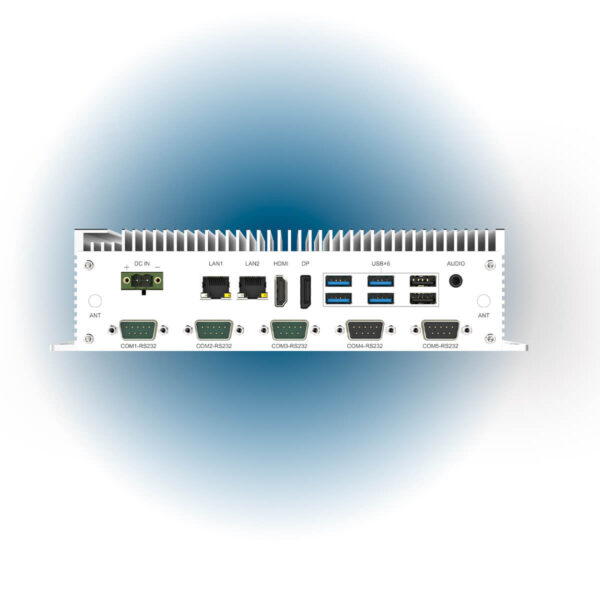

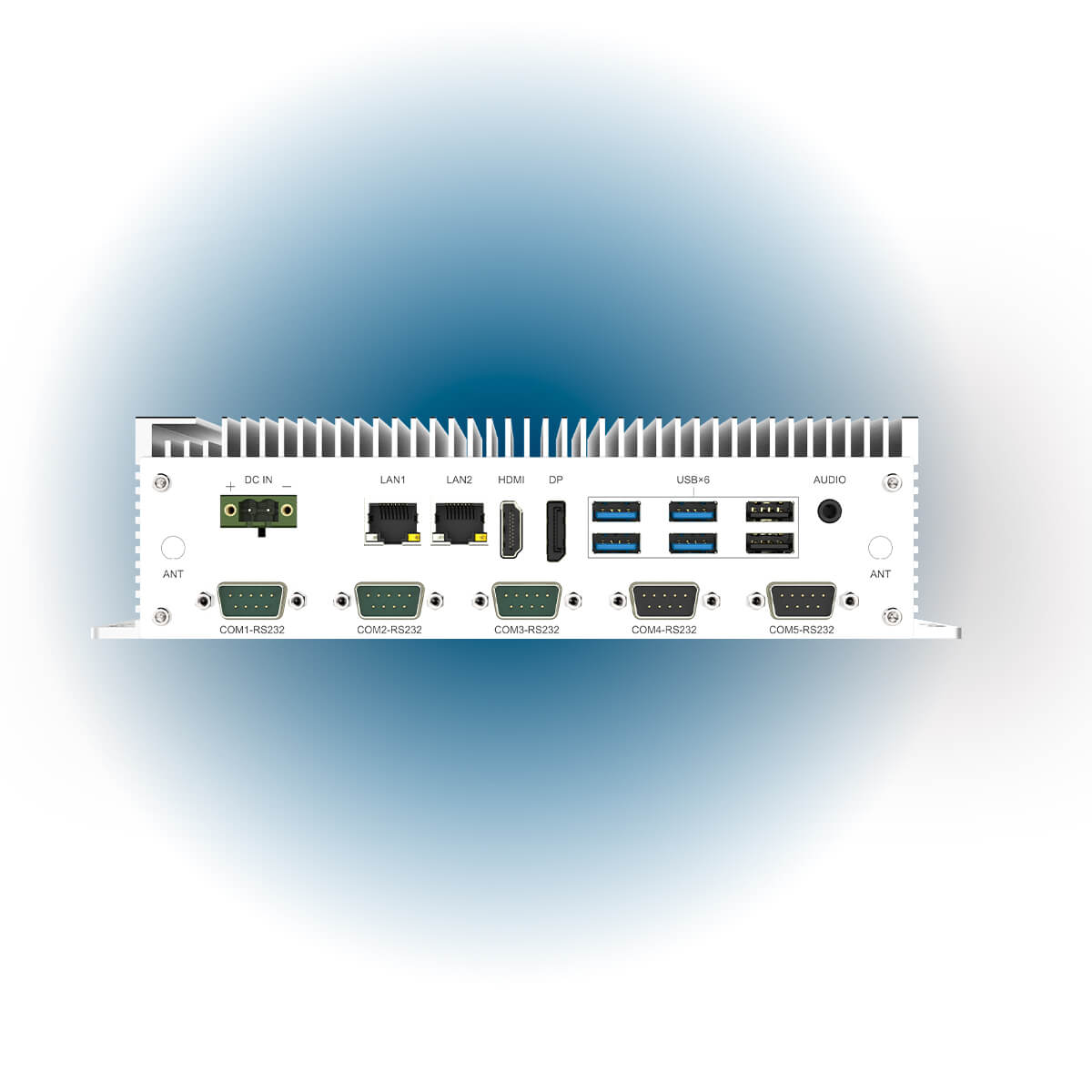

● 4 USB3.0, 4 USB2.0, 1 HDMI, 1 DP, 6 COM, Audio;
● 2 M.2 fast-speed expansion slots;
● Industrial operating -20 ~ +60℃ temp. range.
The TAICENN TBOX‑2N25 is a newly‑released modular fanless industrial box PC. Powered by Intel’s 12th‑Gen Alder Lake‑N quad‑efficient‑core N95 processor, it serves as an ideal controller for Industrial IoT deployments, embedded solutions and factory automation systems.
Built with advanced industrial‑grade construction, the TBOX‑2N25 features an auto‑sensing 12/24 V DC terminal power input, with an optional wide‑range DC 9‑36 V variant for versatile field deployment. Boasting comprehensive I/O connectivity, it integrates 4 × USB 3.0, 4 × USB 2.0, six DB9 ports configured for RS232 (1 port re‑configurable for RS485 on request), optional 8‑channel GPIO, 1 × HDMI, 1 × DP and dual GbE LAN ports. Seamlessly integrate the unit into your existing infrastructure to acquire and process on‑site industrial data.
Onboard TPM 2.0 delivers hardware‑level security. The platform supports Windows 10, Windows 11, Linux and major embedded operating systems. Two high‑speed M.2 expansion slots enable dual‑module wireless upgrades, offering compatibility with 4G/5G, Wi‑Fi and Bluetooth connectivity.
| System | BIOS | SPI AMI EEI BIOS |
| CPU & Graphic | Intel 12th Gen. Alder Lake-N series N95 processor, up to 3.4Ghz, 4E-Core, TDP=15W | |
| Graphic | Intel UHD Graphics (Up to 16EUs, 1.2Ghz) | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 16GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIe x1/SATA) SSD, Optional support 1* 2.5” SATA III SSD | |
| Network | 1* Intel I226V, 1* Intel I210AT Network chips, optional support 3G/4G/5G/Wi-Fi/BT, Wi-Fi 6 wireless | |
| Audio | On-board Realtek ACL897 Audio controller | |
| Expansion | 1* M.2 B-Key 3042/3052 slot, 1* M.2 E-Key 2230 slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10/Win11 64-bit; Linux | |
| IO interface | Serial port | COM1/2/3/4/5: RS232, COM6: RS485 (optional RS232) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| Audio | 1* Mic-in/Line-out (2 in 1, 3.5mm Jack) | |
| USB | 4* USB3.0, 4* USB2.0, | |
| Display | 1* HDMI (Max. support 4096 *2160 @30Hz), 1* DP++ (Max. support 4096 *2106 @60Hz) | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 8* GPIO (Optional via 1* DB9) | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Finned aluminum heatsinks | |

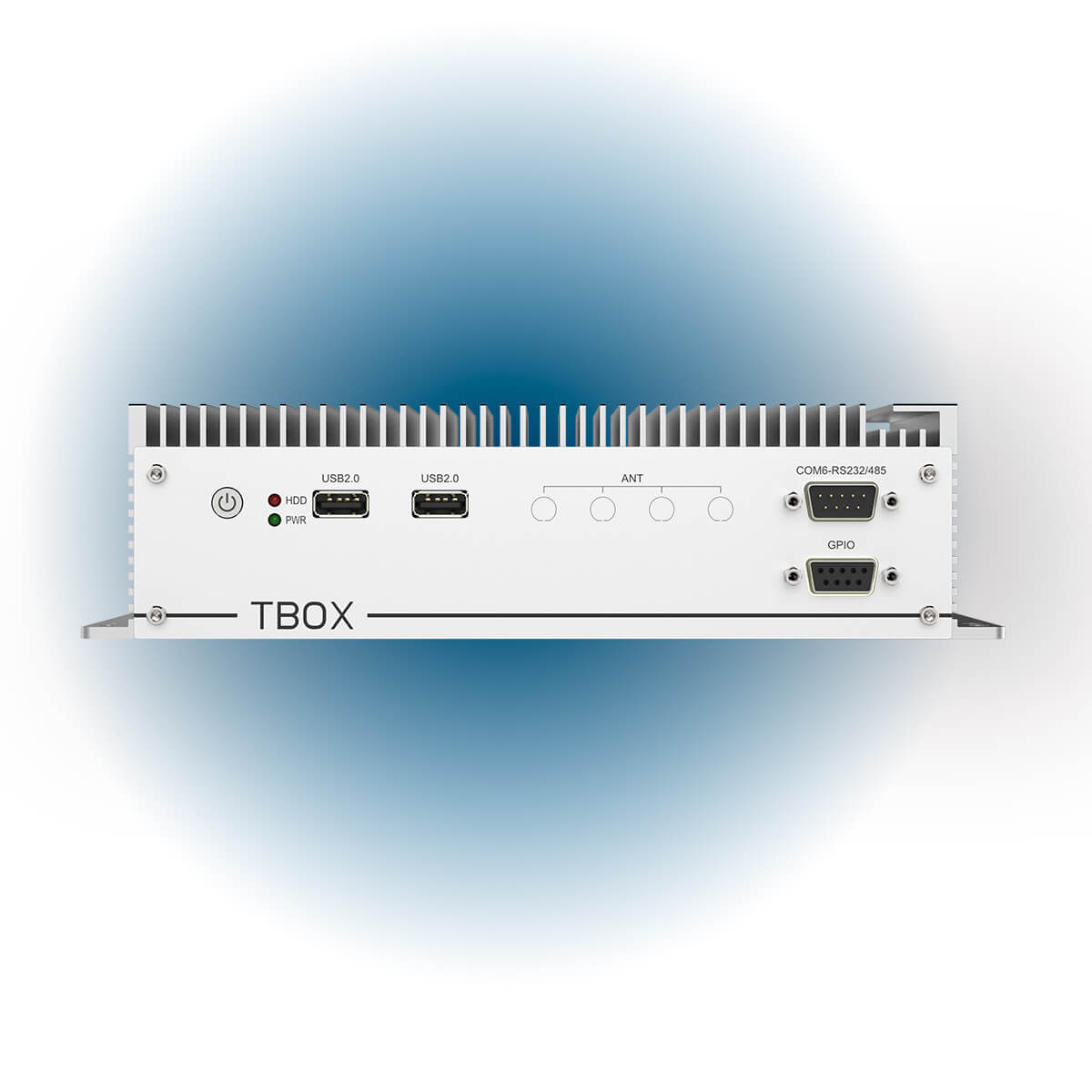

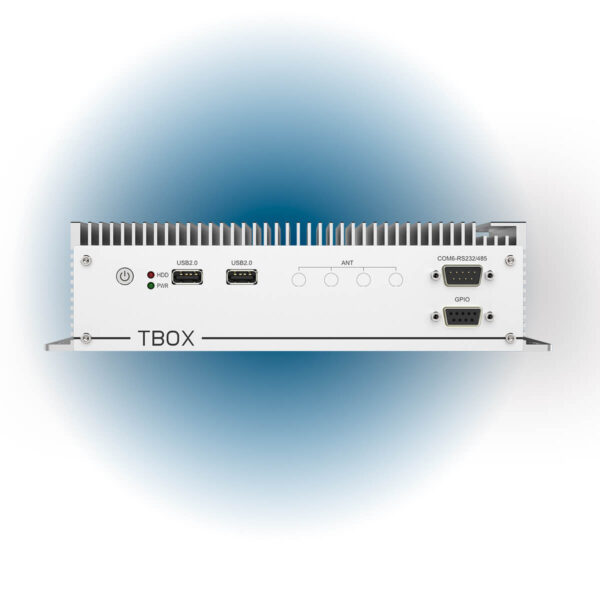

| Indicator & Button | Power switch, Power LED, HDD LED | |

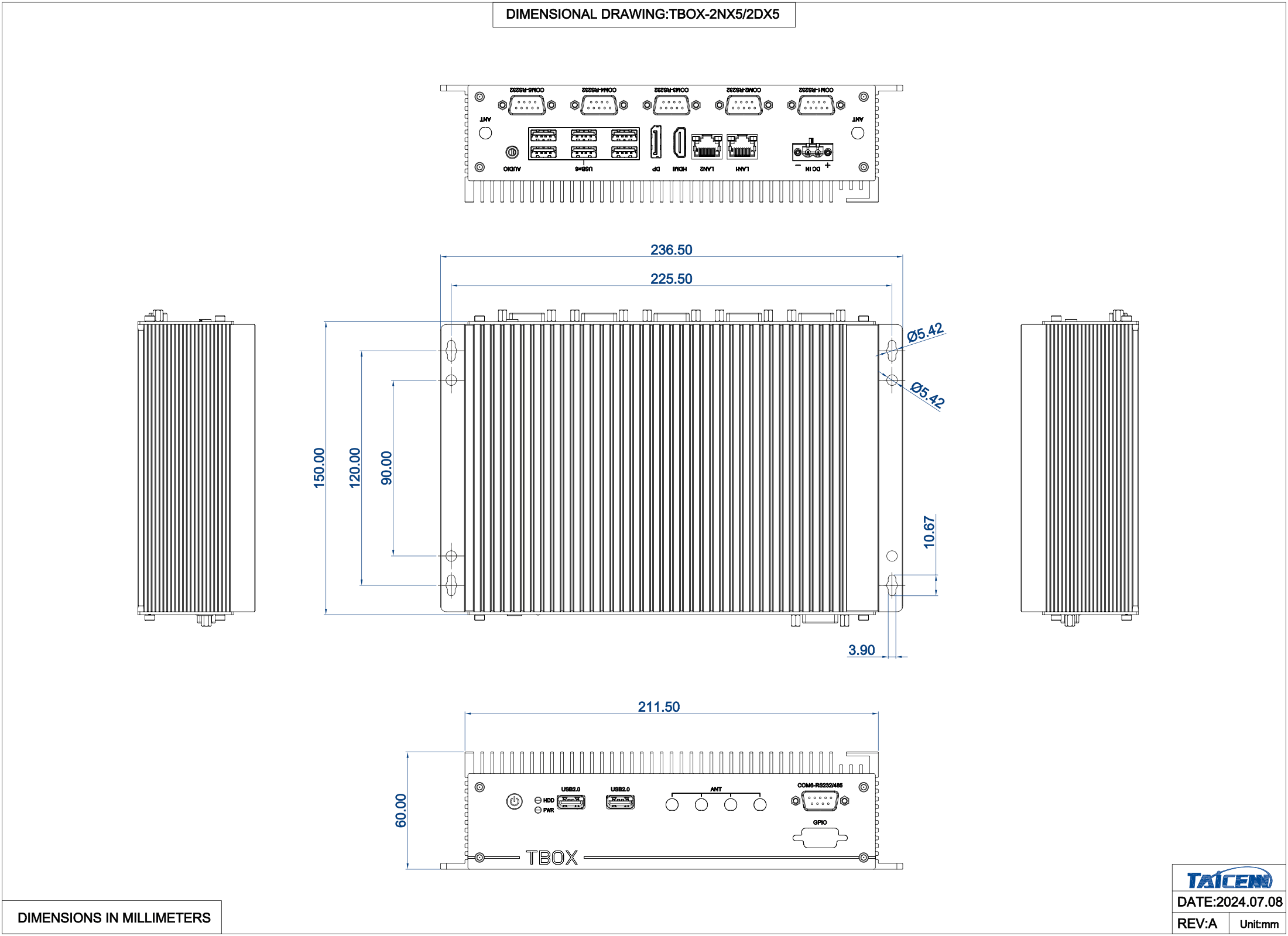

| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12/24V (Auto detect); Optional wide DC 9~36V: TBOX-2N25W | |
| Power consumption | About 25W | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description | ||
| TBOX-2N25 | Intel 12th Gen. Alder Lake-N, N95 processor, 2 GbE, 4 USB3.0, 4 USB2.0, 6 COM, 1 HDMI,1DP, Audio Jack, DC 12/24V, PSU | ||
| TBOX-2N25W | Intel 12th Gen. Alder Lake-N, N95 processor, 2 GbE, 4 USB3.0, 4 USB2.0, 6 COM, 1 HDMI, 1 DP, Audio Jack, DC 9~36V, No PSU by default | ||
| Optional Accessories | Description | Packing List | |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB | Standard TBOX-2N25 Box PC Product | 1 set |
| Storage | M.2 SSD: 256GB/512GB/1TB | 60W PSU (Power Supply) | 1 set |
| 2.5” SATA SSD/HDD | Power cable & Plug | 1 set | |
| 2.5” HDD: 1TB/2TB/4TB | |||
| Wireless | Wi-Fi with BT Integrated module, with Antenna | ||
| All network 4G module, with Antenna | |||
| 5G Network module, with Antenna | |||
| Wi-Fi 6 module, with Antenna | |||
| Power Supply | PSU for wide voltage DC 9 ~36V model TBOX-2N25W (If needed) | ||
| SIM Card Holder | SIM Card slot for 4G/5G function (If requested) | ||
