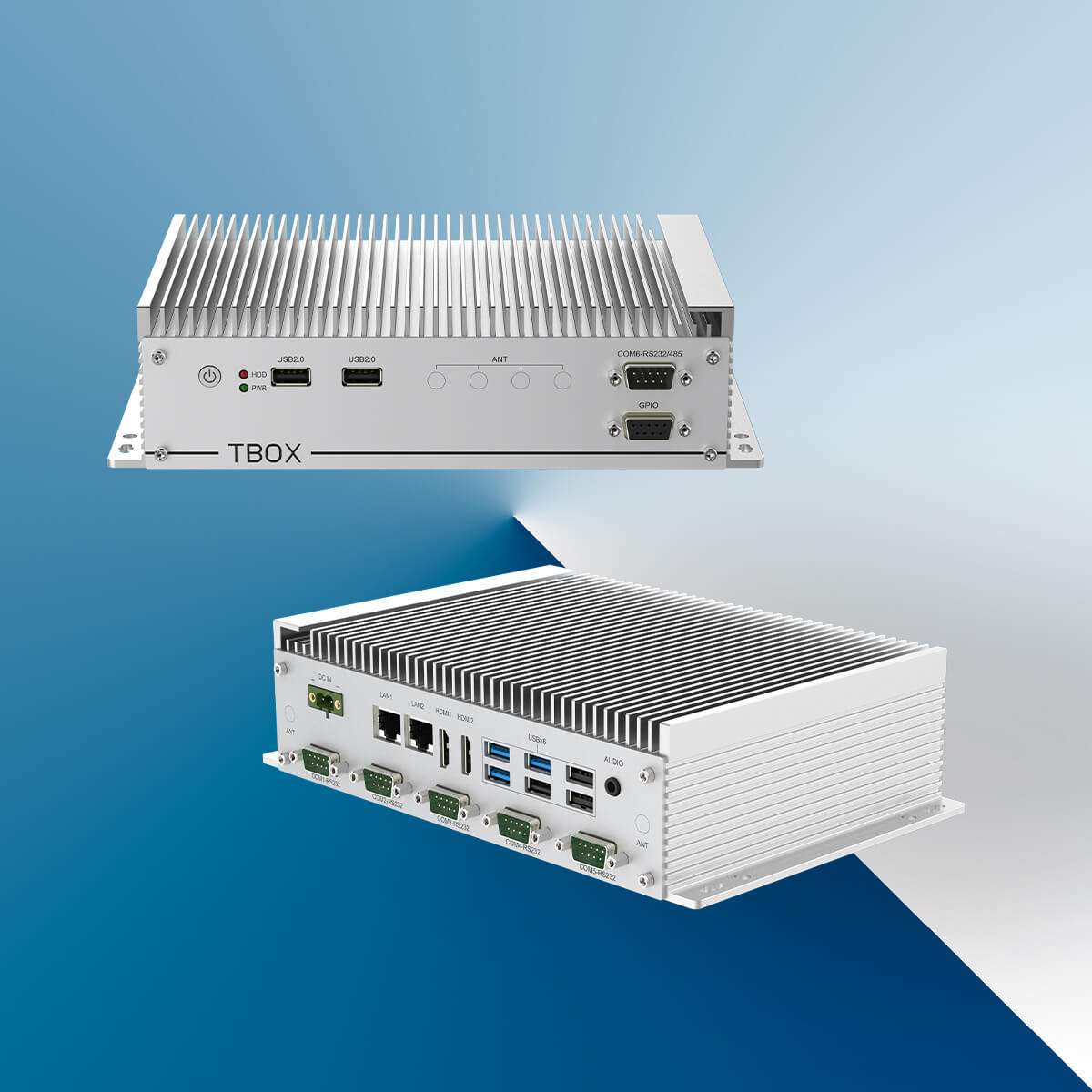

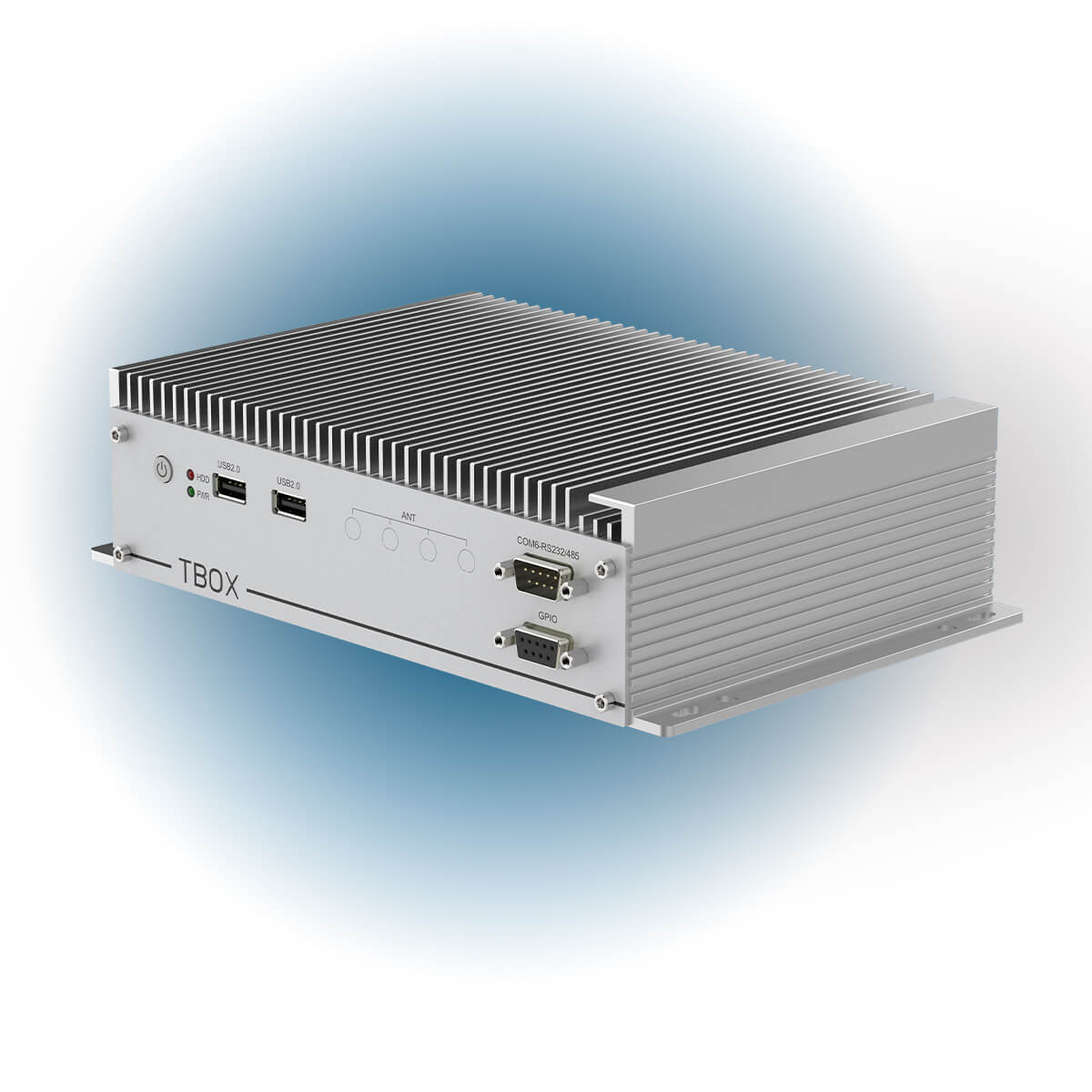

TBOX-2E15 | Industrial Box PC with Intel J6412
● Rugged & compact, fanless designed box structure;
● Powerful Intel Elkhart Lake J6412 Quad-core processor;
● Single DDR4 memory, up to 32GB, 1* M.2 2280 storage slot;
● DC terminal 12V input, optional wide DC 9~36V power input;
● 2 GLAN, optional with 3G/4G/LTE, 5G, and Wi-Fi/BT expansion;

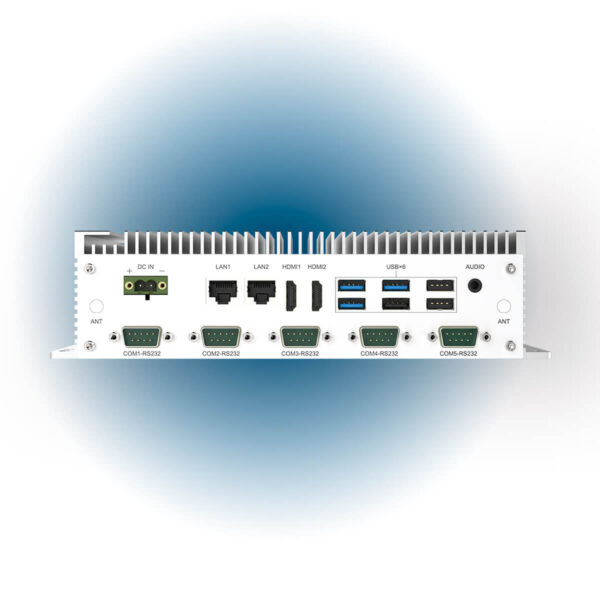

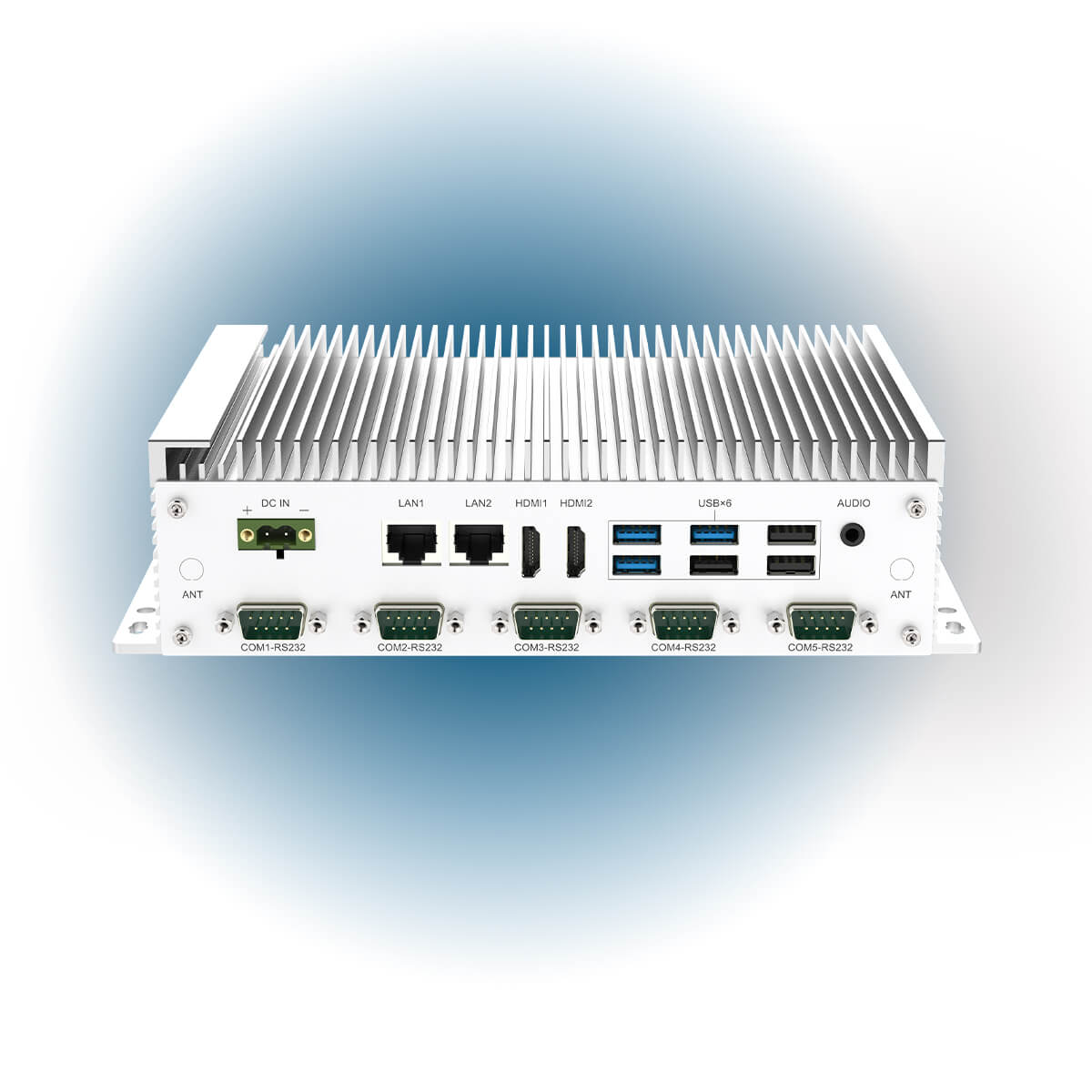

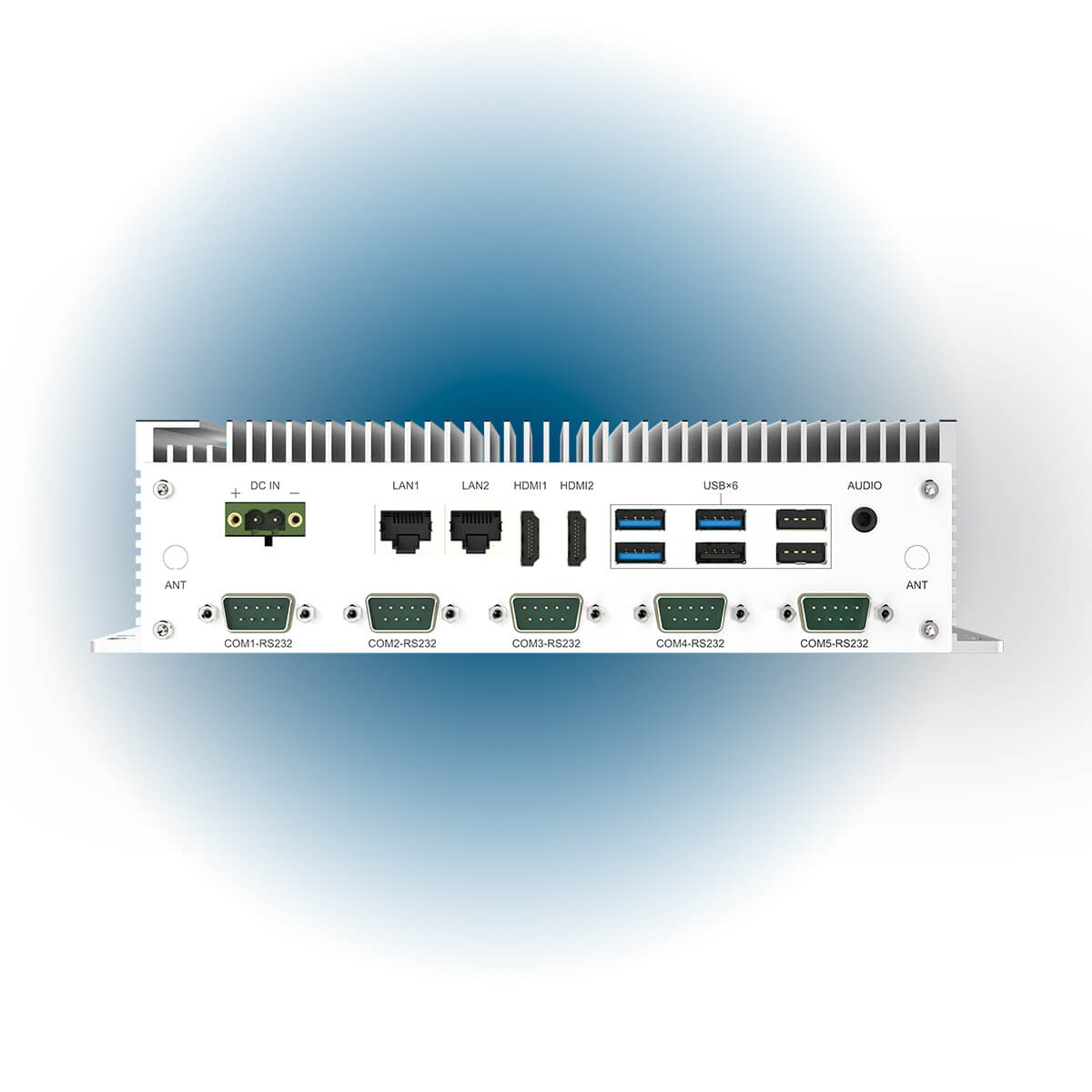

● 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, Audio;
● 1 M.2 and 1 Mini-PCIe expansion slots;
● Industrial operating -20 ~ +70℃ temp. range.
The TAICENN TBOX‑2E15 is a Industrial Box PC with Intel J6412 engineered for edge‑side deployments, rounding out our modular industrial box PC lineup. Driven by the quad‑core Intel Elkhart Lake J6412 processor, it delivers excellent cost‑performance for industrial use cases. Combining robust feature sets, long‑term product availability, stable power delivery and versatile connectivity, the TBOX‑2E15 is an ideal choice for Industrial IoT controllers, embedded systems and factory automation control.
Supporting both DIN‑rail and wall‑mount installation, the TBOX‑2E15 Industrial Box PC with Intel J6412 fits a wide variety of industrial environments. Its fanless architecture enhances system service life and operational reliability. Built with industrial‑grade hardware, it comes with a 12 V DC terminal power input, plus an optional wide‑range DC 9‑36 V variant. Easily integrate this unit into your existing industrial infrastructure to manage on‑site data. It features abundant I/O interfaces: 3 × USB 3.0, 5 × USB 2.0, six DB9 RS232 ports (1 port configurable for RS485 as an option), optional on‑request GPIO, dual‑HDMI outputs and 2 × GbE LAN ports.
The Industrial Box PC with Intel J6412 TBOX‑2E15 is compatible with Windows 10, Windows 11, Linux and mainstream embedded operating systems. It provides dual‑wireless expansion via one Mini‑PCIe slot and one M.2 key slot, supporting 4G/5G, Wi‑Fi and Bluetooth modules.
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Elkhart Lake J6412 processor | |
| CPU Ghz | Quad-core, 2.0Ghz, burst to 2.6Ghz, TDP 10W | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIe x2 Gen III, NVMe) SSD, Optional support 1* 2.5” SATA III SSD | |
| Graphic | Intel UHD Graphics for 10th Gen. Intel Processors | |
| Network | 1* Intel i226V, 1* Intel i210AT Network chips, optional support 3G/4G/5G/Wi-Fi/BT wireless | |
| Audio | On-board Realtek ACL897 Audio controller | |
| Expansion | 1* M.2 (NGFF) B-Key 3042/3052 slot, 1* Mini-PCIe slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | COM1/2/3/4/5: RS232, COM6: RS485 (optional RS232) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| Audio | 1* Mic-in/Line-out (2 in 1, 3.5mm Jack) | |
| USB | 3* USB3.0, 5* USB2.0, | |
| Display | 2* HDMI (Max. support 4096 *2160 @30Hz) | |
| Power input | 1* 2 pin, phenix terminal | |
| GPIO | 8* GPIO (Optional via 1* DB9) | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Silver | |
| Mount method | Desktop, wall mount | |
| Cooling system | Finned aluminum heatsinks | |

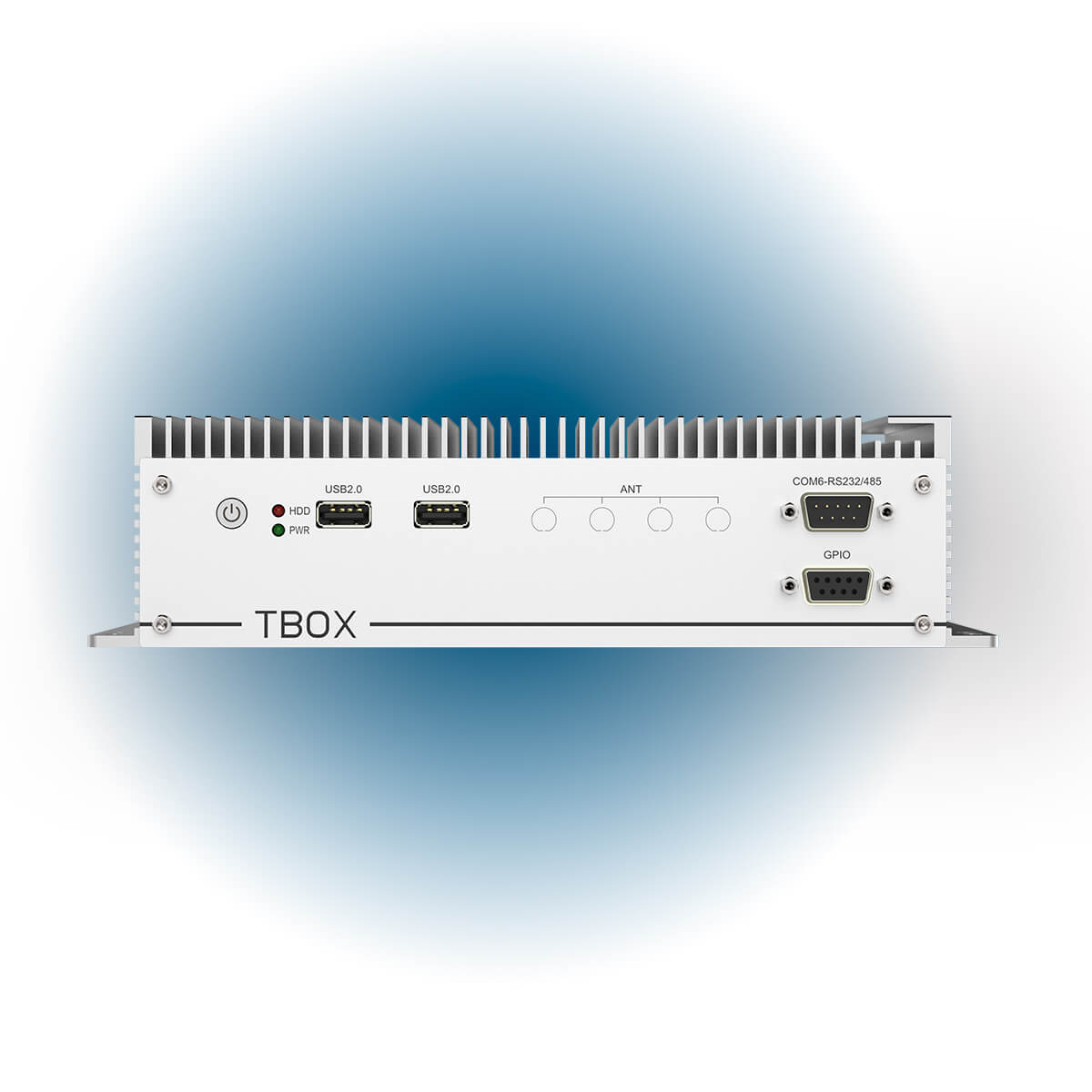

| Indicator & Button | Power switch, Power LED, HDD LED | |

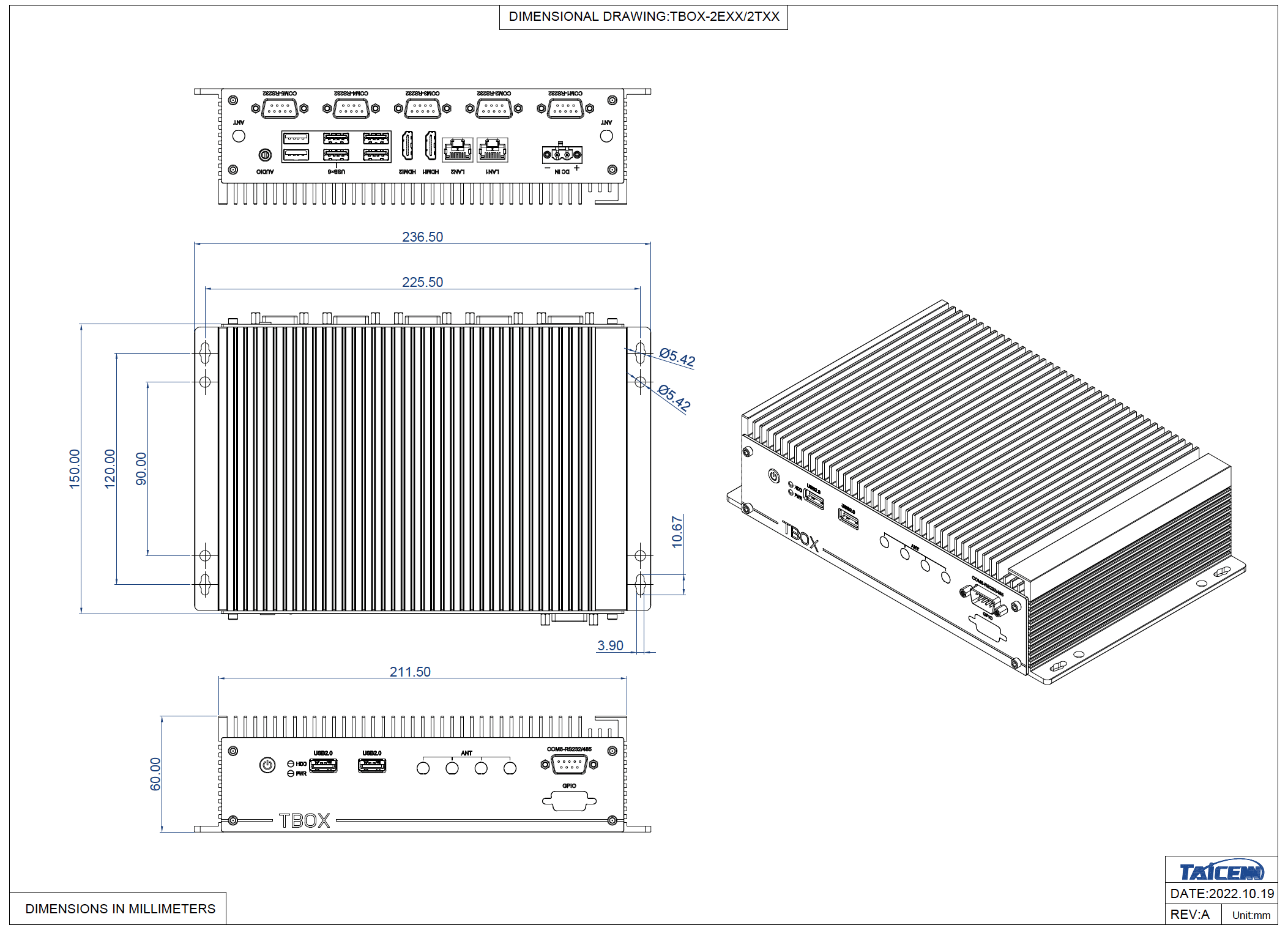

| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 70 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12V (Optional wide DC 9~36V) | |
| Power consumption | About 20W | |
| Certificate | CE/FCC/ROHS |
| Part no. | Description |
| TBOX-2E15 | Intel Elkhart Lake J6412 Quad-core processor, 2 GbE, 3 USB3.0, 5 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 12V, PSU |
| TBOX-2E15W | Intel Elkhart Lake J6412 Quad-core processor, 2 GbE, 3 USB3.0, 5 USB2.0, 6 COM, 2 HDMI, Audio Jack, DC 9~36V, No PSU by default |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB |
| Storage | M.2 SSD: 128GB/256GB/512GB |
| 2.5” SATA SSD: 128GB/256GB/512GB/1TB | |
| 2.5” HDD: 1TB/2TB/4TB | |
| Wireless | Wi-Fi module with BT integrated, with antenna |
| All network 4G module, with Antenna | |
| 5G network module, with Antenna | |
| Power Supply | Optional PSU for TBOX-2E15W (If needed only) |
| Description | Download link |
| TBOX-2E15 EN V3.2 Datasheet | https://www.taicenn.com/pdf/TBOX_2E15_EN_V32_Datasheet_251006.PDF |
| TBOX-2E15 EN V2.0 User Manual | https://www.taicenn.com/pdf/TBOX_2E15_Rugged_Fanless_BoxPC_UserManual_EN_V20_251006.PDF |
| TBOX-2E15 Intel Elkhart Lake J6412 Windows Drive | https://drive.google.com/file/d/1MpNtVbfE2HYd40PRz2y-lqWAL6wwRRqd/view?usp=share_link |
