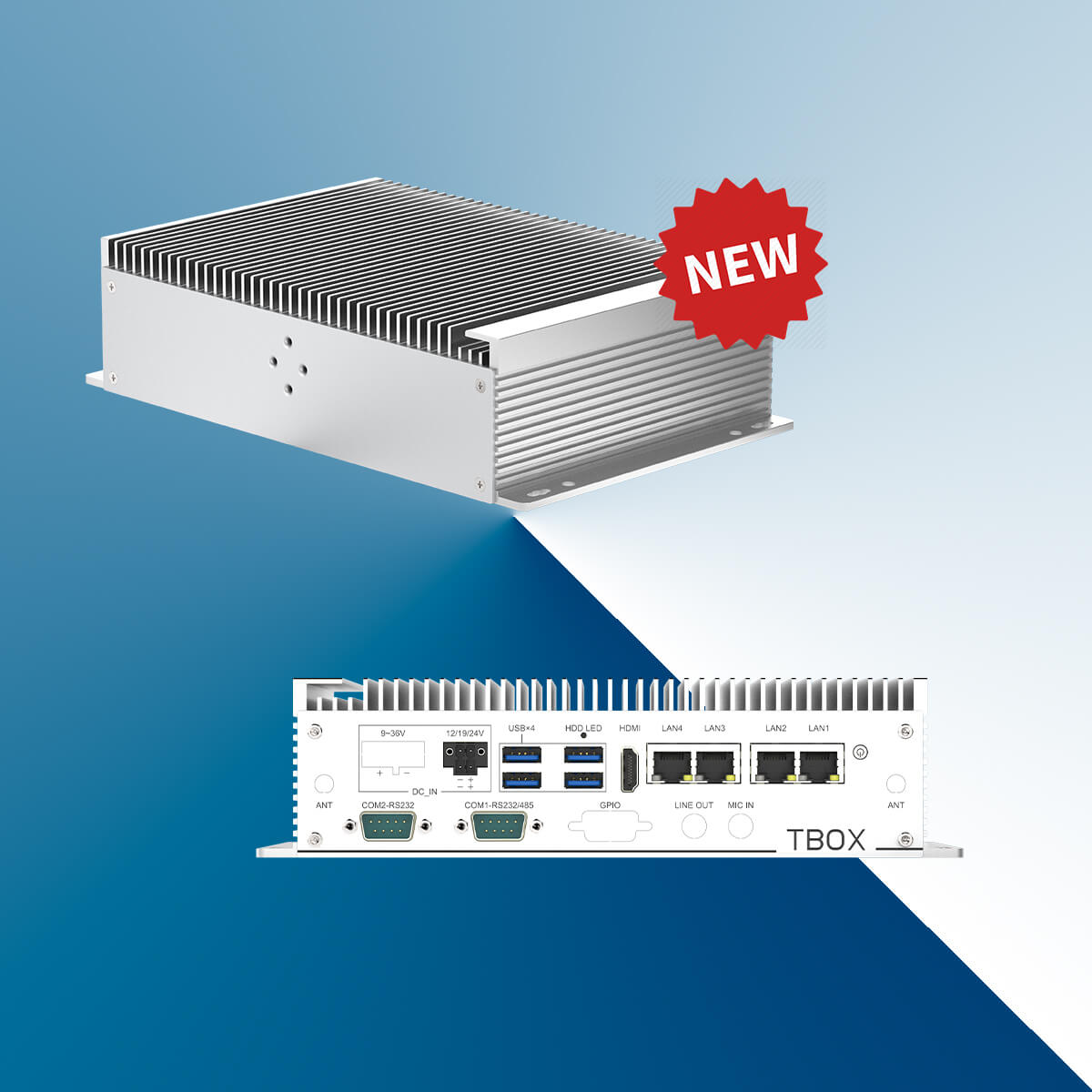

TBOX-2F15-4L | Newest Industrial Box PC with Intel Core Ultra5 CPU
● Rugged & compact, fanless designed box structure;
● Support Powerful Intel CoreTM Ultra5 (series 1) 125U processor;
● Single DDR5 memory, up to 32GB, 1* M.2 2280 NVMe storage;
● Auto detected DC 12/19/24V input, optional wide 9~36V input;
● 4 GbE, optional with 3G/4G/LTE, Wi-Fi/BT;
● 4 USB3.0, 1 HDMI, 2 COM;
● 1 M.2 and 1 Mini-PCIe expansion slots;
● Industrial operating -20 ~ +70℃ temp. range.

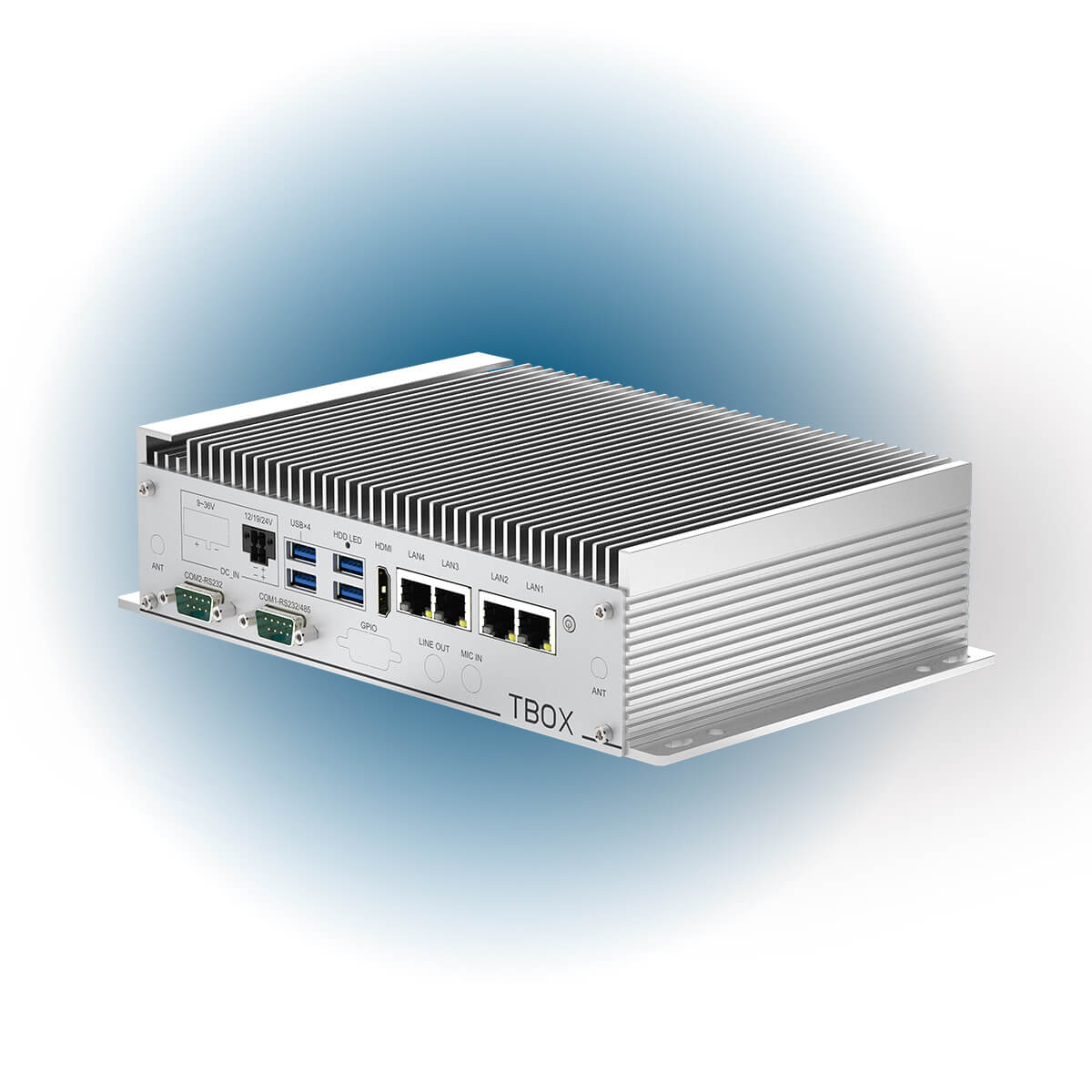

Taicenn newest rugged Box PC TBOX-2F15-4L series with 4 GbE ports as main feature, adapt with newest Intel Core Ultra5 125U CPU platform. This multiple ethernet ports Box PC is a ruggedized, fanless designed with rich I/O ports and 2 wireless expansion capacity solution for industrial automation, industrial network, industrial IoT, and machine vision applications. TBOX-2F15-4L designs with its built-in NPU empowers advanced AI control solutions.

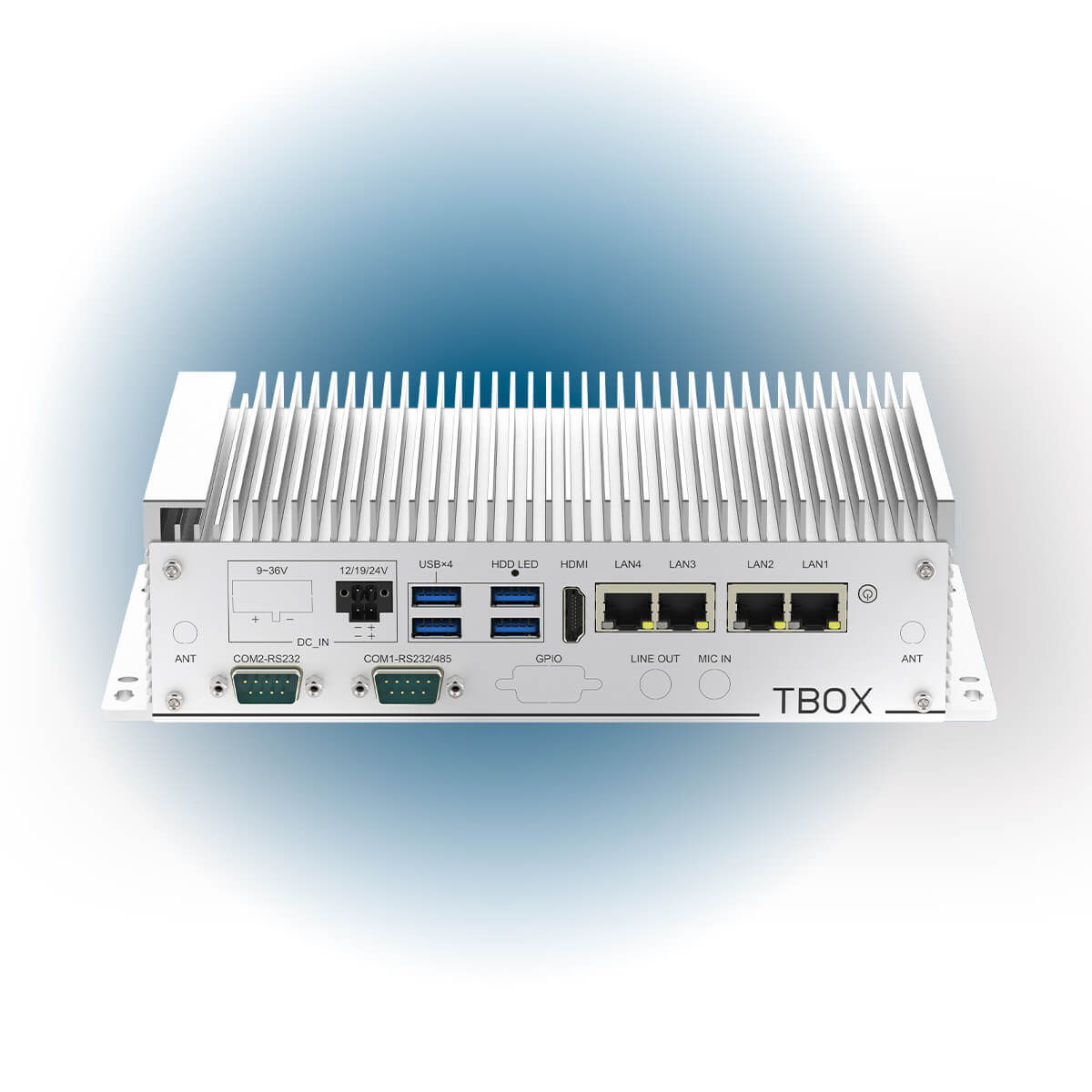

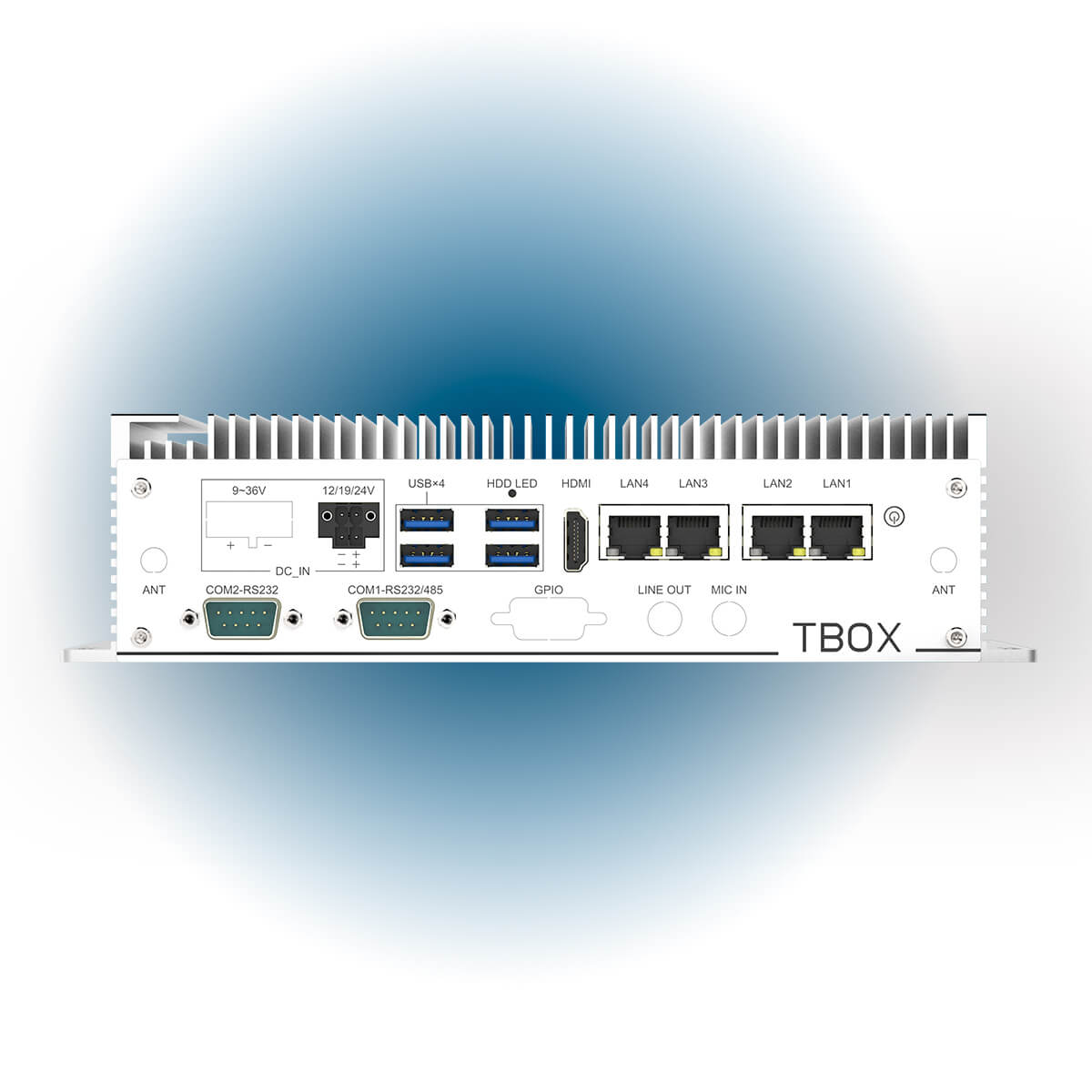

The key feature of this new rugged Box PC TBOX-2F15-4L is designed with 4-ethernets port with 4 individual Intel i210 network chips, provide excellent network connection and function. Besides, it also designs with abundant IO interfaces: 4* USB3.0, 1* HDMI, 2* RS232 COM (1* RS232/RS485, Jumper selected), 1 reserved DB9 ports for needed GPIO possibility. It is designed with DC auto detect 12/19/24V inputs, optional with wide DC 9 ~ 36V input range.

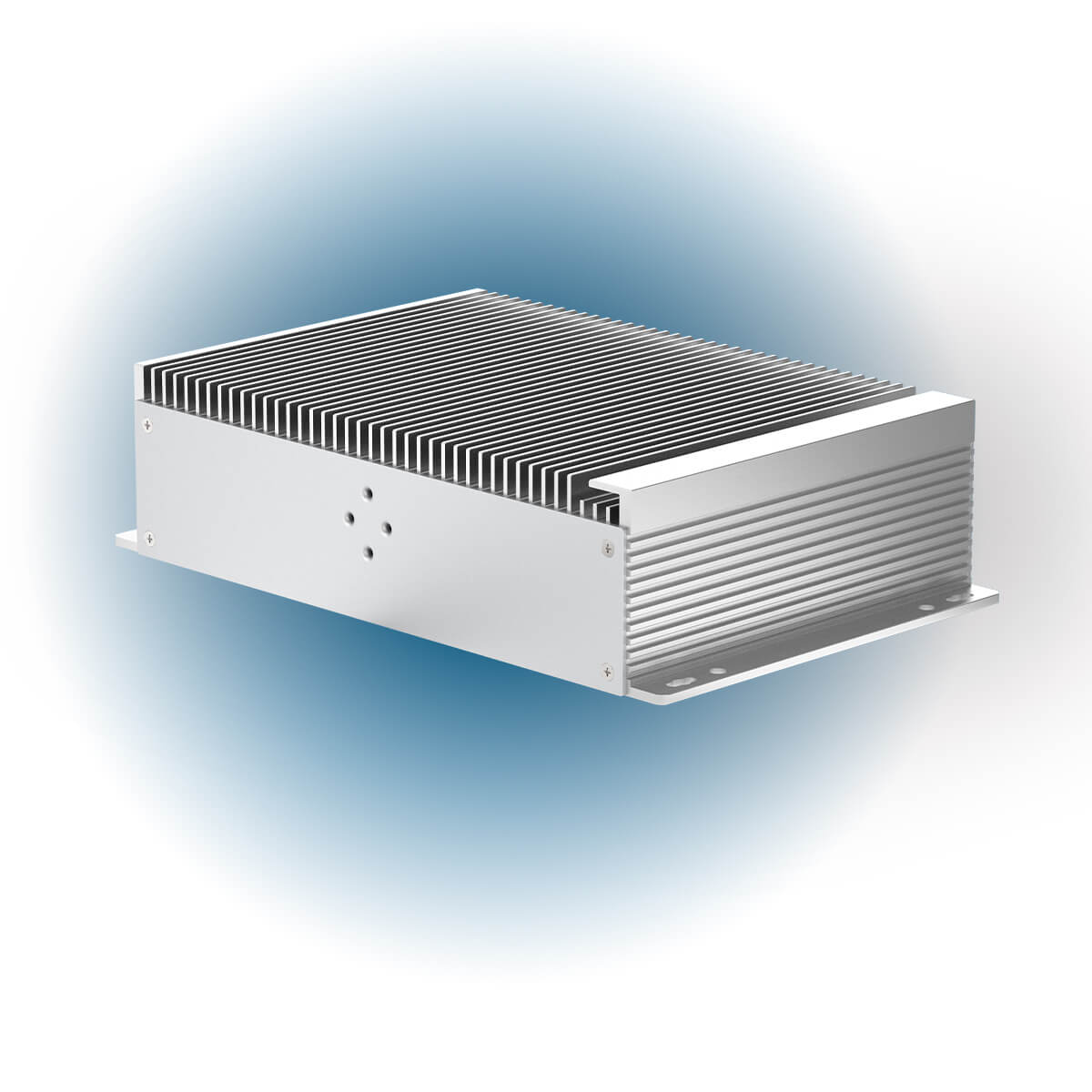

This small form factor PC handles industrial operating -20 ~ +70C range, and passively cools its Core Ultra CPU with robust heat sinks.
| System | BIOS | SPI AMI EEI BIOS |
| CPU & Graphic | Intel Core Ultra 5 series 125U CPU processor, up to 4.3Ghz, 12-Cores, TDP=15W | |
| Graphic | Intel 4Xe -cores Graphics (Up to 1.85Ghz) | |
| NPU | Intel AI Boost, 11TOPS (Int8) | |
| TPM | Intel PTT TMP2.0 | |
| Memory | SO-DIMM, DDR5-5600 Mhz, Single slot, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key slot (PCIe x4, Gen IV, NVMe) SSD, 1* 2.5” SATA III SSD | |
| Network | 4* Intel I210 GbE (Support PXE/PRL Boot), optional support 3G/4G/Wi-Fi/BT wireless expansion | |
| Audio | On-board Realtek Audio HAD Codec | |
| Expansion | 1* Mini-PCIe (Support 4G, with 1 * SIM slot); 1* M.2 E-key 2230 slot (Wi-Fi/BT) | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10/Win11 64-bit; Linux, Ubuntu | |
| IO interface | Serial port | COM1: RS232/RS485 (Jumper); COM2: RS232 |
| Ethernet | 4* RJ45, 10/100/1000 Mbps | |
| Audio | N/A (Optional Mic-IN/Line-out) | |
| USB | 4* USB3.0 (Type-A) | |
| Display | 1* HDMI (Max. support 3840 *2160 @30Hz) | |
| Power input | 1* 4 pins, Terminal Blocks | |
| Optional I/O | N/A (Optional 8* GPIO) | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Silver | |
| Mount method | Desktop, wall mount; Optional Din-Rail mount (TBOX-2F15R-4L) | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |

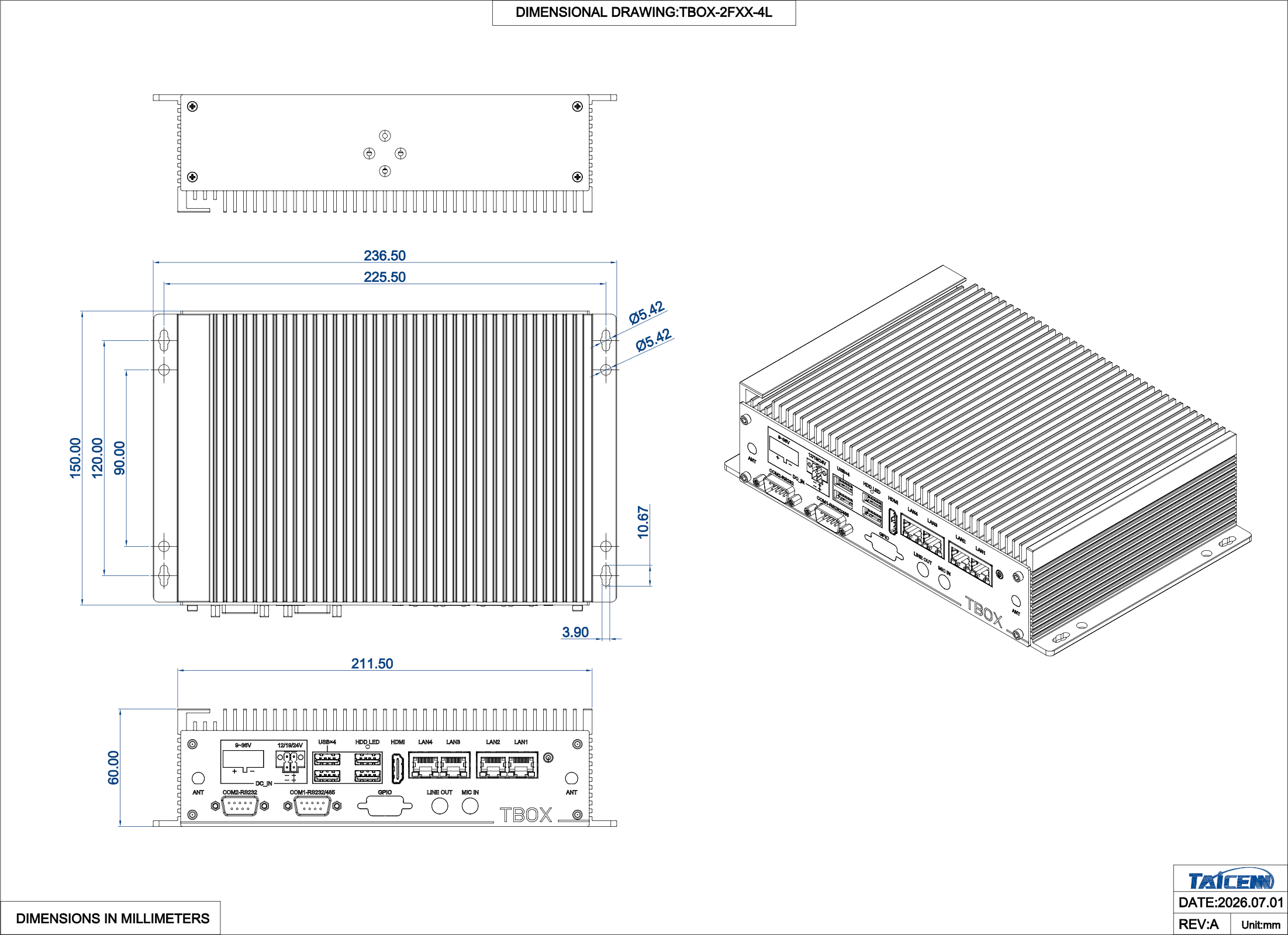

| Dimension | 236.5 * 150.0 * 60.0 (mm) | |
| Net weight | About 1.6 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 70 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 12/19/24V input (Auto detect); Optional wide DC 9~36V range (TBOX-2F15W-4L) | |
| Power consumption | About 25W | |
| Certificate |
CE/FCC/ROHS
|
| Part no. | Description | ||
| TBOX-2F15-4L | Intel Core Ultra 5 (series 1) 125U processor, 4 GbE, 4 USB3.0, 2 COM, 1 HDMI, DC 12/19/24V, No PSU by default | ||
| TBOX-2F15R-4L | Intel Core Ultra 5 (series 1) 125U processor, 4 GbE, 4 USB3.0, 2 COM, 1 HDMI, DC 12/19/24V, No PSU by default, Din-Rail Mount with Clip | ||
| TBOX-2F15W-4L | Intel Core Ultra 5 (series 1) 125U processor, 4 GbE, 4 USB3.0, 2 COM, 1 HDMI, Wide DC 9~36V range, No PSU by default | ||
| Optional Accessories | Description | Packing List | |
| Memory | SO-DIMM, DDR5, 8GB/16GB/32GB | Standard TBOX-2F15-4L Box PC Product | 1 set |
| Storage | M.2 NVMe SSD: 256GB/512GB/1TB | Power cable & Plug | 1 set |
| 2.5” SATA SSD/HDD | |||
| Wireless | Wi-Fi with BT Integrated module, with Antenna | ||
| Wi-Fi module, with Antenna | |||
| All network 4G module, with Antenna | |||
| Power Supply | PSU (If needed) | ||
| Sim Card Slot | Sim card slot module (optional for 4G wireless) | ||
| Description | Download Link |
| TBOX-2F15-4L Datasheet | https://www.taicenn.com/pdf/TBOX_2FX54L_EN_V10_Datasheet_260701.pdf |
| TBOX-2F15-4L Win Drive | https://drive.google.com/file/d/1SKXArnHW_E9yw4Q3Dm3O5i4QVzmEFqQY/view?usp=drive_link |
