TBOX-1E10 series | Industrial Mini PC with Intel J6412
● Rugged, Ultra-small, fanless designed box structure;
● Intel Elkhart Lake Celeron J6412 Quad-core processor;
● Wide voltage DC 9 to 36V power input;
● Industrial -20 ~ + 60℃ operating range;
● 2 GLAN, optional with 3G/4G/LTE, and Wi-Fi/BT expansion;
● 4 USB3.0, 1 HDMI, 1 DP, Mic-in/Line-out;
● 1 M.2 3042/3052 B-Key, and 1 M.2 2230 E-key;
● Optional support Din-Rail mount.
● TBOX-1E11: 2-layer designed with 3 COM ports.

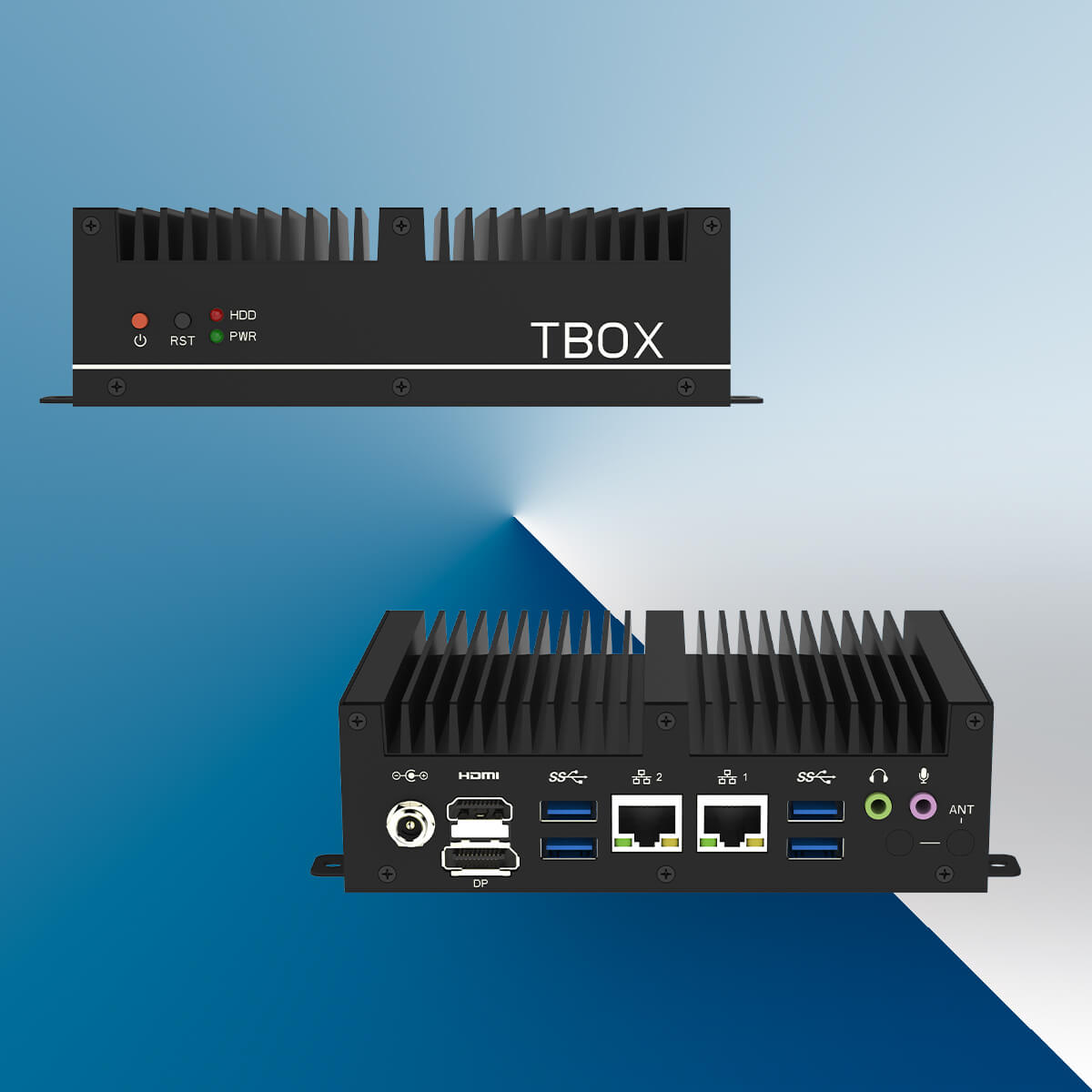

The TAICENN TBOX-1E10 is an ultra-compact industrial Mini PC with J6412 CPU, delivering solid computing performance with low power draw.

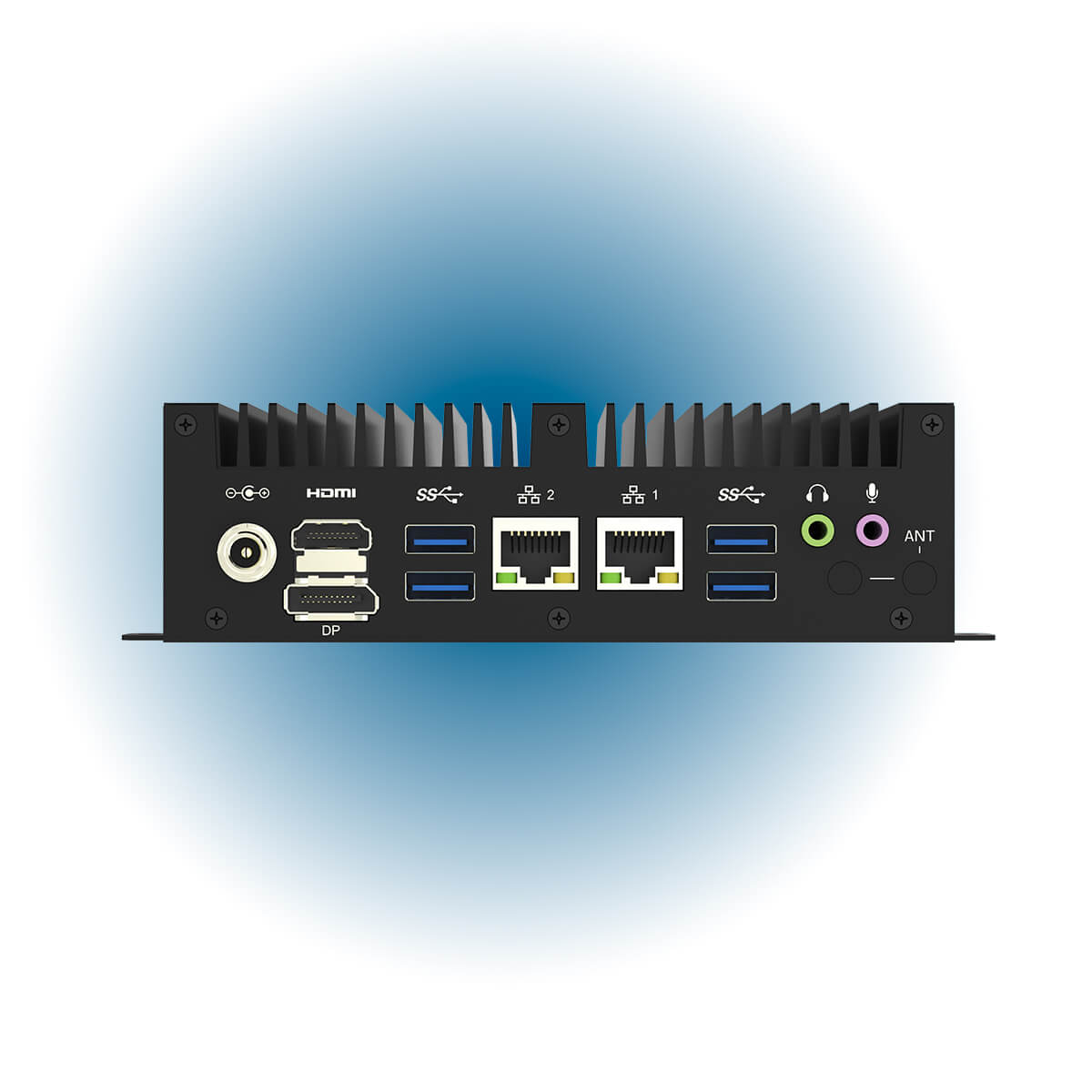

It supports one high-speed M.2 NVMe SSD for storage. The unit features practical I/O: 2×LAN, 4×USB3.0, 1×HDMI, 1×DP and audio jacks. Wide-range DC input (9~36V) comes with over-current, over-voltage and reverse polarity protection.
Built with a fully sealed enclosure, the TBOX-1E10 prevents dust ingress. A large aluminum fin heat sink enables rapid, effective heat dissipation to extend system reliability and service life.
Operating temperature spans -20℃ to +60℃, suited for long-run deployment in harsh industrial environments. It supports Windows 10, Windows 11, Linux and embedded OS, compatible with corresponding application software.

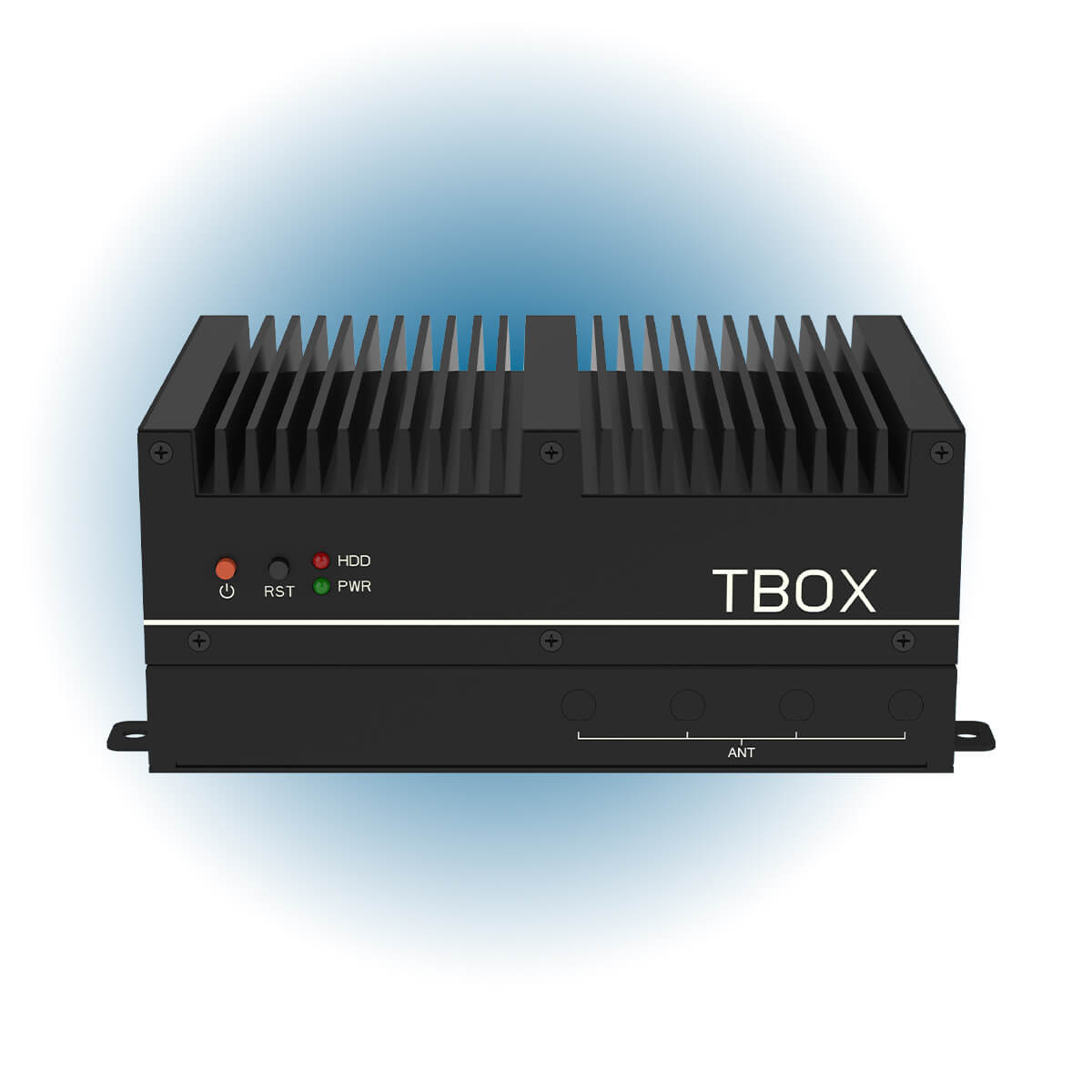

TBOX-1E11 | 2-layer designed based on TBOX-1E10

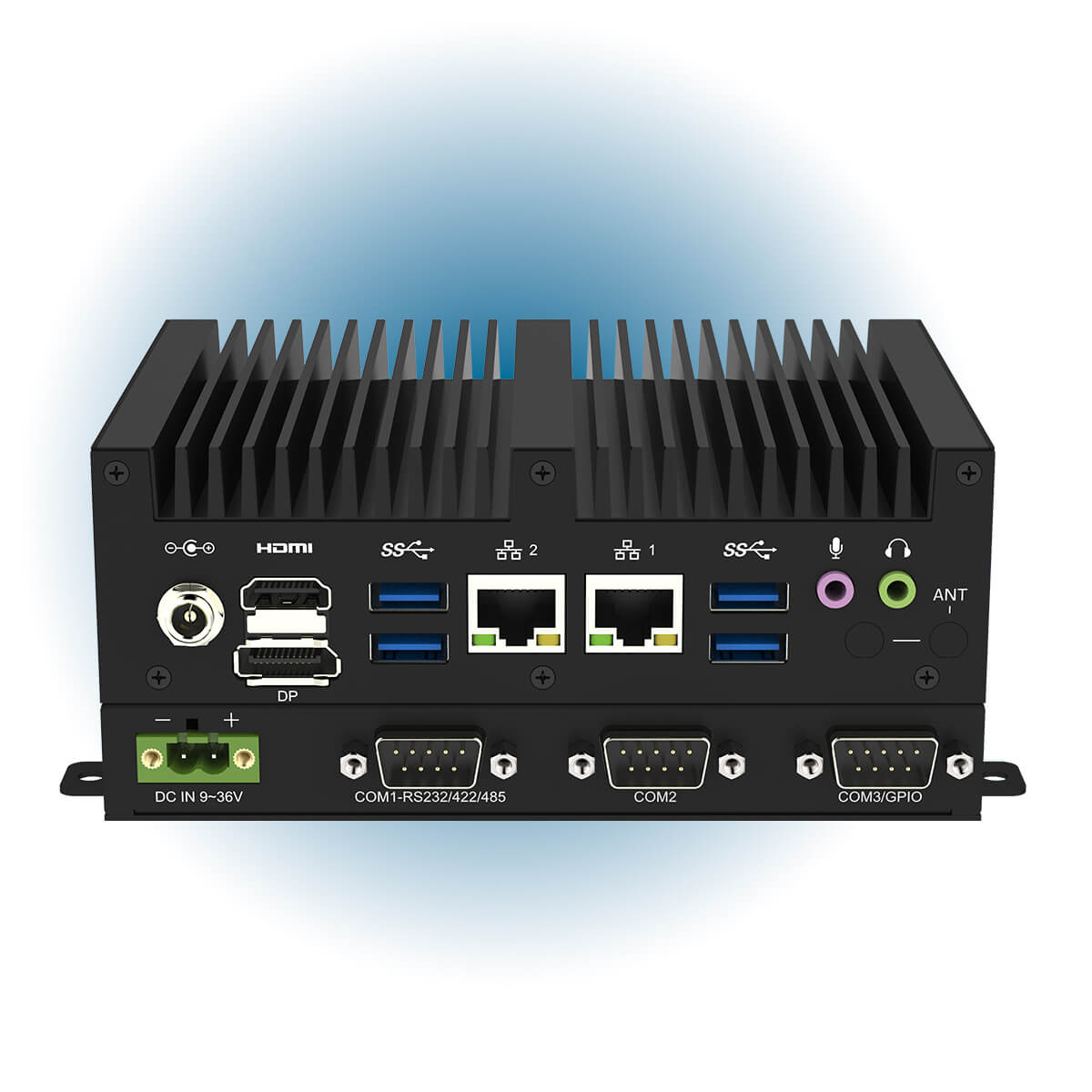

Compared to TBOX-1E10, TBOX-1E11 is designed with 2-layer housing to offer more IO interfaces 3* DB9 COM ports, to meet some specific needed industrial applications.
TBOX-1E10 Specification
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Elkhart Lake J6412, Quad-core processor | |
| CPU Ghz | Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W | |
| TPM | Intel PTT TPM2.0 | |
| Memory | SO-DIMM, DDR4-3200 Mhz, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key PCIe x2 | |
| Graphic | Intel UHD Graphics for 10th Gen. Intel processors | |
| Network | 1* Intel I226-V, 1* Intel I210AT, optional support 3G/4G/Wi-Fi Wireless | |
| Audio | On-board Realtek ACL 269 Audio controller | |
| Expansion | 1* M.2 3042/3052 B-key slot, 1* M.2 2230 E-key slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | N/A |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| Audio | Mic-in/Line-out | |
| USB | 4* USB3.0 | |
| Display | 1* HDMI, 1*DP | |
| Power input | DC Jack, lockable 5.5 * 2.5 | |
| GPIO | Optional (Internal) | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black | |
| Mount method | Desktop, wall mount, optional with Din-rail mount | |
| Cooling system | Finned aluminum heatsinks | |

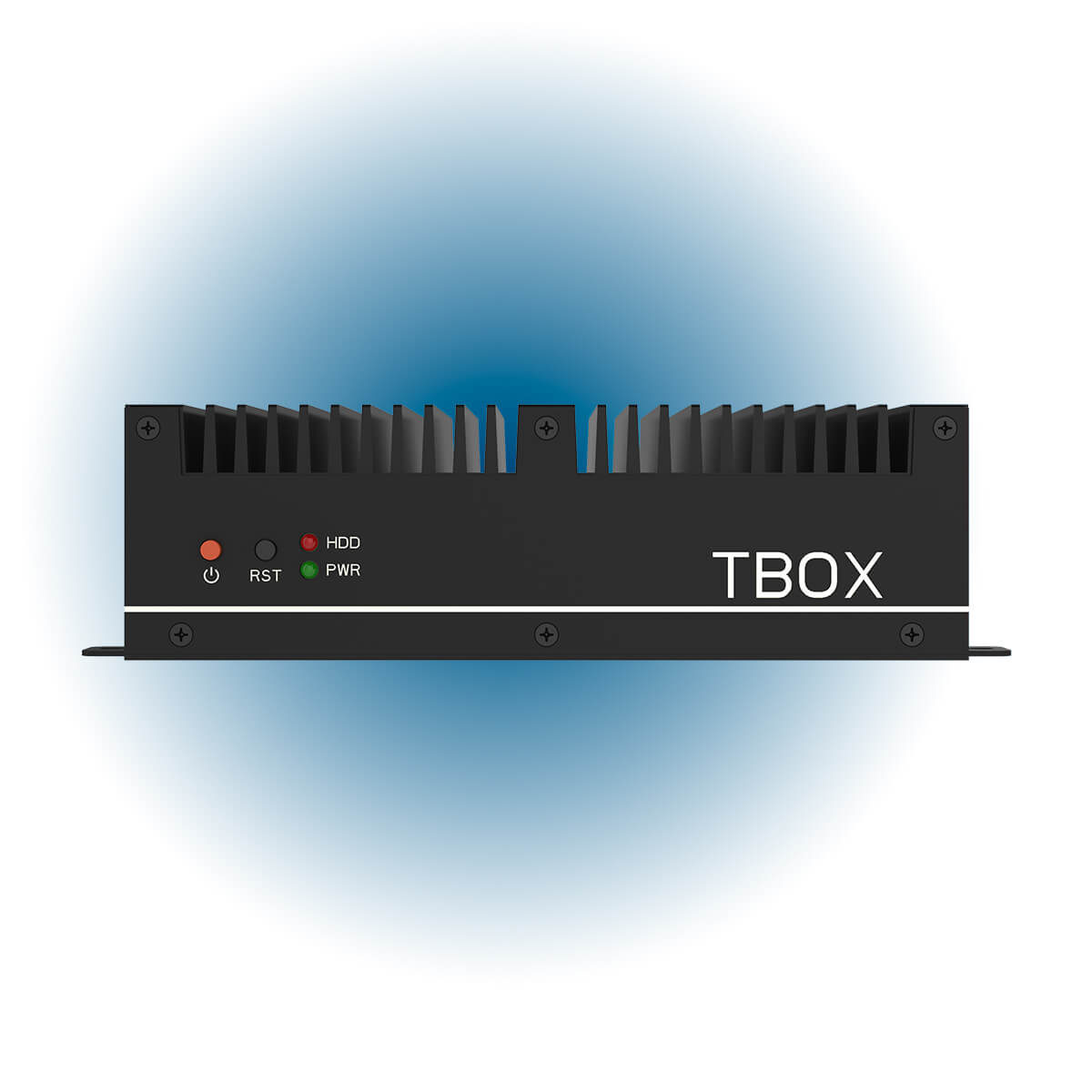

| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 168.4 * 106.2 * 45 (mm) | |
| Net weight | About 0.8 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 70 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~36V | |
| Power consumption | About 20W | |
| Certificate | CE/FCC/ROHS |
TBOX-1E11 Specification
| System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Elkhart Lake J6412, Quad-core processor | |
| CPU Ghz | Quad-core 2.0Ghz, burst to 2.6Ghz, TPD 10W | |
| TPM | Intel PTT TPM2.0 | |
| Memory | SO-DIMM, DDR4-3200 Mhz, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key PCIe x2 | |
| Graphic | Intel UHD Graphics Gen10 | |
| Network | 1* Intel I226-V, 1* Intel I210AT, optional support 3G/4G/Wi-Fi Wireless | |
| Audio | On-board Realtek ACL 269 Audio controller | |
| Expansion | 1* M.2 3042/3052 B-key slot, 1* M.2 2230 E-key slot | |
| Watchdog | 0 ~ 256 seconds programmable | |
| Operating system | Win10, Win11, Linux | |
| IO interface | Serial port | COM1: RS232/RS485/RS422 (BIOS configurable), COM2: RS232, COM3: RS232(Optional GPIO) |
| Ethernet | 2* RJ45, 10/100/1000 Mbps | |
| Audio | Mic-in/Line-out | |
| USB | 4* USB3.0 | |
| Display | 1* HDMI, 1*DP | |
| Power input | DC Terminal / DC Jack | |
| GPIO | Optional via COM3 | |
| Structure | Box structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Color | Black | |
| Mount method | Desktop, wall mount, optional with Din-rail mount | |
| Cooling system | Finned aluminum heatsinks | |
| Indicator & Button | Power switch, Power LED, HDD LED | |
| Dimension | 168.4 * 106.2 * 65 (mm) | |
| Net weight | About 0.8 KG | |
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) |
| Storage temp. | -40 ~ + 70 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Power input | DC 9~36V | |
| Power consumption | About 20W | |
| Certificate | CE/FCC/ROHS |

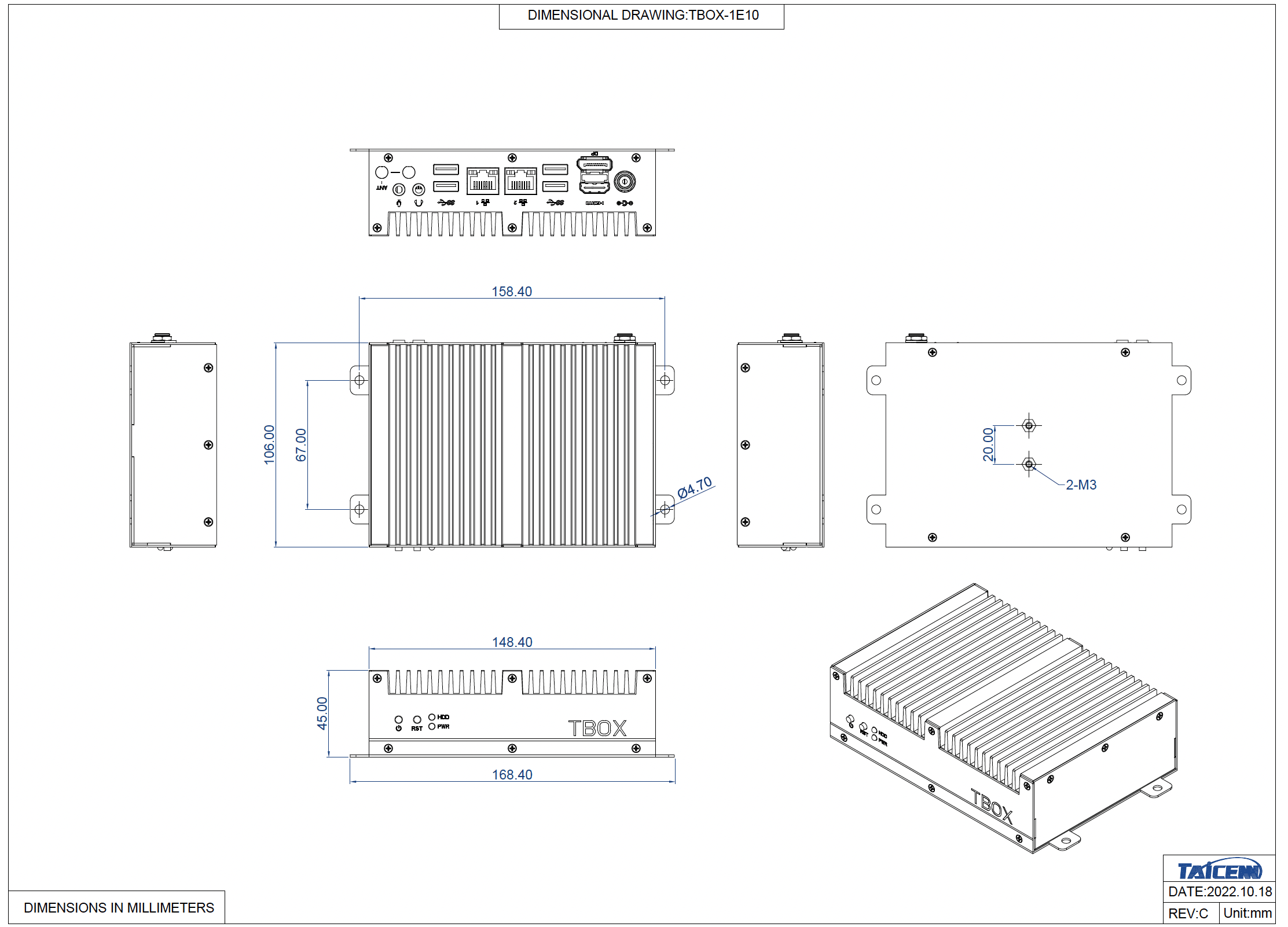

TBOX-1E10 Dimensions:

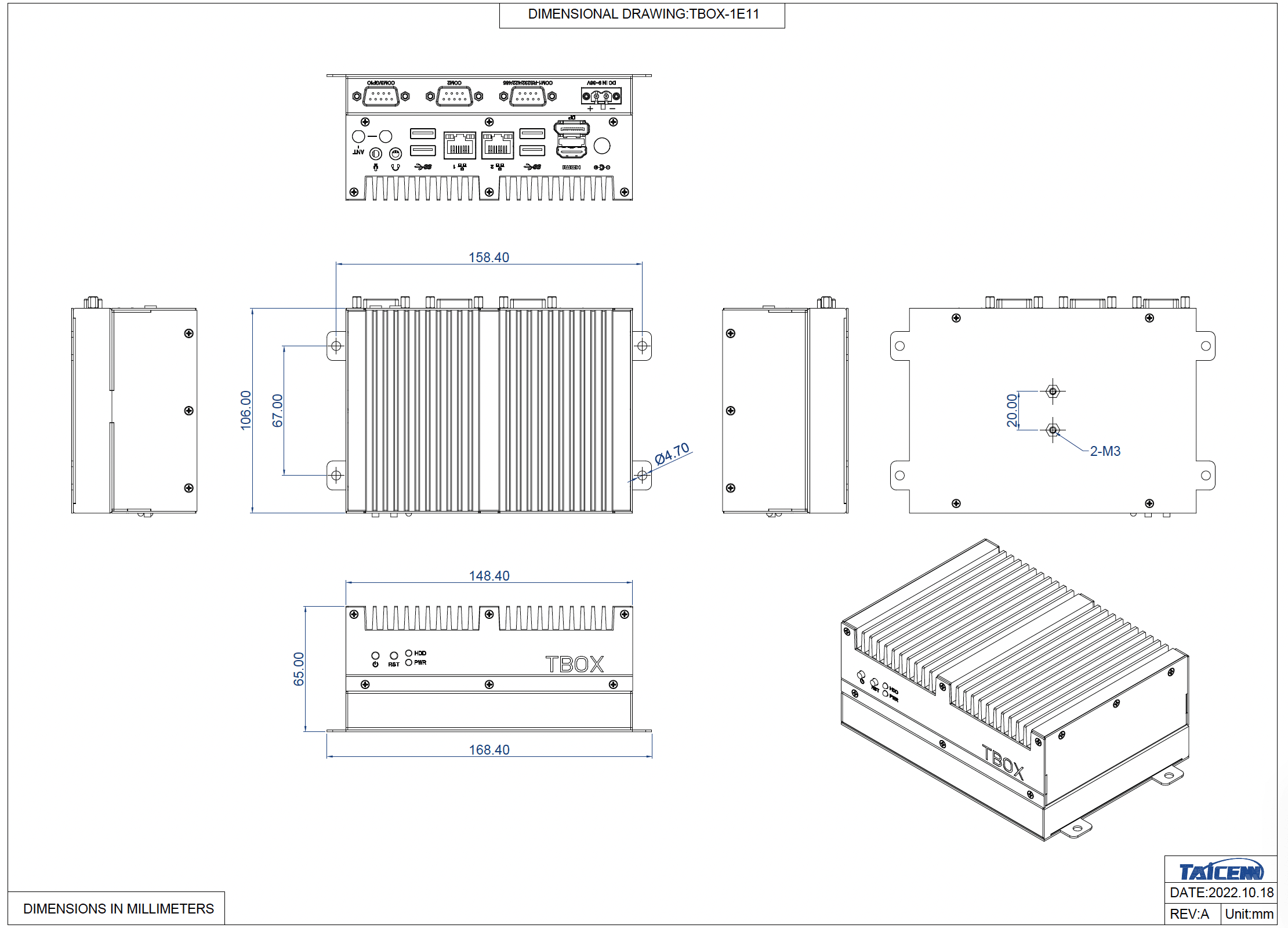

TBOX-1E11 Dimension
| Part no. | Description |
| TBOX-1E10 | Intel Elkhart Lake J6412, 2 RJ45, 4 USB3.0, 1 HDMI, 1 DP, Mic-in/Line-out, DC 9 ~36V (DC Jack), PSU |
| TBOX-1E11 | Intel Elkhart Lake J6412, 2 RJ45, 4 USB3.0, 1 HDMI, 1 DP, 3 COM (DB9), Mic-in/Line-out, DC 9 ~36V (DC Terminal/ DC Jack), PSU |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16G/32GB |
| Storage | M.2 NVMe SSD: 128GB/256GB/512GB |
| Wireless | Wi-Fi module, with Antenna |
| Wi-Fi module with BT integrated, with antenna | |
| All network 4G module, with Antenna | |
| Mount Rack | Din 35 mount clip (1 set/unit) |
