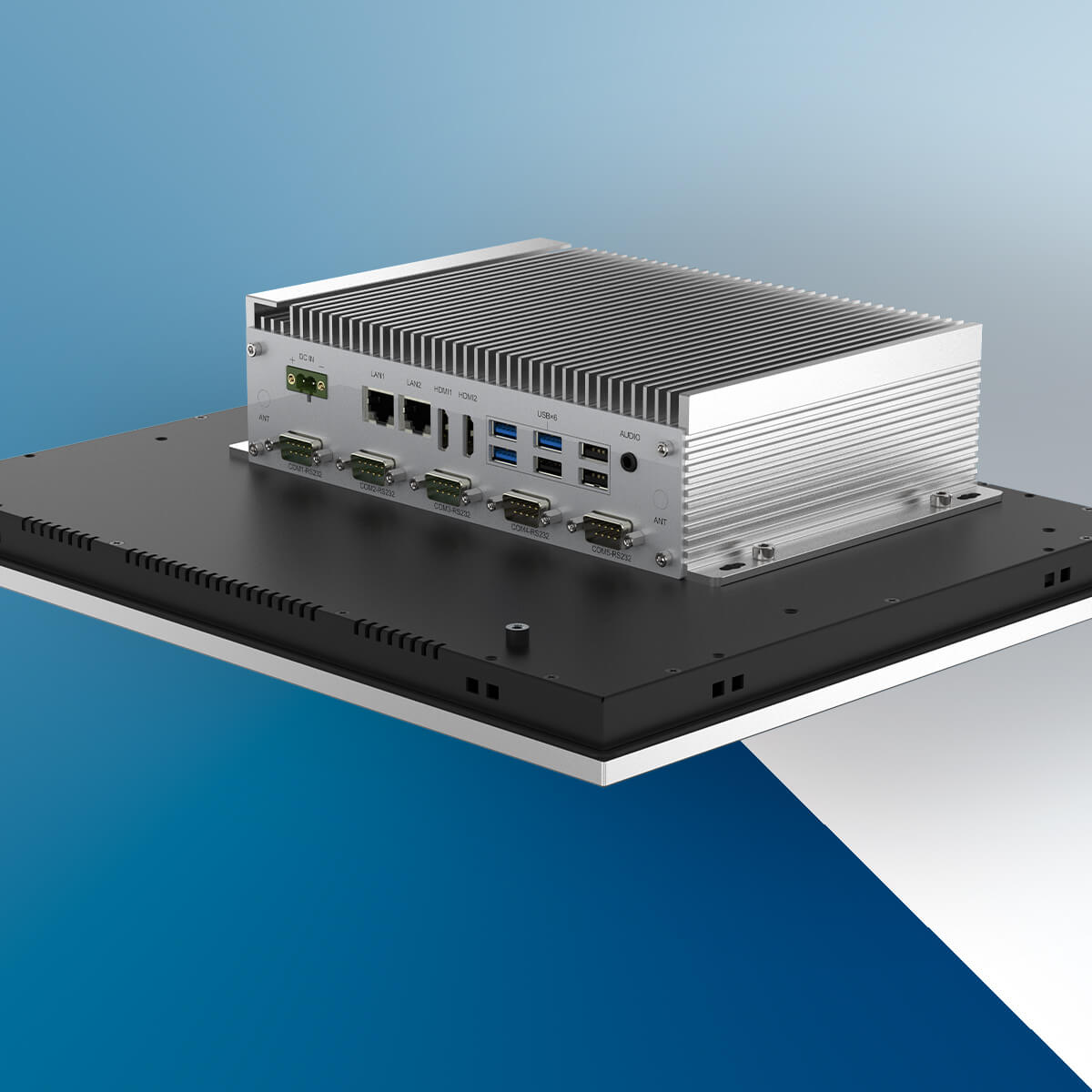

TPC-PCS&PRS E1 Series | Rich IO Touch Panel PCs with Intel J6412 CPU
● Modular & Fanless designed, aluminum-magnesium alloy;
● Intel Elkhart Lake J6412, Quad-core 2.0Ghz;
● Full dimensions, ranging from 10.1″ to 21.5″ size, quick delivery;
● Both Pcap. and Resistive touchscreen, EETI controller;
● DC 12V Power input, optional wide DC 9~36V input;
● I/O interfaces: 2 GbE, 3 USB3.0, 5 USB2.0, 6 COM, 2 HDMI;
● Intel PTT TPM2.0, Support Windows 11 OS;
● Panel mount, VESA 75/100 mount, Front IP66 rated protection;
● Optional 1 M.2 and 1 Mini-PCIe expansion slots.
Description
The TAICENN TPC-PCS/PRS E1 series is Rich IO Touch Panel PCs with Intel J6412 CPU engineered to deliver stable operation across diverse factory automation and industrial control deployments. This unit benefits from an extended product lifecycle and long component availability for long-term industrial projects.
Equipped with full dimensions display, and paired with Pcap. or 5-wire resistive touch, it ensures reliable operation on production floors. Built with fanless passive cooling and an IP66-rated front bezel, this rugged HMI withstands dust, liquid splashes and regular wash-downs required in heavy-duty industrial environments.

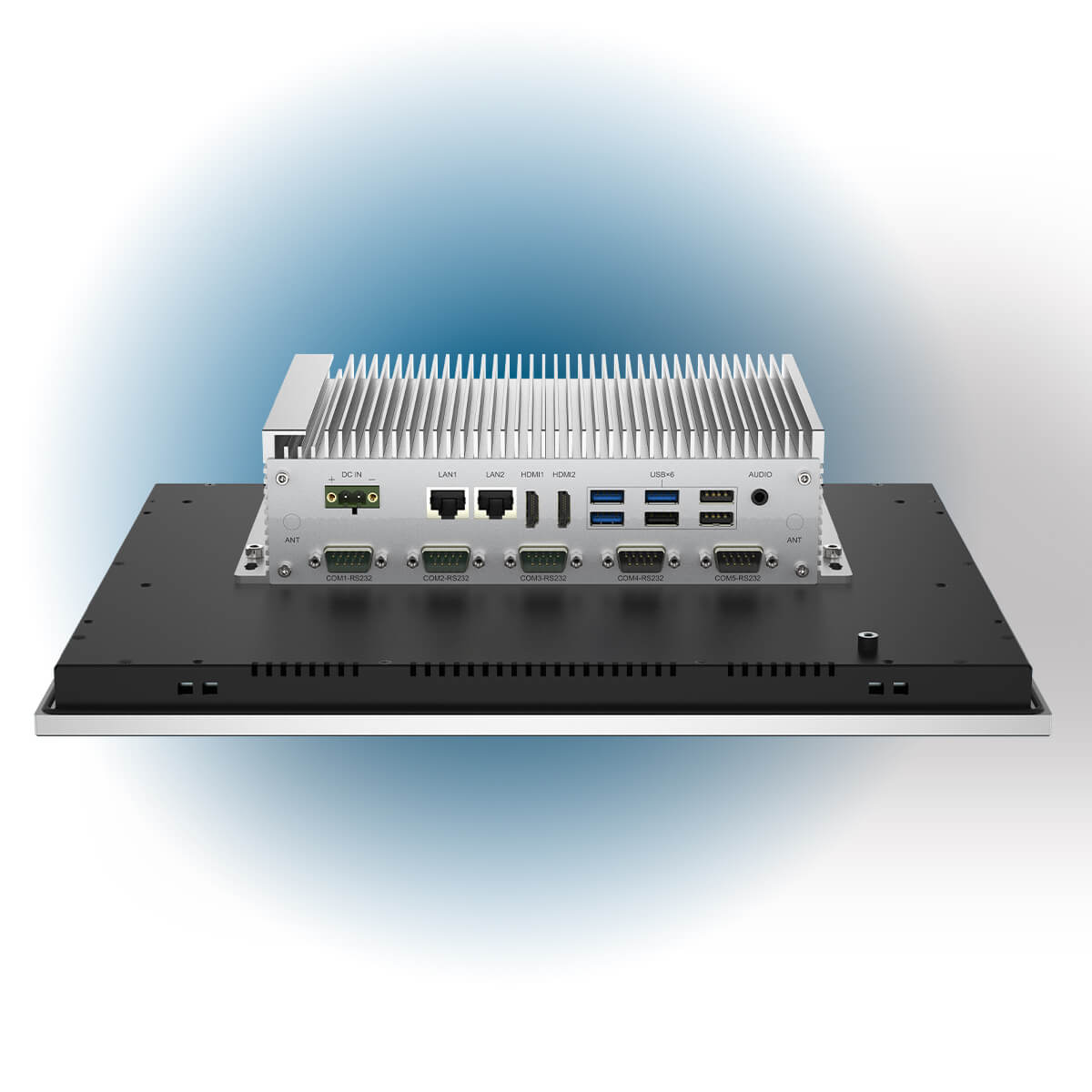

This Rich IO Touch Panel PCs with Intel J6412 CPU comes fully populated with abundant I/O connectivity: dual Gigabit Ethernet ports, 3×USB3.0, 5×USB2.0, six DB9 COM serial interfaces, dual high-quality HDMI outputs plus audio jack. Two mounting choices are supported: standard panel mount, alongside optional VESA 75/100 wall mounting for flexible cabinet and enclosure integration. For wireless expansion, it features one M.2 and one Mini-PCIe slot, enabling optional modules including 3G/4G/5G cellular, Bluetooth, Wi‑Fi and Wi‑Fi 6. This expandable architecture makes the TPC-PCS/PRS E1 series flexible HMI platform for a broad range of industrial automation applications.
Specification
| Hardware & System | BIOS | SPI AMI EEI BIOS |
| CPU | Intel Elkhart Lake J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP=10W | |
| Graphic | Intel UHD Graphic for 10th Gen. Intel processors | |
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 Mhz, Max. up to 32GB | |
| Storage | 1* M.2 2280 M-Key (PCIe x2 Gen III, NVMe) SSD, optional 1* 2.5” SATA SSD | |
| Network | 1* Intel i226V & 1* Intel i210AT GbE network chips (Optional wireless 3G/4G/LTE, Wi-Fi/BT, 5G/Wi-Fi 6) | |
| Audio | On-board Realtek ACL 897 Audio controller | |
| Expansion | 1* M.2 B-Key 3052 slot; 1* Mini-PCIe slot | |
| Watch dog | 0 ~ 256 seconds programmable | |
| Operating System | Win10, Win11, Linux, Ubuntu | |
| I/O Interface | Ethernet | 2 RJ45, 10/100/1000 Mbps |
| COM | COM1/2/3/4/5:RS232; COM6:RS485(Optional RS232) | |
| Audio | Mic-in/Line-out (2 in 1, 3.5mm Jack) | |
| USB | 3* USB3.0, 5* USB2.0 | |
| Display | 2* HDMI (Max. support 4096 * 2160 @30Hz) | |
| Power | 1* 2 Pins, Phenix Terminal | |
| LCD Display & Touchsceen | Pcap. Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD |
| Resistive Touch | 10.1" WXGA, 10.4" XGA, 12.1" XGA, 15.0" XGA, 15.6" FHD, 17.0" SXGA, 18.5" WXGA, 18.5" FHD, 19.0" SXGA, 21.5 “ FHD | |
| Structure | Structure & Surface | Magnesium-Aluminum alloy, sand blasting, anodized treated |

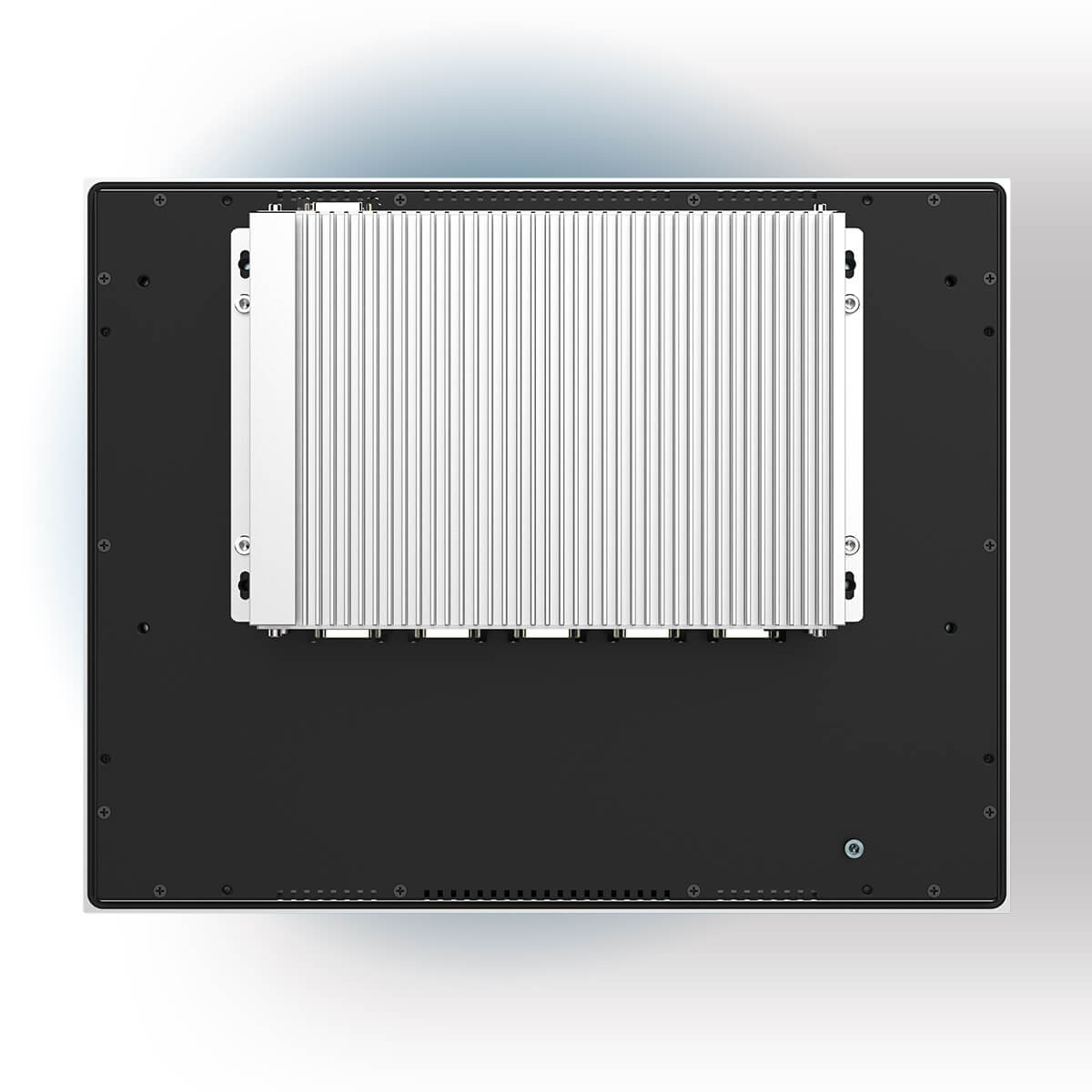

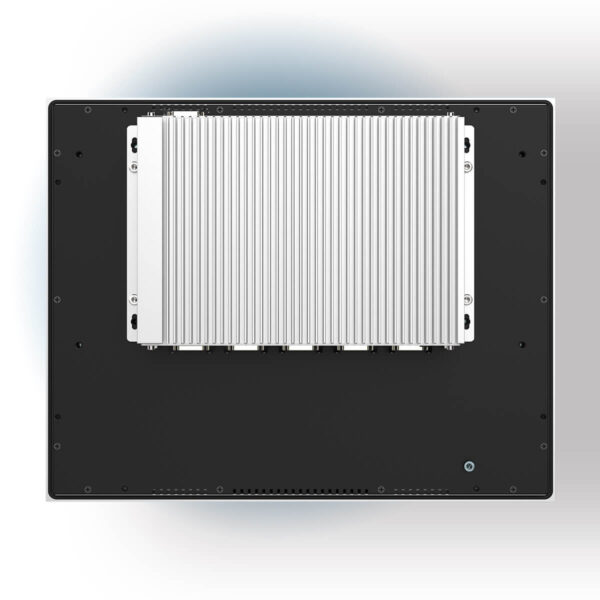

| Cooling System | Large area finned heatsink (Fanless designed) | |
| Mount Method | Panel mount, VESA 75/100 Mount | |
| Power & Environmetal | Humidity | 10 ~ 95% @ 10C (No condensation) |
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | |
| Shock | 10G/Peak (11 ms) | |
| Certificate | CE/FCC/ROHS |
Ordering information
| Part no. | Description |
| TPC-PCS101E1 | 10.1” LCD, WXGA 1280 *800, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS101E1W | 10.1” LCD, WXGA 1280 *800, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS101E1 | 10.1” LCD, WXGA 1280 *800, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS101E1W | 10.1” LCD, WXGA 1280 *800, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS104E1 | 10.4” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS104E1W | 10.4” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS104E1 | 10.4” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS104E1W | 10.4” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS121E1 | 12.1” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS121E1W | 12.1” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS121E1 | 12.1” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS121E1W | 12.1” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS150E1 | 15.0” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS150E1W | 15.0” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS150E1 | 15.0” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS150E1W | 15.0” LCD, XGA 1024 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS156HE1 | 15.6” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS156HE1W | 15.6” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS156HE1 | 15.6” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS156HE1W | 15.6” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS170E1 | 17.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS170E1W | 17.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS170E1 | 17.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS170E1W | 17.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS185E1 | 18.5” LCD, WXGA 1366 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS185E1W | 18.5” LCD, WXGA 1366 *768, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS185E1 | 18.5” LCD, WXGA 1366 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS185E1W | 18.5” LCD, WXGA 1366 *768, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS185HE1 | 18.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS185HE1W | 18.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS185HE1 | 18.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS185HE1W | 18.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS190E1 | 19.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS190E1W | 19.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS190E1 | 19.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS190E1W | 19.0” LCD, SXGA 1280 *1024, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PCS215E1 | 21.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PCS215E1W | 21.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Pcap. Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| TPC-PRS215E1 | 21.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 12V, PSU |
| TPC-PRS215E1W | 21.5” LCD, FHD 1920 *1080, Intel J6412, Quad-core 2.0Ghz, Resistive Touch, 2 GbE, 3 USB3.0, 5 USB2.0, 2 HDMI, 6 COM, DC 9~36V, No PSU by default |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB/32GB |
| Storage | M.2 SSD: 128GB/256GB/512GB |
| 2.5” SATA SSD/HDD | |
| Wireless | Wi-Fi Module, with Antenna |
| Wi-Fi Module with BT Integrated, With Antenna | |
| All Network 4G module, with Antenna | |
| 5G Network module, with Antenna | |
| Power Supply | PSU for TPC-PCS150E1W (If needed) |
| SIM Card holder | SIM Card holder for 3G/4G/5G wireless function |
