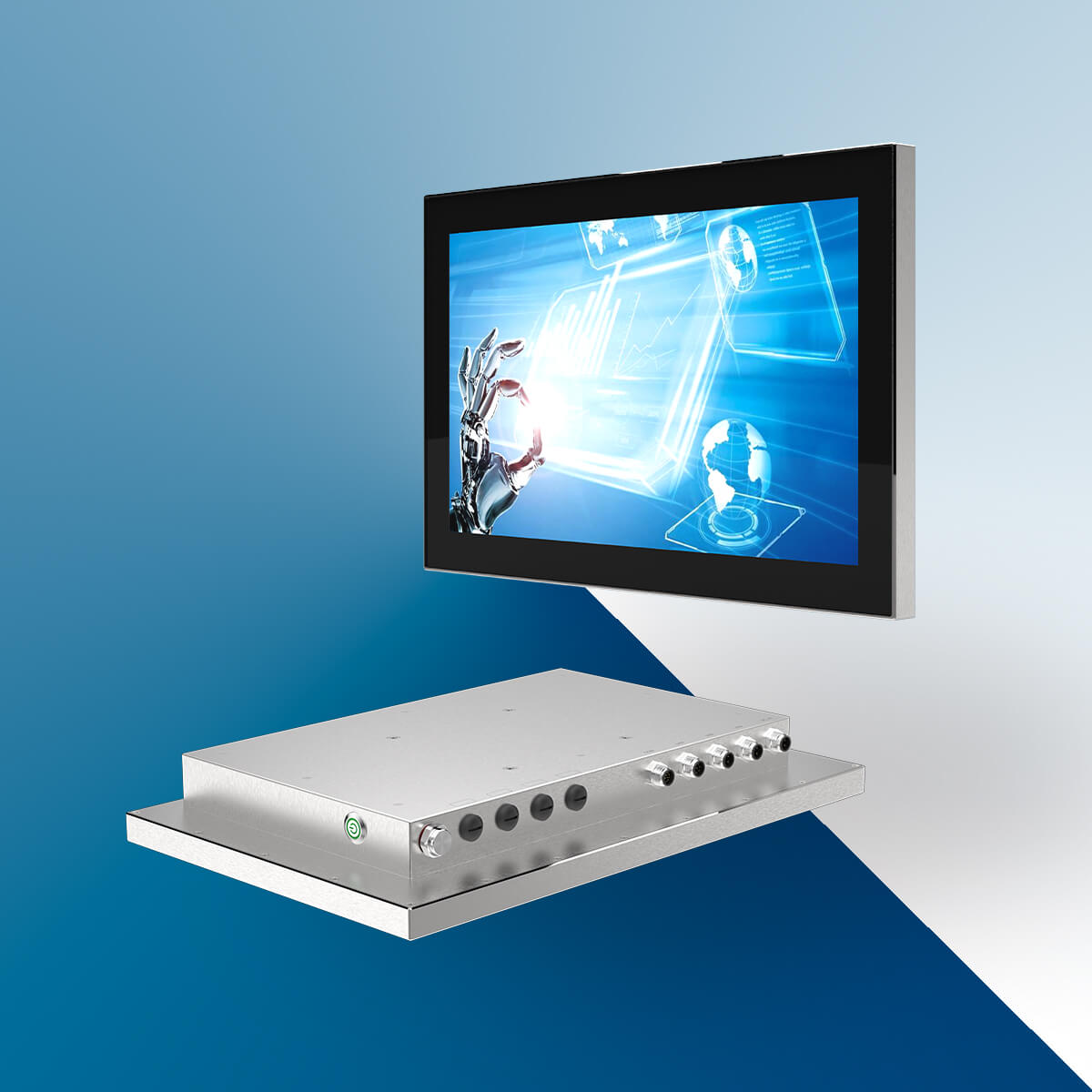

TPC-SCS E1 Series | Full IP66 & IP69K Stainless Steel Panel PC with Intel J6412
– High-strength 304 stainless steel housing; 316 stainless steel optional
– Available with 15.6″ FHD, 21.5″ FHD dimensionS
– Intel Elkhart Lake J6412 quad-core processor @ 2.0GHz
– 10-point projected capacitive touchscreen with EETI touch controller
– Standard DC 12V input; optional 9~36V wide DC power input

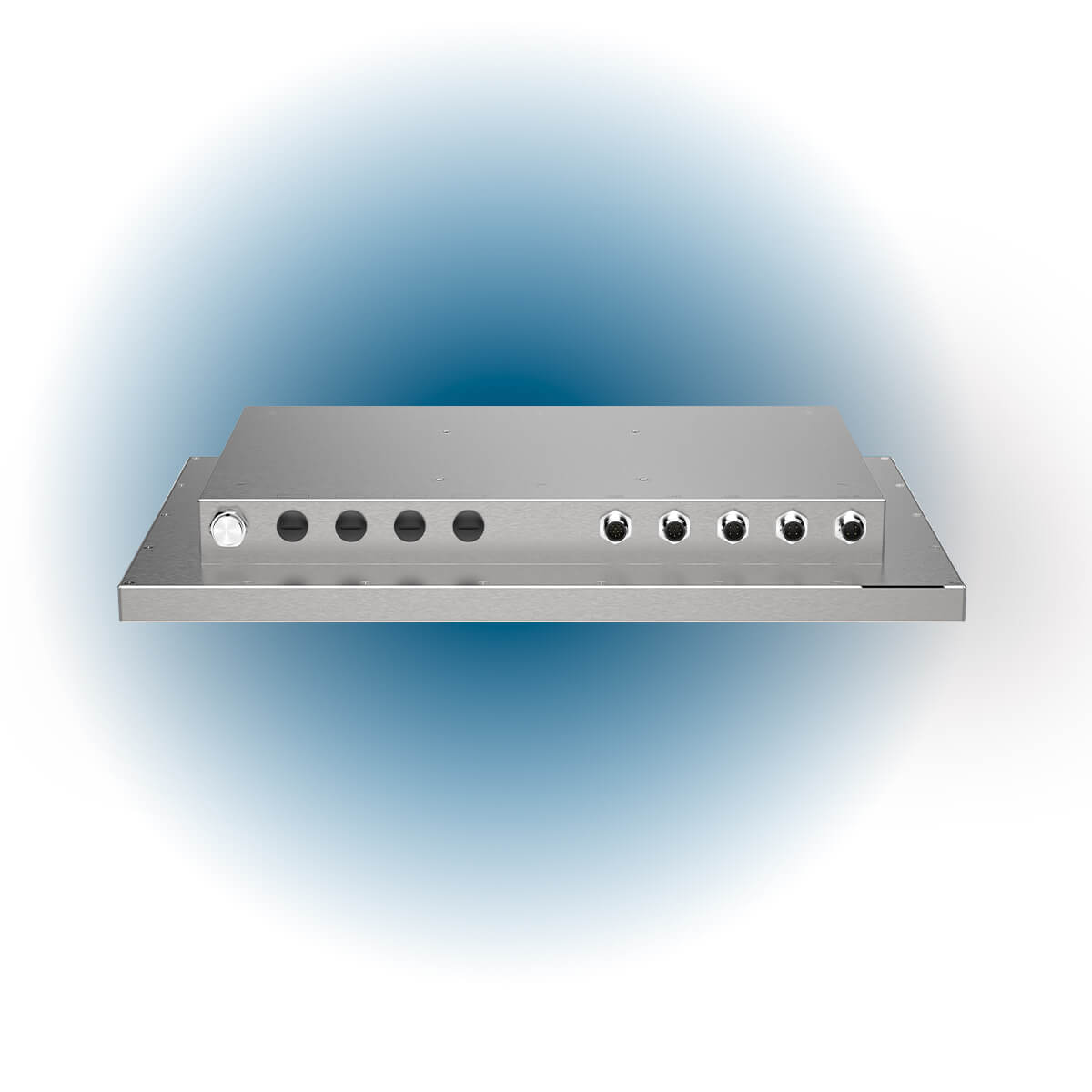

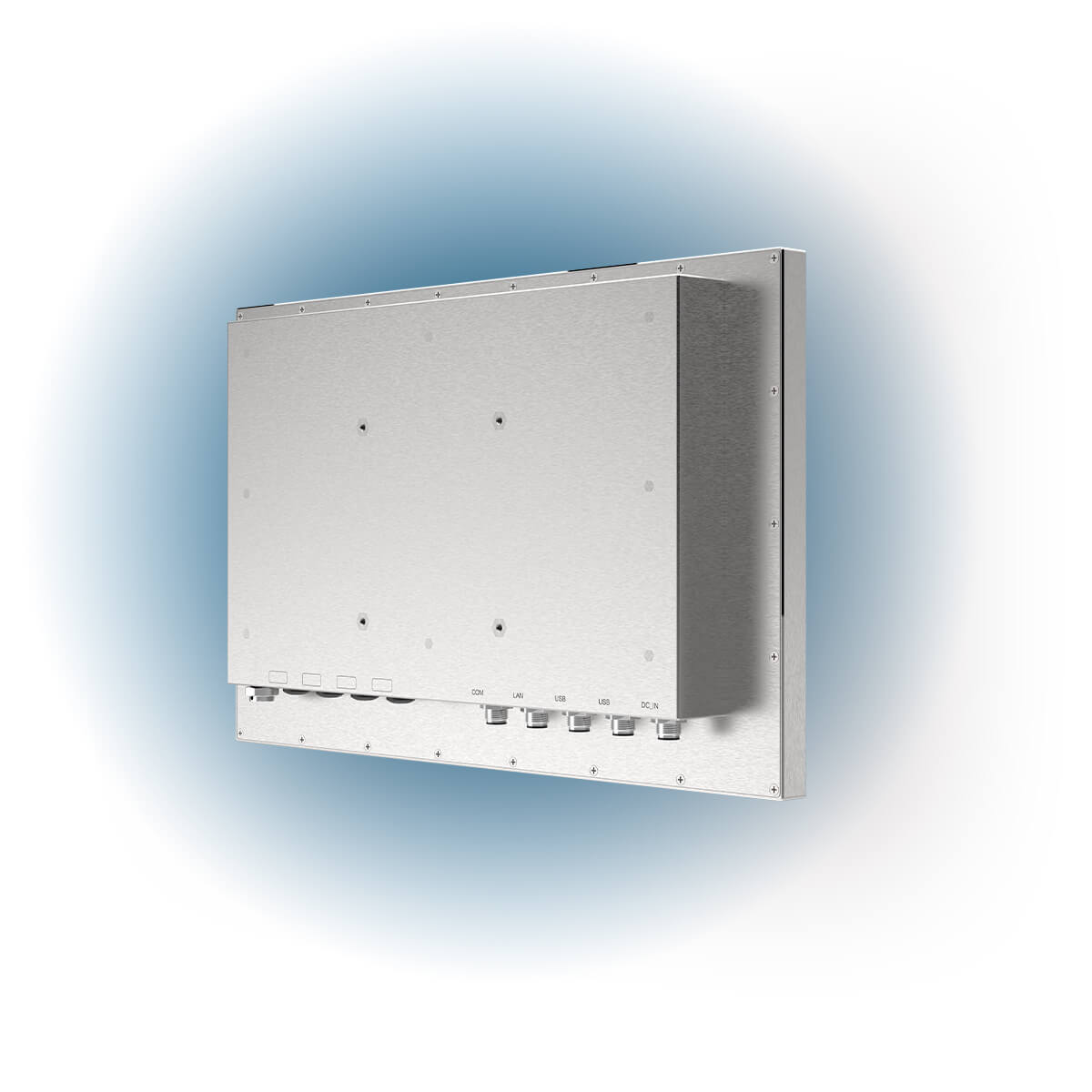

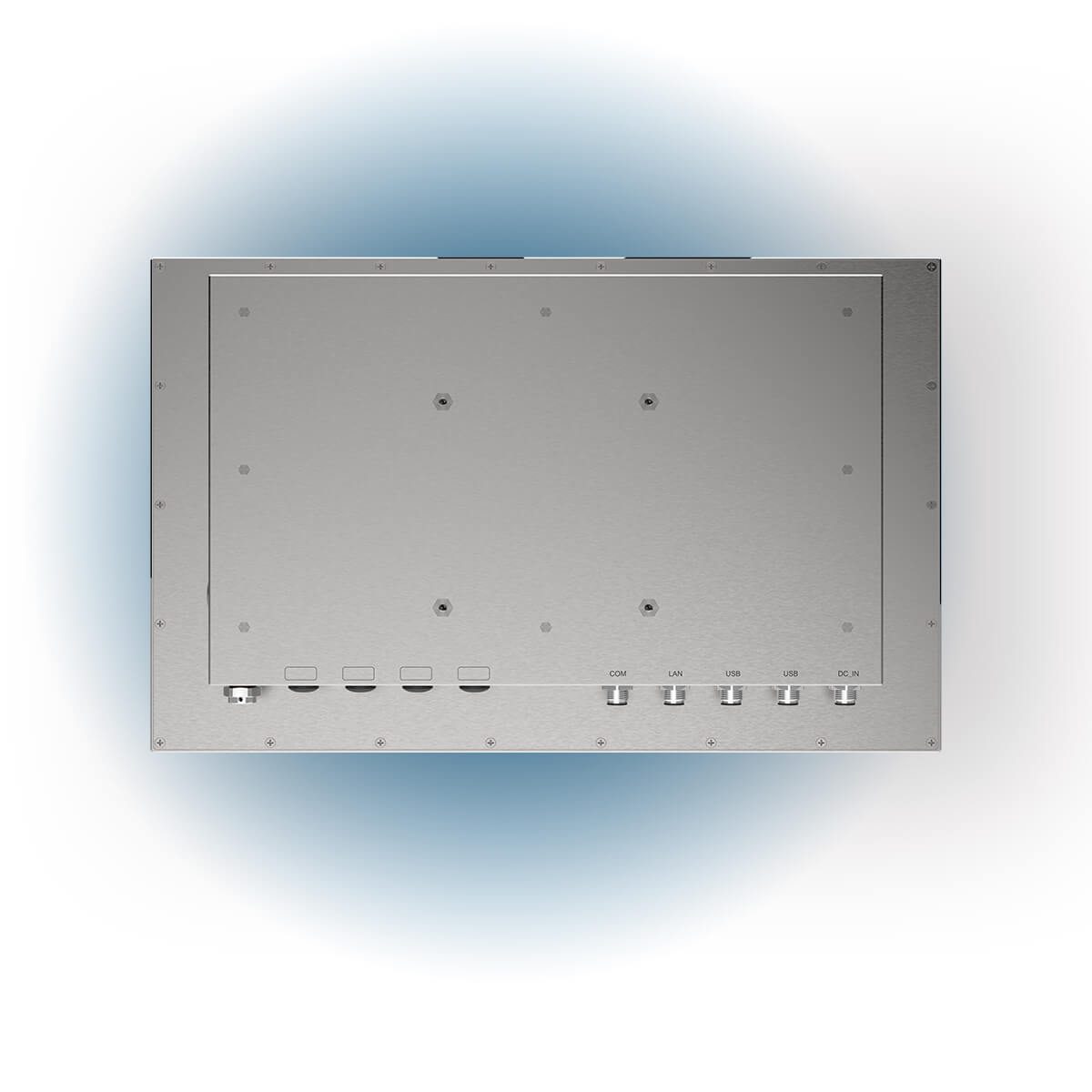

– M12 waterproof connectors: 1×GbE, 2×USB, 1×COM, 1×DC-IN
– Flexible I/O expansion (up to 4 ports), supports GbE / USB / COM
– Intel PTT TPM 2.0, ready for Windows 11
– Fanless slim design with air vent valve for harsh environments
Taicenn TPC-SCS E1 is a Full IP66 & IP69K Stainless Steel Panel PC with Intel J6412 built with a ruggedized design to deliver reliable performance. It supports Windows 10 / 11 operating systems. This waterproof panel PC features advanced capabilities for a wide range of industrial applications, including food & beverage processing, manufacturing operations, cleanroom environments, and more.
Its fully IP66/IP69K-compliant stainless steel construction delivers robust protection against water ingress and harsh chemical cleaners, making it ideally suited for food and beverage production.
This Full IP66 & IP69K Stainless Steel Panel PC with Intel J6412 comes equipped with 1 × RJ45, 2 × USB, 1 × COM and 1 × DC port, all fitted with M12 waterproof connectors. In addition, it supports flexible expansion options to meet diverse I/O requirements, serving as a dependable, high-efficiency computing solution for your harshest industrial environments.
| Hardware & System | BIOS | SPI AMI EEI BIOS | |
| CPU | Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W | ||
| Memory | SO-DIMM, Support DDR4 2666/2933/3200 Mhz, max. up to 32GB | ||
| Storage | 1 M.2 2280 M-key (PCIe x2 Gen.III, NVMe) SSD | ||
| Graphic | Intel UHD Graphics for 10th Gen. Intel processors | ||
| Watchdog | 0 ~ 256 seconds programmable | ||
| OS | Win10, Win11, Linux, Ubuntu | ||
| I/O Interface | COM | 1 RS232 | |
| Ethernet | 1 RJ45 | ||
| USB | 2 USB | ||
| Power | 1 DC-IN | ||

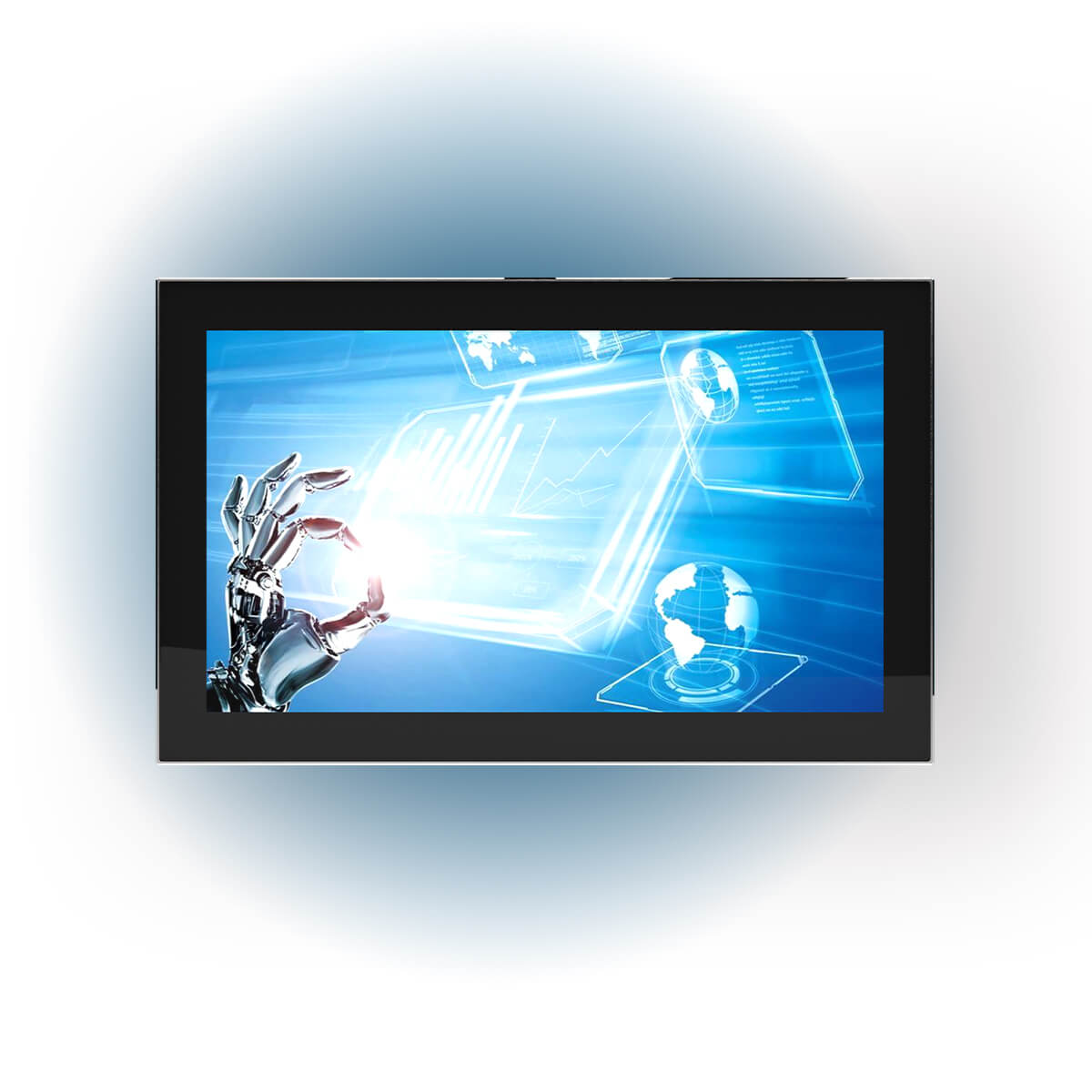

| LCD Display | Size/Type | 15.6” TFT LCD Display | 21.5” TFT LCD Display |
| Resolution | 1920 * 1080 (WXGA) | 1920 * 1080 (WXGA) | |
| Brightness | 450 nits | 250 nits | |
| Backlit & Lifetime | LED Backlit & 50K hours | LED Backlit & 30K hours | |
| Display Area | 344.16 * 193.59 (mm) | 476.64 * 268.11 (mm) | |
| View Angle | 89/89/89/89 | 89/89/89/89 | |
| Touchscreen | Type | Projective capacitive touchscreen | |
| Touch points | Multi points touch, max. up to 10 points | ||
| Durability | >100 000 000 times | ||
| Surface Hardness | MOHS 6H | ||
| Special Treatment | Anti-Fingerprint (AF) | ||
| Structure | Structure & surface | 304 stainless steel material, optional 316 stainless steel material | |
| Mount method | VESA 100 | ||
| Cooling system | Fanless designed with 1 Air vent valve | ||

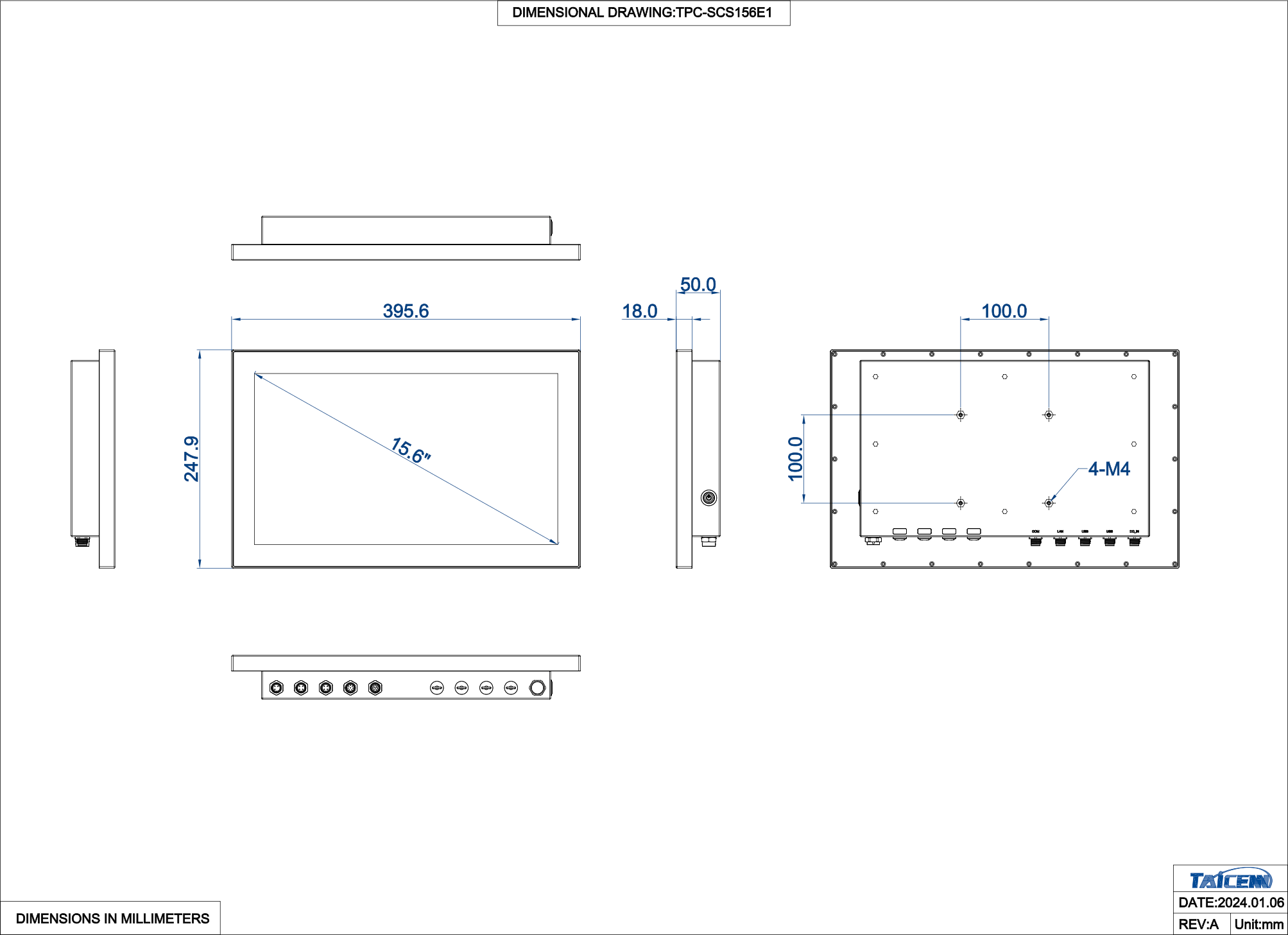

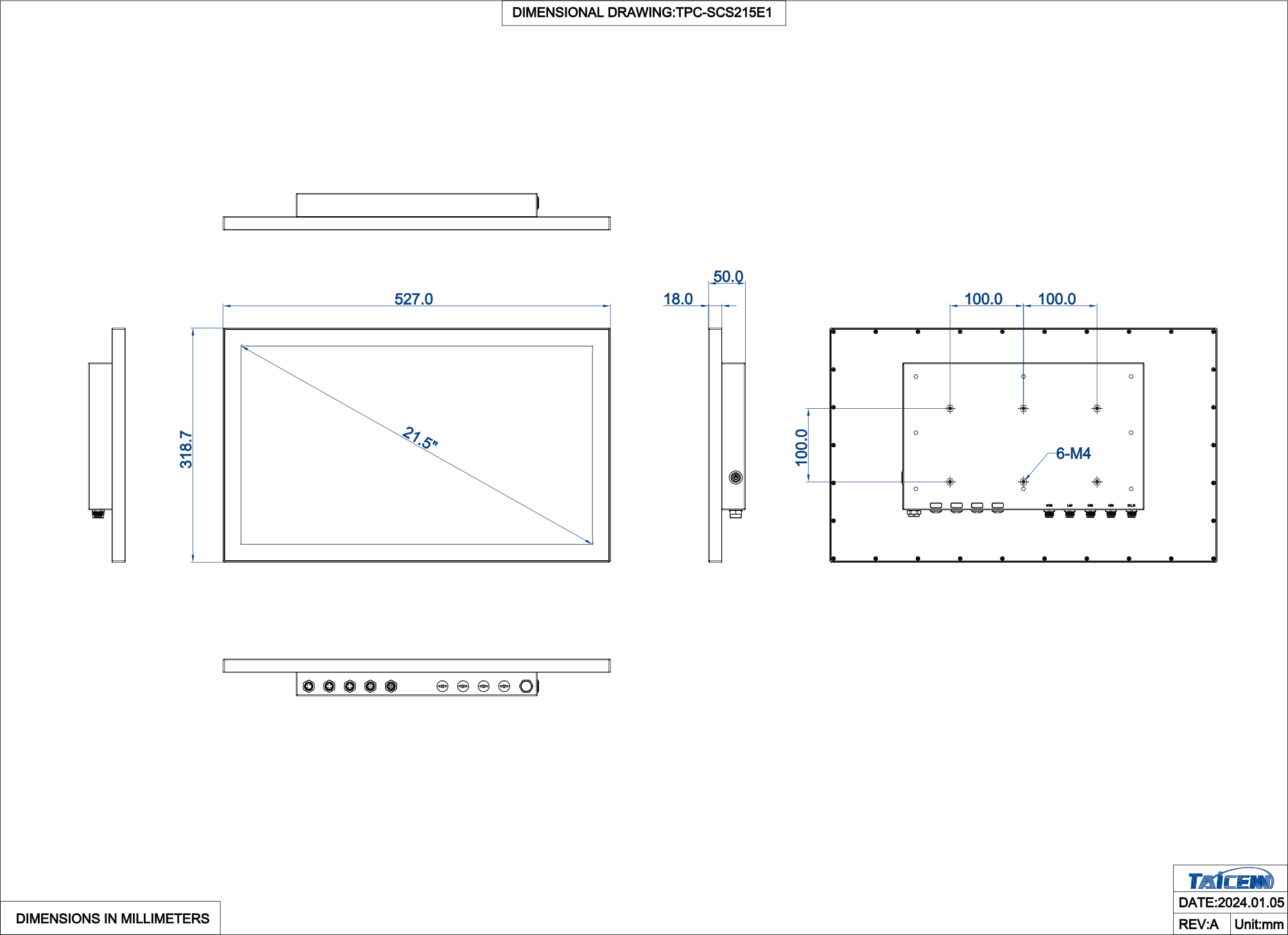

| Overall Dimension | 395.6 * 247.9 * 50.0 (mm) | 527.0 * 318.7 * 50.0 (mm) | |
| Net Weight | 5.6KG | 8.1KG | |
| IP Protection | Full IP66 & IP69K | ||
| Power & Environmental | Operating temp. | -20 ~ + 60 (℃) | 0 ~ + 50 (℃) |
| Storage temp. | -40 ~ + 80 (℃) | -20 to + 60 (℃) | |
| Humidity | 10 ~ 95% @ 10C (No condensation) | ||
| Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak | ||
| Shock | 10G/Peak (11 ms) | ||
| Power input | DC 12V (Optional wide voltage DC 9~36V) | ||
| Power consumption | About 35W | About 40W | |
| Certificate | CE/FCC/ROHS | ||
| Part no. | Description |
| TPC-SCS156HE1 | Full IP66 & IP69K Panel PC, 15.6” LCD, FHD 1920 *1080, Intel J6412, Pcap. Touch, 1 GbE, 2 USB, 1 COM, DC 12V, PSU |
| TPC-SCS156HE1W | Full IP66 & IP69K Panel PC, 15.6” LCD, FHD 1920 *1080, Intel J6412, Pcap. Touch, 1 GbE, 2 USB, 1 COM, DC 9 to 36V, No PSU by default |
| TPC-SCS215E1 | Full IP66 & IP69K Panel PC, 21.5” LCD, FHD 1920 *1080, Intel J6412, Pcap. Touch, 1 GbE, 2 USB, 1 COM, DC 12V, PSU |
| TPC-SCS215E1W | Full IP66 & IP69K Panel PC, 21.5” LCD, FHD 1920 *1080, Intel J6412, Pcap. Touch, 1 GbE, 2 USB, 1 COM, DC 9 to 36V, No PSU by default |
| Optional Accessories | Description |
| Memory | SO-DIMM, DDR4, 4GB/8GB/16GB |
| Storage | M.2 SSD: 128GB/256GB/512GB |
| Power Supply | Optional PSU (If needed) |
| Description | Download link |
| TPC-SCS156HE1 V3.2 EN Datasheet | https://www.taicenn.com/pdf/TPC_SCS156HE1_EN_V32_Datasheet_250704.PDF |
| TPC-SCS215E1 V3.2 EN Datasheet | https://www.taicenn.com/pdf/TPC_SCS215E1_EN_V32_Datasheet_250704.PDF |
