Powerful Computing & Expandable | Modular Panel PC TPC-PCT&PRT Series

Newest Intel Platform Panel PC for Any Industrial Application

TPC-PCT/PRT Series is modular concept designed HMI systems powered by Intel® CPU platforms. It can deliver abundant and flexible IO specification, and rich expansion slots (2x M.2 Key slots and 1x Mini-PCIe slot) to fulfill the needs of industrial computing tasks. TPC-PCT/PRT series support panel mount and VESA mount.

Rich I/O Expandable Panel PC | TPC-PCT&PRT T Series

with Intel 11th Gen. Tiger Lake UP3 Core i3/i5/i7 Platform

Basic Introduction

The TAICENN panel PC TPC-PCT&PRT T series is a ruggedized, fanless & cableless design with TAICENN modular LCD display modules from 15.0″ to 23.8″ that’s to provide the most stable and reliable product solution for industrial HMI applications. It is modular designed and manufactured by both Pcap. touch & Resistive touch display modules and computer modules. The TPC-PCT&PRT T series is powered by Intel’s 11th Gen. Intel Tiger Lake UP3 SoC super high computing platform (Core i3-1115G4, Core i5-1135G7, Core i7-1165G7) processors for power-efficiency performance. The integrated Intel Iris Xe Graphics built with innovative GPU architecture are able to optimize image and video handling capabilities. This rich IO configured Panel PC TPC-PCT&PRT T series have more IO interfaces, including 2 GbE, 2 USB3.1, 2 USB3.0, 1 USB-C (USB3.1&DP1.4a), 6 COM, 1 HDMI, 1 DP, Audio.
The TPC-PCT&PRT T industrial HMI embedded system series support TPM2.0 (PTT2.0) and Windows 11 Operating systems, and 2* M.2 high speed and 1* Mini-PCIe expansional modules to supports WiFI/BT, 3G/4G, and 5G cellular connectivity. It’s an ideal Panel PCs solution with abundant IO connections for various of industrial projects, including Machine-to-Machine (M2M), smart building automation, industrial automation, Industrial Internet of Things (IIoT), smart manufacturing, industry 4.0, commercial automation.

Key features

● Intel 11th Gen. Tiger Lake UP3 Core i3/i5/i7 processors;
● 2* DDR4 memory, up to 64GB, 1* M.2 2280 (NGFF) storage;
● Pcap. touch available dimensions: 15.0″, 15.6″, 17.0″, 18.5″, 19.0″, 21.5″ and 23.8″;
● Resistive touch available dimensions: 15.0″, 15.6″, 17.0″, 18.5″, 19.0″, 21.5″ ;
● Aluminum-magnesium alloy, anodized treatment, Modular designed;
● Wide DC 9~36V power input range;
● IO: 2*GLAN, 2*USB3.1, 2* USB3.0, 6*COM (DB9), 1*HDMI, 1*DP, Audio;
● Optional IO: 2* CAN ports (via DB9), 8* GPIO ports (via DB9);
● 1* USB-Type C (USB3.1 & DP1.4a), 1* SW Remote Switch;
● Intel PTT TPM2.0, support Windows 11;
● Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

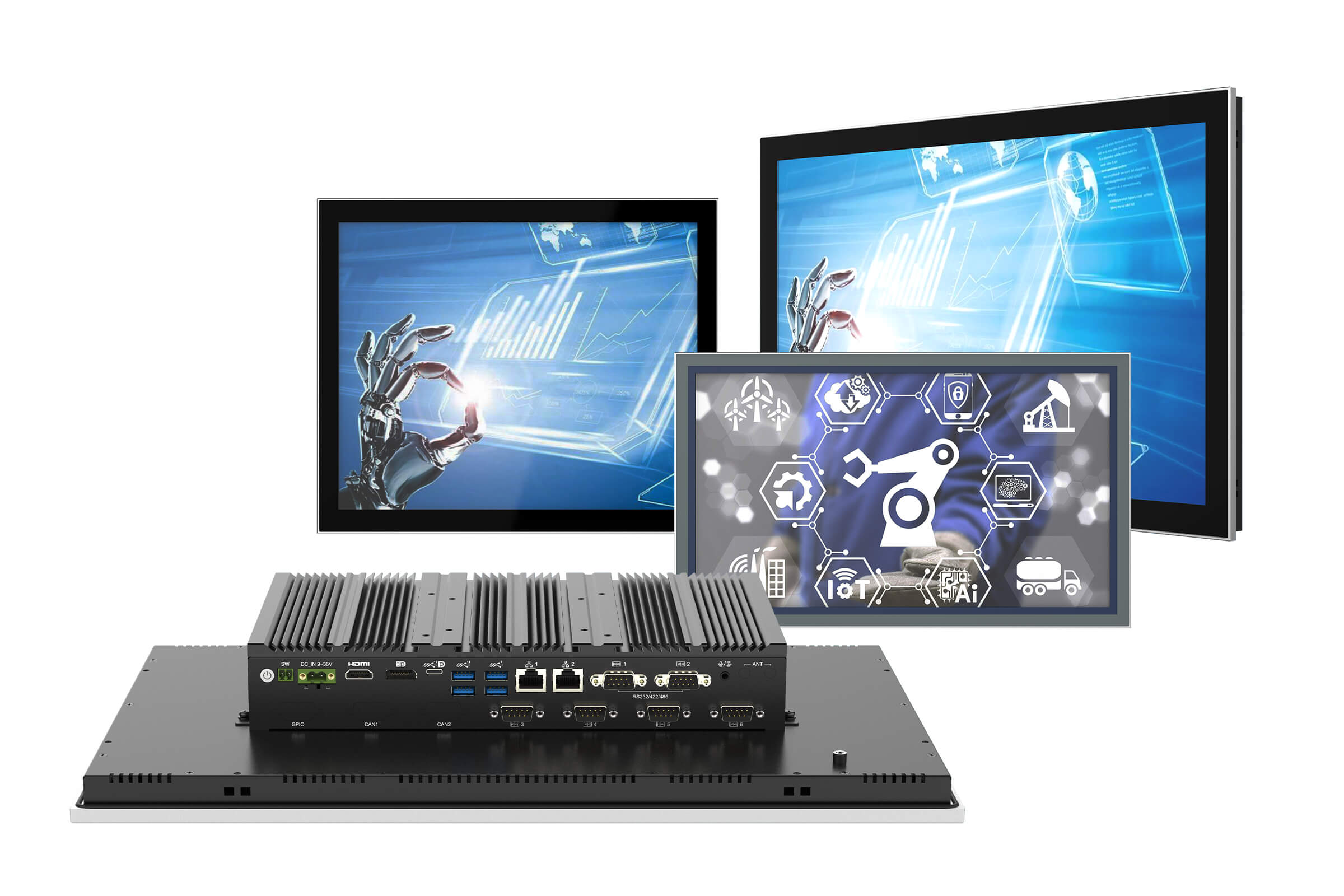

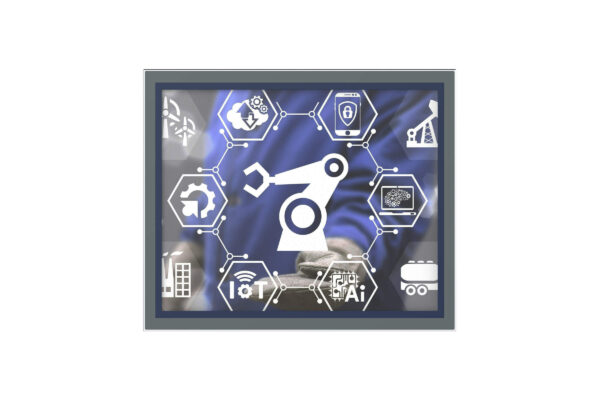

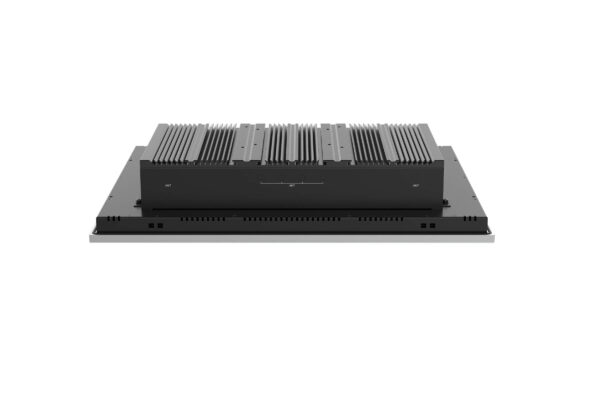

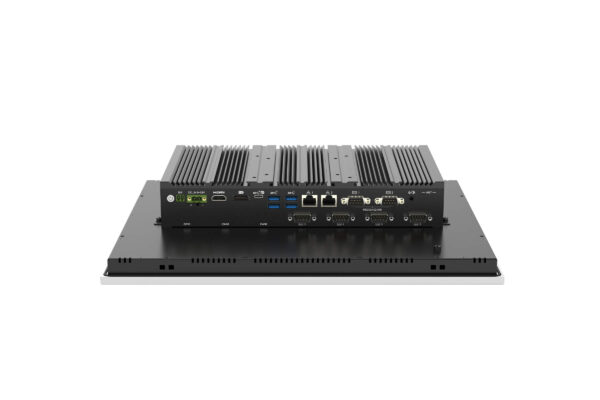

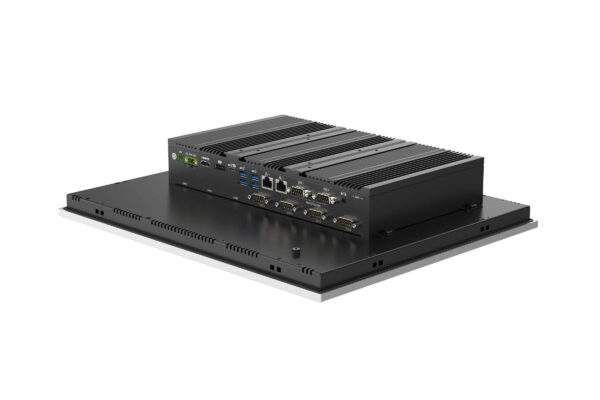

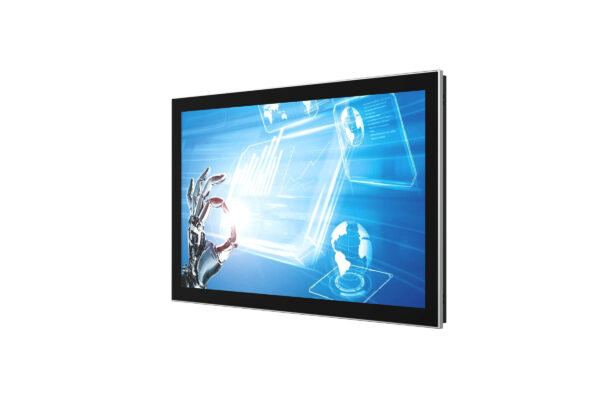

TPC-PCT&PRT T series Image

TAICENN Panel PCs are Built for Long-Term Operation in the Most Demanding industrial site Environments, built to reliably withstand the rigors of 24/7 operation period. Taicenn’s industrial touch panel PCs deliver reliable quality and stable operation. Each Expandable Touch Panel PC HMI PC’s interior comprises high-quality industrial-grade components designed to stand the test of time operating in harsh environments.
